HAL refactoring

Central HAL include file added

To improve the usability and maintainability of the HAL library, a new central include file, stm32_hal.h, has been introduced in HAL2. This file serves as a unified entry point for all STM32 series, simplifying the inclusion process and making the HAL more flexible across different series. The following table summarizes the key differences between HAL1 and HAL2.

Differences in include files between HAL1 and HAL2

Feature

HAL1

HAL2

Entry point header file

stm32tnxx_hal.h, where tn stands for the name of the STM32 series (for instance, stm32c5xx_hal.h) serves as the unique application entry point header file to the HAL library. It is the only header file that must be included by the application file.

stm32_hal.h is the unique entry point header file for any application using the HAL, without the name of the series.

Inclusion

The stm32tnxx_hal.h file includes the stm32tnxx_hal_conf.h HAL configuration file, which includes all stm32tnxx_hal_ppp.h HAL driver header files under their respective HAL_PPP_MODULE_ENABLED module-enabling define statements.

The stm32_hal.h file includes the stm32tnxx_hal.h file first and then all stm32tnxx_hal_ppp.h HAL PPP modules under their respective USE_HAL_PPP_MODULE module-enabling define statements.

Module-enabling define statements

The HAL_PPP_MODULE_ENABLED define statements must be set in the stm32tnxx_hal_conf.h file.

The USE_HAL_PPP_MODULE define statements must be set in the stm32tnxx_hal_conf.h file.

Key reasons for the change:

  • Series agnosticism: by removing the series name from the HAL entry point header file, the HAL becomes independent of the STM32 series. This means users no longer need to modify their application source code to update the series name when switching between different STM32 series. Instead, they can simply adjust the project path in their IDE.

  • Simplified configuration: the stm32tnxx_hal_conf.h HAL configuration file now exclusively contains configuration defines, including the USE_HAL_PPP_MODULE define statements to enable specific HAL PPP modules. The actual inclusion of the HAL PPP module headers (stm32tnxx_hal_ppp.h) has been moved to stm32_hal.h, conditioned by the USE_HAL_PPP_MODULE defines statement, reducing clutter and improving modularity in the configuration file.

Central LL include file added

In HAL2, a new header file, stm32_ll.h, is introduced as a single inclusion entry point for all LL driver header files. The file name is series-agnostic and provided as a template. Users can either copy this template into their application for standalone use or have STM32CubeMX2 create it during code generation.

For standalone use, the stm32_ll.h template includes all LL driver header files for the series. Users may use the file as is, including all LL drivers, or customize it to include only the required drivers. When generated by STM32CubeMX2, the file contains only the selected LL driver components.

/*** @file    stm32_ll.h
...
/* Define to prevent recursive inclusion -------------------------------------*/
#ifndef STM32_LL_H
#define STM32_LL_H

#ifdef __cplusplus
extern "C" {
#endif

/* Includes ------------------------------------------------------------------*/
#include "stm32u5xx_ll_adc.h"
#include "stm32u5xx_ll_bus.h"
#include "stm32u5xx_ll_comp.h"
#include "stm32u5xx_ll_cordic.h"
#include "stm32u5xx_ll_crc.h"
#include "stm32u5xx_ll_crs.h"
#include "stm32u5xx_ll_dac.h"
#include "stm32u5xx_ll_dcache.h"
#include "stm32u5xx_ll_dma.h"
#include "stm32u5xx_ll_dma2d.h"
#include "stm32u5xx_ll_exti.h"
#include "stm32u5xx_ll_fmac.h"
#include "stm32u5xx_ll_gpio.h"
#include "stm32u5xx_ll_gtzc.h"
#include "stm32u5xx_ll_i2c.h"
#include "stm32u5xx_ll_icache.h"
#include "stm32u5xx_ll_iwdg.h"

#endif /* STM32_LL_H */

Platform file added

When using the HAL or/and LL drivers, several defines must be provided to adapt internal and external oscillator values, as well as system configurations. These include:

  • Internal oscillator values, such as HSI and MSI.

  • External oscillator values, such as HSE and LSE.

  • System configuration: values like VDD_VALUE.

In HAL1, these defines were provided and customizable in the stm32tnxx_hal_conf.h file. In HAL2, a new file, stm32_external_env.h, is introduced as a template containing platform-specific parameters, including external oscillator values. This file is included in stm32tnxx.h when the USE_EXTERNAL_ENV switch is enabled. The USE_EXTERNAL_ENV define must be set in the project preprocessor when needed.

To simplify configuration, all internal oscillator values are now defined in the CMSIS device file ( stm32u575xx.h, for example). Consequently, the stm32tnxx_hal_conf.h file in HAL2 contains only HAL-specific configuration define statements.

Note

As we moved internal oscillator values inside the CMSIS device file and external ones to stm32_external_env.h, these defines are removed from HAL and LL files such as stm32tnxx_ll_rcc.h. The HAL and LL RCC still use these oscillator values, but they are defined in the CMSIS device files or in stm32_external_env.h. This reorganization ensures a cleaner separation of STM32 device-specific parameters, platform (boards) specific parameters, and HAL-specific configuration, improving maintainability and clarity.

Important

The stm32_external_env.h is not part of the HAL pack; it is rather provided as a template in the DFP pack. It shall then be copied once to the user example or application and updated as per the platform specifications.

Refactor the HAL inclusion model.

The HAL1 and HAL2 inclusion models for STM32 microcontrollers differ primarily in their structure and inclusion mechanisms. HAL1 uses stm32tnxx_hal.h as the entry point, enabling PPP modules through the configuration file stm32tnxx_hal_conf.h under their respective HAL_PPP_MODULE_ENABLED defines set in the same stm32tnxx_hal_conf.h file.

In contrast, HAL2 uses stm32_hal.h as the entry point, with a more structured inclusion order and additional conditional flags ( USE_HAL_MUTEX, USE_ASSERT_DBG_PARAM, USE_ASSERT_DBG_STATE, USE_HAL_PPP_MODULE) to include specific files like stm32_hal_os.h, stm32_assert.h, and the various stm32tnxx_hal_ppp.h modules. The activation of the conditional defines USE_HAL_MUTEX and USE_HAL_PPP_MODULE is done through the configuration file stm32tnxx_hal_conf.h. The activation of the defines USE_ASSERT_DBG_PARAM and USE_ASSERT_DBG_STATE shall be done, if needed, in the IDE pre-processor settings.

In HAL2, user configuration is propagated through stm32tnxx_hal_def.h that includes stm32tnxx_hal_conf.h.

In HAL2, the stm32tnxx_ll_ppp.c files have been removed, and users shall resort to an equivalent sequence of LL static inline functions provided within stm32tnxx_ll_ppp.h to perform the equivalent of LL_PPP_Init and LL_PPP_DeInit. STM32CubeMX2 can be utilized to generate these LL PPP initialization and deinitialization sequences.

In HAL2, the stm32tnxx_hal_ppp_ex.h modules have been removed, and the equivalent of their content APIs merged inside the corresponding stm32tnxx_hal_ppp.h.

Both HAL1 and HAL2 provide stm32_assert.h as a customizable template. HAL2 provides additional template files such as stm32_ll.h and utilizes an additional stm32_external_env.h template file that is provided by the DFP.

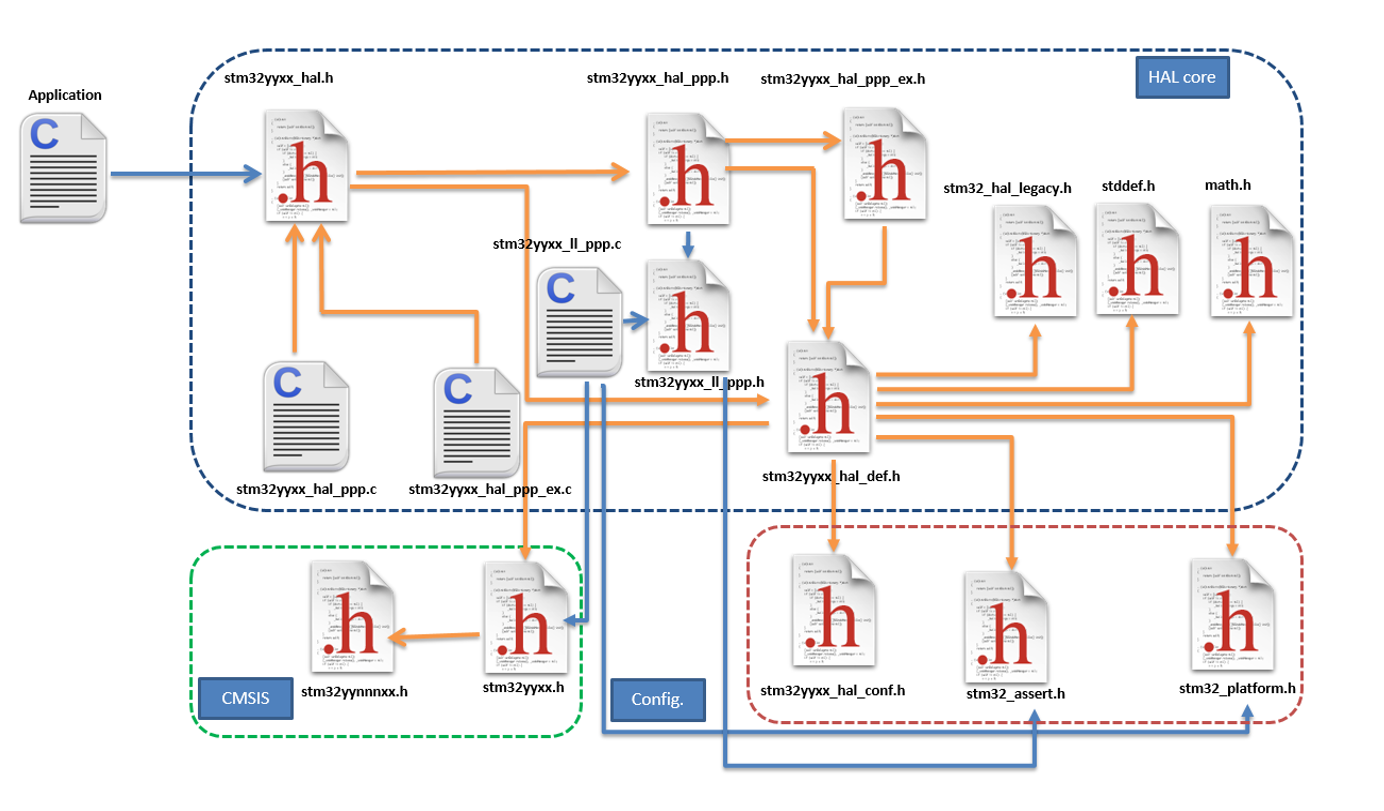

HAL1 Inclusion Model

HAL1 inclusion model

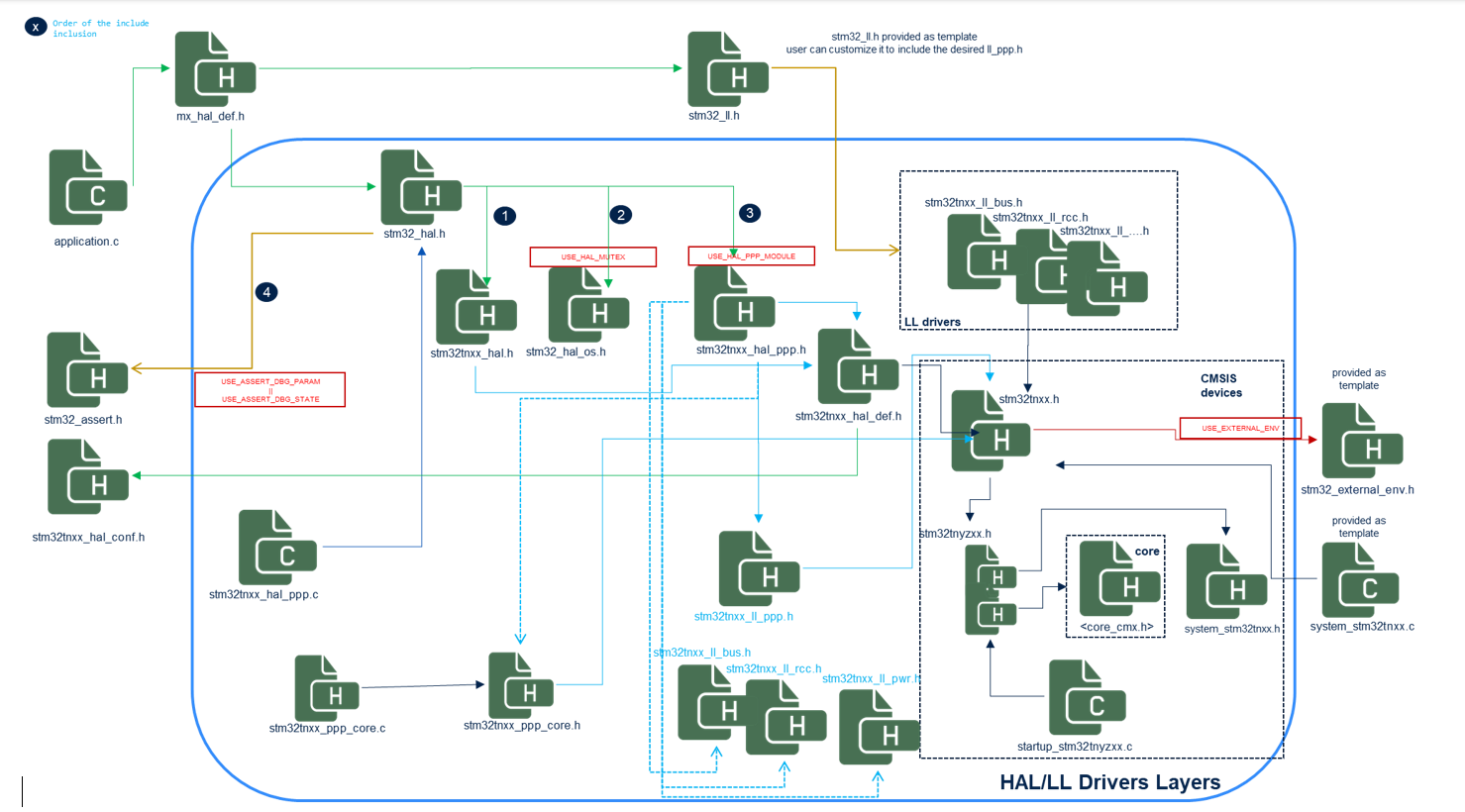

HAL2 Inclusion Model

HAL1 inclusion model

Remove the global Msp file.

In HAL1, the functions HAL_MspInit and HAL_MspDeInit are respectively called from HAL_Init and HAL_DeInit. These functions are provided as weak callbacks to be implemented by the user to perform system-level initializations (Clock, GPIOs, interrupts).

Additionally, each HAL PPP driver provides dedicated HAL_PPP_MspInit and HAL_PPP_MspDeInit callbacks that are respectively called from HAL_PPP_Init and HAL_PPP_DeInit. These functions are provided as weak callbacks to be implemented by the user to perform peripheral-level initializations (Peripheral Clock, GPIOs, DMA, and interrupts).

The stm32tnxx_hal_msp_template.c file was provided as a template file to be copied to the user application folder or generated by STM32CubeMX2. It contains the implementation of the MSP initialization and de-initialization functions.

In HAL2, all the MspInit and MspDeInit functions are removed, including the global ones and the PPP ones. The equivalent of the global MSP Init and DeInit are generated by STM32CubeMX2 respectively after the generated call to HAL_Init and HAL_DeInit (without using any callback). The equivalent of the peripheral MSP Init and DeInit are generated by STM32CubeMX2 respectively after the generated call to HAL_PPP_Init and HAL_PPP_DeInit (without using a callback). The file stm32tnxx_hal_msp_template.c is no longer used and has been removed.

Cleanup the HAL configuration file

In HAL2, The HAL configuration file stm32tnxx_hal_conf.h contains only the defines allowing the configuration of the HAL drivers.

Comparative Table for HAL1 and HAL2 Configuration Files

Feature

HAL1

HAL2

Enabling Defines for HAL PPP Modules

Various enabling defines for selected HAL PPP modules, e.g., HAL_ADC_MODULE_ENABLED.

Various enabling defines for selected HAL PPP modules, e.g., USE_HAL_ADC_MODULE..

Oscillators and HW Configuration Defines

Defines related to oscillators and HW configuration, e.g., HSE_VALUE, HSE_VALUE

Internal oscillator and voltage values (e.g., HSI_VALUE) moved inside the CMSIS device file stm32tnyzxx.h. External ones (e.g., HSE_VALUE) to stm32_external_env.h.

Tick Interrupt Priority

TICK_INT_PRIORITY

USE_HAL_TICK_INT_PRIORITY.

Assert Selection

USE_FULL_ASSERT

USE_FULL_ASSERT replaced by USE_ASSERT_DBG_PARAM and USE_ASSERT_DBG_STATE. These defines are no longer in the HAL configuration file. They are to be set in the IDE pre-processor settings if needed.

HAL PPP Features Enabling Defines

e.g., USE_HAL_ADC_REGISTER_CALLBACKS, USE_SPI_CRC

e.g., USE_HAL_ADC_REGISTER_CALLBACKS, USE_HAL_SPI_CRC

HAL PPP Modules Inclusion

Example:

#ifdef HAL_ADC_MODULE_ENABLED
#include "stm32u5xx_hal_adc.h"
#endif /* HAL_ADC_MODULE_ENABLED */

stm32tnxx_hal_ppp.h inclusion done inside stm32_hal.h. under the USE_HAL_PPP_MODULE conditional defines. no longer in the stm32tnxx_hal_conf.h.

Assert Macro

Example:

#ifdef USE_FULL_ASSERT

#define assert_param(expr) (..)

void assert_failed(uint8_t *file, uint32_t line);

#else

#define assert_param(expr) ((void)0U)

#endif /* USE_FULL_ASSERT */

The assert macros are available in the stm32_assert.h as follows:

#if defined(USE_ASSERT_DBG_PARAM)

#define ASSERT_DBG_PARAM(expr) (..)

void assert_dbg_param_failed(uint8_t *file, uint32_t line);

#else

#define ASSERT_DBG_PARAM(expr) ((void)0U)

#endif /* USE_ASSERT_DBG_PARAM */

#if defined(USE_ASSERT_DBG_STATE)

#define ASSERT_DBG_STATE(__STATE__,__VAL__) (..)

void assert_dbg_state_failed(uint8_t *file, uint32_t line);

#else

#define ASSERT_DBG_STATE(__STATE__,__VAL__) ((void)0U)
#endif /* USE_ASSERT_DBG_STATE */

Vital Parameter Run-Time Check

None

USE_HAL_CHECK_PARAM and USE_HAL_SECURE_CHECK_PARAM: Enables or disables runtime parameter checks.

Merge HAL extension files with common ones and remove the EX prefix from APIs.

In HAL2, the stm32tnxx_hal_ppp_ex.h modules have been removed, and the equivalent of their content APIs merged inside the corresponding stm32tnxx_hal_ppp.h.

Example:

HAL Version

File

API

HAL1

stm32u5xx_i2c_ex.h

HAL_I2CEx_ConfigAnalogFilter(..)

HAL2

stm32u5xx_i2c.h

HAL_I2C_EnableAnalogFilter(..) and HAL_I2C_DisableAnalogFilter(..)

Rename LL core drivers to stm32_ppp_core.h/.c to avoid confusion with user LL drivers.

In HAL1, core drivers are designed to provide a common implementation of peripherals that are used by several HAL drivers.

Example: stm32tnxx_ll_usb.c is the core driver abstracting the access of the USB OTG peripheral for HAL PCD and HAL HCD drivers.

Core drivers are not made to be used by the user application directly. The user application shall resort to the required HAL driver that is on top of the given LL core driver.

In HAL2, to avoid confusion between user LL drivers and the core drivers, these latter driver files are renamed to stm32tnxx_ppp_core.c/h (i.e., removing the term LL).

Example: The stm32tnxx_ll_usart.h is a user LL driver and is not impacted by this change.

The below table gives the list of core drivers (impacted by this file renaming) and the correspondence between HAL1 and HAL2:

Peripheral

Used in HAL driver

HAL1 core driver file naming

HAL2 core driver file naming

Delay Block

QSPI/OSPI/SD/MMC

stm32tnxx_ll_dlyb.c/.h

stm32tnxx_dlyb_core.c/.h

FMC/FSMC

SRAM/SDRAM/NOR/NAND

stm32tnxx_ll_fmc.c/.h

stm32tnxx_ll_fsmc.c/.h

stm32tnxx_fmc_core.c/.h

stm32tnxx_fsmc_core.c/.h

SDMMC

SD/MMC/SDIO

stm32tnxx_ll_sdmmc.c/.h

stm32tnxx_sdmmc_core.c/.h

USB OTG

PCD/HCD

stm32tnxx_ll_usb.c/.h

stm32tnxx_usb_core.c/.h

Cleanup stm32tnxx_hal.c/h and move HAL module includes to stm32_hal.h

As detailed in section Migration example, in HAL1 the stm32_hal.h is the unique entry point header file for any application using the HAL drivers. the stm32_hal.h includes the stm32tnxx_hal.h first, then all HAL PPP modules stm32tnxx_hal_ppp.h under their respective module enabling defines USE_HAL_PPP_MODULE.

In HAL2, the stm32tnxx_hal.c/h module is kept and cleaned as follows:

  • The stm32tnxx_hal module is limited to the following services:

    • HAL Init and De-Init

    • Tick/Time base management

    • An API to retrieve the device unique ID

    • An API to retrieve the HAL version

    hal_status_t HAL_Init(void);
void HAL_Delay(uint32_t Delay);
hal_status_t HAL_DeInit(void);
hal_status_t HAL_InitTick(hal_tickFreq_t tick_freq, uint32_t tick_priority);
uint32_t HAL_GetTick(void);
uint32_t HAL_GetTickPrio(void);
hal_tickFreq_t HAL_GetTickFreq(void);
void HAL_SuspendTick(void);
void HAL_ResumeTick(void);
uint32_t HAL_GetVersion(void);
hal_status_t HAL_GetDeviceUniqueID(hal_device_uid_t *uid);

  • The specific STM32 device services APIs such as DBGMCU, SYSCFG, VREFBUF, and EXTI are no longer provided within the stm32tnxx_hal module. Instead, they are offered by the following modules:

    • The APIs related to the DBGMCU are provided by the HAL module: stm32tnxx_hal_dbgmcu.h/.c

    • The APIs related to the SBS are provided by the HAL module: stm32tnxx_hal_sbs.h/.c

    • The APIs related to the SYSCFG are provided by the HAL module: stm32tnxx_hal_syscfg.h/.c

    • The APIs related to the VREFBUF are provided by the HAL module: stm32tnxx_hal_vrefbuf.h/.c (note that the VREFBUF APIs are now prefixed by HAL_VREFBUF_XXX without the SYSCFG mention)

    • ART/PREFETCH APIs are available within the HAL flash module

    • EXTI APIs are provided by the HAL_EXTI driver.

Rework the HAL time base to provide ready-to-use timebase patterns based on TIM, RTC ALARM, and RTC Wakeup.

HAL time base services

For both HAL1 and HAL2, the HAL time base management is built by default on the systick and based on the following HAL services that are all defined as weak in the stm32tnxx_hal module, so user can override them to use his own time base.

HAL Time Base Management

HAL1

HAL2

typedef enum
{
  HAL_TICK_FREQ_10HZ         = 100U,
  HAL_TICK_FREQ_100HZ        = 10U,
  HAL_TICK_FREQ_1KHZ         = 1U,
  HAL_TICK_FREQ_DEFAULT      = HAL_TICK_FREQ_1KHZ
} HAL_TickFreqTypeDef;

/* HAL tick counter current value (unit: ms) */
__IO uint32_t            uwTick;
/* HAL tick interrupt current priority */
uint32_t                 uwTickPrio;
/* HAL tick current frequency */
HAL_TickFreqTypeDef      uwTickFreq;

__weak HAL_StatusTypeDef HAL_InitTick(uint32_t TickPriority);


__weak void HAL_IncTick(void);

__weak void HAL_Delay(uint32_t Delay);

__weak uint32_t HAL_GetTick(void);

uint32_t HAL_GetTickPrio(void);

HAL_StatusTypeDef HAL_SetTickFreq(HAL_TickFreqTypeDef Freq);


HAL_TickFreqTypeDef HAL_GetTickFreq(void);

__weak void HAL_SuspendTick(void);

__weak void HAL_ResumeTick(void);

typedef enum
{
  HAL_TICK_FREQ_10HZ         = 100U,
  HAL_TICK_FREQ_100HZ        =  10U,
  HAL_TICK_FREQ_1KHZ         =   1U,
  HAL_TICK_FREQ_DEFAULT      = HAL_TICK_FREQ_1KHZ
} hal_tick_freq_t;

/* HAL tick counter current value (unit: ms) */
volatile uint32_t        uwTick;
/* HAL tick interrupt current priority */
uint32_t                 uwTickPrio;
/* HAL tick current frequency */
hal_tick_freq_t          uwTickFreq;

__WEAK hal_status_t HAL_InitTick(hal_tick_freq_t tick_freq,
                                 uint32_t tick_priority);

__WEAK void HAL_IncTick(void);

__WEAK void HAL_Delay(uint32_t delay_ms);

__WEAK uint32_t HAL_GetTick(void);

uint32_t HAL_GetTickPrio(void);

/* in HAL2 use HAL_InitTick to change
   the frequency and the priority */


hal_tick_freq_t HAL_GetTickFreq(void);

__WEAK void HAL_SuspendTick(void);

__WEAK void HAL_ResumeTick(void);

HAL time base customization

In both HAL1 and HAL2, the HAL time base APIs are provided as __WEAK functions. Users can override these functions to use a TIMER or an RTC as a time base. Both HAL1 and HAL2 provide templates allowing the use of an RTC or a Timer as a HAL time base. The relevant components are:

HAL Time Base Templates

HAL1

HAL2

Files:

Files:

stm32tnxx_hal_timebase_rtc_alarm_template.c
stm32tnxx_hal_timebase_rtc_wakeup_template.c
stm32tnxx_hal_timebase_tim_template.c

``tn`` in ``stm32tnxx`` refers to the series name, e.g., stm32u5xx

stm32_hal_timebase_rtc_alarm.c
stm32_hal_timebase_rtc_wakeup.c
stm32_hal_timebase_tim.c

The series name is removed from the file names.
HAL Time overloading

HAL1

HAL2

The overloaded HAL_InitTick contains both the TIM or RTC initialization sequence plus the starting sequence.

Example:

static TIM_HandleTypeDef TimHandle;

HAL_StatusTypeDef HAL_InitTick(uint32_t TickPriority)
{
  RCC_ClkInitTypeDef clkconfig;
  uint32_t uwTimclock;
  uint32_t uwAPB1Prescaler;
  uint32_t uwPrescalerValue;
  uint32_t pFLatency;
  HAL_StatusTypeDef Status;

  __HAL_RCC_TIM6_CLK_ENABLE();

  HAL_RCC_GetClockConfig(&clkconfig, &pFLatency);

  uwAPB1Prescaler = clkconfig.APB1CLKDivider;

  if (uwAPB1Prescaler == RCC_HCLK_DIV1)
  {
      uwTimclock = HAL_RCC_GetPCLK1Freq();
  }
  else
  {
      uwTimclock = 2UL * HAL_RCC_GetPCLK1Freq();
  }

  uwPrescalerValue = (uint32_t)((uwTimclock / 100000U) - 1U);

  TimHandle.Instance = TIM6;

  TimHandle.Init.Period = (100000U / 1000U) - 1U;
  TimHandle.Init.Prescaler = uwPrescalerValue;
  TimHandle.Init.ClockDivision = 0;
  TimHandle.Init.CounterMode = TIM_COUNTERMODE_UP;
  Status = HAL_TIM_Base_Init(&TimHandle);

  if (Status == HAL_OK)
  {

    Status = HAL_TIM_Base_Start_IT(&TimHandle);

    if (Status == HAL_OK)
    {
      if (TickPriority < (1UL << __NVIC_PRIO_BITS))
      {
        HAL_NVIC_SetPriority(TIM6_IRQn, TickPriority, 0);

        HAL_NVIC_EnableIRQ(TIM6_IRQn);

        uwTickPrio = TickPriority;
      }
      else
      {
        Status = HAL_ERROR;
      }
    }
  }

  return Status;
}

In HAL2, the overloaded HAL_InitTick contains a call to one of the local functions tim_timebase_config_tick, rtc_alarm_timebase_config_tick, or rtc_wakeup_timebase_config_tick, which configure dynamically the TIM or RTC to operate at a specified frequency, according to the requested timebase (1 ms, 10 ms, or 100 ms). The required TIM or RTC start actions.

Example:

static hal_status_t tim_timebase_config_tick(hal_tick_freq_t tick_freq)
{
  hal_status_t status;

  hal_tim_config_t  config;

  uint32_t tim_freq = HAL_TIM_GetClockFreq(timebase_gethandle());

  config.counter_mode           = HAL_TIM_COUNTER_UP;
  config.repetition_counter     = 0;
  config.clock_sel.clock_source = HAL_TIM_CLK_INTERNAL;

  status = find_psc_arr(tim_freq, (1000UL / (uint32_t)tick_freq), &config.prescaler, &config.period);
  if (status == HAL_OK)
  {
    status = HAL_TIM_SetConfig(timebase_gethandle(), &config);
  }

  return status;
}

hal_status_t HAL_InitTick(hal_tick_freq_t tick_freq, uint32_t tick_priority)
{
  hal_status_t status = HAL_ERROR;
  ASSERT_DBG_PARAM(IS_TICK_FREQ(tick_freq));
  ASSERT_DBG_PARAM(IS_TICK_PRIO(tick_priority));

  if (HAL_TIM_GetState(timebase_gethandle()) == HAL_TIM_STATE_RESET)
  {
    if (timebase_init() == NULL)
    {
      return HAL_ERROR;
    }
  }
  else
  {
    HAL_TIM_Stop_IT(timebase_gethandle());
  }

  status = tim_timebase_config_tick(tick_freq);

  if (status == HAL_OK)
  {
#if defined(USE_HAL_TIM_REGISTER_CALLBACKS) && (USE_HAL_TIM_REGISTER_CALLBACKS == 1U)
    HAL_TIM_RegisterUpdateCallback(timebase_gethandle(), TimeBase_TIM_UpdateCallback);
#endif /* USE_HAL_TIM_REGISTER_CALLBACKS */

    uwTickFreq = tick_freq;
    uwTickPrio = tick_priority;

    HAL_CORTEX_NVIC_SetPriority(TIMEBASE_IRQ, (hal_cortex_nvic_preemp_priority_t)tick_priority,
                                HAL_CORTEX_NVIC_SUB_PRIORITY_0);

    status = HAL_TIM_Start_IT(timebase_gethandle());
  }

  return status;
}
Usage

HAL1

HAL2

Files stm32tnxx_hal_timebase_rtc_alarm_template.c, stm32tnxx_hal_timebase_rtc_wakeup_template.c and stm32tnxx_hal_timebase_tim_template.c are provided as templates by the HAL and must be copied to the user application and updated if needed.

Files stm32_hal_timebase_tim.c, stm32_hal_timebase_rtc_alarm.c, and stm32_hal_timebase_rtc_wakeup.c are provided as ready to use (to use as is, without the need to copy or modify them) in the HAL folder stm32tnxx\timebases.

The TIM or RTC initialization sequences are provided within the function HAL_InitTick.

Dedicated TIM and RTC initialization functions are provided in the files mx_timx.c/h and mx_rtc.c/h. These files are either:

  • Generated by STM32CubeMX2 in the user application, or

  • Created by the user by copying and adapting the templates mx_timx.c/h and mx_rtc.c/h as needed. The template files mx_timx.c/h and mx_rtc.c/h are provided by the HAL under: stm32tnxx_hal\templates\timebases. The x in mx_timx.c/h denotes the TIM instance index, for example mx_tim6.c/h.

  • These initialization functions are limited to: Initializing the handle, enabling the peripheral clock, and configuring and enabling the corresponding NVIC lines.

The actual configuration of the TIM or RTC timebase is performed in the overloaded HAL_InitTick function, which calls, for example, tim_timebase_config_tick. This function dynamically adjusts the TIM (or RTC) configuration to generate the requested HAL timebase tick (1 ms, 10 ms, or 100 ms).

Rework the reorganization of HAL/LL files.

HAL1 and HAL2 Drivers

Category

Description

HAL1

The folder organization is as follow:

  • Inc subfolder provides all the drivers header files for HAL, LL core drivers and templates.

  • Src subfolder provides all the drivers source files for HAL, LL and core drivers and templates.

STM32CubeU5/
   Drivers/
   ├── CMSIS/
   │   ├── Core/
   │   ├── Device/
   │   │   └── ST/
   │   │       └── STM32U5xx/
   └── STM32U5xx_HAL_Driver/
       ├── Inc/
       └── Src/

HAL2

The folder organization is as follow:

  • hal subfolder provides the HAL source and header files stm32tnxx_hal_ppp.c/.h. and the HAL core drivers (e.g., stm32tnxx_usb_core.c/.h, stm32tnxx_fmc_core.c/.h).

  • ll subfolder provides the STM32 LL drivers i.e., files stm32tnxx_ll_ppp.h. Note that the LL source files stm32tnxx_ll_ppp.c have been removed.

  • os_port subfolder provides a HAL OS abstraction layer. Services within this OSAL are limited to semaphore and mutex usage, intended to be used by the HAL but can also be used by any other layer that needs to abstract these services. The os_port supports 2 versions: one based on FreeRTOS, and one “no os” version based on bare metal.

  • templates subfolder contains the template source files that need to be copied and customized into the user application when using the HAL in standalone (without STM32CubeMX2 code generation). For example, the HAL conf header file shall be copied and customized into the user application.

  • timebases subfolder provides the HAL time base implementation with 3 possible flavors: based on TIMER, based on RTC alarm, and based on RTC wakeup.

  • utils subfolder provides the HAL utilities modules, e.g., utils/i2c_timing/stm32_utils_i2c.c/.h allowing to calculate the I2C timing values needed by HAL_I2C_Init.

STM32Cube_SW_Package_U5/
├── cmsis/
├── dfp/
│   └── stm32u5xx/
├── hal/
└── stm32u5xx/
    ├── hal/
    ├── ll/
    ├── os_port/
    ├── templates/
    ├── timebases/
    └── utils/

Remove stm32tnxx_ll_ppp.c files

The LL initialization functions provided within files stm32tnxx_ll_ppp.c in HAL1 are no longer available in HAL2. In HAL2, all LL stm32tnxx_ll_ppp.c (C file) are removed and only the stm32tnxx_ll_ppp.h LL header files containing static inline functions are kept. If users needs to initialize a given peripheral using the LL layer, they shall rely on STM32CubeMX2 code generation with the LL layer. This generates the required sequence based on the LL static inline functions provided within the stm32tnxx_ll_ppp.h header (.h) files. The given generated sequence provides better footprint optimization compared to the previous LL Init functions provided in stm32tnxx_ll_ppp.c.

Note

As we applied the concept HAL implementation with LL inline functions, the various HAL PPP Functions are implemented on top of the LL functions, including the various HAL configuration functions. Given so, the various required LL initialization and deinitialization sequences can also be obtained by looking at the HAL Functions implementations.

Example:

hal_status_t HAL_I2C_SetConfig(hal_i2c_handle_t *hi2c, const hal_i2c_config_t *p_config)
{
    I2C_TypeDef *p_i2cx;

    ASSERT_DBG_PARAM((hi2c != NULL));
    ...
    ASSERT_DBG_STATE(hi2c->global_state, (uint32_t)HAL_I2C_STATE_INIT | \
                                         (uint32_t)HAL_I2C_STATE_IDLE);

    p_i2cx = I2C_GET_INSTANCE(hi2c);

    LL_I2C_Disable(p_i2cx);

    /* Configure I2Cx Frequency range */
    LL_I2C_SetTiming(p_i2cx, p_config->timing);

    /* Disable I2Cx Own Address1 and clear I2Cx Own Address1 mode */
    LL_I2C_DisableOwnAddress1AndMode(p_i2cx);

    /* Configure I2Cx Own Address1 and ack own address1 mode */
    if (p_config->addressing_mode == HAL_I2C_ADDRESSING_7BIT)
    {
        LL_I2C_ConfigOwnAddress1(p_i2cx, p_config->own_address1, LL_I2C_OWNADDRESS1_7BIT);
    }
    else /* HAL_I2C_ADDRESSING_10BIT */
    {
        LL_I2C_ConfigOwnAddress1(p_i2cx, p_config->own_address1, LL_I2C_OWNADDRESS1_10BIT);
    }

    /* Configure I2Cx addressing master mode */
    LL_I2C_SetMasterAddressingMode(p_i2cx, (uint32_t)p_config->addressing_mode);

    /* Enable the I2Cx AUTOEND by default, and enable NACK (must be disabled only during slave process) */
    LL_I2C_WRITE_REG(p_i2cx, CR2, (LL_I2C_READ_REG(p_i2cx, CR2) | I2C_CR2_AUTOEND | I2C_CR2_NACK));

    LL_I2C_Enable(p_i2cx);

    hi2c->global_state = HAL_I2C_STATE_IDLE;

    return HAL_OK;
}
