HAL SPI initialization and configuration functions migration

The goal of this page is to show how to migrate the initialization sequence using STM32CubeMX2 :

  • Open STM32CubeMX2 SPI configuration panel.

  • Configure the SW layer HAL.

  • Configure the SPI main features.

  • Configure the advanced SPI features if needed.

  • Configure the SPI GPIO pins.

  • Configure the SPI DMA(s) if the application requires the SPI to be used in DMA mode.

  • Configure the NVIC if the application requires the SPI to be used in IT mode.

  • Generate the code

HAL SPI configuration panel

Create a new project with the STM32CubeMX2, then start the initialization and the main configuration.

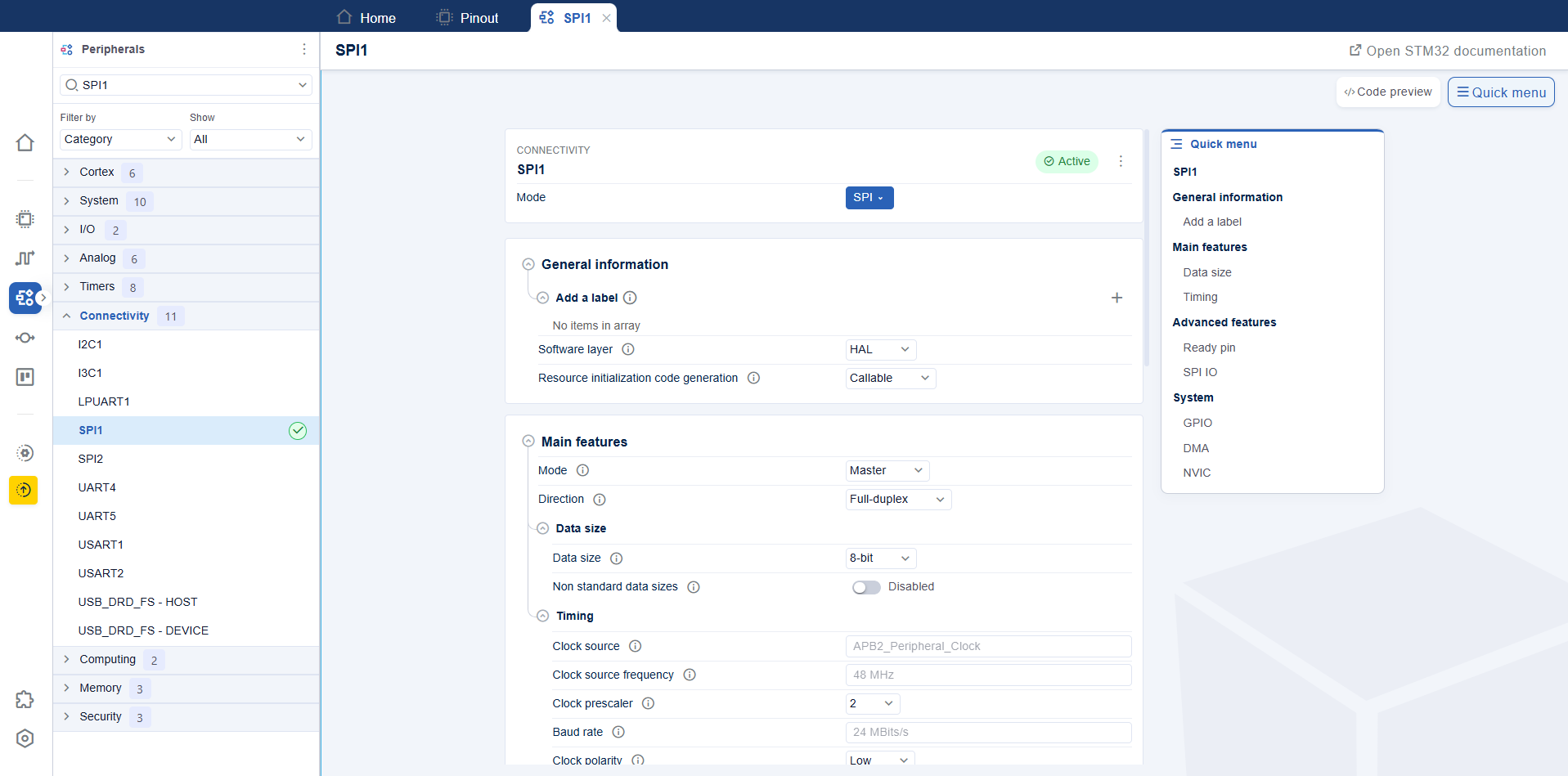

Project configuration panel

HAL SPI main features configuration

Configure the SPI main features.

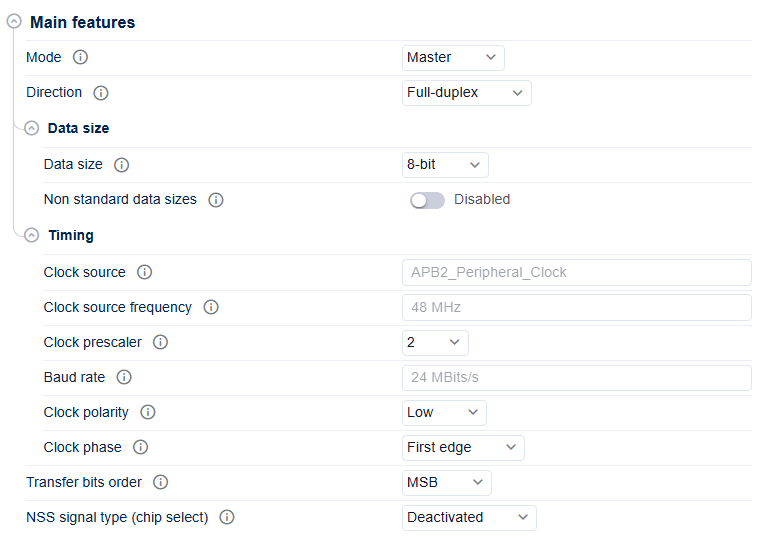

SPI main feature configuration

HAL SPI advanced features configuration

Configure the advanced SPI features if needed.

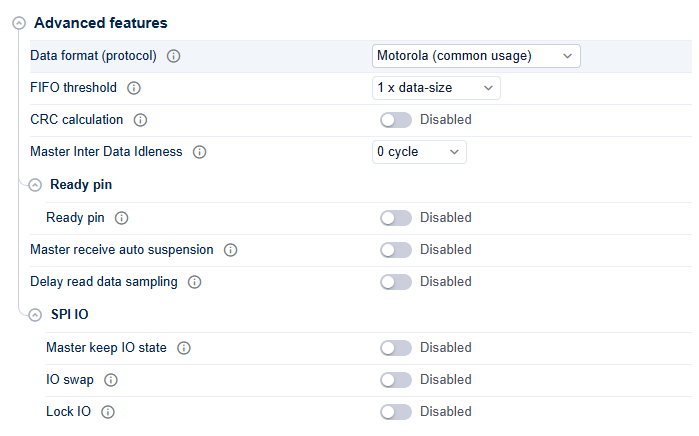

SPI advanced feature configuration

GPIO configuration

Configure GPIO pins.

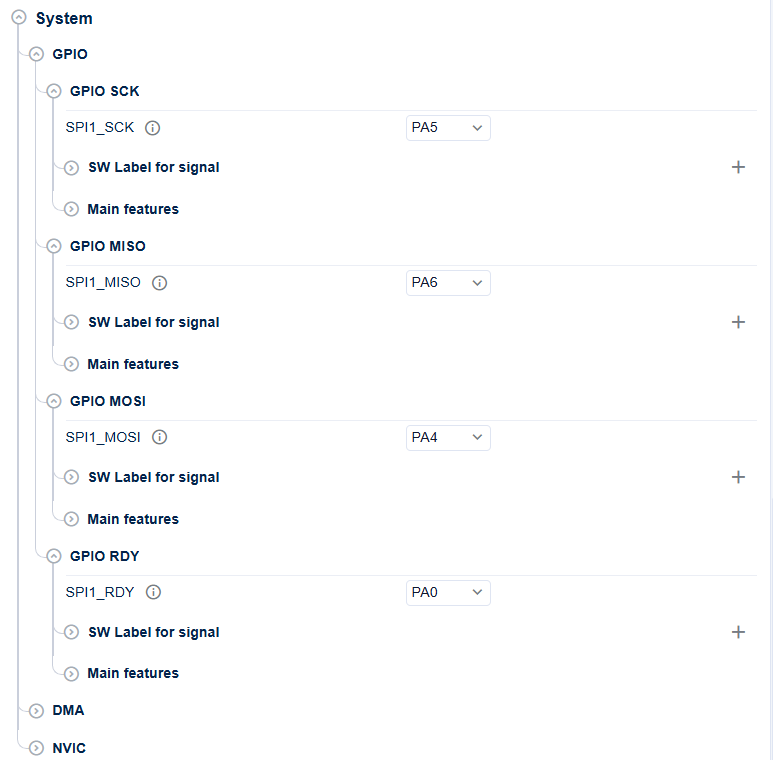

SPI GPIO configuration

DMA configuration

Configure the DMA for data reception as needed.

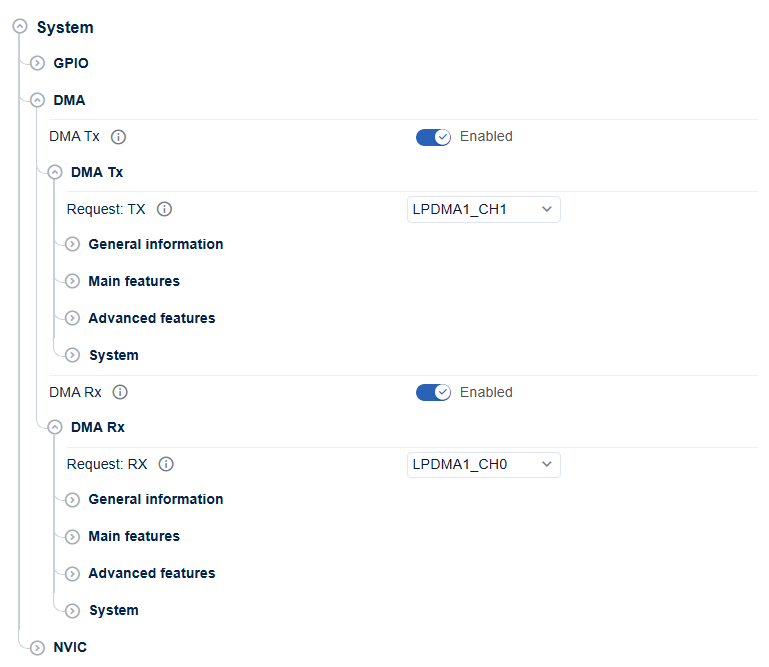

SPI DMA configuration

NVIC configuration

Configure the NVIC in case of an interrupt.

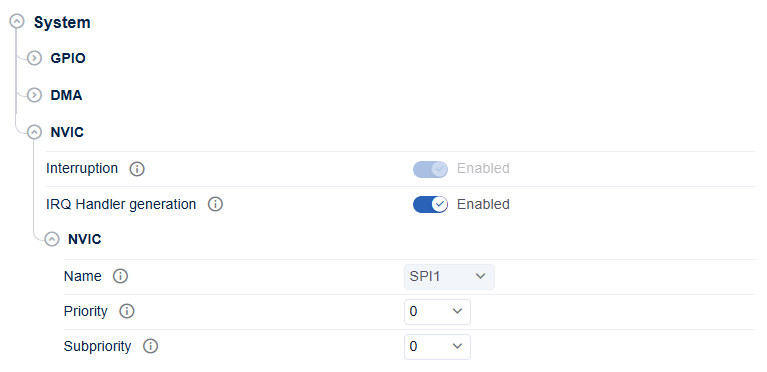

SPI NVIC configuration

Generated SPI initialization and de-initialization sequences

The SPI initialization sequence is generated in the mx_spi1_init function in mx_spi1.c file under $YOUR_PROJECT_NAME$/$YOUR_PROJECT_NAME$_SW/generated/STM32Cube_CodeGen.

Related concepts:

STM32CubeMX2 Generated : SPI initialization and de-initialization sequences

Topic

HAL1 Code Snippet

HAL2 Code Snippet

Handle declaration

SPI_HandleTypeDef* hspi

hal_spi_config_t spi_config;

Initialization and configuration sequence

static void MX_SPI1_Init(void)
{

 /* SPI1 parameter configuration*/
 hspi1.Instance = SPI1;
 hspi1.Init.Mode = SPI_MODE_MASTER;
 hspi1.Init.Direction = SPI_DIRECTION_2LINES;
 hspi1.Init.DataSize = SPI_DATASIZE_4BIT;
 hspi1.Init.CLKPolarity = SPI_POLARITY_LOW;
 hspi1.Init.CLKPhase = SPI_PHASE_1EDGE;
 hspi1.Init.NSS = SPI_NSS_SOFT;
 hspi1.Init.BaudRatePrescaler = SPI_BAUDRATEPRESCALER_2;
 hspi1.Init.FirstBit = SPI_FIRSTBIT_MSB;
 hspi1.Init.TIMode = SPI_TIMODE_DISABLE;
 hspi1.Init.CRCCalculation = SPI_CRCCALCULATION_DISABLE;
 hspi1.Init.CRCPolynomial = 0x7;
 hspi1.Init.NSSPMode = SPI_NSS_PULSE_ENABLE;
 hspi1.Init.NSSPolarity = SPI_NSS_POLARITY_LOW;
 hspi1.Init.FifoThreshold = SPI_FIFO_THRESHOLD_01DATA;
 hspi1.Init.MasterSSIdleness = SPI_MASTER_SS_IDLENESS_00CYCLE;
 hspi1.Init.MasterInterDataIdleness = SPI_MASTER_INTERDATA_IDLENESS_00CYCLE;
 hspi1.Init.MasterReceiverAutoSusp = SPI_MASTER_RX_AUTOSUSP_DISABLE;
 hspi1.Init.MasterKeepIOState = SPI_MASTER_KEEP_IO_STATE_DISABLE;
 hspi1.Init.IOSwap = SPI_IO_SWAP_DISABLE;
 hspi1.Init.ReadyMasterManagement = SPI_RDY_MASTER_MANAGEMENT_INTERNALLY;
 hspi1.Init.ReadyPolarity = SPI_RDY_POLARITY_HIGH;
 if (HAL_SPI_Init(&hspi1) != HAL_OK)
 {
     Error_Handler();
 }

}

void HAL_SPI_MspInit(SPI_HandleTypeDef* hspi)
{
  GPIO_InitTypeDef GPIO_InitStruct = {0};
  RCC_PeriphCLKInitTypeDef PeriphClkInit = {0};
  if(hspi->Instance==SPI1)
  {

  /** Initializes the peripherals clock
  */
    PeriphClkInit.PeriphClockSelection = RCC_PERIPHCLK_SPI1;
    PeriphClkInit.Spi1ClockSelection = RCC_SPI1CLKSOURCE_SYSCLK;
    if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInit) != HAL_OK)
    {
      Error_Handler();
    }

    /* Peripheral clock enable */
    __HAL_RCC_SPI1_CLK_ENABLE();

    __HAL_RCC_GPIOA_CLK_ENABLE();

    /**SPI1 GPIO Configuration
    PA5     ------> SPI1_SCK
    PA6     ------> SPI1_MISO
    PA7     ------> SPI1_MOSI
    */
    GPIO_InitStruct.Pin = GPIO_PIN_5|GPIO_PIN_6|GPIO_PIN_7;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
    GPIO_InitStruct.Alternate = GPIO_AF5_SPI1;
    HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

  }

}

hal_spi_handle_t *mx_spi1_init(void)
{

  if (HAL_SPI_Init(&hSPI1, HAL_SPI1) != HAL_OK)
  {
    return NULL;
  }

  HAL_RCC_SPI1_EnableClock();
  if (HAL_RCC_SPI1_SetKernelClkSource(HAL_RCC_SPI1_CLK_SRC_PCLK2) != HAL_OK)
  {
    return NULL;
  }

  spi_config.mode = HAL_SPI_MODE_MASTER;
  spi_config.direction = HAL_SPI_DIRECTION_FULL_DUPLEX;
  spi_config.data_width = HAL_SPI_DATA_WIDTH_8_BIT;
  spi_config.clock_polarity = HAL_SPI_CLOCK_POLARITY_LOW;
  spi_config.clock_phase = HAL_SPI_CLOCK_PHASE_1_EDGE;
  spi_config.baud_rate_prescaler = HAL_SPI_BAUD_RATE_PRESCALER_2;
  spi_config.first_bit = HAL_SPI_MSB_FIRST;
  spi_config.nss_pin_management = HAL_SPI_NSS_PIN_MGMT_INTERNAL;

  if (HAL_SPI_SetConfig(&hSPI1, &spi_config) != HAL_OK)
  {
    return NULL;
  }

  if (HAL_SPI_EnableReadyPin(&hSPI1) != HAL_OK)
  {
    return NULL;
  }

  if (HAL_SPI_MASTER_EnableReceiverAutoSuspend(&hSPI1) != HAL_OK)
  {
    return NULL;
  }

  if (HAL_SPI_MASTER_EnableKeepIOState(&hSPI1) != HAL_OK)
  {
    return NULL;
  }

  if (HAL_SPI_EnableMosiMisoSwap(&hSPI1) != HAL_OK)
  {
    return NULL;
  }

  if (HAL_SPI_LockIOConfig(&hSPI1) != HAL_OK)
  {
    return NULL;
  }

  if (HAL_SPI_EnableDelayReadDataSampling(&hSPI1) != HAL_OK)
  {
    return NULL;
  }
  HAL_RCC_GPIOA_EnableClock();

  hal_gpio_config_t  gpio_config;

  gpio_config.mode        = HAL_GPIO_MODE_ALTERNATE;
  gpio_config.output_type = HAL_GPIO_OUTPUT_PUSHPULL;
  gpio_config.pull        = HAL_GPIO_PULL_NO;
  gpio_config.speed       = HAL_GPIO_SPEED_FREQ_HIGH;
  gpio_config.alternate   = HAL_GPIO_AF_5;
  HAL_GPIO_Init(HAL_GPIOA, HAL_GPIO_PIN_5 | HAL_GPIO_PIN_6, &gpio_config);

  gpio_config.mode        = HAL_GPIO_MODE_ALTERNATE;
  gpio_config.output_type = HAL_GPIO_OUTPUT_PUSHPULL;
  gpio_config.pull        = HAL_GPIO_PULL_NO;
  gpio_config.speed       = HAL_GPIO_SPEED_FREQ_HIGH;
  gpio_config.alternate   = HAL_GPIO_AF_4;
  HAL_GPIO_Init(HAL_GPIOA, HAL_GPIO_PIN_4, &gpio_config);

  gpio_config.mode        = HAL_GPIO_MODE_ALTERNATE;
  gpio_config.output_type = HAL_GPIO_OUTPUT_PUSHPULL;
  gpio_config.pull        = HAL_GPIO_PULL_NO;
  gpio_config.speed       = HAL_GPIO_SPEED_FREQ_HIGH;
  gpio_config.alternate   = HAL_GPIO_AF_6;
  HAL_GPIO_Init(HAL_GPIOA, HAL_GPIO_PIN_0, &gpio_config);

  return &hSPI1;
}

Deinitialization sequence

static void MX_SPI1_DeInit(void)
{
 HAL_SPI_DeInit(&hspi);
}


void HAL_SPI_MspDeInit(SPI_HandleTypeDef* hspi)
 {
 if(hspi->Instance==SPI1)
 {
     __HAL_RCC_SPI1_CLK_DISABLE();
     HAL_GPIO_DeInit(GPIOA, GPIO_PIN_1|GPIO_PIN_11);
 }
 }

void mx_spi1_deinit(void)
{

  (void)HAL_SPI_DeInit(&hSPI1);

  HAL_RCC_SPI1_Reset();

  HAL_RCC_SPI1_DisableClock();

  /* De-initialize all GPIO pins associated with SPI1 */
  HAL_GPIO_DeInit(HAL_GPIOA, HAL_GPIO_PIN_0 | HAL_GPIO_PIN_4 | HAL_GPIO_PIN_5 | HAL_GPIO_PIN_6);

}

IRQ handle function

void GPDMA1_Channel1_IRQHandler(void)
{
  HAL_DMA_IRQHandler(&handle_GPDMA1_Channel1);
}

void GPDMA1_Channel0_IRQHandler(void)
{
  HAL_DMA_IRQHandler(&handle_GPDMA1_Channel0);
}

void SPI1_IRQHandler(void)
{
  HAL_SPI_IRQHandler(&hspi1);
}

void LPDMA1_CH1_IRQHandler(void)
{
  HAL_DMA_IRQHandler(&hLPDMA1_CH1);
}

void LPDMA1_CH0_IRQHandler(void)
{
  HAL_DMA_IRQHandler(&hLPDMA1_CH0);
}

void SPI1_IRQHandler(void)
{
  HAL_SPI_IRQHandler(&hSPI1);
}
