Script setup and usage ¶

Execution requirements ¶

Important

Before running the migration script, make sure that the entry point for HAL includes stm32_hal.h. Refer to breaking_concepts_concept_L for more details. Additionally, if the HAL1-based application uses low-layer (LL) drivers, make sure that the corresponding LL file exists in HAL2.

Python format ¶

When using the Python script format, it is essential to install the dependencies specified in the hal1_detection_requirements.txt file. Install all required dependencies using the following command:

            pip install -r hal1_detection_requirements.txt



Note

The script was developed and tested using Python version 3.8.0.

Executable format ¶

When using the executable format, there are no package dependencies. The hal1_detection.exe is ready to use.

Note

The script is compatible with the Windows 11 64-bit operating system.

Use the Python format if Windows 11 is not available.

Command description ¶

Available commands for the script ¶
Option	Shortcut	Type	Value
`--help`	`-h`	Optional	Displays information about the use of the migration tool and its available options.
`--config`	`-c`	Optional	Configuration management: `list`, `modify`, or `default` (reset). If omitted, an interactive menu is shown.
`--detection`	`-d`	Optional	Detection mode: `dry run` (detect only, no changes) or `stub` (detect and modify). If omitted, the default option is `dry run`.
`--pathsource`	`-psrc`	Mandatory	Directory/file location of the HAL1-based project.
`--modules`	`-m`	Mandatory	Peripheral (such as `all`, `adc`, `dac`, or `i2c`).

Script configuration ¶

This section details the available options for configuring the script [ list| modify | default ]. If the -c option is used without an argument, an interactive menu is shown. For clarity, the examples presented in this section use the executable file, but the script shows identical behavior in its Python format. The accompanying screenshots were taken from the Bash interface.

Show configuration ¶

Show the current script configuration ¶
Description	Example

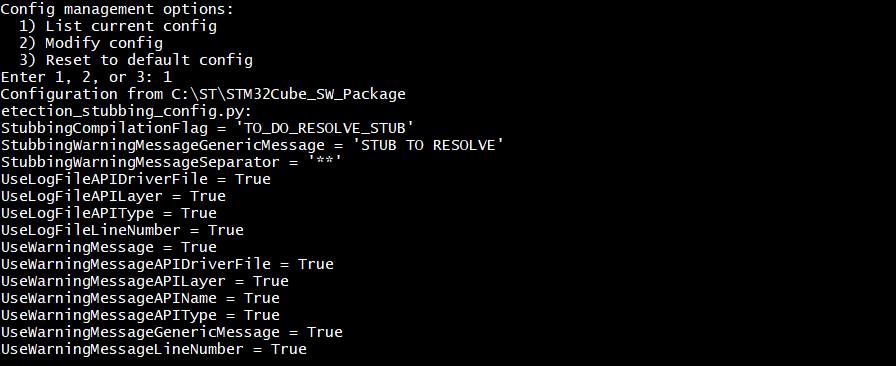

Use one of the following commands to display the current configuration settings, including all stubbing and warning message options. # Using the Python script # Compatible with bash and Windows console python hal1_detection.py -c list # Using the executable on bash ./hal1_detection.exe -c list # Using the executable on # Windows console hal1_detection.exe -c list Using the interactive menu, as shown below, provides the same results. # Run the command with no option # then type `1` to the prompt. hal1_detection.exe -c	Displaying the current configuration Displaying the current configuration using the interactive menu

Modify configuration ¶

Modify the current script configuration ¶
Description	Example
Use one of the following commands to change the current script configuration: # Using the Python script # Compatible with bash and Windows console python hal1_detection.py -c modify # Using the executable on bash ./hal1_detection.exe -c modify # Using the executable on Windows console hal1_detection.exe -c modify Select the number corresponding to the variable to be modified. Enter the new value and save the selection. The following example illustrates the process using the interactive menu to change the value of the `UseLogFileLineNumber` field. # 1 - Run the command with no option then type `2` to the prompt. hal1_detection.exe -c # 2 - Type `7` to the prompt to select ``UseLogFileLineNumber``. # 3 - Enter a new value for the selected field (``False``). # 4 - Save and exit.

Description

Example

Use one of the following commands to change the current script configuration:

                 # Using the Python script
# Compatible with bash and Windows console
python hal1_detection.py -c modify



                 # Using the executable on bash
./hal1_detection.exe -c modify

                 #  Using the executable on Windows console
hal1_detection.exe -c modify

Select the number corresponding to the variable to be modified. Enter the new value and save the selection.

The following example illustrates the process using the interactive menu to change the value of the UseLogFileLineNumber field.

# 1 - Run the command with no option then type `2` to the prompt.

hal1_detection.exe -c

                 # 2 - Type `7` to the prompt to select ``UseLogFileLineNumber``.
# 3 - Enter a new value for the selected field (``False``).
# 4 - Save and exit.

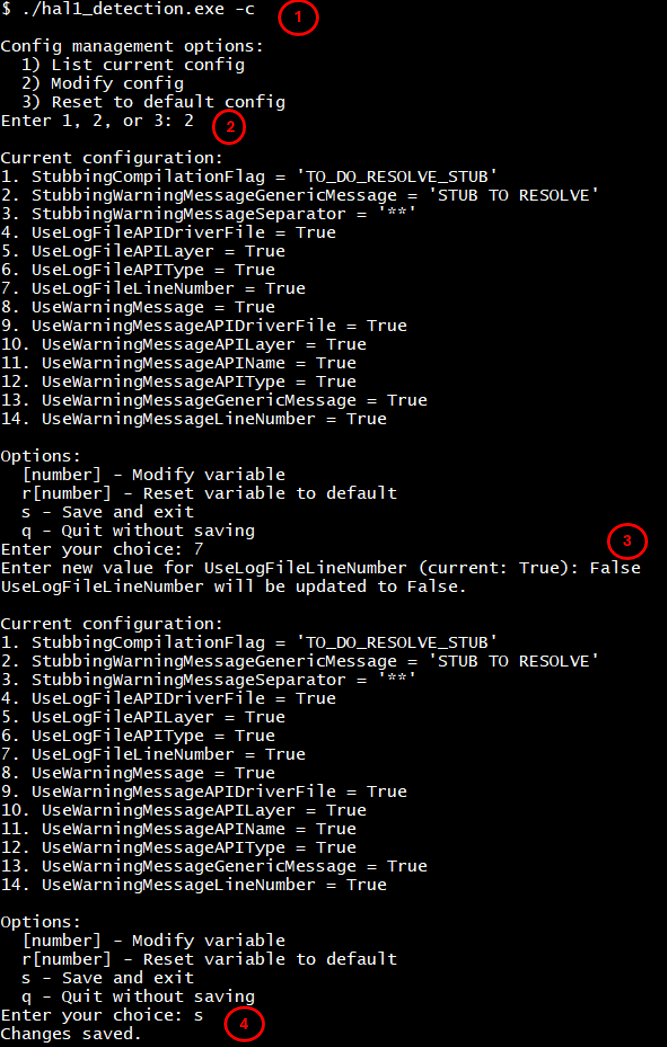

Screenshot of a Bash console displaying a configuration change.

Reset configuration ¶

Reset configuration ¶
Description	Example
Use one of the following commands to reset the configuration: # Using the Python script # Compatible with bash and Windows console python hal1_detection.py -c default # Using the executable on bash ./hal1_detection.exe -c default # Using the executable on Windows console hal1_detection.exe -c default Using the interactive menu, as shown below, provides the same results. # Run the command with no option then type `3` to the prompt. hal1_detection.exe -c	Reset configuration Reset configuration using the interactive menu

Description

Example

Use one of the following commands to reset the configuration:

                 # Using the Python script
# Compatible with bash and Windows console
python hal1_detection.py -c default



                  # Using the executable on bash
./hal1_detection.exe -c default

                 #  Using the executable on Windows console
hal1_detection.exe -c default

Using the interactive menu, as shown below, provides the same results.

                 # Run the command with no option then type `3` to the prompt.
 hal1_detection.exe -c

Reset configuration

Screenshot of a Bash console displaying the configuration reset.

Reset configuration using the interactive menu

Screenshot of a Bash console displaying the configuration reset using the interactive menu.

Log file message configuration ¶

Users can customize the messages recorded in the log file to meet their specific requirements. To achieve this, they can either edit the hal1_detection_config.py configuration file or modify the value of the UserLogFile_xxxx field through the interactive menu, as described earlier.

The table below provides a summary of the available configuration options:

Log file configuration ¶
Field	Default value	Possible values
UseLogFileLineNumber	True	True/False
UseLogFileAPIType	True	True/False
UseLogFileAPILayer	True	True/False
UseLogFileAPIDriverFile	True	True/False

Custom configuration example ¶
Description	Example

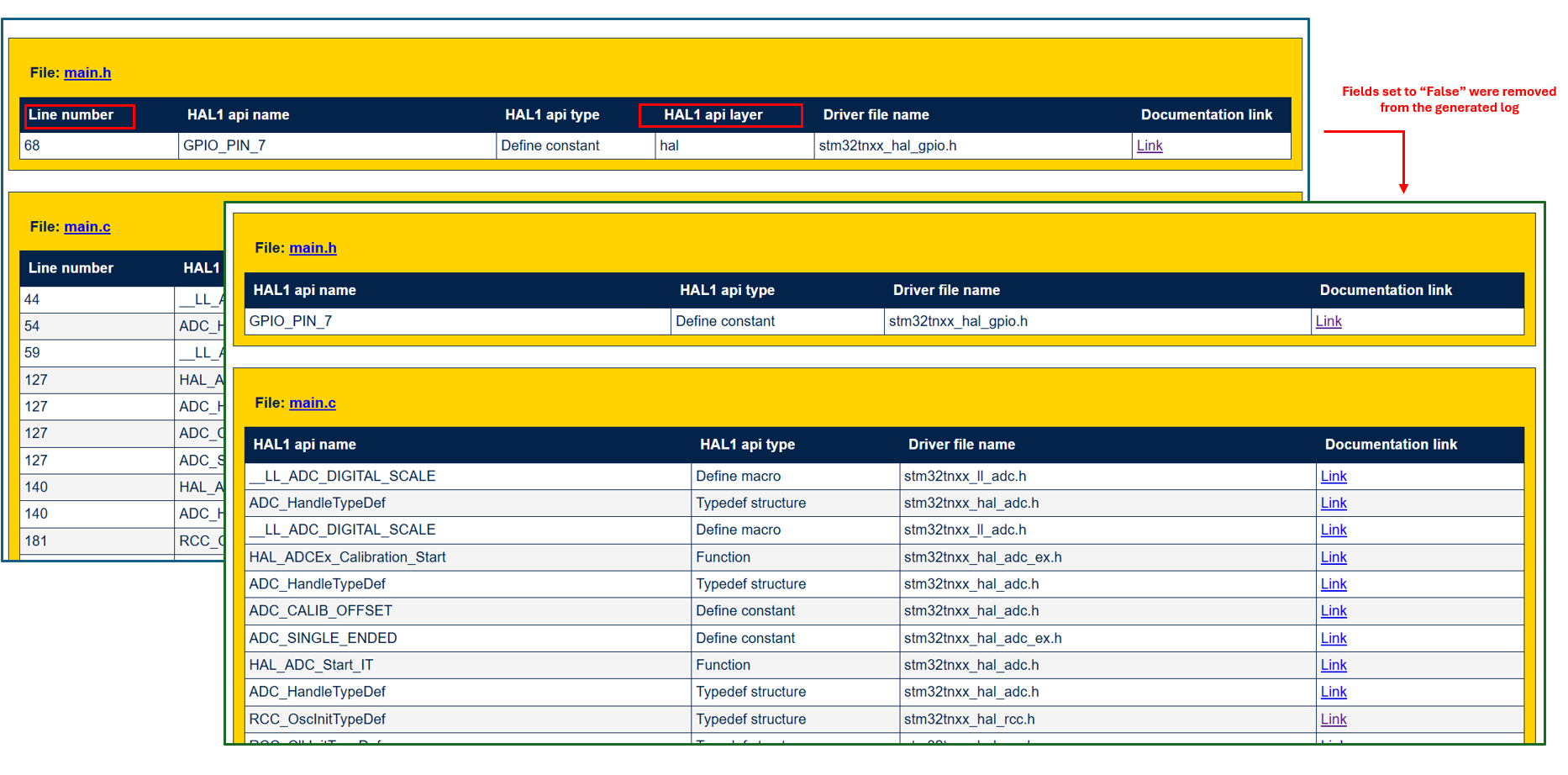

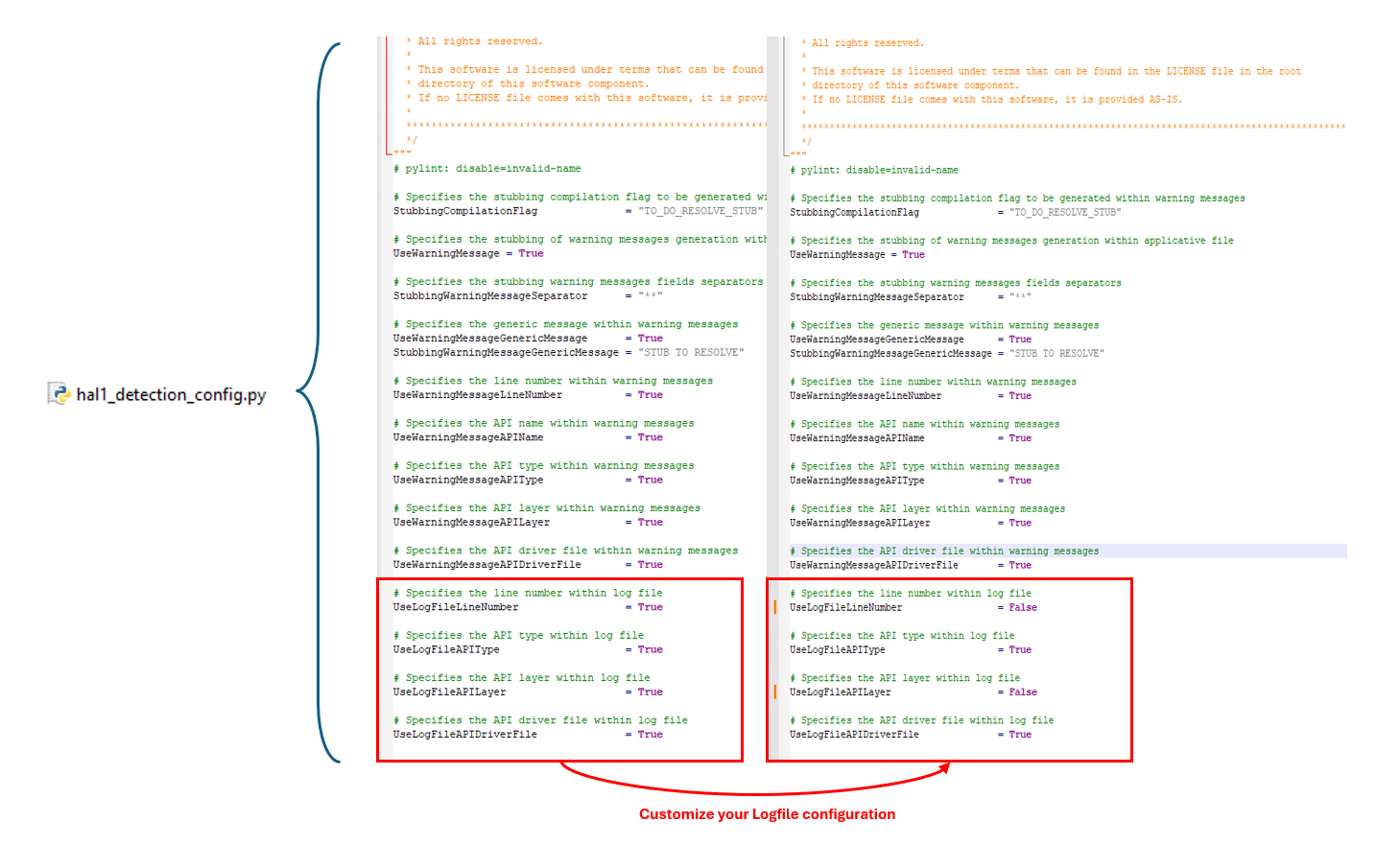

The following example demonstrates a custom configuration where the user chooses to set the `UseLogFileLineNumber` and `UseLogFileAPILayer` fields to `False`. # 1 - Edit the configuration as shown. # 2 - Save and exit. # 3 - Run the detection script. # 4 - Observe the updates in the generated log file.	Editing the `hal1_detection_config.py` file. Impact on the generated log file.

Script execution and examples ¶

Script execution ¶

Script execution [detection mode] ¶
Item	Description
Purpose	Detect HAL1 APIs and generate a log file (no source modifications).
Syntax	Use one of the following commands: # Using the Python script # Compatible with bash and Windows console python hal1_detection.py -psrc PATH -m all\|module1 module2 ... # Using the executable on bash ./hal1_detection.exe -psrc PATH -m all\|module1 module2 ... # Using the executable on Windows console hal1_detection.exe -psrc PATH -m all\|module1 module2 ...
Mandatory arguments	`-psrc PATH`: path to the source file or directory. `-m`: specific modules (`all` or a space-separated list).

Item

Description

Purpose

Detect HAL1 APIs and generate a log file (no source modifications).

Syntax

Use one of the following commands:

                 # Using the Python script
# Compatible with bash and Windows console
python hal1_detection.py -psrc PATH -m all|module1 module2 ...



                 # Using the executable on bash
./hal1_detection.exe -psrc PATH -m all|module1 module2 ...

                 # Using the executable on Windows console
hal1_detection.exe -psrc PATH -m all|module1 module2 ...

Mandatory arguments

-psrc PATH: path to the source file or directory.
-m: specific modules (all or a space-separated list).

Script execution examples ¶
Examples
# On windows console # Detect all HAL1 APIs in src (dry run, no file modifications) hal1_detection.exe -psrc .\src -m all # On bash env use ./hal1_detection.exe -psrc ./src -m all
# On windows console # Detect (dry-run) specific HAL1 APIs in a single file hal1_detection.exe -psrc .\src\main.c -m spi i2c # On bash env use hal1_detection.exe -psrc ./src/main.c -m spi i2c

Script execution examples ¶

Examples

                 # On windows console
# Detect all HAL1 APIs in src (dry run, no file modifications)
hal1_detection.exe -psrc .\src -m all

# On bash env use
./hal1_detection.exe -psrc ./src -m all



                 # On windows console
# Detect (dry-run) specific HAL1 APIs in a single file
hal1_detection.exe -psrc .\src\main.c -m spi i2c

# On bash env use
hal1_detection.exe -psrc ./src/main.c -m spi i2c



Log file use ¶

The log file generated by the HAL1 detection script is in HTML format. It includes excerpts of the user application code where HAL1 APIs are identified.

Each occurrence of a HAL1 API within the log is presented as a clickable hyperlink. The hyperlink directs users to the relevant section of the HAL1-to-HAL2 migration documentation. This functionality enables easy navigation and provides quick access to comprehensive migration guidance for each detected HAL1 API.

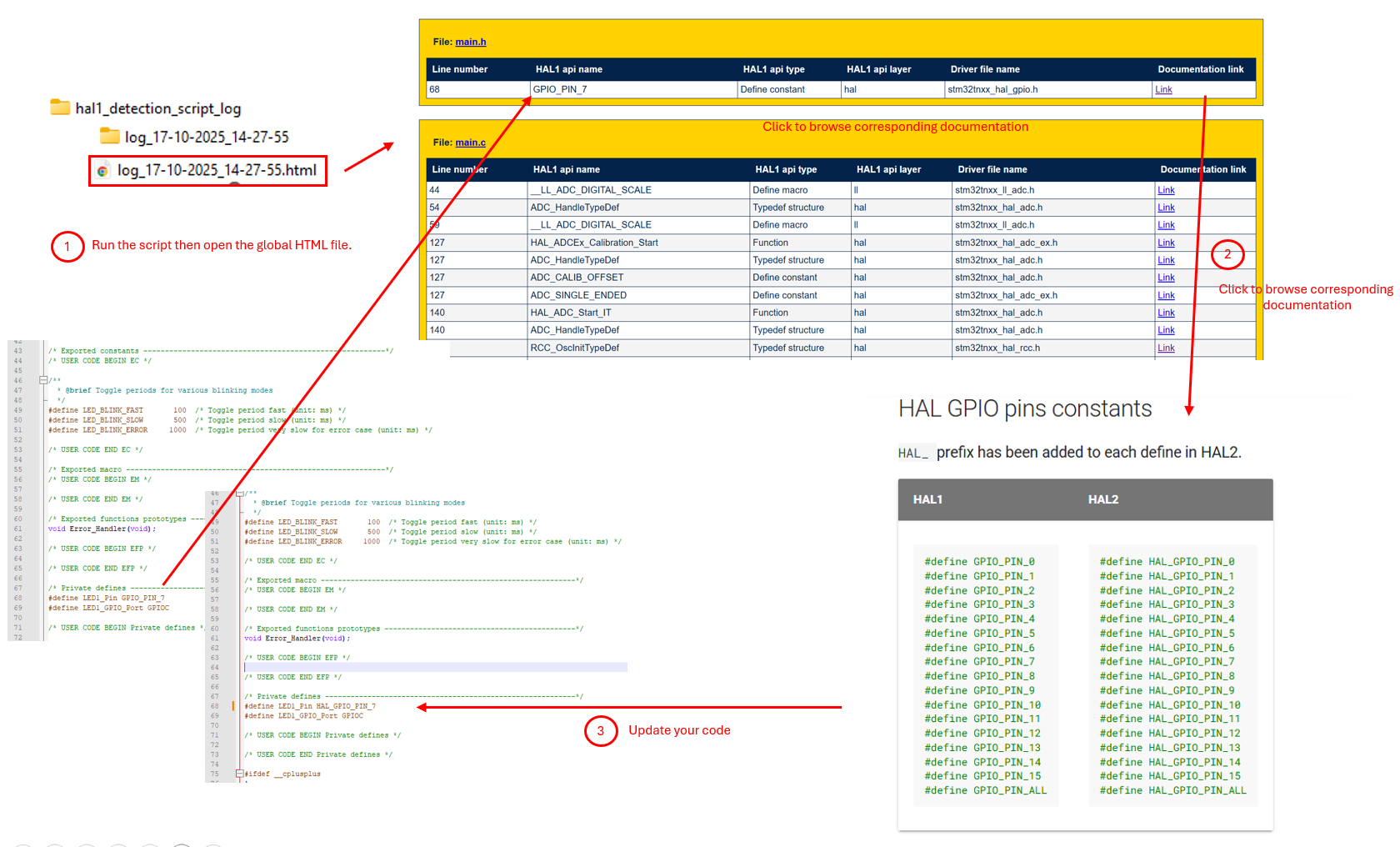

Log file usage ¶
Examples

Additionally, the script generates a specific HTML file for each processed file. These files are saved in the user’s working folder under hal1_detection_script_log/log_{date}_{time} and can assist with migration.

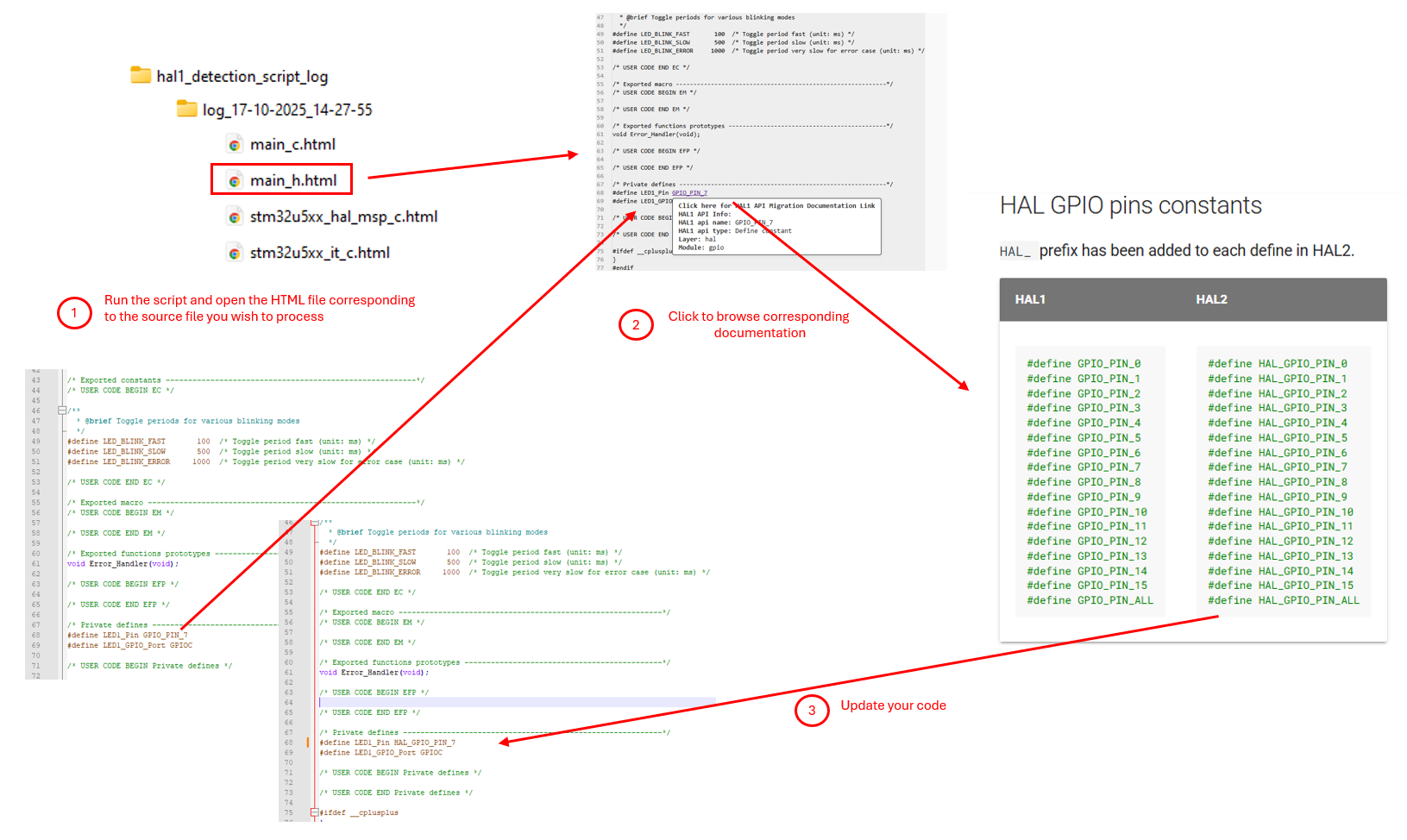

Log file usage [Alternative] ¶
Examples
After script execution
To migrate detected APIs in `main.h`

Note

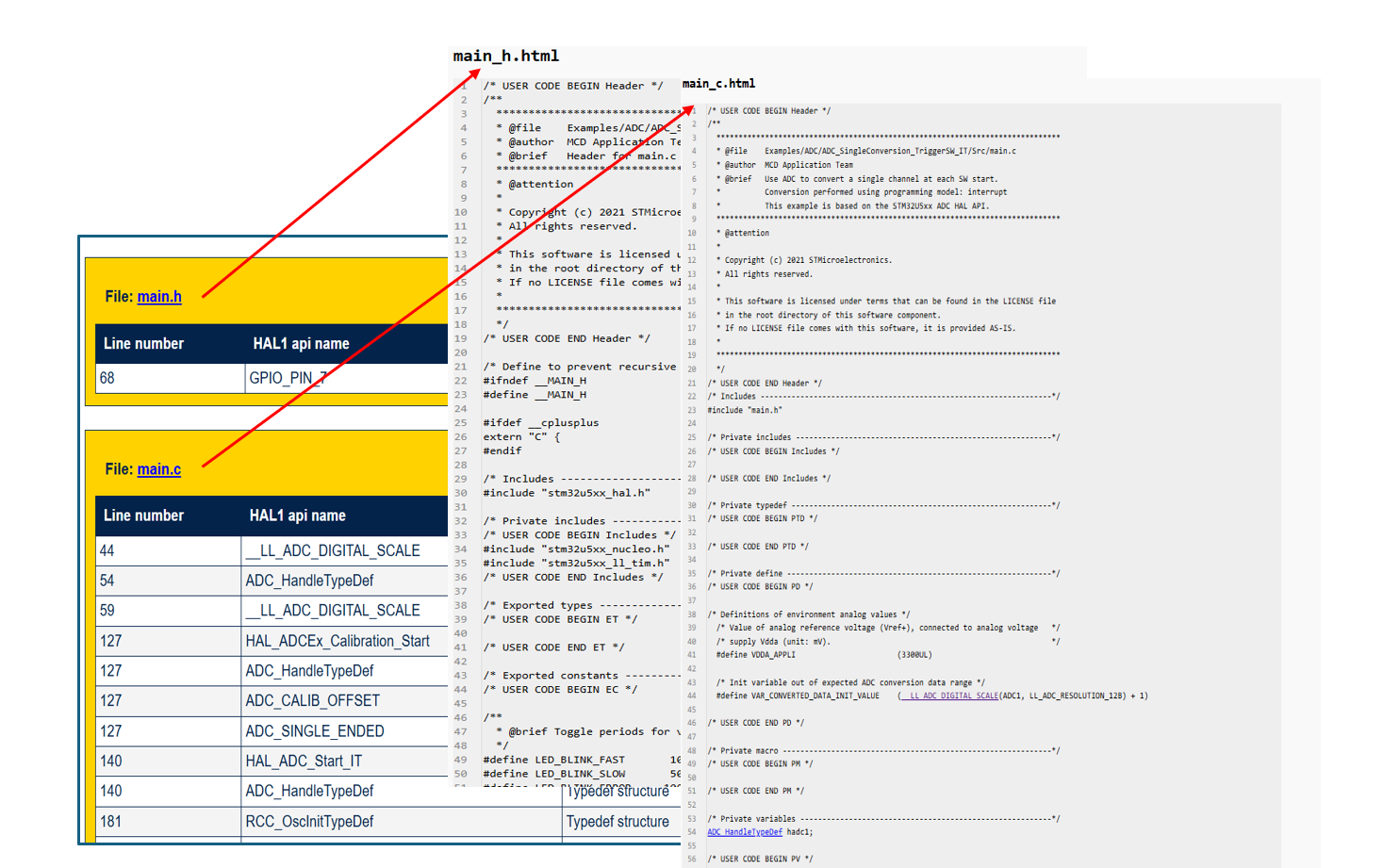

It is possible to navigate from the global log file to the corresponding application source code file by clicking on the file name.

Examples
