Configure IDE Project Settings

This section provides guidance on configuring the IDE project settings to enhance the development workflow and ensure alignment with project requirements.

Now, after generating the new project using STM32CubeMX2 , you will use it as a reference to:

  • Update the IDE settings.

  • Update the generating device files (startup file and linker script).

  • Update the initialization sequences (system clock, NVIC, GPIO, DMA, and peripheral initialization).

1. Replace HAL1 drivers by HAL2

Within duplicated project, replace the HAL1 drivers by HAL2 drivers.

HAL2 drivers Paths :

  • LL drivers’ path: “STM32Cube_SW_Package_C5_2.0.0 \ stm32c5xx_drivers \ ll”

  • HAL drivers’ path: “STM32Cube_SW_Package_C5_2.0.0 \ stm32c5xx_drivers \ hal”

  • DFP drivers path: “STM32Cube_SW_Package_C5_2.0.0 \ stm32c5xx_dfp”

2. Update device selection in the IDE project

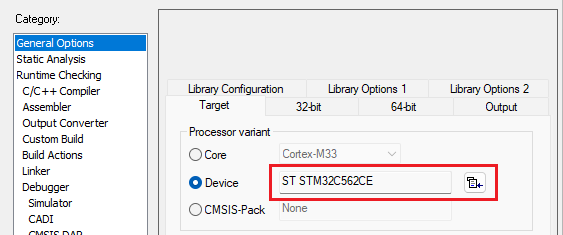

Select the appropriate device from the IDE’s database to ensure correct configuration in your project.

For a detailed demonstration on updating the device selection in the IDE project.

Example Image

3. Update Linker, startup and configuration files

  • Update stm32h563xx_flash.icf, startup_stm32h563zitx.s, system_stm32h5xx.c and stm32h5xx_conf.h

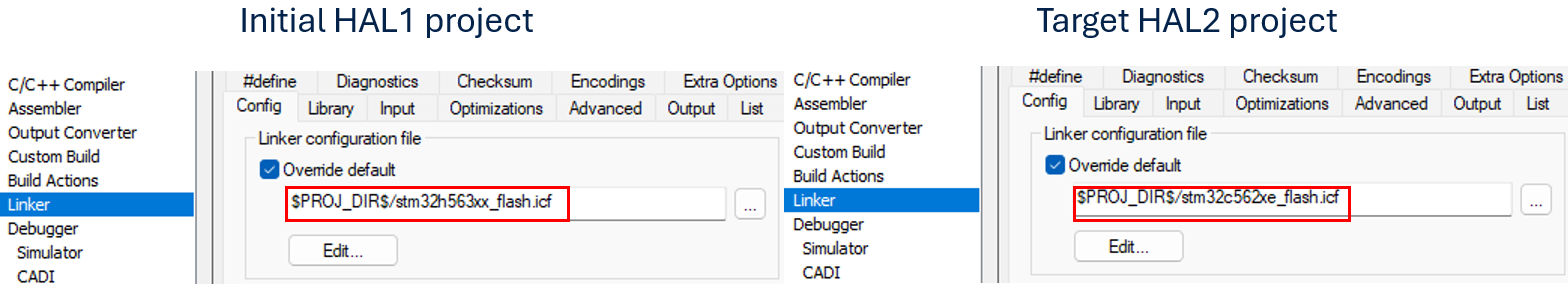

Replace the current linker file in your project with the stm32c562xe_flash.icf linker file.

Example Image

Replace the current startup file in your project with the startup_stm32c562xx.c startup file from the generated project using STM32CubeMX2 .

Example Image

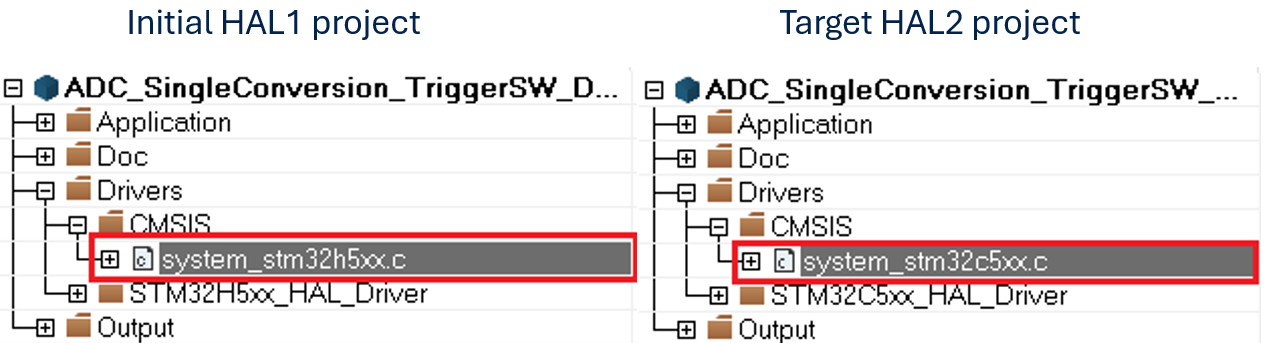

Replace the current system file in your project with the system_stm32c5xx.c system file from the generated project using STM32CubeMX2 .

Example Image

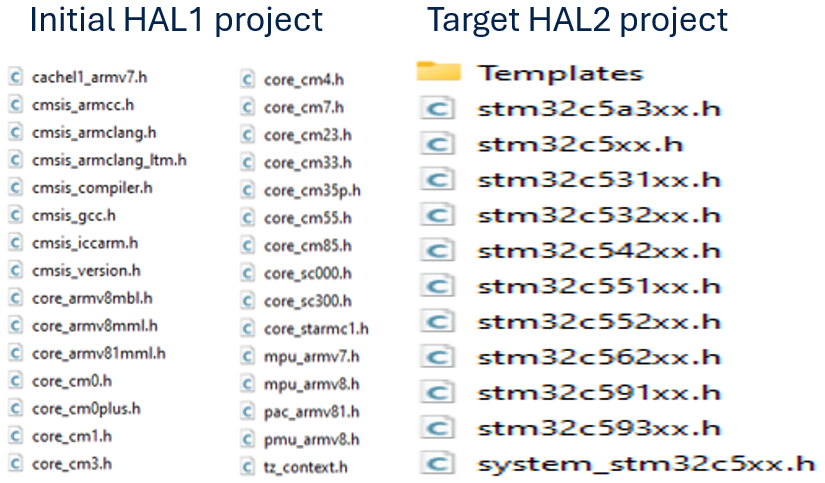

Replace the current CMSIS core files in your project with the CMSIS core files from the generated project using STM32CubeMX2 .

Example Image

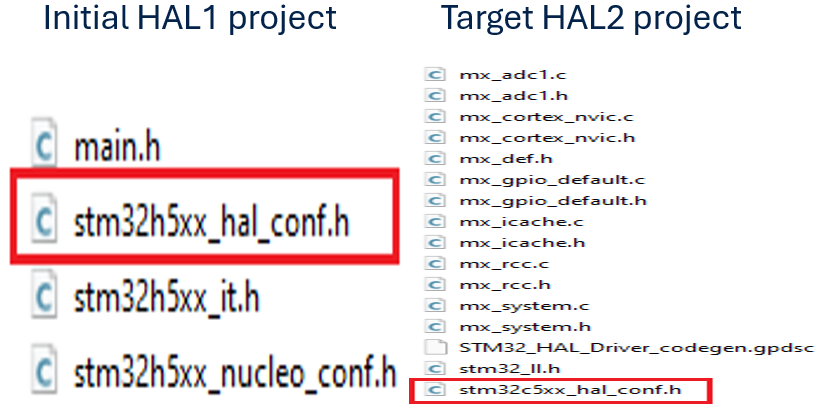

Replace the current configuration file in your project with the stm32c5xx_hal_conf.h configuration file from the generated project using STM32CubeMX2 .

Example Image

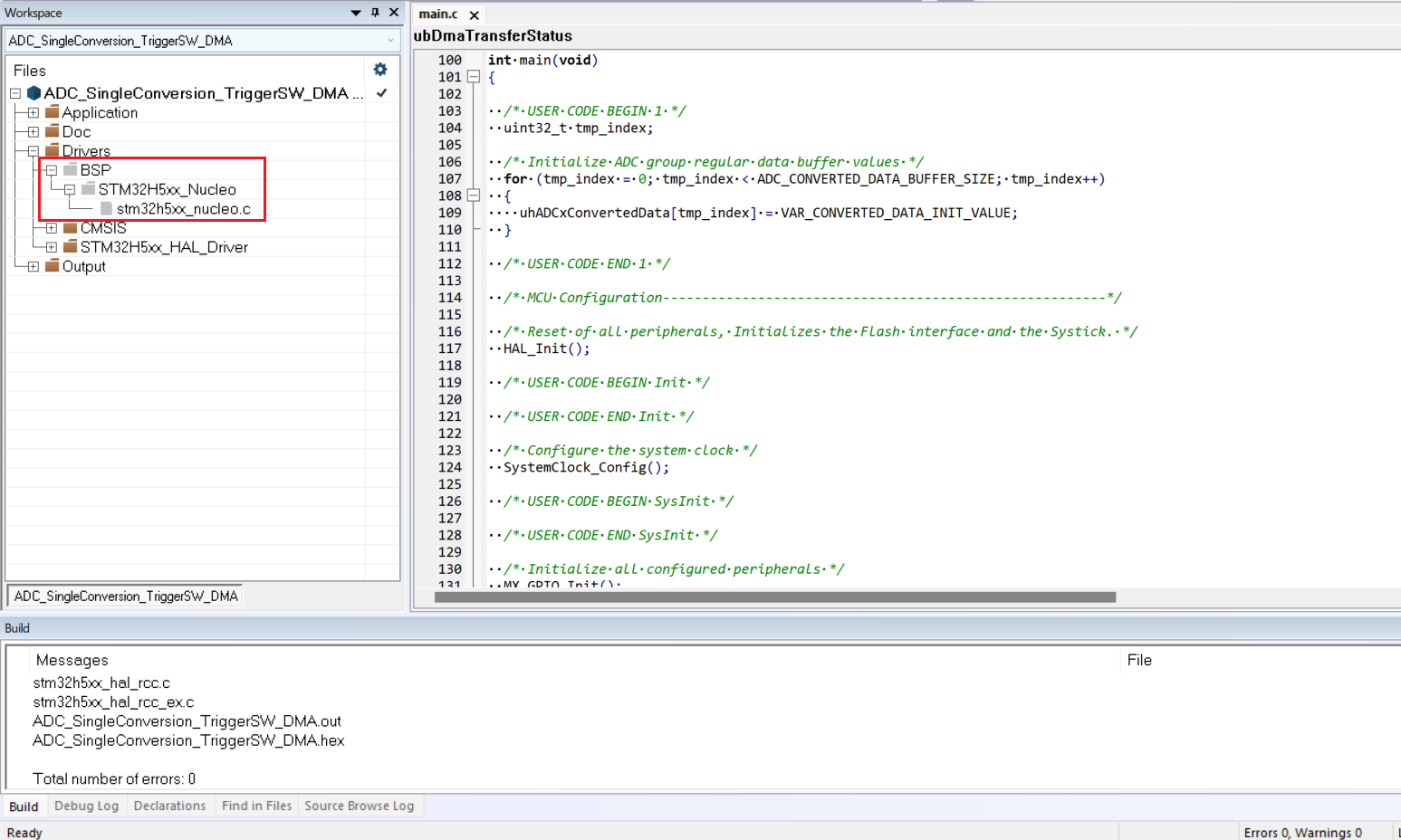

  • Exclude BSP and MSP folders from the project

Example Image

For more details, refer to Generated Linker, startup, system, hal conf, external env files and drivers

Note

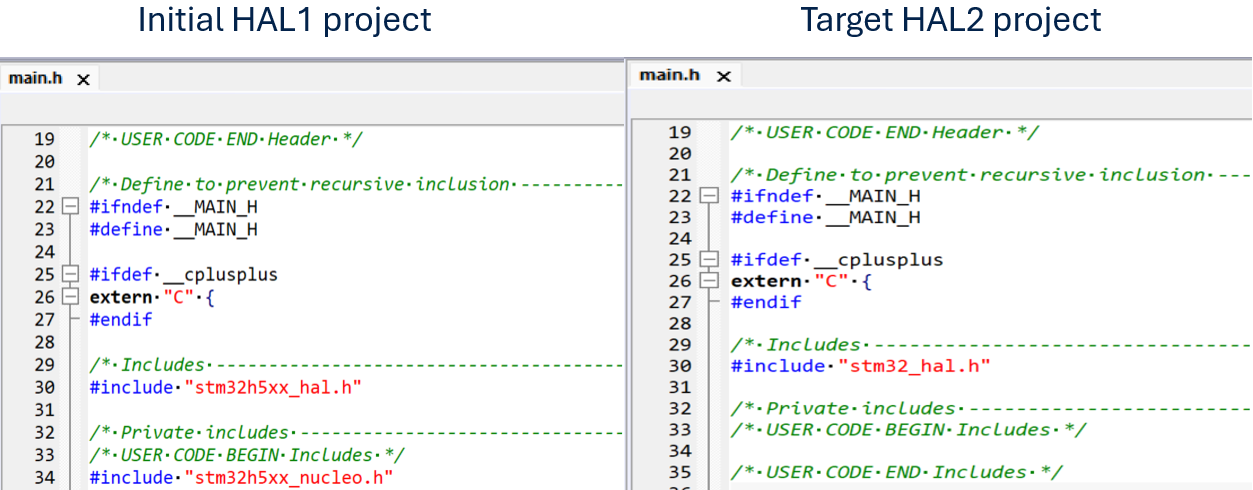

  • Replace #include stm32h5xx_hal.h with #include stm32_hal.h as specified in Central HAL include file added

  • Remove #include stm32h5xx_nucleo.h from main.h


Example Image

4. Update drivers inclusion path in the IDE project

Update the necessary driver includes in your project directory.

Drivers inclusion path in the IDE project

Initial HAL1 project

Target HAL2 project

$PROJ_DIR$/../../../../../../Drivers/STM32H5xx_HAL_Driver/Inc


$PROJ_DIR$/../../../../../../Drivers/STM32H5xx_HAL_Driver/Inc/Legacy

$PROJ_DIR$/../../../../../../Drivers/CMSIS/Include







$PROJ_DIR$/../../../../../stm32c5xx_drivers/hal
$PROJ_DIR$/../../../../../stm32c5xx_drivers/ll

Removed; there is no stm32_hal_legacy.h file in HAL2.

$PROJ_DIR$/../../../../../CMSIS/Core/Include

// New include paths have been added in HAL2
$PROJ_DIR$/../../../../../stm32c5xx_dfp/Include

$PROJ_DIR$/../../../../../Core/Src/generated/hal

$PROJ_DIR$/../../../../../Core/Src/generated/hal/stm32_external_env.h

$PROJ_DIR$/../../../../../Core/Inc

5. Update drivers source files selection in the IDE project

Update the necessary driver source files in the IDE project with the ones generated by STM32CubeMX2.

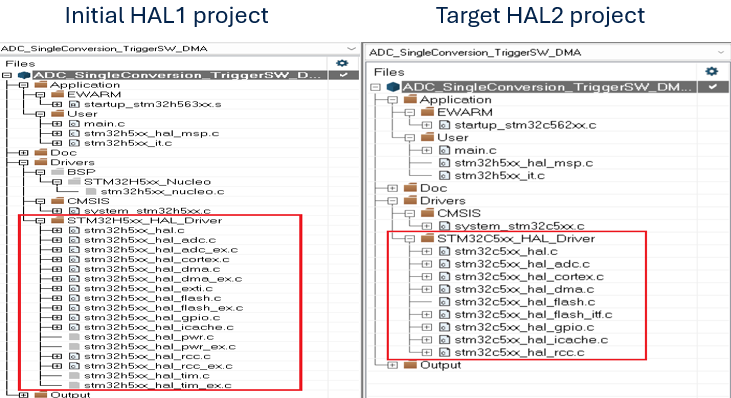

Update drivers source files

Example Image

Replace the stm32h5xx files with stm32c5xx files and ensure both header (.h) and source (.c) files are updated.

HAL1 versus HAL2 LL and HAL Files

Module

Initial project

Migrated project

GENERIC

stm32h5xx_hal_def.h

stm32h5xx_hal_conf.h

stm32h5xx_hal.h

stm32h5xx_hal.c

stm32c5xx_hal_def.h

stm32c5xx_hal_conf.h

stm32c5xx_hal.h

stm32c5xx_hal.c

stm32_assert.h

stm32c5xx_hal_dbgmcu.h

stm32c5xx_hal_dbgmcu.c

stm32c5xx_hal_sbs.h

stm32c5xx_hal_sbs.c

CORTEX

stm32h5xx_hal_cortex.h

stm32h5xx_hal_cortex.c

stm32xh5_ll_cortex.c

stm32c5xx_hal_cortex.h

stm32c5xx_hal_cortex.c

GPIO

stm32h5xx_hal_gpio.h

stm32h5xx_hal_gpio.c

stm32h5xx_ll_gpio.h

stm32h5xx_ll_lpgpio.h

stm32h5xx_hal_gpio_ex.h

stm32h5xx_ll_gpio.c

stm32h5xx_ll_lpgpio.c

stm32c5xx_hal_gpio.h

stm32c5xx_hal_gpio.c

stm32c5xx_ll_gpio.h

stm32c5xx_ll_lpgpio.h

RCC

stm32h5xx_hal_rcc.h

stm32h5xx_hal_rcc.c

stm32h5xx_ll_rcc.h

stm32h5xx_hal_rcc_ex.h

stm32h5xx_hal_rcc_ex.c

stm32h5xx_ll_rcc.c

stm32c5xx_hal_rcc.h

stm32c5xx_hal_rcc.c

stm32c5xx_ll_rcc.h

DMA

stm32h5xx_hal_dma.h

stm32h5xx_hal_dma.c

stm32h5xx_ll_dma.h

stm32h5xx_hal_dma_ex.c

stm32h5xx_hal_dma_ex.h

stm32h5xx_ll_dma.c

stm32c5xx_hal_dma.h

stm32c5xx_hal_dma.c

stm32c5xx_ll_dma.h

ICACHE

stm32h5xx_hal_icache.h

stm32h5xx_hal_icache.c

stm32h5xx_ll_icache.h

stm32h5xx_ll_icache.c

stm32c5xx_hal_icache.h

stm32c5xx_hal_icache.c

stm32c5xx_ll_icache.h

ADC

stm32h5xx_hal_adc.h

stm32h5xx_hal_adc.c

stm32h5xx_ll_adc.h

stm32h5xx_hal_adc_ex.h

stm32h5xx_hal_adc_ex.c

stm32h5xx_ll_adc.c

stm32c5xx_hal_adc.h

stm32c5xx_hal_adc.c

stm32c5xx_ll_adc.h

FLASH

stm32h5xxx_hal_flash.h

stm32h5xxx_hal_flash.c

stm32h5xxx_hal_flash_ex.h

stm32h5xxx_hal_flash_ex.c

stm32c5xx_hal_flash.h

stm32c5xx_hal_flash.c



stm32c5xx_ll_flash.c

stm32c5xx_hal_flash_itf.c

stm32c5xx_hal_flash_itf.h

For more details, refer to Generated Linker, startup, system, hal conf, external env files and drivers

Important

  • The items highlighted in Inline code have been removed from HAL2 and all extended HAL files are merged inside the corresponding HAL files.

  • The items marked in Bold have been added to HAL2.

6. Update Pre-Processor Defines for drivers in the IDE project

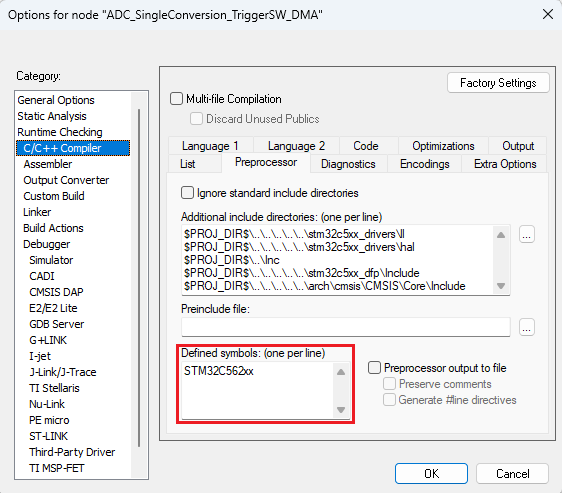

Update pre-processor defines and keep STM32C562xx as pre-processor defines in generated project.

Example Image

Next step: Execute the automatic detection script
