Alternative option using Stubbing ¶

This section demonstrates the process of using the HAL1 detection script with the stubbing option to identify and migrate HAL1 references within the application code of the provided examples.

It covers the steps from script execution to log analysis and the subsequent refactoring of HAL1 references based on the HAL1 to HAL2 migration guidelines.

The HAL1 detection script with the stubbing option is designed to automate the process of identifying and optionally stubbing HAL modules within source files.

Execute the automatic detection script with the Stubbing option ¶

Change the working directory to the folder where you extracted the HAL2 Migrator ZIP package.

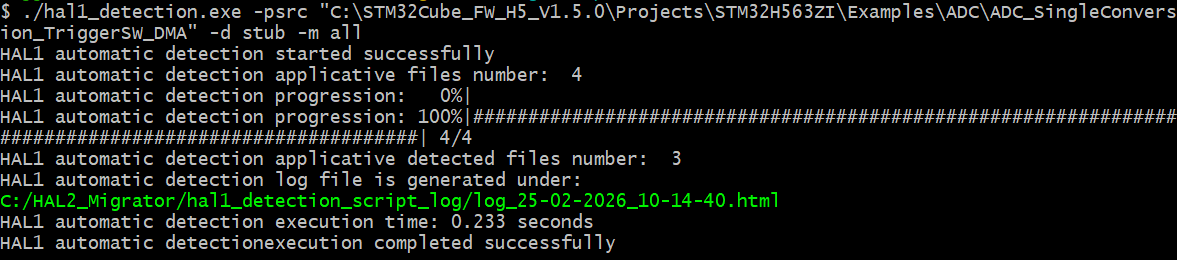

Execute the HAL1 detection script with the stubbing option using the command line:

“Git Bash” terminal

           ./hal1_detection.exe -psrc "$YOUR_PROJECT_PATH$" -d stub -m all



“Command Prompt” terminal

           hal1_detection.exe -psrc "$YOUR_PROJECT_PATH$" -d stub -m all



For the following example :

To execute the HAL1 detection script with the stubbing option :

           ./hal1_detection.exe -psrc "C:\STM32Cube_FW_H5_V1.5.0\Projects\STM32H563ZI\Examples\ADC\ADC_SingleConversion_TriggerSW_DMA" -d stub -m all



           hal1_detection.exe -psrc "C:\STM32Cube_FW_H5_V1.5.0\Projects\STM32H563ZI\Examples\ADC\ADC_SingleConversion_TriggerSW_DMA" -d stub -m all



Note

Use the default configuration defined in the hal1_detection_config.py file :

cd "C:\HAL2_Migrator\hal1_detection_config.py"

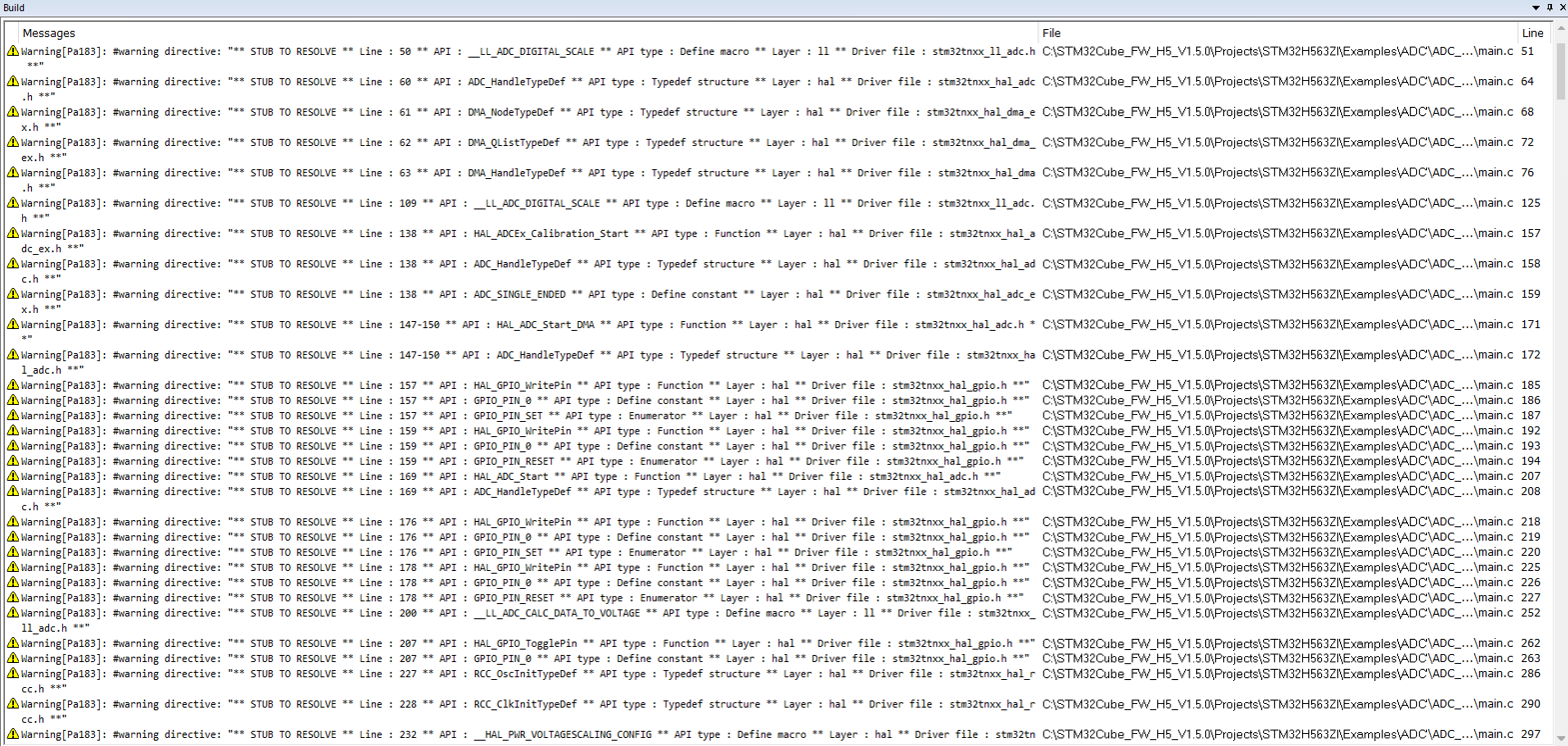

Build log after stubbing ¶

After completing the IDE settings update, running the HAL detection, and stubbing script, it is recommended to compile the project and check that there are no compilation error and there are a set of warning reflecting the stubbed HAL1 APIs that require migration.

All HAL1 functions, structures, enumerations, constants, and macros used in the application files are stubbed using a compilation flag.

For each stubbed code, compilation warnings are added to indicate in the IDE console all stubbed APIs.

The generated log file list in details all stubbed code by referring to the conresponding section within the documentation.

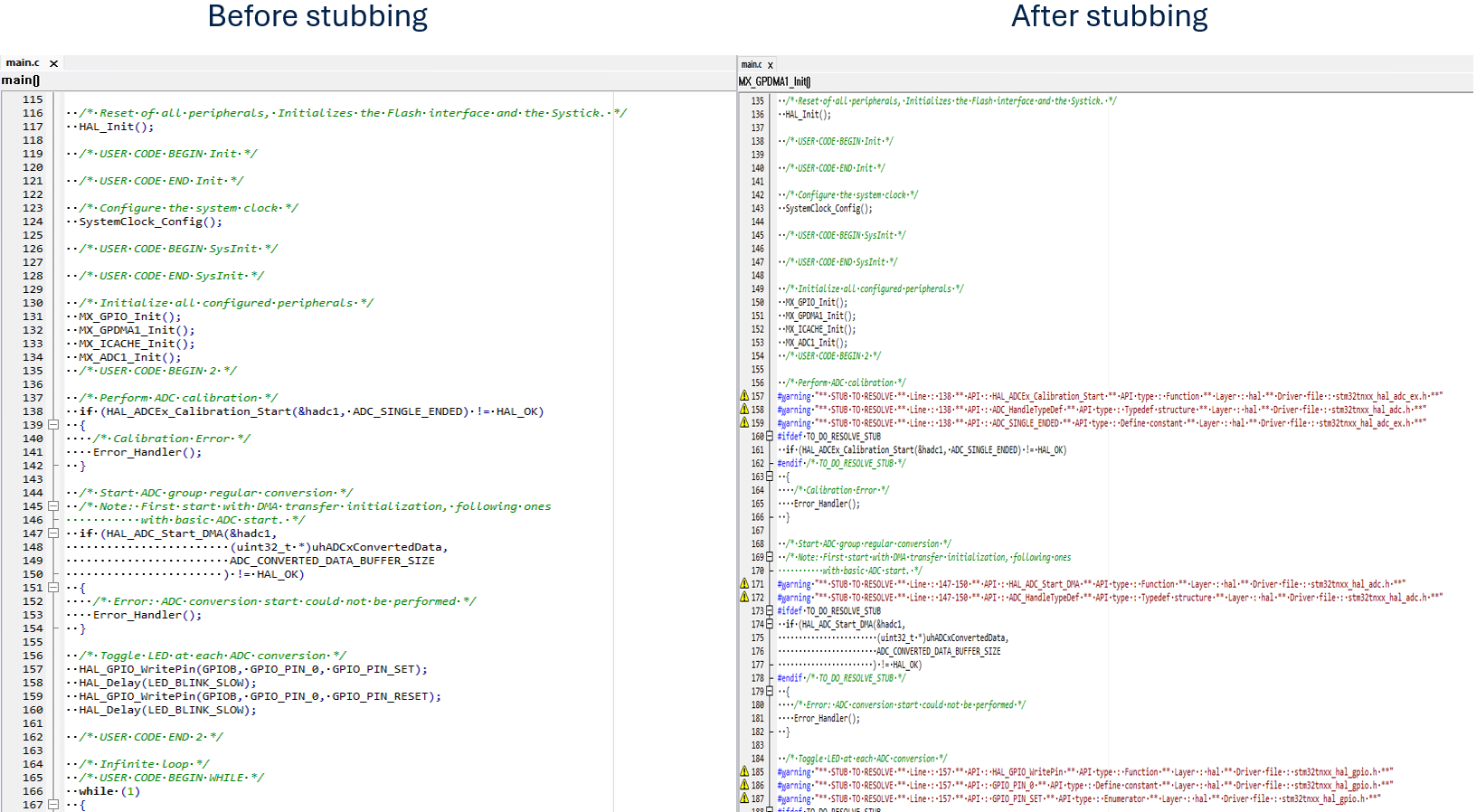

Before stubbing	After stubbing
ADC_HandleTypeDef hadc1;	#warning " STUB TO RESOLVE Line : 60 API : ADC_HandleTypeDef API type : Typedef structure Layer : hal Driver file : stm32tnxx_hal_adc.h *" #ifdef TO_DO_RESOLVE_STUB ADC_HandleTypeDef hadc1; #endif / TO_DO_RESOLVE_STUB */
if (HAL_ADCEx_Calibration_Start(&hadc1, ADC_SINGLE_ENDED) != HAL_OK) { /* Calibration Error */ Error_Handler(); }	#warning " STUB TO RESOLVE Line : 138 API : HAL_ADCEx_Calibration_Start API type : Function Layer : hal Driver file : stm32tnxx_hal_adc_ex.h " #warning " STUB TO RESOLVE Line : 138 API : ADC_HandleTypeDef API type : Typedef structure Layer : hal Driver file : stm32tnxx_hal_adc.h " #warning " STUB TO RESOLVE Line : 138 API : ADC_SINGLE_ENDED API type : Define constant Layer : hal Driver file : stm32tnxx_hal_adc_ex.h *" #ifdef TO_DO_RESOLVE_STUB if (HAL_ADCEx_Calibration_Start(&hadc1, ADC_SINGLE_ENDED) != HAL_OK) #endif / TO_DO_RESOLVE_STUB / { / Calibration Error */ Error_Handler(); }

Before stubbing

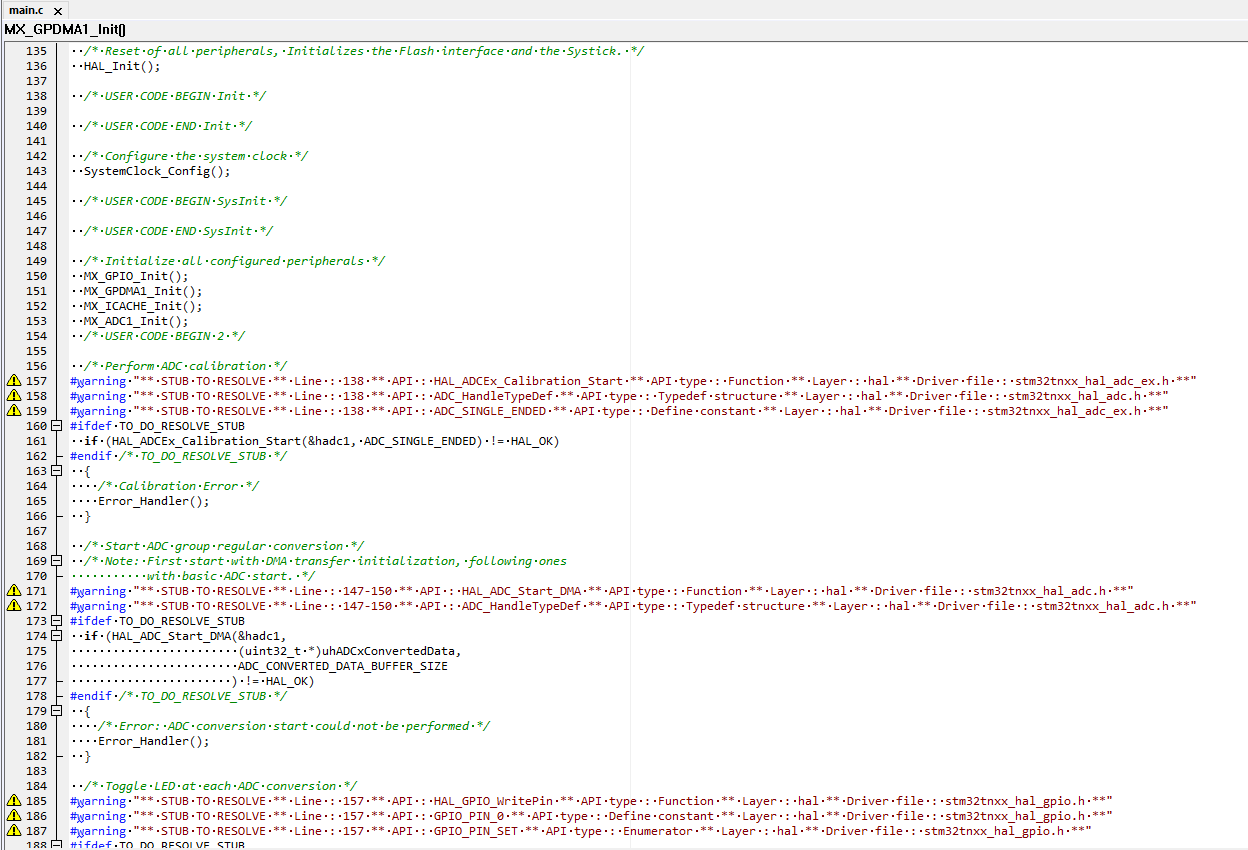

After stubbing

                 ADC_HandleTypeDef hadc1;



                 #warning "** STUB TO RESOLVE ** Line : 60 ** API : ADC_HandleTypeDef ** API type : Typedef structure ** Layer : hal ** Driver file : stm32tnxx_hal_adc.h **"
#ifdef TO_DO_RESOLVE_STUB
ADC_HandleTypeDef hadc1;
#endif /* TO_DO_RESOLVE_STUB */



                 if (HAL_ADCEx_Calibration_Start(&hadc1, ADC_SINGLE_ENDED) != HAL_OK)
{
  /* Calibration Error */
  Error_Handler();
}



                 #warning "** STUB TO RESOLVE ** Line : 138 ** API : HAL_ADCEx_Calibration_Start ** API type : Function ** Layer : hal ** Driver file : stm32tnxx_hal_adc_ex.h **"
#warning "** STUB TO RESOLVE ** Line : 138 ** API : ADC_HandleTypeDef ** API type : Typedef structure ** Layer : hal ** Driver file : stm32tnxx_hal_adc.h **"
#warning "** STUB TO RESOLVE ** Line : 138 ** API : ADC_SINGLE_ENDED ** API type : Define constant ** Layer : hal ** Driver file : stm32tnxx_hal_adc_ex.h **"
#ifdef TO_DO_RESOLVE_STUB
  if (HAL_ADCEx_Calibration_Start(&hadc1, ADC_SINGLE_ENDED) != HAL_OK)
#endif /* TO_DO_RESOLVE_STUB */
  {
    /* Calibration Error */
    Error_Handler();
  }



Resolve HAL1 detected and stubbed references ¶

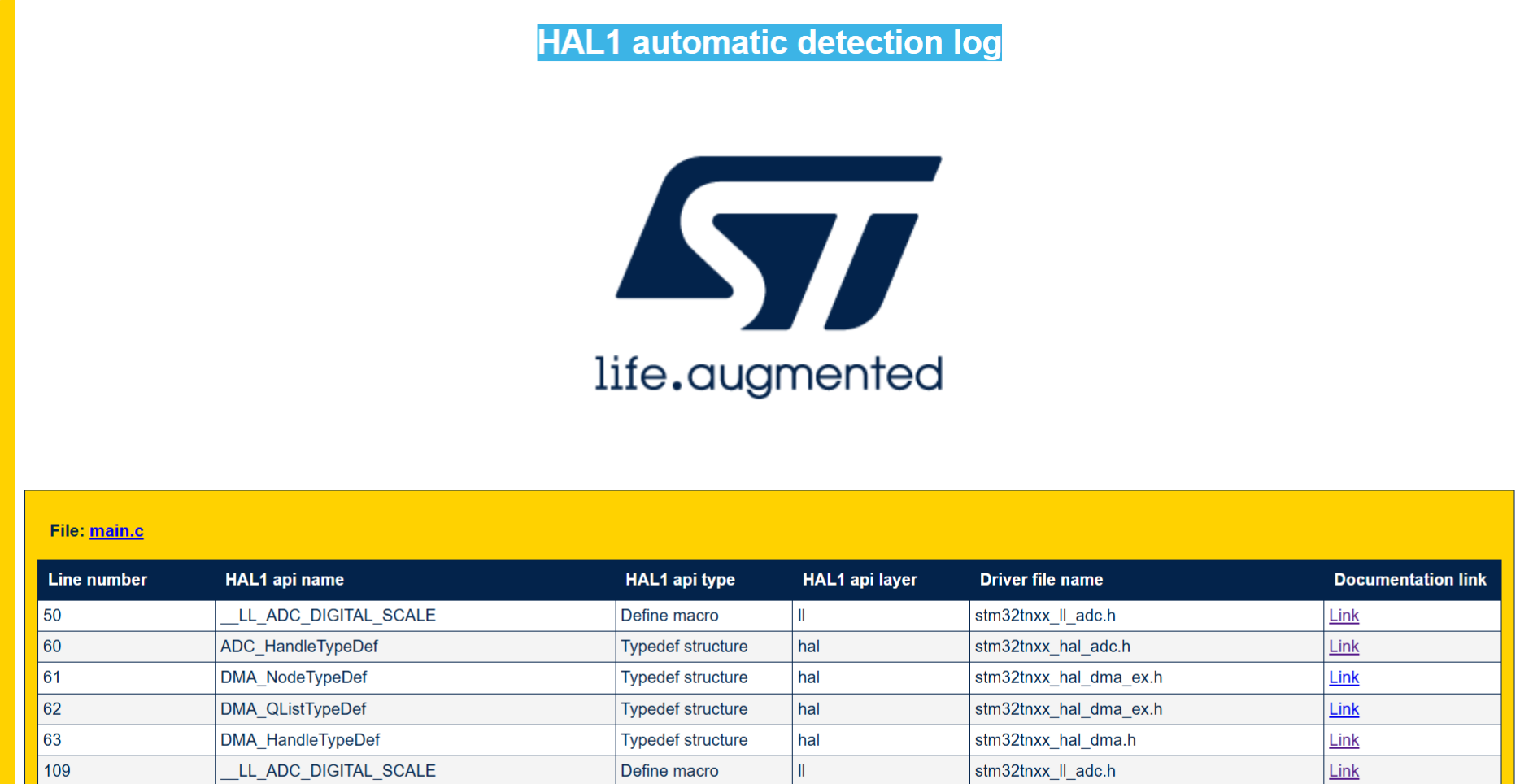

Generated log ¶

After the execution of the automatic detection and stubbing script, a log file is generated under HAL2_Migrator/hal_detection_stubbing_script_log.

Open the log file generated to start resolving stubbed HAL1 references by clicking on the documentation link of each stubbed HAL API.

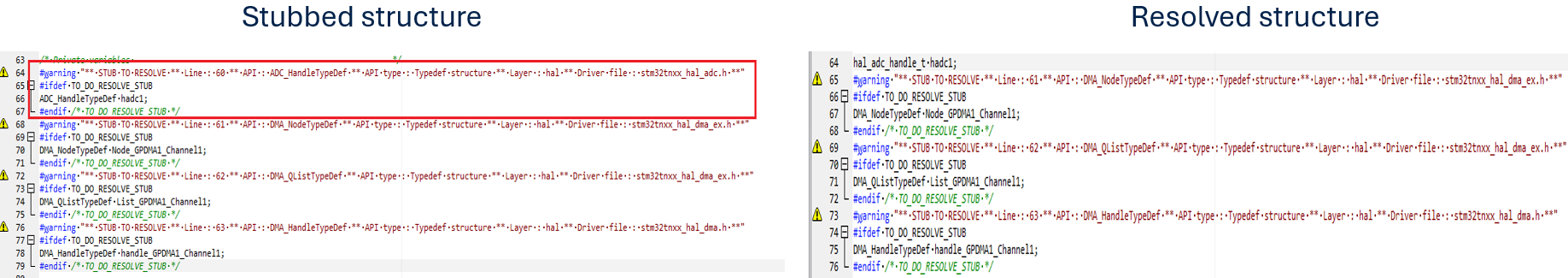

Resolve ADC_HandleTypeDef Structure ¶

Replace the stubbed ADC_HandleTypeDef structure with the new typedef naming in the generated project folder in mx_adc1.c file.

For more details about generated peripherals, refer to Generated Linker, startup, system, hal conf, external env files and drivers

Note

Replace only ADC_HandleTypeDef with hal_adc_handle_t without static .

Important

After replacing the new structure in the project, replace #warning message, #ifdef and #endif within applicative file.
The same after resolution of each stubbed code.
All commented #warning message, #ifdef and #endif shall be removed after completing the resolve of overall applicative file

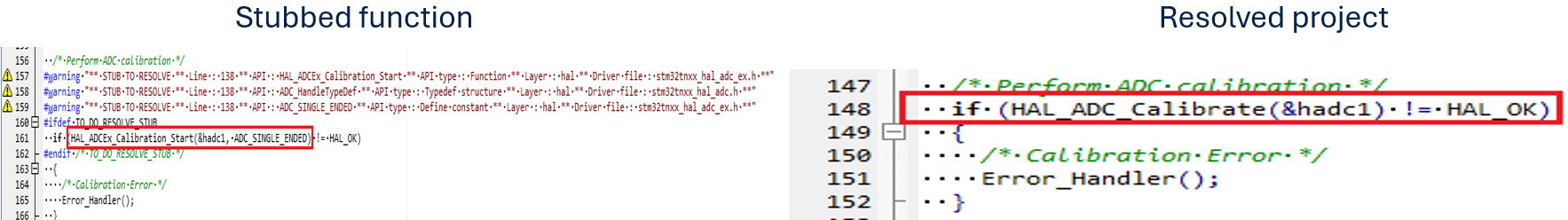

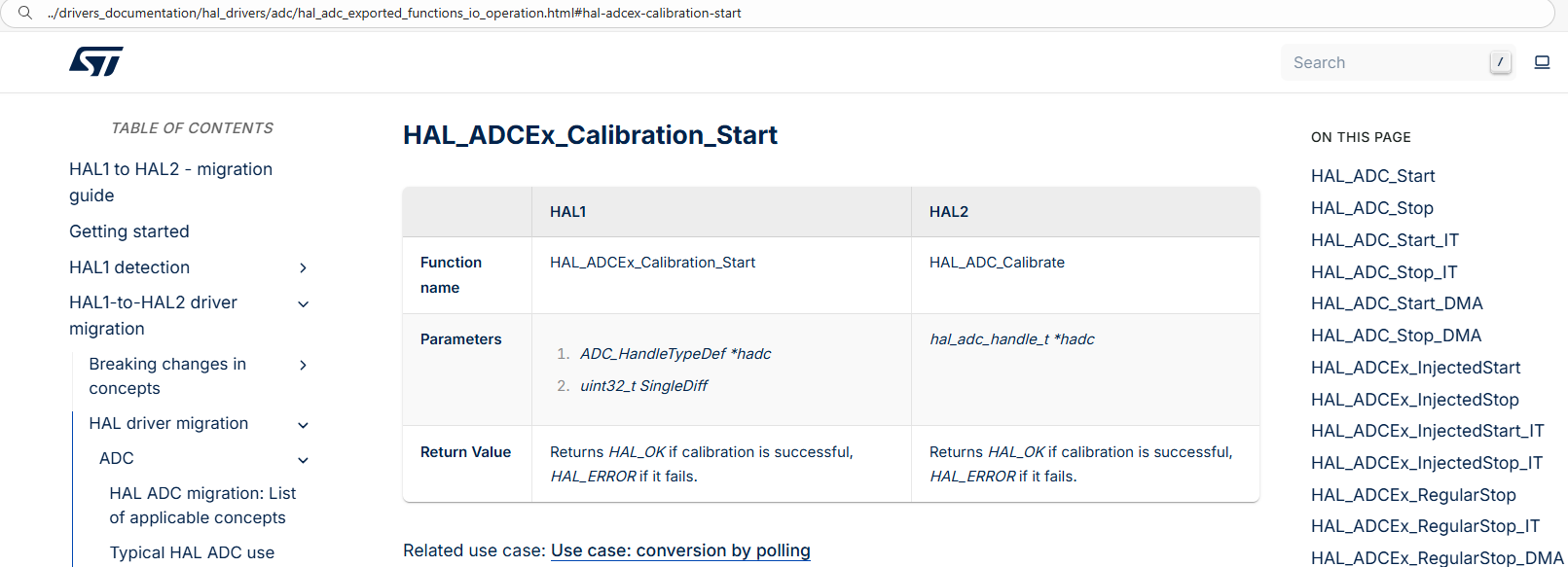

Resolve HAL_ADCEx_Calibration_Start function ¶

Check the ADC Functions Migration document in the HAL Migration Guide and resolve the function as shown.

refer to HAL_ADCEx_Calibration_Start.

Resolve all functions, structures, enumerations, macros and constants in the project.

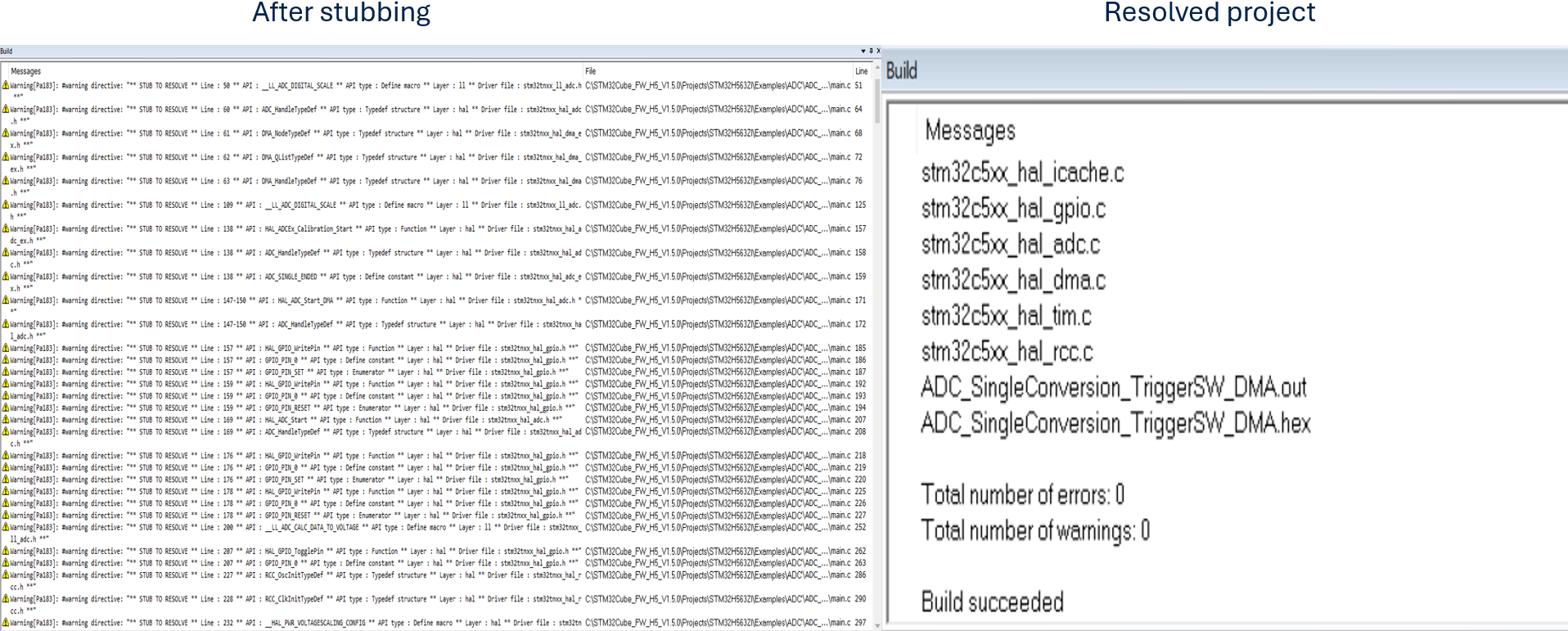

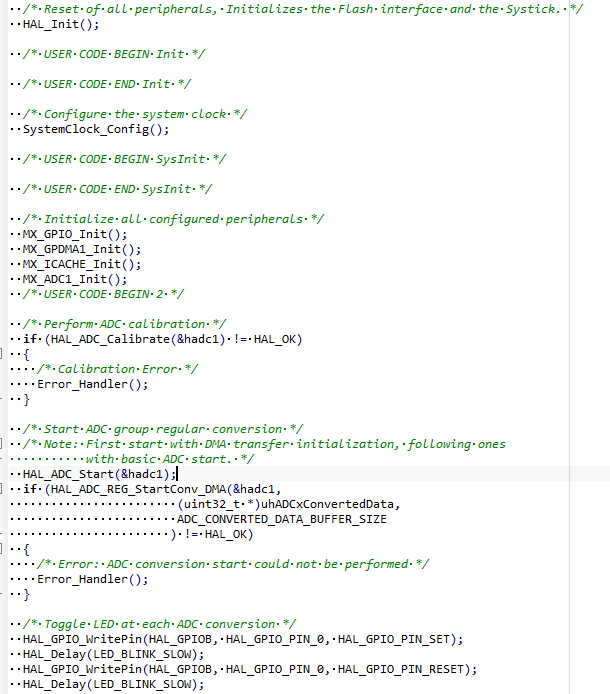

Resolved project ¶


Stubbed project
Resolved project
