HAL AXIM Use Cases ¶ Initiator configuration sequence ¶ Called functions: HAL_AXIM_INI_SetConfig() HAL_AXIM_INI_SetReadQoS() HAL_AXIM_INI_SetWriteQoS() HAL_AXIM_INI_SetIssuingCapability() Target configuration sequence ¶ Called functions: HAL_AXIM_TARG_SetBusMatrixIssuingCapability() HAL_AXIM_TARG_GetBusMatrixIssuingCapability()
STM32H7Pxx HAL Drivers

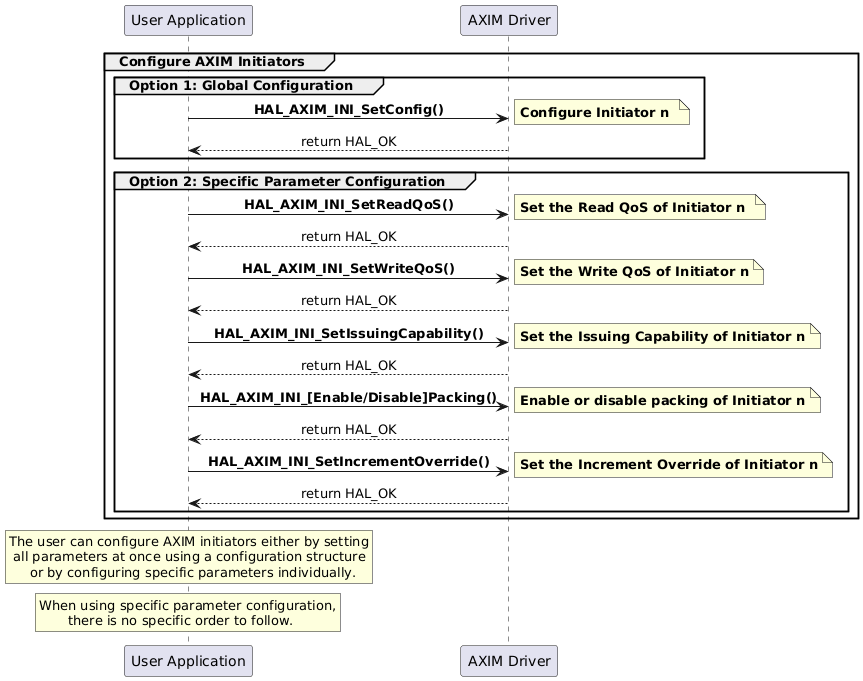

![@startuml
skinparam sequenceMessageAlign center
group Configure AXIM Initiators
group Option 1: Global Configuration
"User Application"->"AXIM Driver" : **HAL_AXIM_INI_SetConfig()**
note right: **Configure Initiator n **
"AXIM Driver"-->"User Application" : return HAL_OK
end
group Option 2: Specific Parameter Configuration
"User Application"->"AXIM Driver" : **HAL_AXIM_INI_SetReadQoS()**
note right: **Set the Read QoS of Initiator n **
"AXIM Driver"-->"User Application" : return HAL_OK
"User Application"->"AXIM Driver" : **HAL_AXIM_INI_SetWriteQoS()**
note right: **Set the Write QoS of Initiator n**
"AXIM Driver"-->"User Application" : return HAL_OK
"User Application"->"AXIM Driver" : **HAL_AXIM_INI_SetIssuingCapability()**
note right: **Set the Issuing Capability of Initiator n**
"AXIM Driver"-->"User Application" : return HAL_OK
"User Application"->"AXIM Driver" : **HAL_AXIM_INI_[Enable/Disable]Packing()**
note right: **Enable or disable packing of Initiator n**
"AXIM Driver"-->"User Application" : return HAL_OK
"User Application"->"AXIM Driver" : **HAL_AXIM_INI_SetIncrementOverride()**
note right: **Set the Increment Override of Initiator n**
"AXIM Driver"-->"User Application" : return HAL_OK
end
end
rnote over "User Application"
The user can configure AXIM initiators either by setting
all parameters at once using a configuration structure
or by configuring specific parameters individually.
endrnote
rnote over "User Application"
When using specific parameter configuration,
there is no specific order to follow.
endrnote
@enduml](../../../../_images/plantuml-fccfe2f9ba9d8bb1953f40da82267a4db1b4cb75.png)

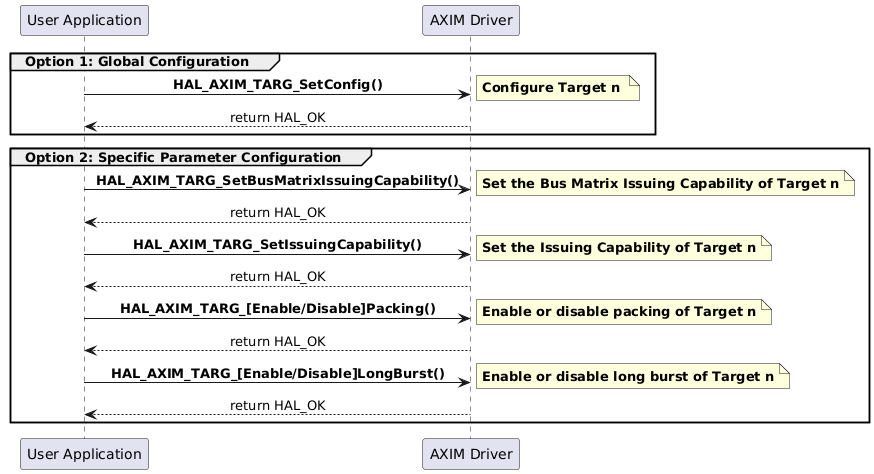

![@startuml
skinparam sequenceMessageAlign center
group Option 1: Global Configuration
"User Application"->"AXIM Driver" : **HAL_AXIM_TARG_SetConfig()**
note right: **Configure Target n **
"AXIM Driver"-->"User Application" : return HAL_OK
end
group Option 2: Specific Parameter Configuration
"User Application"->"AXIM Driver" : **HAL_AXIM_TARG_SetBusMatrixIssuingCapability()**
note right: **Set the Bus Matrix Issuing Capability of Target n**
"AXIM Driver"-->"User Application" : return HAL_OK
"User Application"->"AXIM Driver" : **HAL_AXIM_TARG_SetIssuingCapability()**
note right: **Set the Issuing Capability of Target n**
"AXIM Driver"-->"User Application" : return HAL_OK
"User Application"->"AXIM Driver" : **HAL_AXIM_TARG_[Enable/Disable]Packing()**
note right: **Enable or disable packing of Target n**
"AXIM Driver"-->"User Application" : return HAL_OK
"User Application"->"AXIM Driver" : **HAL_AXIM_TARG_[Enable/Disable]LongBurst()**
note right: **Enable or disable long burst of Target n**
"AXIM Driver"-->"User Application" : return HAL_OK
end
@enduml](../../../../_images/plantuml-cd797f9f0923127ed3c177979114ad6742635a98.png)
