HAL HSP Overview

Introducing HSP

group HSP_Introduction

• The Hardware Abstraction Layer (HAL) for HSP provides an efficient interface to the Hardware Signal Processor (HSP). The HSP is a dedicated signal-processing subsystem designed to offload computation-intensive and time-critical operations from the CPU. It accelerates functions commonly used in demanding embedded applications such as motor control, digital power, metering, audio processing, real-time signal conditioning, and small convolutional neural networks.

• The HSP is built around a dedicated, high-performance Signal Processor Engine (SPE) capable of operating in 32-bit floating point or 8-bit integer modes. The Signal Processor Engine executes HSP-specific microcode (also referred to as Firmware), part of which is embedded in private ROM, while a second part (FW RAM) must be dynamically loaded into RAM during initialization. This Firmware RAM is delivered through the HSP_Engine middleware.

  The HSP also supports the loading of Plugins to:

  • patch or optimize existing processing function,

  • add new processing function.

• The HAL HSP allows running processing functions in Accelerator mode or Sequencer mode. In Sequencer mode, it provides services to:

  • record a processing list (Sequence of processing functions)

  • attach a Processing List to a hardware trigger such as a DMA Transfer Complete, TIM Pulse…

Module and files

The following diagram illustrates the HSP module and its associated files.

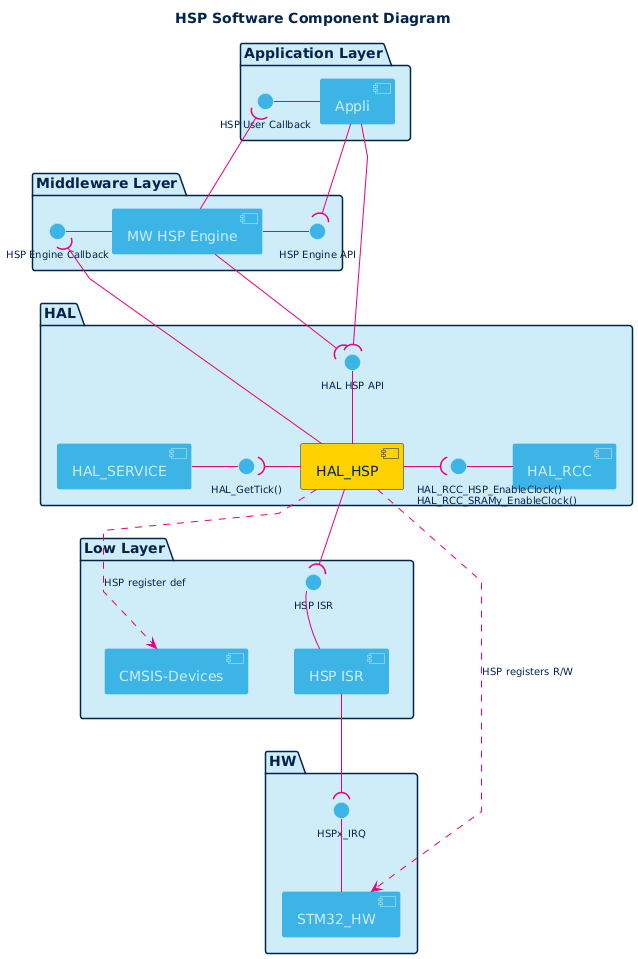

Component diagram

The following diagram illustrates the software components involved in the HSP module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.

Configuration table

The following table lists the configuration defines for the HAL HSP module, specifying their locations, default values, and descriptions:

group HSP_Configuration_Table

Configuration inside the HSP driver

Software configuration defined in stm32h7pxx_hal_conf.h:

Preprocessor flags	Default value	Comment
USE_HAL_HSP_MODULE	1	Enable HAL HSP driver module
USE_HAL_HSP_REGISTER_CALLBACKS	0	Allow the user to define their own callback
USE_HAL_CHECK_PARAM	0	Enable runtime parameter check
USE_HAL_HSP_CLK_ENABLE_MODEL	HAL_CLK_ENABLE_NO	Enable the gating of the peripheral clock
USE_HAL_CHECK_PROCESS_STATE	0	Enable atomicity of process state check
USE_HAL_HSP_USER_DATA	0	Add a user data inside HAL HSP handle
USE_HAL_HSP_GET_LAST_ERRORS	0	Enable retrieval of last processes error codes
USE_HAL_HSP_MSGBOX_GET_LAST_ERROR	0	Enable retrieval of last MSGBOX error code
USE_HAL_HSP_TRGIN_IT	0	Enable Trigger Input IT management
USE_HAL_HSP_STREAM_IT	0	Enable STREAM Buffer IT management
USE_HAL_HSP_TCU_IT	0	Enable Task Comparator Unit IT management
USE_HAL_HSP_TSC_IT	0	Enable TimeStamp Capture IT management
USE_HAL_HSP_PROCLIST_NOTIFICATION_IT	0	Enable Processing List Notification IT management

Software configuration defined in preprocessor environment:

Preprocessor flags	Default value	Comment
USE_ASSERT_DBG_PARAM	None	Enable check param for HAL
USE_ASSERT_DBG_STATE	None	Enable check state for HAL

Note

USE_HAL_HSP_TRGIN_IT to USE_HAL_HSP_PROCLIST_NOTIFICATION_IT are set to 0 by default to reduce the HAL handle footprint when these features are not used by the application.
