HAL SRAM Use Cases

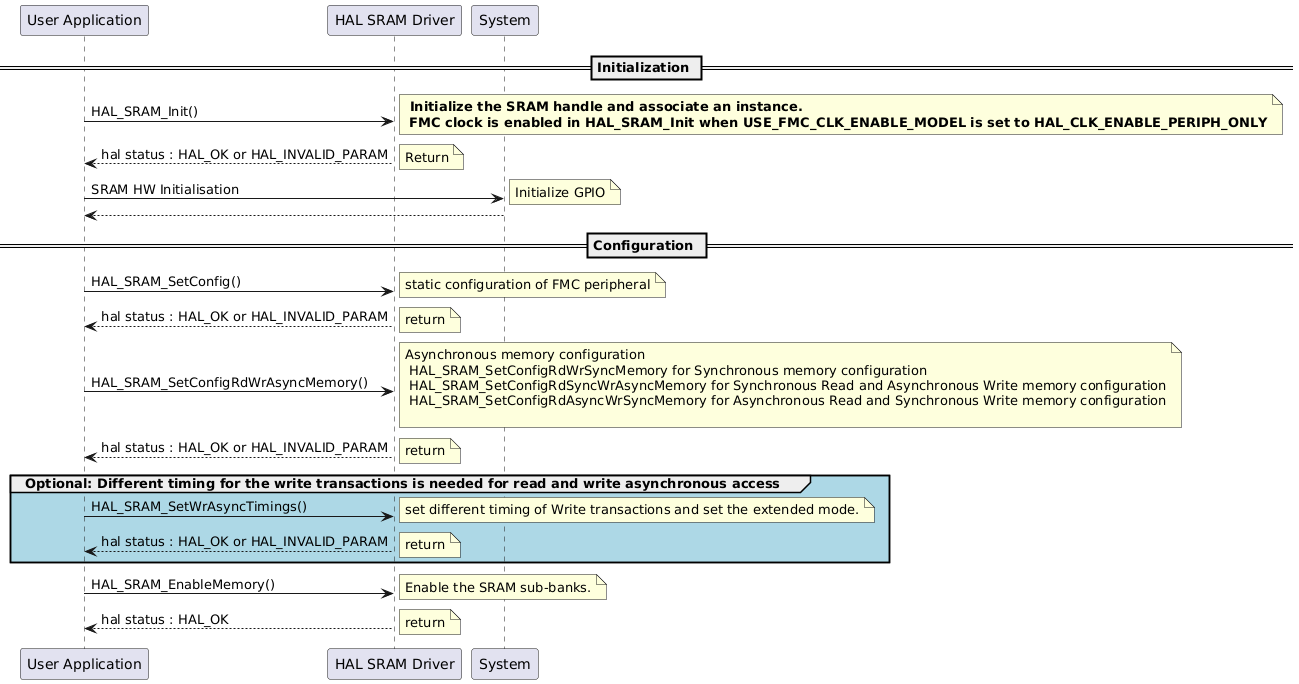

Initialization and Configuration

@startuml == Initialization == "User Application"->"HAL SRAM Driver" : HAL_SRAM_Init() note right: <b> Initialize the SRAM handle and associate an instance.\n <b>FMC clock is enabled in HAL_SRAM_Init when USE_FMC_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_PERIPH_ONLY "HAL SRAM Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: Return "User Application"->"System" : SRAM HW Initialisation note right: Initialize GPIO "System" --> "User Application" == Configuration == "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetConfig() note right: static configuration of FMC peripheral "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetConfigRdWrAsyncMemory() note right: Asynchronous memory configuration\n HAL_SRAM_SetConfigRdWrSyncMemory for Synchronous memory configuration\n HAL_SRAM_SetConfigRdSyncWrAsyncMemory for Synchronous Read and Asynchronous Write memory configuration\n HAL_SRAM_SetConfigRdAsyncWrSyncMemory for Asynchronous Read and Synchronous Write memory configuration\n "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return group #LightBlue Optional: Different timing for the write transactions is needed for read and write asynchronous access "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetWrAsyncTimings() note right: set different timing of Write transactions and set the extended mode. "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return end "User Application"->"HAL SRAM Driver" : HAL_SRAM_EnableMemory() note right: Enable the SRAM sub-banks. "HAL SRAM Driver" --> "User Application": hal status : HAL_OK note right: return @enduml

Called functions:

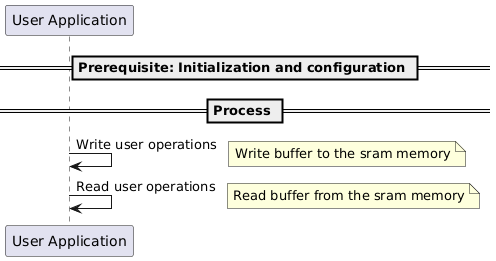

Read/Write Operation

@startuml ==Prerequisite: Initialization and configuration == == Process == "User Application"->"User Application" : Write user operations note right: Write buffer to the sram memory "User Application"->"User Application" : Read user operations note right: Read buffer from the sram memory @enduml

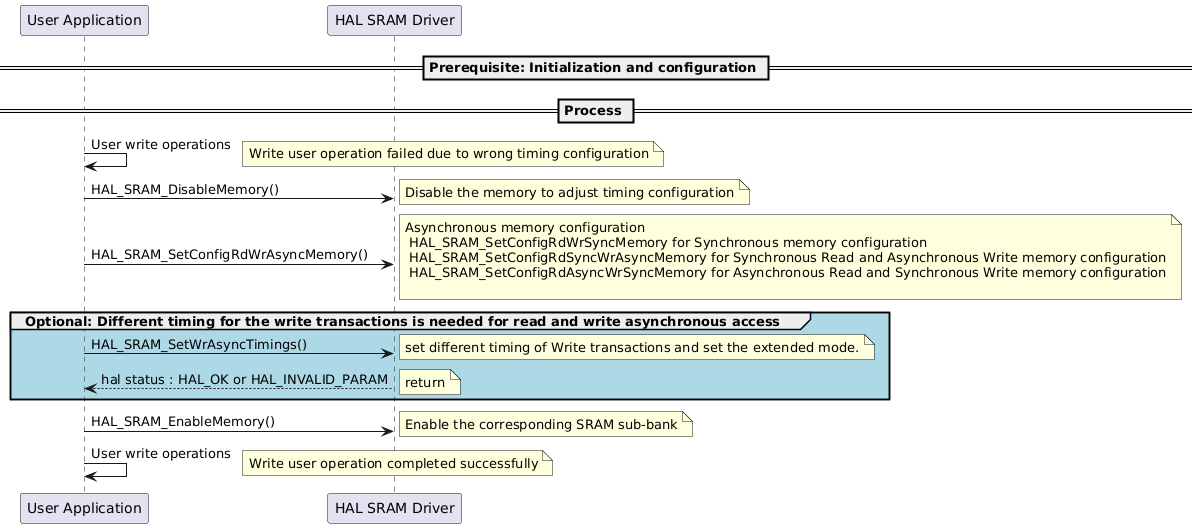

Timing Configuration Adjustment

@startuml ==Prerequisite: Initialization and configuration == == Process == "User Application"->"User Application" : User write operations note right: Write user operation failed due to wrong timing configuration "User Application"->"HAL SRAM Driver" : HAL_SRAM_DisableMemory() note right: Disable the memory to adjust timing configuration "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetConfigRdWrAsyncMemory() note right: Asynchronous memory configuration\n HAL_SRAM_SetConfigRdWrSyncMemory for Synchronous memory configuration\n HAL_SRAM_SetConfigRdSyncWrAsyncMemory for Synchronous Read and Asynchronous Write memory configuration\n HAL_SRAM_SetConfigRdAsyncWrSyncMemory for Asynchronous Read and Synchronous Write memory configuration\n group #LightBlue Optional: Different timing for the write transactions is needed for read and write asynchronous access "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetWrAsyncTimings() note right: set different timing of Write transactions and set the extended mode. "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return end "User Application"->"HAL SRAM Driver" : HAL_SRAM_EnableMemory() note right: Enable the corresponding SRAM sub-bank "User Application"->"User Application" : User write operations note right: Write user operation completed successfully @enduml

Called functions:

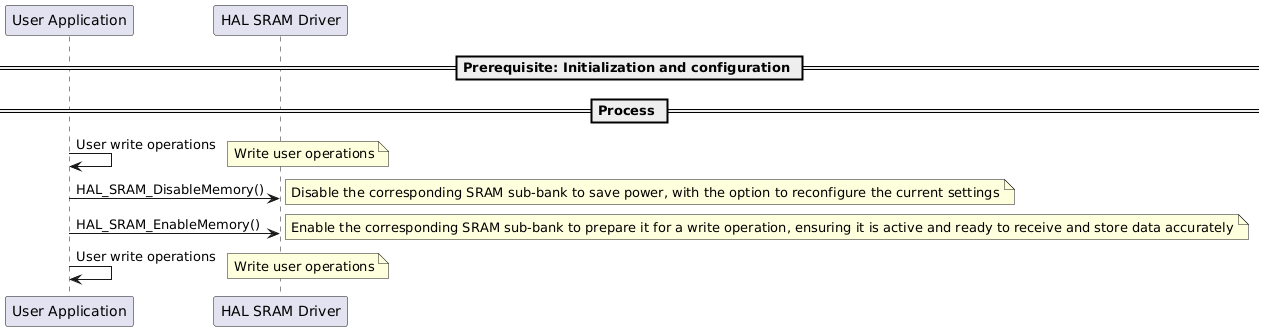

Disable Unused Memory

@startuml ==Prerequisite: Initialization and configuration == == Process == "User Application"->"User Application" : User write operations note right: Write user operations "User Application"->"HAL SRAM Driver" : HAL_SRAM_DisableMemory() note right: Disable the corresponding SRAM sub-bank to save power, with the option to reconfigure the current settings "User Application"->"HAL SRAM Driver" : HAL_SRAM_EnableMemory() note right: Enable the corresponding SRAM sub-bank to prepare it for a write operation, ensuring it is active and ready to receive and store data accurately "User Application"->"User Application" : User write operations note right: Write user operations @enduml

Called functions:

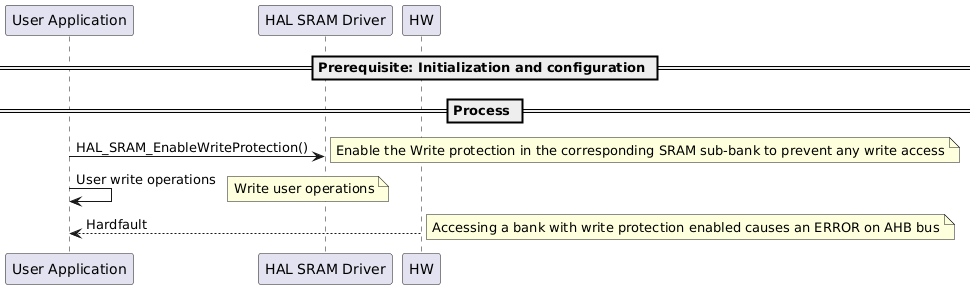

Starting a Write Operation with Write Protection Enabled

@startuml ==Prerequisite: Initialization and configuration == == Process == "User Application"->"HAL SRAM Driver" : HAL_SRAM_EnableWriteProtection() note right: Enable the Write protection in the corresponding SRAM sub-bank to prevent any write access "User Application"->"User Application" : User write operations note right: Write user operations "HW"-->"User Application" : Hardfault note right: Accessing a bank with write protection enabled causes an ERROR on AHB bus @enduml

Called functions:

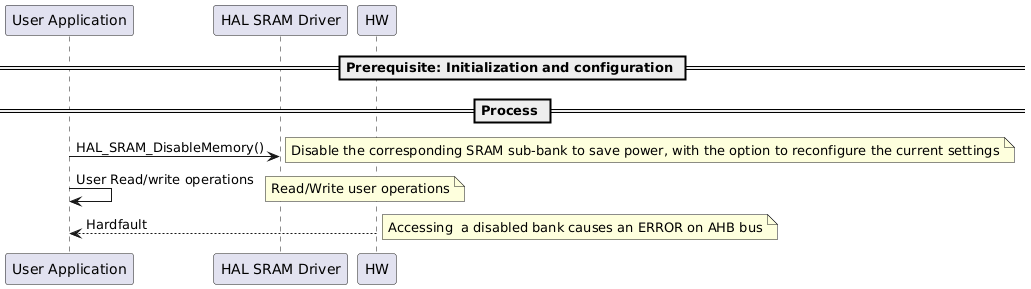

Starting a Read/Write Operation within a Disabled Bank

@startuml ==Prerequisite: Initialization and configuration == == Process == "User Application"->"HAL SRAM Driver" : HAL_SRAM_DisableMemory() note right: Disable the corresponding SRAM sub-bank to save power, with the option to reconfigure the current settings "User Application"->"User Application" : User Read/write operations note right: Read/Write user operations "HW"-->"User Application" : Hardfault note right: Accessing a disabled bank causes an ERROR on AHB bus @enduml

Called functions:

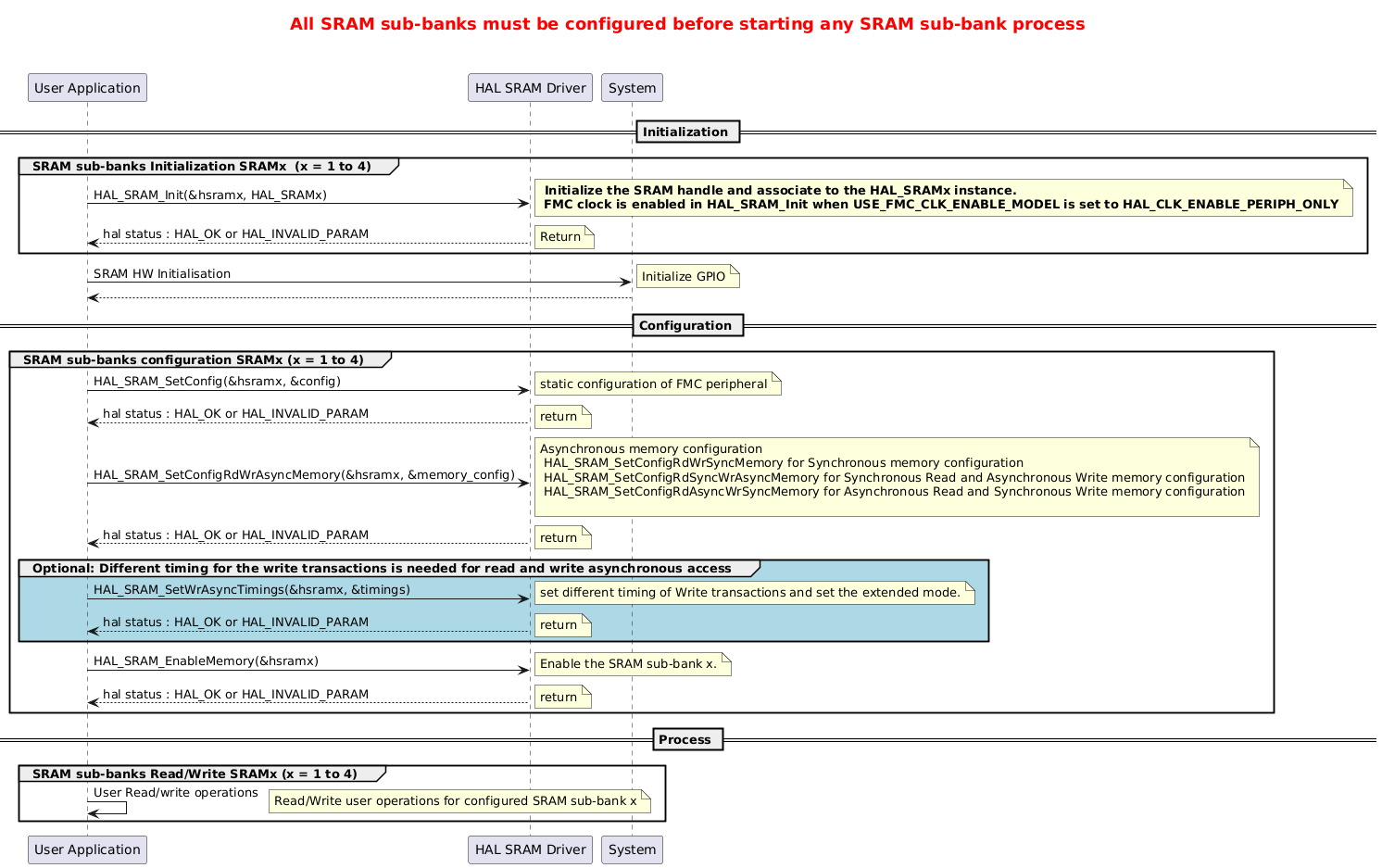

Starting Read/Write Operations in All SRAM Sub-banks

@startuml title <size:18><color:Red> All SRAM sub-banks must be configured before starting any SRAM sub-bank process \n\n == Initialization == group SRAM sub-banks Initialization SRAMx (x = 1 to 4) "User Application"->"HAL SRAM Driver" : HAL_SRAM_Init(&hsramx, HAL_SRAMx) note right: <b> Initialize the SRAM handle and associate to the HAL_SRAMx instance.\n <b>FMC clock is enabled in HAL_SRAM_Init when USE_FMC_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_PERIPH_ONLY "HAL SRAM Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: Return end "User Application"->"System" : SRAM HW Initialisation note right: Initialize GPIO "System" --> "User Application" == Configuration == group SRAM sub-banks configuration SRAMx (x = 1 to 4) "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetConfig(&hsramx, &config) note right: static configuration of FMC peripheral "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetConfigRdWrAsyncMemory(&hsramx, &memory_config) note right: Asynchronous memory configuration\n HAL_SRAM_SetConfigRdWrSyncMemory for Synchronous memory configuration\n HAL_SRAM_SetConfigRdSyncWrAsyncMemory for Synchronous Read and Asynchronous Write memory configuration\n HAL_SRAM_SetConfigRdAsyncWrSyncMemory for Asynchronous Read and Synchronous Write memory configuration\n "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return group #LightBlue Optional: Different timing for the write transactions is needed for read and write asynchronous access "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetWrAsyncTimings(&hsramx, &timings) note right: set different timing of Write transactions and set the extended mode. "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return end "User Application"->"HAL SRAM Driver" : HAL_SRAM_EnableMemory(&hsramx) note right: Enable the SRAM sub-bank x. "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return end == Process == group SRAM sub-banks Read/Write SRAMx (x = 1 to 4) "User Application"->"User Application" : User Read/write operations note right: Read/Write user operations for configured SRAM sub-bank x end @enduml

Called functions:

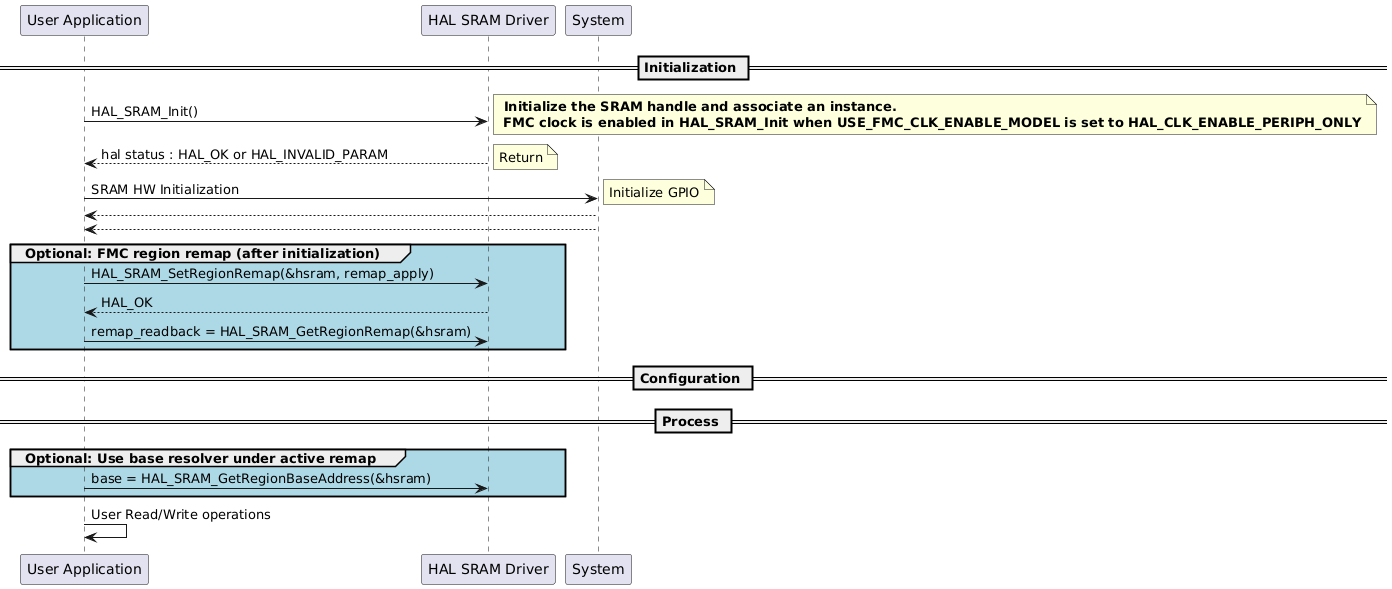

#if defined(GENERATOR_FMC2_IPVx) || defined(GENERATOR_FMC3_IPVx) Remap region **********************

@startuml == Initialization == "User Application"->"HAL SRAM Driver" : HAL_SRAM_Init() note right: <b> Initialize the SRAM handle and associate an instance.\n <b>FMC clock is enabled in HAL_SRAM_Init when USE_FMC_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_PERIPH_ONLY "HAL SRAM Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: Return "User Application"->"System" : SRAM HW Initialization note right: Initialize GPIO "System" --> "User Application" "System" --> "User Application" group #LightBlue Optional: FMC region remap (after initialization) "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetRegionRemap(&hsram, remap_apply) "HAL SRAM Driver" --> "User Application" : HAL_OK "User Application"->"HAL SRAM Driver" : remap_readback = HAL_SRAM_GetRegionRemap(&hsram) end == Configuration == == Process == group #LightBlue Optional: Use base resolver under active remap "User Application"->"HAL SRAM Driver" : base = HAL_SRAM_GetRegionBaseAddress(&hsram) end "User Application"->"User Application" : User Read/Write operations @enduml

Called functions:

#endif
