HAL FMAC Use Cases

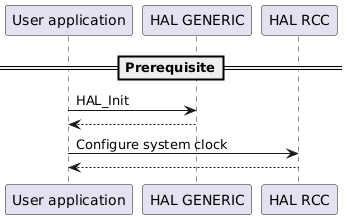

Prerequisites

The following sequence shows the system services that must be configured before using the FMAC driver.

@startuml ==Prerequisite== participant App as "User application" participant "HAL GENERIC" as GENERIC participant "HAL RCC" as RCC App -> GENERIC : HAL_Init GENERIC --> App App -> RCC : Configure system clock RCC --> App @enduml

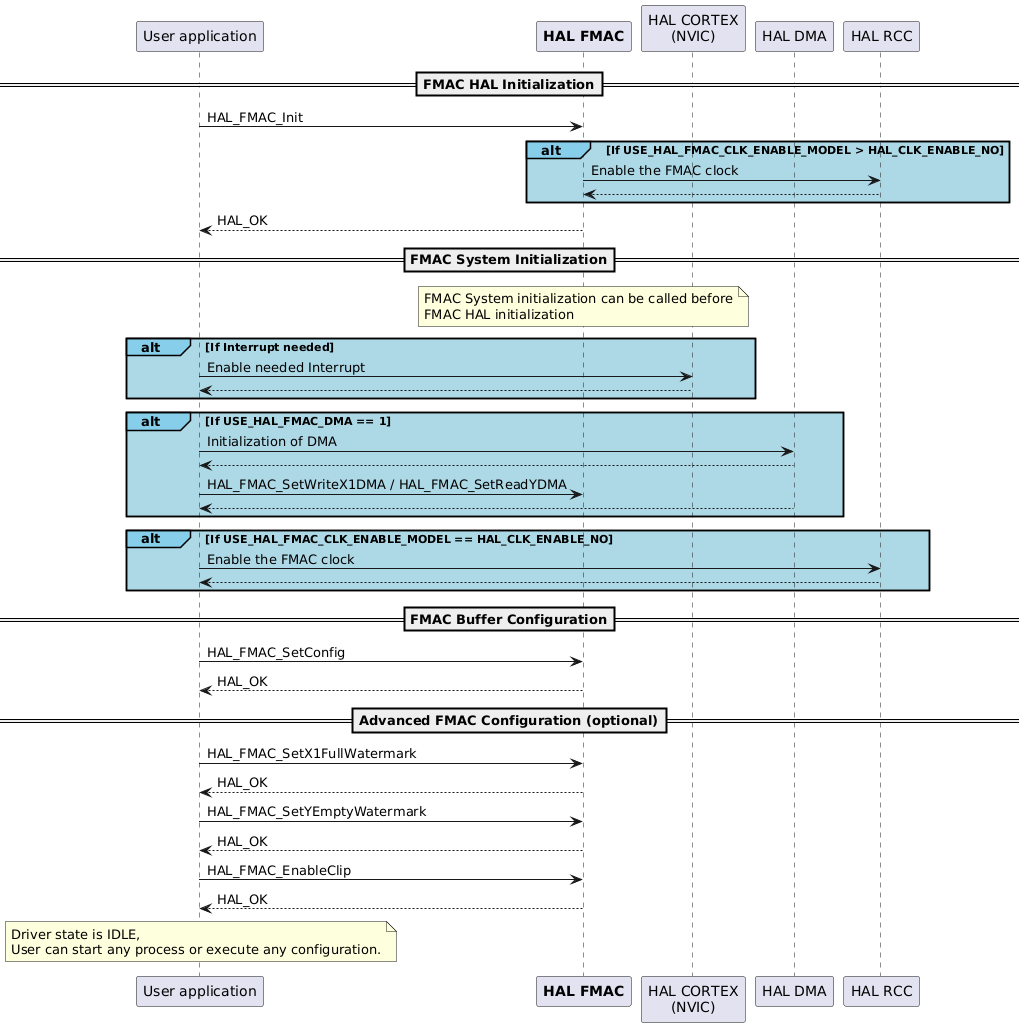

Full FMAC initialization sequence

The following sequence shows the complete FMAC driver initialization flow, including optional DMA, clock, and advanced FMAC configuration steps.

@startuml participant App as "User application" participant "<font color=Black><b>HAL FMAC</b></font>" as FMAC participant "HAL CORTEX\n(NVIC)" as CORTEX participant "HAL DMA" as DMA participant "HAL RCC" as RCC ==FMAC HAL Initialization== App -> FMAC : HAL_FMAC_Init alt#skyblue #lightBlue If USE_HAL_FMAC_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO FMAC->RCC : Enable the FMAC clock RCC-->FMAC end App <-- FMAC : HAL_OK ==FMAC System Initialization== Note over FMAC : FMAC System initialization can be called before\nFMAC HAL initialization alt#SkyBlue #LightBlue If Interrupt needed App->CORTEX : Enable needed Interrupt CORTEX-->App end alt#SkyBlue #LightBlue If USE_HAL_FMAC_DMA == 1 App->DMA : Initialization of DMA DMA-->App App->FMAC : HAL_FMAC_SetWriteX1DMA / HAL_FMAC_SetReadYDMA DMA-->App end alt#SkyBlue #LightBlue If USE_HAL_FMAC_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO App->RCC : Enable the FMAC clock RCC --> App end ==FMAC Buffer Configuration== App -> FMAC : HAL_FMAC_SetConfig App <-- FMAC : HAL_OK ==Advanced FMAC Configuration (optional)== App -> FMAC : HAL_FMAC_SetX1FullWatermark App <-- FMAC : HAL_OK App -> FMAC : HAL_FMAC_SetYEmptyWatermark App <-- FMAC : HAL_OK App -> FMAC : HAL_FMAC_EnableClip App <-- FMAC : HAL_OK note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. @enduml

Called functions:

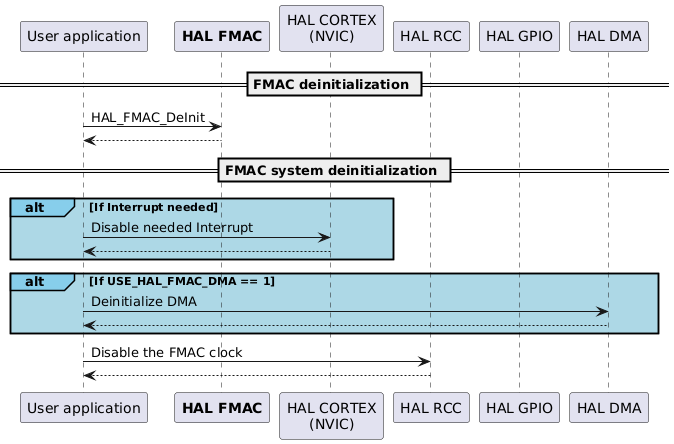

Full FMAC deinitialization sequence

The following sequence shows the complete FMAC driver deinitialization flow and the related system resource cleanup.

@startuml participant App as "User application" participant "<font color=Black><b>HAL FMAC</b></font>" as FMAC participant "HAL CORTEX\n(NVIC)" as CORTEX participant "HAL RCC" as RCC participant "HAL GPIO" as GPIO participant "HAL DMA" as DMA == FMAC deinitialization == App->FMAC : HAL_FMAC_DeInit App<--FMAC == FMAC system deinitialization == alt#skyblue #lightBlue If Interrupt needed App->CORTEX : Disable needed Interrupt CORTEX-->App end alt#skyblue #lightBlue If USE_HAL_FMAC_DMA == 1 App->DMA : Deinitialize DMA DMA-->App end App->RCC : Disable the FMAC clock RCC --> App @enduml

Called functions:

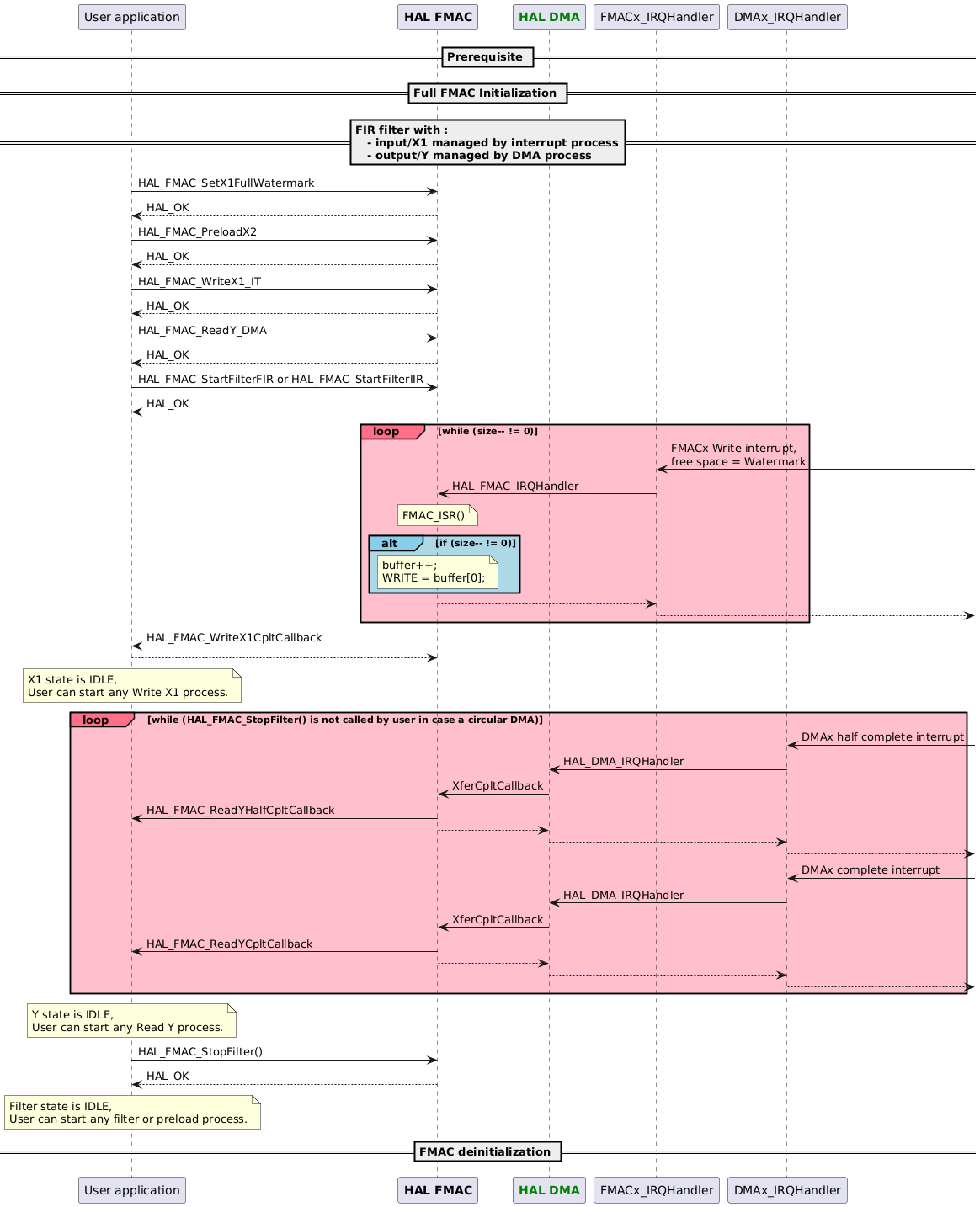

FIR interrupt input/X1 interrupt and output/Y DMA

This use case describes a FIR or IIR filter execution where X1 input is written by interrupt and Y output is read by DMA.

@startuml participant App as "User application" participant App participant "<font color=Black><b>HAL FMAC</b></font>" as FMAC participant "<font color=green><b>HAL DMA</b></font>" as DMA participant "FMACx_IRQHandler" participant "DMAx_IRQHandler" == Prerequisite == == Full FMAC Initialization == == FIR filter with :\n - input/X1 managed by interrupt process\n - output/Y managed by DMA process == App -> FMAC : HAL_FMAC_SetX1FullWatermark App <-- FMAC : HAL_OK App -> FMAC : HAL_FMAC_PreloadX2 App <-- FMAC : HAL_OK App -> FMAC : HAL_FMAC_WriteX1_IT App <-- FMAC : HAL_OK App -> FMAC : HAL_FMAC_ReadY_DMA App <-- FMAC : HAL_OK App -> FMAC : HAL_FMAC_StartFilterFIR or HAL_FMAC_StartFilterIIR App <-- FMAC : HAL_OK loop#FF7088 #FFBFCC while (size-- != 0) "FMACx_IRQHandler" <- : FMACx Write interrupt,\nfree space = Watermark FMAC <- "FMACx_IRQHandler" : HAL_FMAC_IRQHandler note over FMAC : FMAC_ISR() alt#skyblue #lightBlue if (size-- != 0) note over FMAC : buffer++;\nWRITE = buffer[0]; end FMAC --> "FMACx_IRQHandler" "FMACx_IRQHandler" --> end FMAC-> App : HAL_FMAC_WriteX1CpltCallback FMAC<-- App note over App : X1 state is IDLE,\nUser can start any Write X1 process. loop#FF7088 #FFBFCC while (HAL_FMAC_StopFilter() is not called by user in case a circular DMA) "DMAx_IRQHandler" <- : DMAx half complete interrupt "DMAx_IRQHandler" -> "DMA" : HAL_DMA_IRQHandler "DMA" -> FMAC : XferCpltCallback FMAC-> App : HAL_FMAC_ReadYHalfCpltCallback "DMA" <-- FMAC "DMAx_IRQHandler" <-- "DMA" "DMAx_IRQHandler" --> "DMAx_IRQHandler" <- : DMAx complete interrupt "DMAx_IRQHandler" -> "DMA" : HAL_DMA_IRQHandler "DMA" -> FMAC : XferCpltCallback FMAC-> App : HAL_FMAC_ReadYCpltCallback "DMA" <-- FMAC "DMAx_IRQHandler" <-- "DMA" "DMAx_IRQHandler" --> end note over App : Y state is IDLE,\nUser can start any Read Y process. App -> FMAC : HAL_FMAC_StopFilter() App <-- FMAC : HAL_OK note over App : Filter state is IDLE,\nUser can start any filter or preload process. == FMAC deinitialization == @enduml

Called functions:

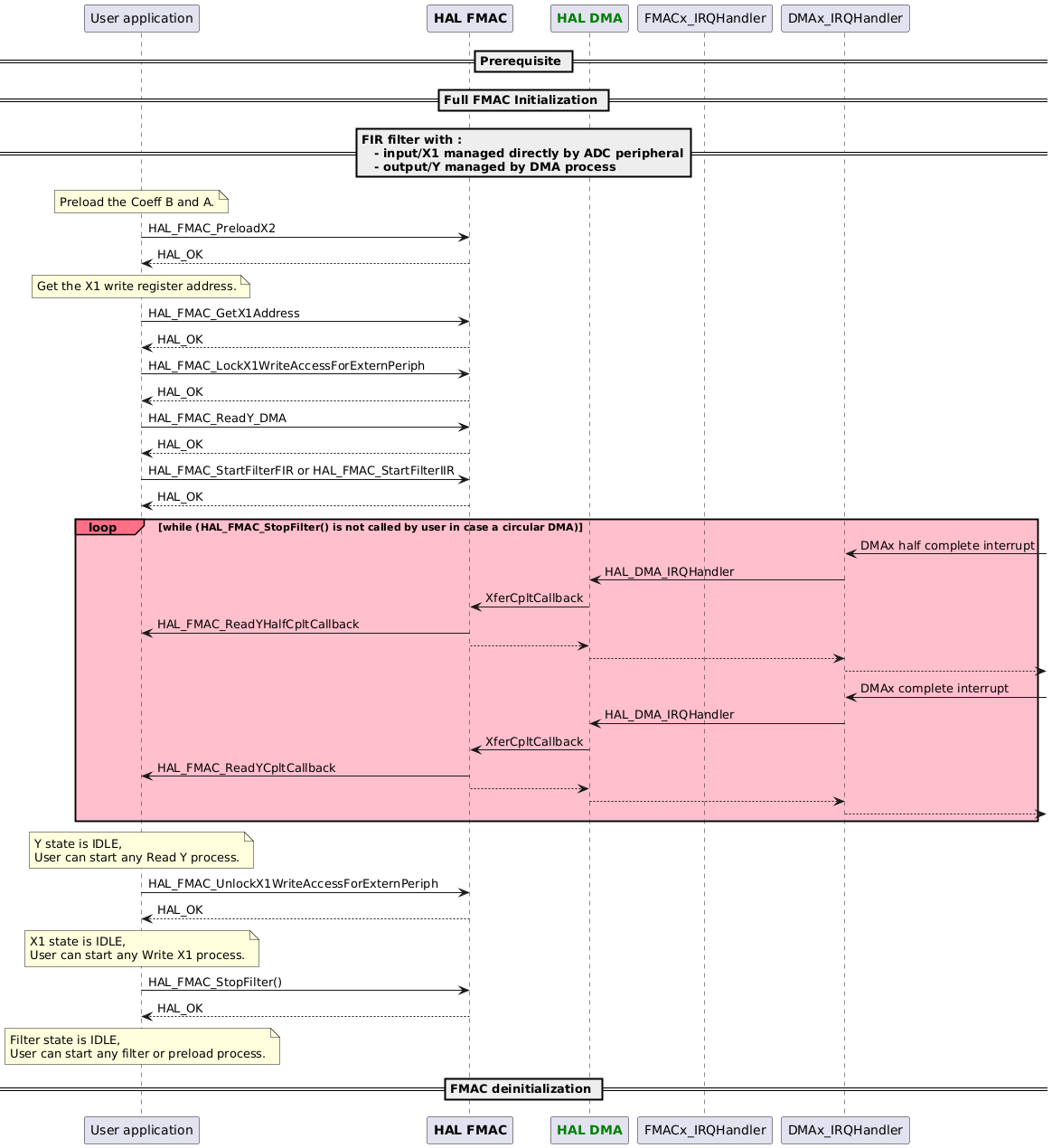

FIR interrupt input/X1 peripheral ADC and output/Y DMA

This use case describes a FIR or IIR filter execution where an external peripheral writes X1 directly and Y output is read by DMA.

@startuml participant App as "User application" participant App participant "<font color=Black><b>HAL FMAC</b></font>" as FMAC participant "<font color=green><b>HAL DMA</b></font>" as DMA participant "FMACx_IRQHandler" participant "DMAx_IRQHandler" == Prerequisite == == Full FMAC Initialization == == FIR filter with :\n - input/X1 managed directly by ADC peripheral\n - output/Y managed by DMA process == note over App : Preload the Coeff B and A. App -> FMAC : HAL_FMAC_PreloadX2 App <-- FMAC : HAL_OK note over App : Get the X1 write register address. App -> FMAC : HAL_FMAC_GetX1Address App <-- FMAC : HAL_OK App -> FMAC : HAL_FMAC_LockX1WriteAccessForExternPeriph App <-- FMAC : HAL_OK App -> FMAC : HAL_FMAC_ReadY_DMA App <-- FMAC : HAL_OK App -> FMAC : HAL_FMAC_StartFilterFIR or HAL_FMAC_StartFilterIIR App <-- FMAC : HAL_OK loop#FF7088 #FFBFCC while (HAL_FMAC_StopFilter() is not called by user in case a circular DMA) "DMAx_IRQHandler" <- : DMAx half complete interrupt "DMAx_IRQHandler" -> "DMA" : HAL_DMA_IRQHandler "DMA" -> FMAC : XferCpltCallback FMAC-> App : HAL_FMAC_ReadYHalfCpltCallback "DMA" <-- FMAC "DMAx_IRQHandler" <-- "DMA" "DMAx_IRQHandler" --> "DMAx_IRQHandler" <- : DMAx complete interrupt "DMAx_IRQHandler" -> "DMA" : HAL_DMA_IRQHandler "DMA" -> FMAC : XferCpltCallback FMAC-> App : HAL_FMAC_ReadYCpltCallback "DMA" <-- FMAC "DMAx_IRQHandler" <-- "DMA" "DMAx_IRQHandler" --> end note over App : Y state is IDLE,\nUser can start any Read Y process. App -> FMAC : HAL_FMAC_UnlockX1WriteAccessForExternPeriph App <-- FMAC : HAL_OK note over App : X1 state is IDLE,\nUser can start any Write X1 process. App -> FMAC : HAL_FMAC_StopFilter() App <-- FMAC : HAL_OK note over App : Filter state is IDLE,\nUser can start any filter or preload process. == FMAC deinitialization == @enduml

Called functions:

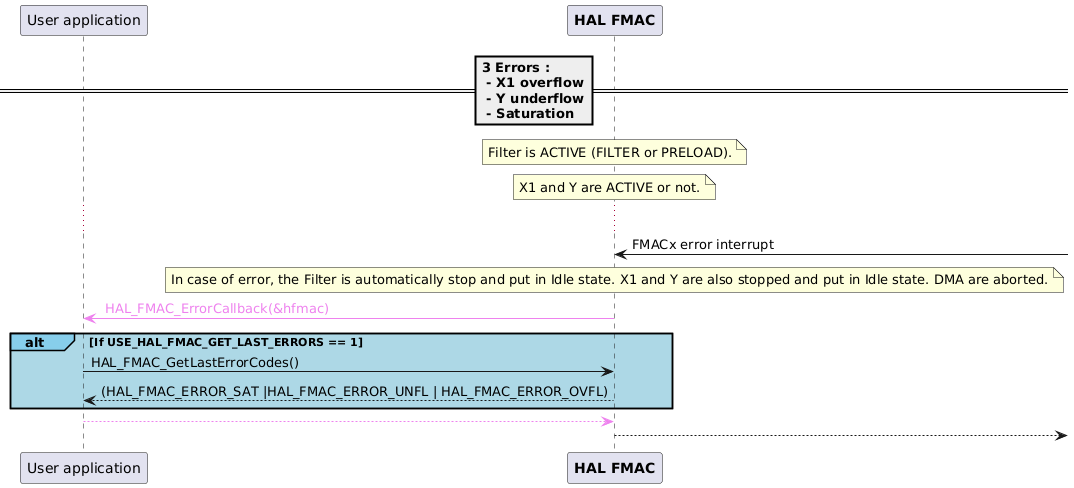

Error handling

The following sequence shows the callback and error-code retrieval flow used after an FMAC error event.

@startuml participant App as "User application" participant "<font color=Black><b>HAL FMAC</b></font>" as FMAC ==3 Errors :\n - X1 overflow\n - Y underflow\n - Saturation== note over FMAC : Filter is ACTIVE (FILTER or PRELOAD). note over FMAC : X1 and Y are ACTIVE or not. ... FMAC <- : FMACx error interrupt note over FMAC : In case of error, the Filter is automatically stop and put in Idle state. \ X1 and Y are also stopped and put in Idle state. DMA are aborted. App <-[#Violet] FMAC :\ <color #Violet> HAL_FMAC_ErrorCallback(&hfmac) </color> alt#skyblue #lightBlue If USE_HAL_FMAC_GET_LAST_ERRORS == 1 App->FMAC : HAL_FMAC_GetLastErrorCodes() App <-- FMAC : \ (HAL_FMAC_ERROR_SAT |HAL_FMAC_ERROR_UNFL | HAL_FMAC_ERROR_OVFL) end App [#Violet]--> FMAC FMAC --> @enduml

Called functions:
