HAL NAND Use Cases

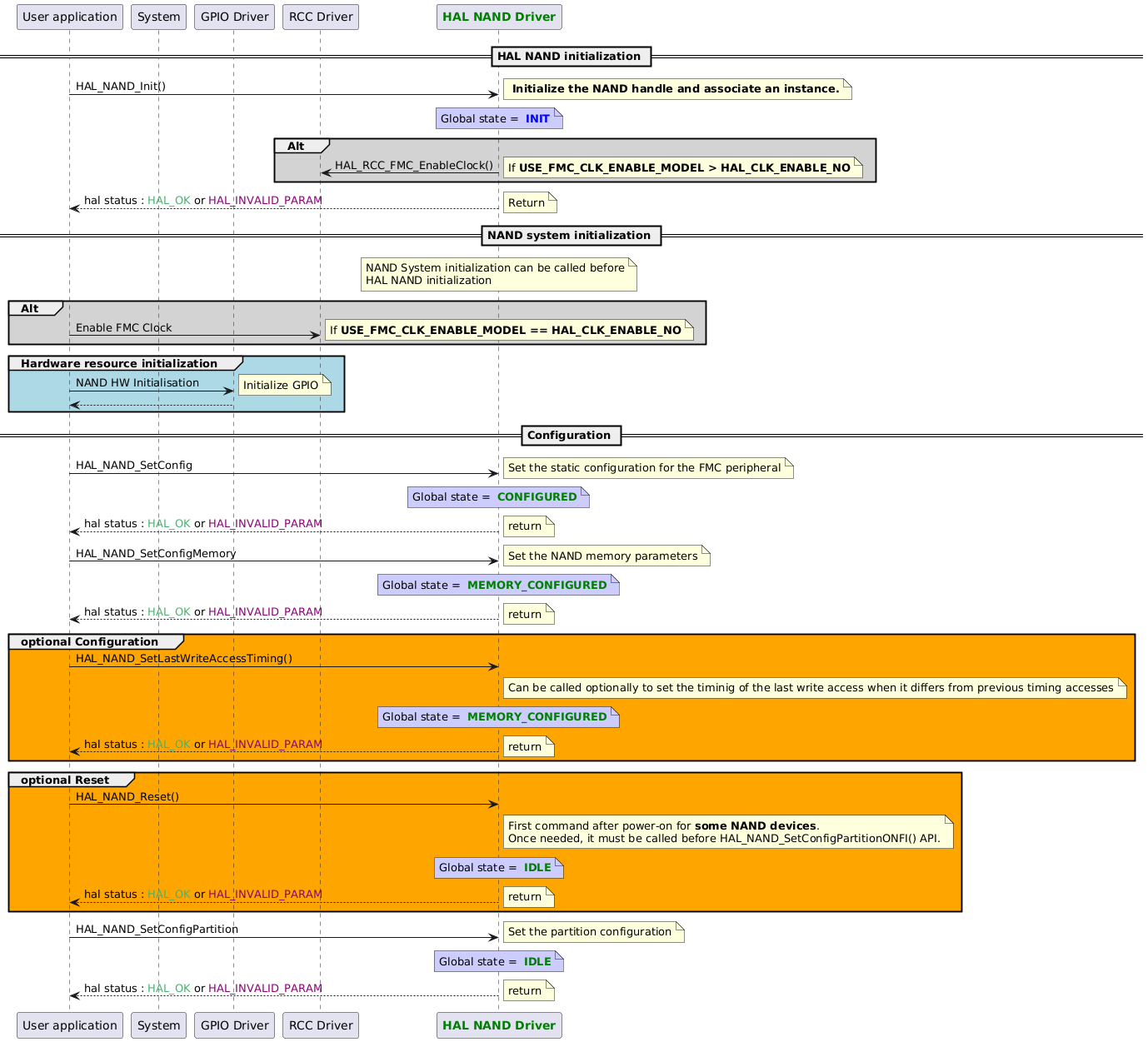

Prerequisite: Initialization and configuration

@startuml participant App as "User application" participant system as "System" participant "GPIO Driver" as GPIO participant "RCC Driver" as RCC participant "<font color=green><b>HAL NAND Driver</b></font>" as NAND == HAL NAND initialization == App->NAND : HAL_NAND_Init() note right: <b> Initialize the NAND handle and associate an instance. note over NAND #CCCCFF Global state = <font color=blue> <b>INIT</b> end note group #lightgrey Alt NAND->RCC : HAL_RCC_FMC_EnableClock() note right: If <b>USE_FMC_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO end NAND --> App : hal status : <font color=#49b170>HAL_OK</font> or <font color=#8c0078>HAL_INVALID_PARAM</font> note right: Return == NAND system initialization == Note over NAND : NAND System initialization can be called before\nHAL NAND initialization group #lightgrey Alt App->RCC : Enable FMC Clock note right: If <b>USE_FMC_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO end group #lightblue Hardware resource initialization App->GPIO : NAND HW Initialisation note right: Initialize GPIO GPIO --> App end == Configuration == App->NAND : HAL_NAND_SetConfig note right: Set the static configuration for the FMC peripheral note over NAND #CCCCFF Global state = <font color=green> <b>CONFIGURED</b> end note NAND --> App: hal status : <font color=#49b170>HAL_OK</font> or <font color=#8c0078>HAL_INVALID_PARAM</font> note right: return App->NAND : HAL_NAND_SetConfigMemory note right: Set the NAND memory parameters note over NAND #CCCCFF Global state = <font color=green> <b>MEMORY_CONFIGURED</b> end note NAND --> App: hal status : <font color=#49b170>HAL_OK</font> or <font color=#8c0078>HAL_INVALID_PARAM</font> note right: return group #orange optional Configuration App->NAND : HAL_NAND_SetLastWriteAccessTiming() note right of NAND Can be called optionally to set the timinig of the last write access when it differs from previous timing accesses end note note over NAND #CCCCFF Global state = <font color=green> <b>MEMORY_CONFIGURED</b> end note NAND --> App: hal status : <font color=#49b170>HAL_OK</font> or <font color=#8c0078>HAL_INVALID_PARAM</font> note right: return end group #orange optional Reset App->NAND : HAL_NAND_Reset() note right of NAND First command after power-on for <b>some NAND devices</b>. Once needed, it must be called before HAL_NAND_SetConfigPartitionONFI() API. end note note over NAND #CCCCFF Global state = <font color=green> <b>IDLE</b> end note NAND --> App: hal status : <font color=#49b170>HAL_OK</font> or <font color=#8c0078>HAL_INVALID_PARAM</font> note right: return end App->NAND : HAL_NAND_SetConfigPartition note right: Set the partition configuration note over NAND #CCCCFF Global state = <font color=green> <b>IDLE</b> end note NAND --> App: hal status : <font color=#49b170>HAL_OK</font> or <font color=#8c0078>HAL_INVALID_PARAM</font> note right: return @enduml

Called functions:

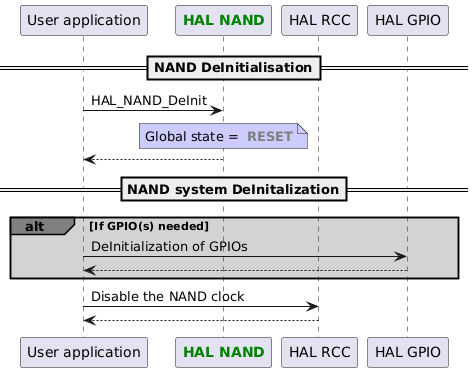

NAND deinitialization sequence

@startuml participant App as "User application" participant "<font color=green><b>HAL NAND</b></font>" as NAND participant "HAL RCC" as RCC participant "HAL GPIO" as GPIO ==NAND DeInitialisation== App->NAND : HAL_NAND_DeInit note over NAND #CCCCFF Global state = <font color=gray> <b>RESET</b> end note App<--NAND ==NAND system DeInitalization== alt#grey #lightgrey If GPIO(s) needed App->GPIO : DeInitialization of GPIOs GPIO-->App end App->RCC : Disable the NAND clock RCC --> App @enduml

Called functions:

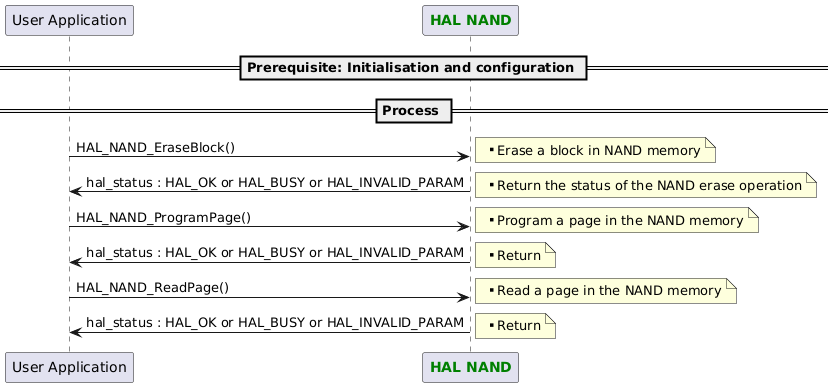

Use case 1: Starting a read/write operation in polling mode

@startuml == Prerequisite: Initialisation and configuration == participant "User Application" as part1 participant "<font color=green><b>HAL NAND</b></font>" as part2 == Process == part1->part2 : HAL_NAND_EraseBlock() note right: ** Erase a block in NAND memory part2->part1: hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return the status of the NAND erase operation part1->part2 : HAL_NAND_ProgramPage() note right: ** Program a page in the NAND memory part2->part1: hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return part1->part2 : HAL_NAND_ReadPage() note right: ** Read a page in the NAND memory part2->part1: hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return @enduml

Called functions:

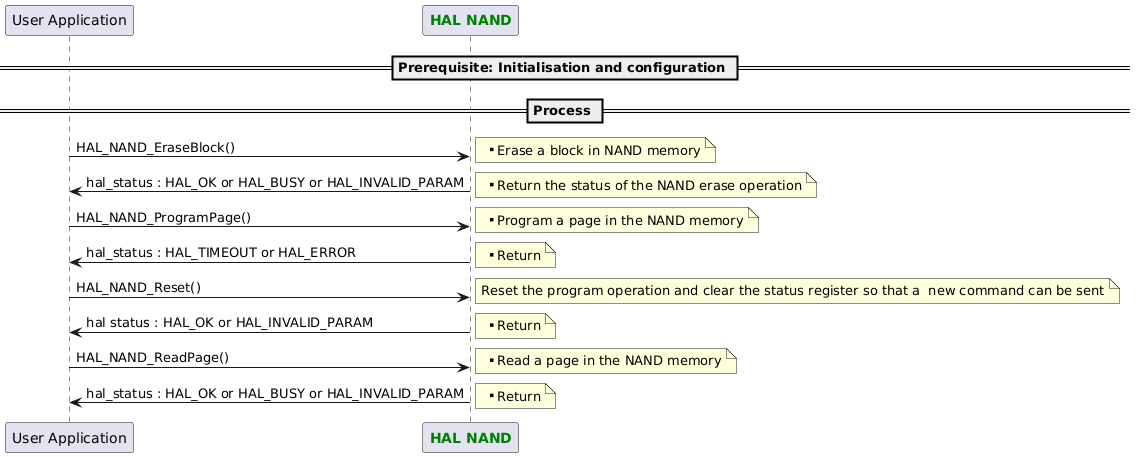

Use case 2: Invalid program/read operations in polling mode

@startuml participant "User Application" as part1 participant "<font color=green><b>HAL NAND</b></font>" as part2 == Prerequisite: Initialisation and configuration == == Process == "part1"->part2 : HAL_NAND_EraseBlock() note right: ** Erase a block in NAND memory part2->"part1": hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return the status of the NAND erase operation "part1"->part2 : HAL_NAND_ProgramPage() note right: ** Program a page in the NAND memory part2->"part1": hal_status : HAL_TIMEOUT or HAL_ERROR note right: ** Return "part1"->part2 : HAL_NAND_Reset() note right: Reset the program operation and clear the status register so that a new command can be sent part2 -> "part1": hal status : HAL_OK or HAL_INVALID_PARAM note right: ** Return "part1"->part2 : HAL_NAND_ReadPage() note right: ** Read a page in the NAND memory part2->"part1": hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return @enduml

Called functions:

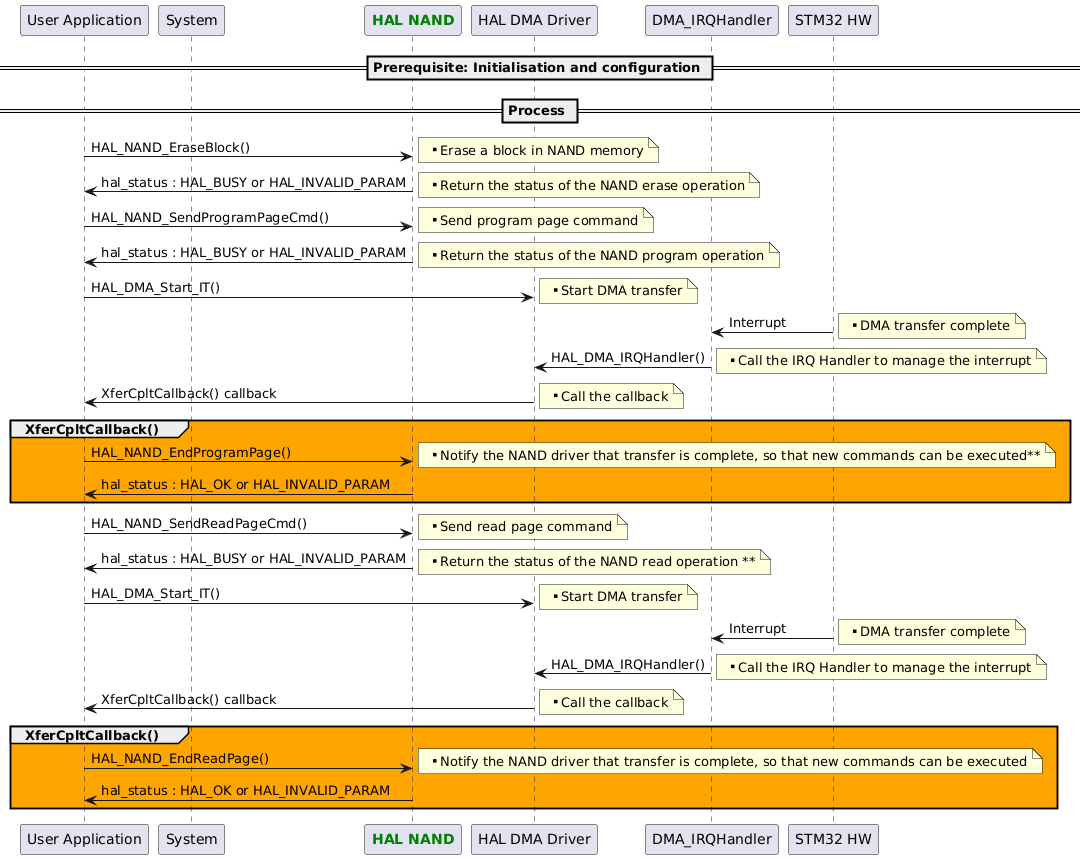

Use case 3: Program/read using general purpose DMA at user level

@startuml participant "User Application" as part1 participant "System" as part2 participant "<font color=green><b>HAL NAND</b></font>" as part3 participant "HAL DMA Driver" as part4 participant "DMA_IRQHandler" as part5 participant "STM32 HW" as part6 == Prerequisite: Initialisation and configuration == == Process == "part1"->"part3" : HAL_NAND_EraseBlock() note right: ** Erase a block in NAND memory "part3"->"part1": hal_status : HAL_BUSY or HAL_INVALID_PARAM note right: ** Return the status of the NAND erase operation "part1"->"part3" : HAL_NAND_SendProgramPageCmd() note right: ** Send program page command "part3"->"part1": hal_status : HAL_BUSY or HAL_INVALID_PARAM note right: ** Return the status of the NAND program operation "part1" -> "part4" : HAL_DMA_Start_IT() note right: ** Start DMA transfer "part6" -> "part5" : Interrupt note right: ** DMA transfer complete "part5" -> "part4" : HAL_DMA_IRQHandler() note right: ** Call the IRQ Handler to manage the interrupt "part4" -> "part1" : XferCpltCallback() callback note right: ** Call the callback Group #orange XferCpltCallback() "part1"->"part3" : HAL_NAND_EndProgramPage() note right: ** Notify the NAND driver that transfer is complete, so that new commands can be executed** "part3"->"part1": hal_status : HAL_OK or HAL_INVALID_PARAM end "part1"->"part3" : HAL_NAND_SendReadPageCmd() note right: ** Send read page command "part3"->"part1": hal_status : HAL_BUSY or HAL_INVALID_PARAM note right: ** Return the status of the NAND read operation ** "part1" -> "part4" : HAL_DMA_Start_IT() note right: ** Start DMA transfer "part6" -> "part5" : Interrupt note right: ** DMA transfer complete "part5" -> "part4" : HAL_DMA_IRQHandler() note right: ** Call the IRQ Handler to manage the interrupt "part4" -> "part1" : XferCpltCallback() callback note right: ** Call the callback Group #orange XferCpltCallback() "part1"->"part3" : HAL_NAND_EndReadPage() note right: ** Notify the NAND driver that transfer is complete, so that new commands can be executed "part3"->"part1": hal_status : HAL_OK or HAL_INVALID_PARAM end @enduml

Called functions:

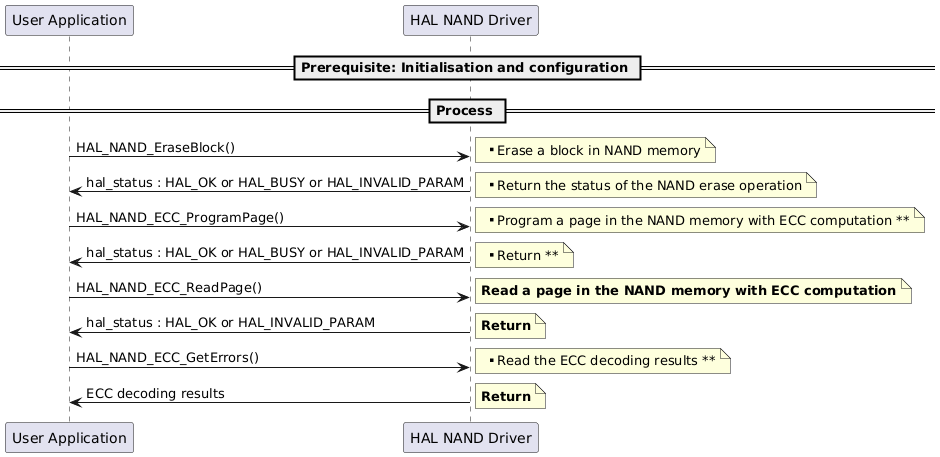

Use case 4: ECC management (polling mode)

@startuml == Prerequisite: Initialisation and configuration == == Process == "User Application"->"HAL NAND Driver" : HAL_NAND_EraseBlock() note right: ** Erase a block in NAND memory "HAL NAND Driver"->"User Application": hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return the status of the NAND erase operation "User Application"->"HAL NAND Driver" : HAL_NAND_ECC_ProgramPage() note right: ** Program a page in the NAND memory with ECC computation ** "HAL NAND Driver"->"User Application": hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return ** "User Application" -> "HAL NAND Driver" : HAL_NAND_ECC_ReadPage() note right: **Read a page in the NAND memory with ECC computation** "HAL NAND Driver" -> "User Application" : hal_status : HAL_OK or HAL_INVALID_PARAM note right: **Return** "User Application" -> "HAL NAND Driver" : HAL_NAND_ECC_GetErrors() note right: ** Read the ECC decoding results ** "HAL NAND Driver" -> "User Application" : ECC decoding results note right: **Return** @enduml

Called functions:
