HAL FMAC Overview

Introducing FMAC

group FMAC_Introduction

  • The FMAC hardware abstraction layer provides a set of APIs to interface with the STM32 FMAC (Filter Math Accelerator) peripheral.

  • The FMAC HAL driver simplifies the implementation of complex filtering algorithms such as FIR and IIR filters by managing peripheral initialization, configuration, and data handling, supporting polling, interrupt and DMA modes for data acquisitions.

  • This abstraction layer ensures portability and ease of use across different STM32 series.

Module and files

The following diagram illustrates the FMAC module and its associated files.

Module and files diagram

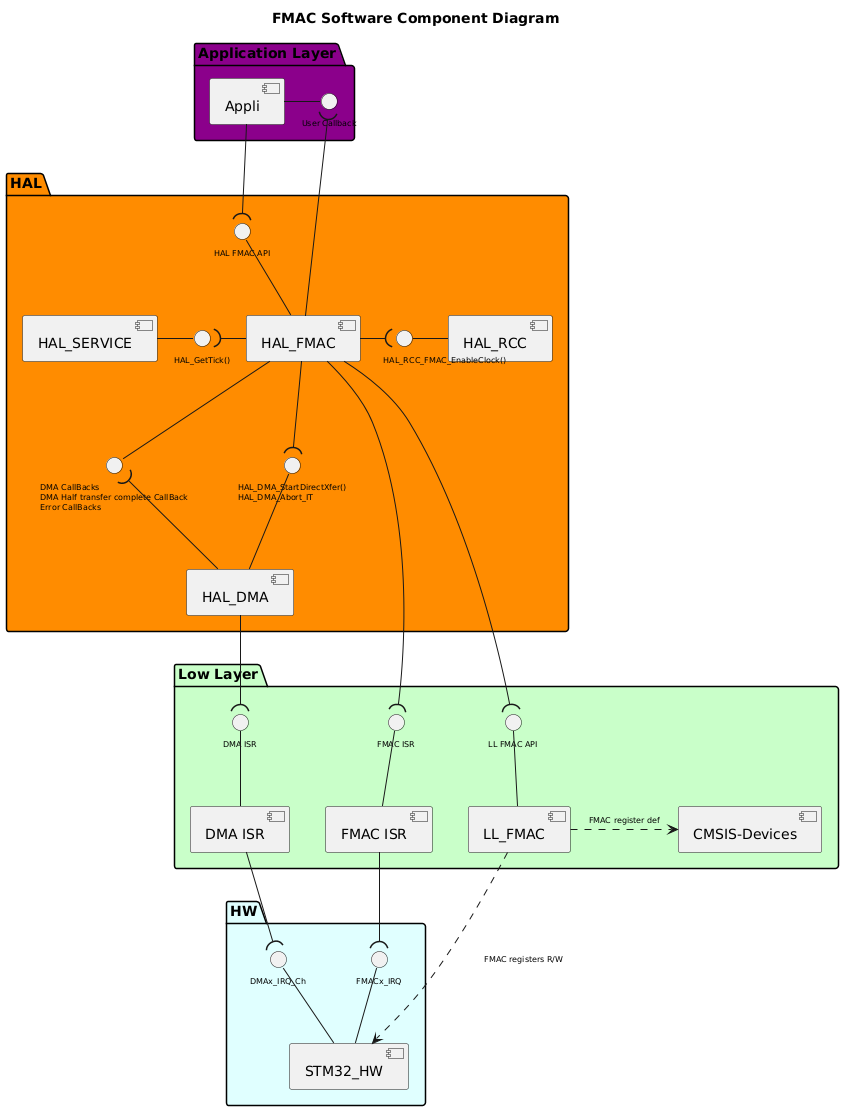

Component diagram

The following diagram illustrates the software components involved in the FMAC module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.

@startuml !$ppp = "FMAC" !use_ppp_ll = 1 !use_ppp_isr = 1 !$use_hal_service = 1 !$use_hal_rcc = 1 !$use_hal_dma = 1 !$hal_api_itf = "HAL " + $ppp + " API" !$appli_itf = "User Callback" !$ppp_name = "HAL_"+$ppp !$ppp_ISR = $ppp+" ISR" !$ll_ppp = "LL_"+$ppp !$hal_dma_itf = "HAL_DMA_StartDirectXfer()\nHAL_DMA_Abort_IT" !$hal_rcc_itf = "\t\t\t\tHAL_RCC_"+$ppp+"_EnableClock()" !$hal_ppp_itf = "DMA CallBacks\nDMA Half transfer complete CallBack\nError CallBacks" !$hal_generic_itf = "HAL_GetTick()" !$ll_ppp_itf = "LL " + $ppp +" API" !$ppp_xIRQ = $ppp+"x_IRQ" <style> componentDiagram { arrow { FontSize 8 } interface { FontSize 8 } } </style> title $ppp Software Component Diagram Package "Application Layer" #DarkMagenta { component [Appli] interface "$appli_itf" as APPLI_Interface [Appli] -r- APPLI_Interface } package "HAL" #DarkOrange { [$ppp_name] !if ($use_hal_dma == 1) interface "$hal_ppp_itf" as HAL_PPP_Interface [$ppp_name] -d- HAL_PPP_Interface !endif interface "$hal_api_itf" as HAL_PPP_APPLI_Interface [$ppp_name] -u- HAL_PPP_APPLI_Interface !if ($use_hal_service == 1) [HAL_SERVICE] interface "$hal_generic_itf" as HAL_Service_Interface [HAL_SERVICE] -r- HAL_Service_Interface [$ppp_name] -l-( HAL_Service_Interface !endif !if ($use_hal_dma == 1) [HAL_DMA] interface "$hal_dma_itf" as HAL_DMA_Interface [HAL_DMA] -u- HAL_DMA_Interface [HAL_DMA] -u-( HAL_PPP_Interface [$ppp_name] --( HAL_DMA_Interface !endif !if ($use_hal_rcc == 1) [HAL_RCC] interface "$hal_rcc_itf" as HAL_RCC_Interface [HAL_RCC] -l- HAL_RCC_Interface [$ppp_name] -r-( HAL_RCC_Interface !endif } [Appli] -d-( HAL_PPP_APPLI_Interface [$ppp_name] -u-( APPLI_Interface package "Low Layer" #Technology { !if (use_ppp_ll == 1) [$ll_ppp] interface "$ll_ppp_itf" as LL_PPP_Interface [$ll_ppp] -u- LL_PPP_Interface !endif interface "$ppp_ISR" as PPP_ISR [$ppp_ISR] -U- PPP_ISR [CMSIS-Devices] [$ppp_ISR] !if ($use_hal_dma == 1) [DMA ISR] interface "DMA ISR" as DMA_ISR [DMA ISR] -u- DMA_ISR !endif } package "HW" #LightCyan { [STM32_HW] interface "$ppp_xIRQ" as PPPx_IRQ [STM32_HW] -u- PPPx_IRQ !if ($use_hal_dma == 1) interface "DMAx_IRQ_Ch" as DMA_IRQ_CH [STM32_HW] -u- DMA_IRQ_CH [DMA ISR] -d-( DMA_IRQ_CH [HAL_DMA] --( DMA_ISR !endif } !if (use_ppp_ll == 1) [$ppp_name] -d-( LL_PPP_Interface [$ll_ppp] .r.> [CMSIS-Devices]: $ppp register def [STM32_HW] <.u. [$ll_ppp] : $ppp registers R/W !else [$ppp_name] .d.> [CMSIS-Devices]: $ppp register def [STM32_HW] <.l. [$ppp_name] : $ppp registers R/W !endif [$ppp_ISR] -d-( PPPx_IRQ [$ppp_name] -d-( PPP_ISR @enduml

Configuration table

The following table lists the configuration defines for the HAL FMAC module, specifying their locations, default values, and descriptions:

group FMAC_Configuration_Table

Configuration inside the FMAC driver

Software configuration defined in stm32h7pxx_hal_conf.h:

Prepocessor flags

Default value

Comment

USE_HAL_FMAC_MODULE

1

Enable HAL FMAC driver module

USE_HAL_FMAC_REGISTER_CALLBACKS

0

Allow the user to define their own callback

USE_HAL_FMAC_DMA

1

Enable DMA code inside FMAC

USE_HAL_CHECK_PARAM

0

Enable runtime parameter check

USE_HAL_FMAC_CLK_ENABLE_MODEL

HAL_CLK_ENABLE_NO

Enable the gating of the peripheral clock

USE_HAL_CHECK_PROCESS_STATE

0

Enable atomicity of process state check

USE_HAL_FMAC_USER_DATA

0

Add a user data inside HAL FMAC handle

USE_HAL_FMAC_GET_LAST_ERRORS

0

Enable retrieval of last processes error codes

Software configuration defined in preprocessor environment:

Prepocessor flags

Default value

Comment

USE_ASSERT_DBG_PARAM

Not defined

Enable check param for HAL and LL

USE_ASSERT_DBG_STATE

Not defined

Enable check state for HAL
