HAL DTS Use Cases

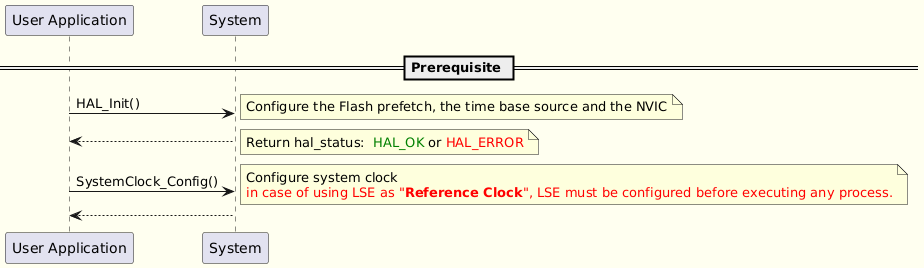

User application Prerequisite

@startuml skinparam backgroundColor #FFFFF0 'autonumber ' Fix order of each column participant "User Application" as User participant System == Prerequisite == User -> System:HAL_Init() note right Configure the Flash prefetch, the time base source and the NVIC end note System --> User: note right Return hal_status: <color green> HAL_OK</color> or <color red>HAL_ERROR</color> end note User -> System:SystemClock_Config() note right Configure system clock <font color=red>in case of using LSE as "**Reference Clock**", LSE must be configured before executing any process. end note User <-- System: @enduml

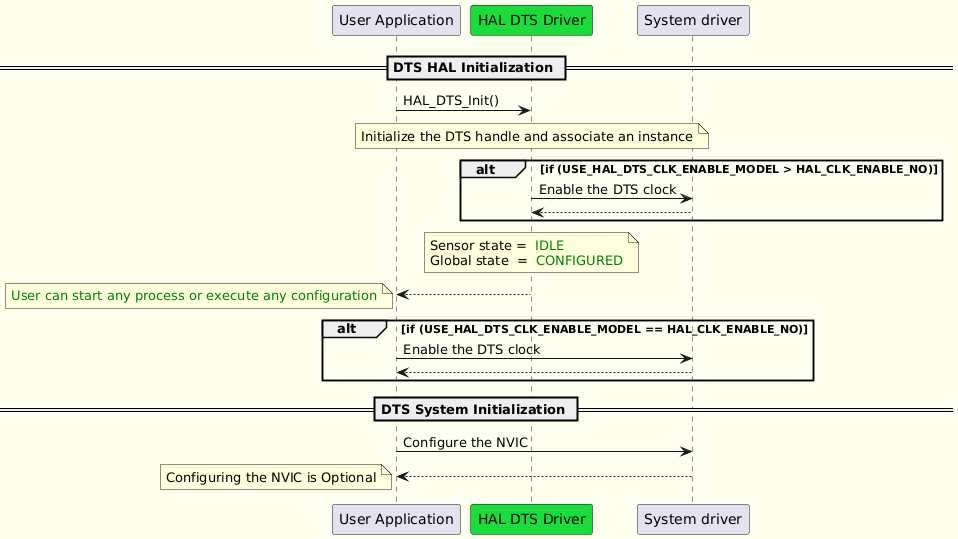

User application Initialization

@startuml skinparam backgroundColor #FFFFF0 participant "User Application" as User participant "HAL DTS Driver" as DTS #19DD3A participant "System driver" as System == DTS HAL Initialization == User -> DTS:HAL_DTS_Init() note over DTS Initialize the DTS handle and associate an instance end note alt if (USE_HAL_DTS_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO) DTS -> System:Enable the DTS clock DTS <-- System: end note over DTS Sensor state = <font color=green> IDLE Global state = <font color=green> CONFIGURED end note User <-- DTS: note left <font color=green>User can start any process or execute any configuration end note alt if (USE_HAL_DTS_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO) User -> System:Enable the DTS clock User <-- System: end == DTS System Initialization == User -> System:Configure the NVIC User <-- System: note left Configuring the NVIC is Optional end note @enduml

Called functions:

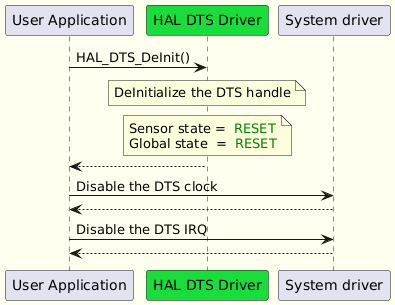

User application DeInitialization

@startuml skinparam backgroundColor #FFFFF0 participant "User Application" as User participant "HAL DTS Driver" as DTS #19DD3A participant "System driver" as System User -> DTS:HAL_DTS_DeInit() note over DTS DeInitialize the DTS handle end note note over DTS Sensor state = <font color=green> RESET Global state = <font color=green> RESET end note User <-- DTS: User -> System:Disable the DTS clock User <-- System: User -> System:Disable the DTS IRQ User <-- System: @enduml

Called functions:

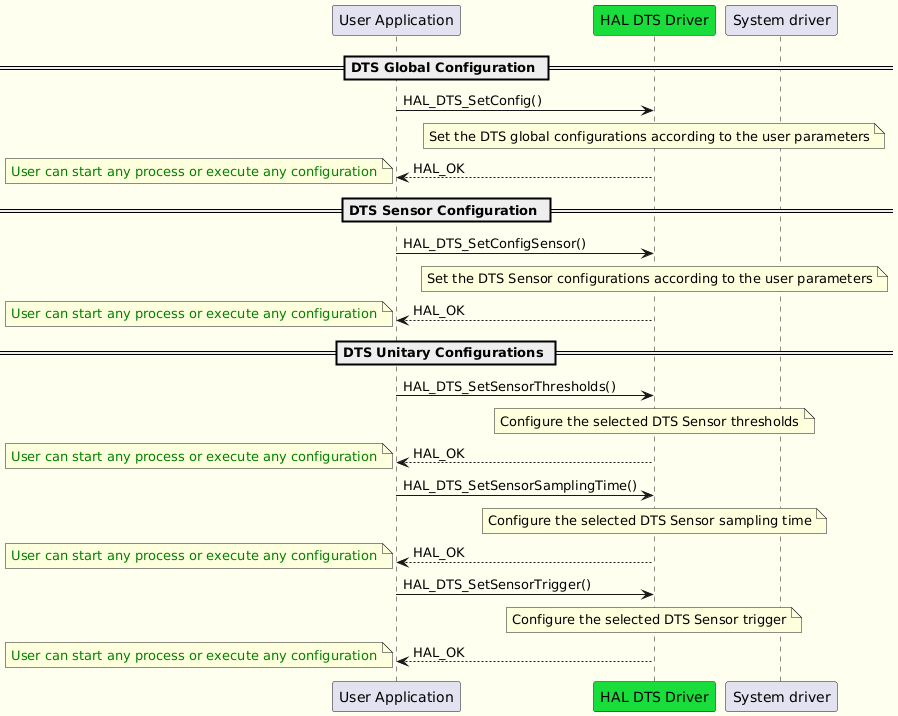

User application Configuration

@startuml skinparam backgroundColor #FFFFF0 participant "User Application" as User participant "HAL DTS Driver" as DTS #19DD3A participant "System driver" as System == DTS Global Configuration == User -> DTS:HAL_DTS_SetConfig() note over DTS Set the DTS global configurations according to the user parameters end note User <-- DTS: HAL_OK note left <font color=green>User can start any process or execute any configuration end note == DTS Sensor Configuration == User -> DTS:HAL_DTS_SetConfigSensor() note over DTS Set the DTS Sensor configurations according to the user parameters end note User <-- DTS: HAL_OK note left <font color=green>User can start any process or execute any configuration end note == DTS Unitary Configurations == User -> DTS:HAL_DTS_SetSensorThresholds() note over DTS Configure the selected DTS Sensor thresholds end note User <-- DTS: HAL_OK note left <font color=green>User can start any process or execute any configuration end note User -> DTS:HAL_DTS_SetSensorSamplingTime() note over DTS Configure the selected DTS Sensor sampling time end note User <-- DTS: HAL_OK note left <font color=green>User can start any process or execute any configuration end note User -> DTS:HAL_DTS_SetSensorTrigger() note over DTS Configure the selected DTS Sensor trigger end note User <-- DTS: HAL_OK note left <font color=green>User can start any process or execute any configuration end note @enduml

Called functions:

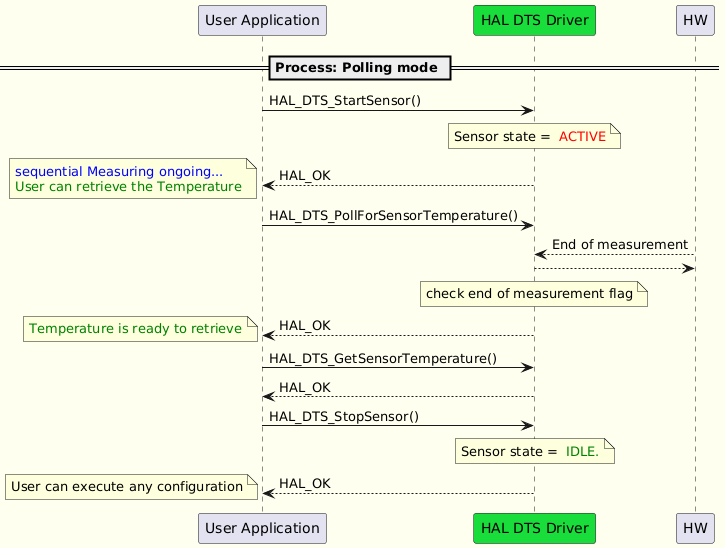

User application to measure Temperature in Blocking mode with software trigger

@startuml skinparam backgroundColor #FFFFF0 participant "User Application" as User participant "HAL DTS Driver" as DTS #19DD3A == Process: Polling mode == User -> DTS:HAL_DTS_StartSensor() note over DTS Sensor state = <font color=red> ACTIVE end note User <-- DTS: HAL_OK note left <font color=blue>sequential Measuring ongoing... <font color=green>User can retrieve the Temperature end note User -> DTS:HAL_DTS_PollForSensorTemperature() HW-->DTS: End of measurement HW<--DTS: note over DTS check end of measurement flag end note User <-- DTS: HAL_OK note left <font color=green>Temperature is ready to retrieve end note User -> DTS:HAL_DTS_GetSensorTemperature() User <-- DTS: HAL_OK User -> DTS:HAL_DTS_StopSensor() note over DTS Sensor state = <font color=green> IDLE. end note User <-- DTS: HAL_OK note left User can execute any configuration end note @enduml

Called functions:

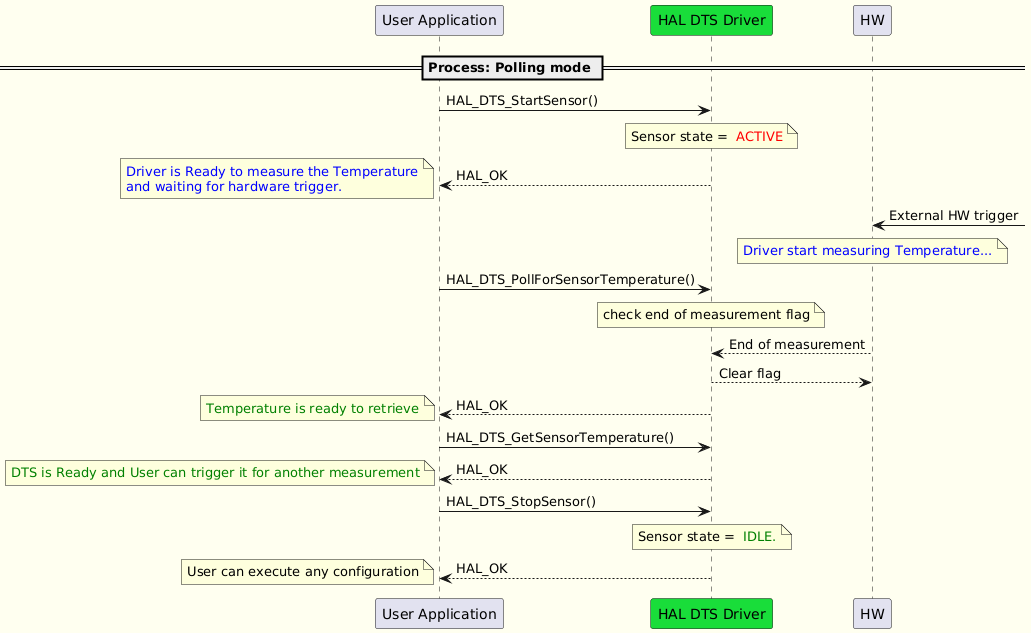

User application to measure Temperature in Blocking mode with hardware trigger

@startuml skinparam backgroundColor #FFFFF0 participant "User Application" as User participant "HAL DTS Driver" as DTS #19DD3A == Process: Polling mode == User -> DTS:HAL_DTS_StartSensor() note over DTS Sensor state = <font color=red> ACTIVE end note User <-- DTS: HAL_OK note left <font color=blue>Driver is Ready to measure the Temperature <font color=blue>and waiting for hardware trigger. end note HW <- : External HW trigger note over HW <font color=blue>Driver start measuring Temperature... end note User -> DTS:HAL_DTS_PollForSensorTemperature() note over DTS check end of measurement flag end note HW-->DTS: End of measurement HW<--DTS: Clear flag User <-- DTS: HAL_OK note left <font color=green>Temperature is ready to retrieve end note User -> DTS:HAL_DTS_GetSensorTemperature() User <-- DTS: HAL_OK note left <font color=green>DTS is Ready and User can trigger it for another measurement end note User -> DTS:HAL_DTS_StopSensor() note over DTS Sensor state = <font color=green> IDLE. end note User <-- DTS: HAL_OK note left User can execute any configuration end note @enduml

Called functions:

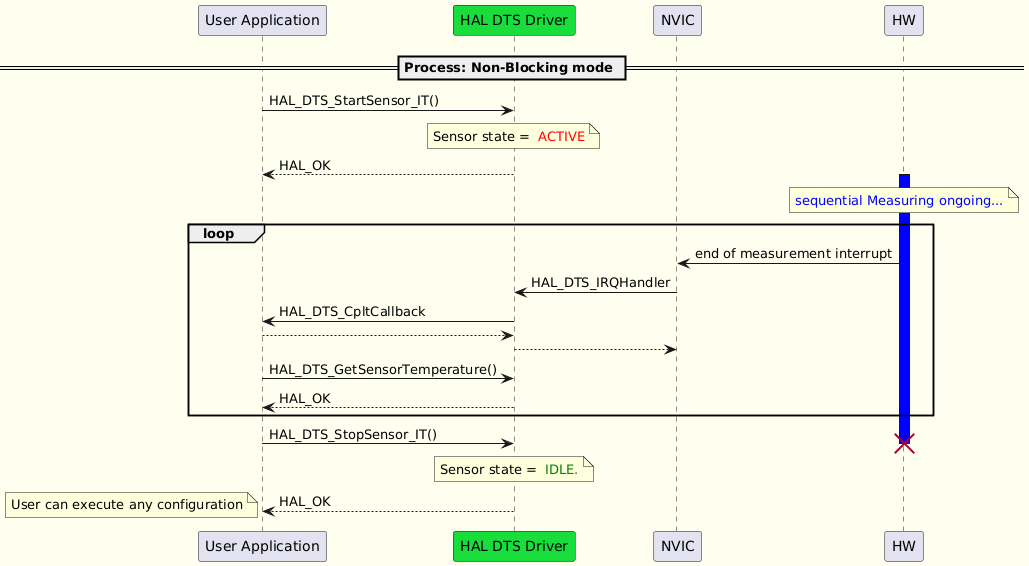

User application to measure Temperature in non-Blocking mode with software trigger

@startuml skinparam backgroundColor #FFFFF0 participant "User Application" as User participant "HAL DTS Driver" as DTS #19DD3A participant "NVIC" as NVIC participant "HW" as HW == Process: Non-Blocking mode == User -> DTS:HAL_DTS_StartSensor_IT() note over DTS Sensor state = <font color=red> ACTIVE end note User <-- DTS: HAL_OK activate HW #BLUE note OVER HW <font color=blue>sequential Measuring ongoing... end note loop NVIC <- HW : end of measurement interrupt DTS <- NVIC : HAL_DTS_IRQHandler User <- DTS: HAL_DTS_CpltCallback User --> DTS: DTS --> NVIC : User -> DTS:HAL_DTS_GetSensorTemperature() User <-- DTS: HAL_OK end User -> DTS:HAL_DTS_StopSensor_IT() destroy HW #BLUE note over DTS Sensor state = <font color=green> IDLE. end note User <-- DTS: HAL_OK note left User can execute any configuration end note @enduml

Called functions:

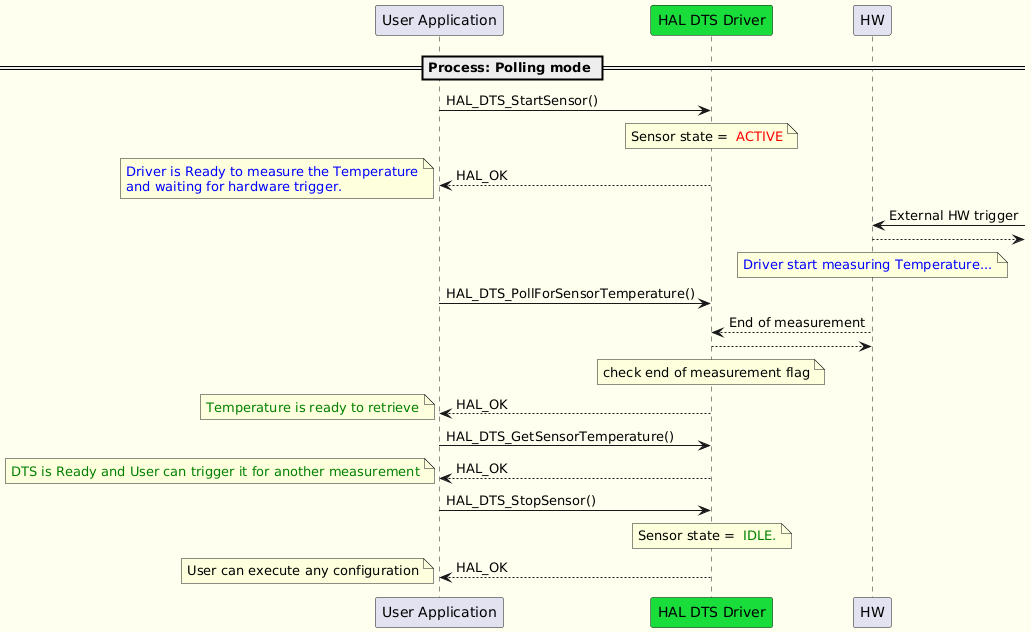

User application to measure Temperature in non-Blocking mode with hardware trigger

@startuml skinparam backgroundColor #FFFFF0 participant "User Application" as User participant "HAL DTS Driver" as DTS #19DD3A == Process: Polling mode == User -> DTS:HAL_DTS_StartSensor() note over DTS Sensor state = <font color=red> ACTIVE end note User <-- DTS: HAL_OK note left <font color=blue>Driver is Ready to measure the Temperature <font color=blue>and waiting for hardware trigger. end note HW <- : External HW trigger HW --> note over HW <font color=blue>Driver start measuring Temperature... end note User -> DTS:HAL_DTS_PollForSensorTemperature() HW-->DTS: End of measurement HW<--DTS: note over DTS check end of measurement flag end note User <-- DTS: HAL_OK note left <font color=green>Temperature is ready to retrieve end note User -> DTS:HAL_DTS_GetSensorTemperature() User <-- DTS: HAL_OK note left <font color=green>DTS is Ready and User can trigger it for another measurement end note User -> DTS:HAL_DTS_StopSensor() note over DTS Sensor state = <font color=green> IDLE. end note User <-- DTS: HAL_OK note left User can execute any configuration end note @enduml

Called functions:

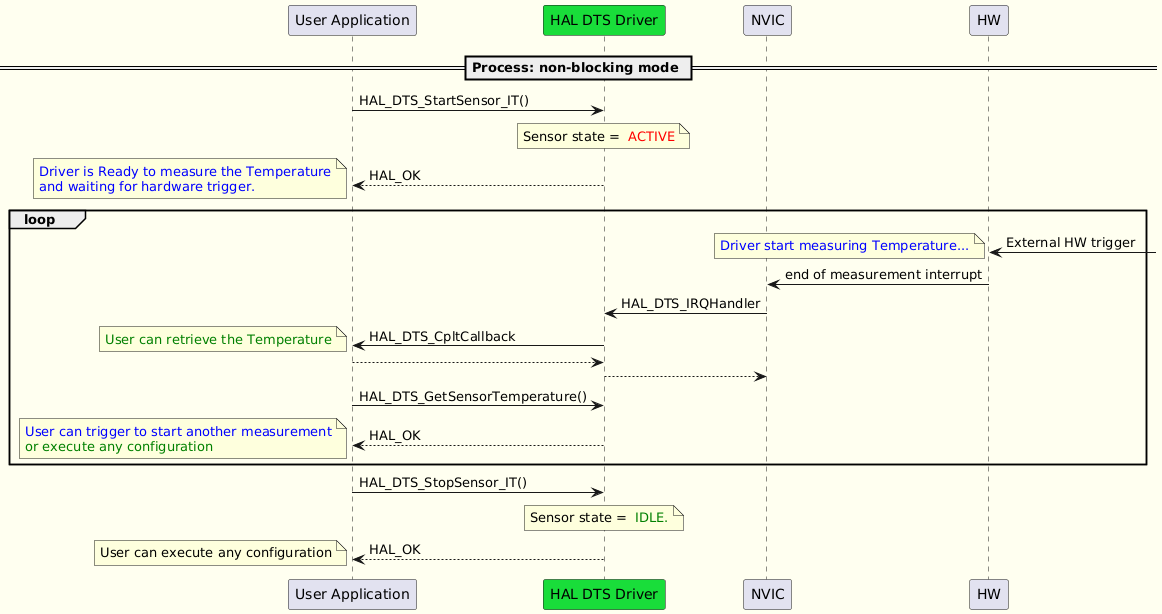

User application to measure Temperature in non-Blocking mode with hardware trigger

@startuml skinparam backgroundColor #FFFFF0 participant "User Application" as User participant "HAL DTS Driver" as DTS #19DD3A participant "NVIC" as NVIC participant "HW" as HW == Process: non-blocking mode == User -> DTS:HAL_DTS_StartSensor_IT() note over DTS Sensor state = <font color=red> ACTIVE end note User <-- DTS: HAL_OK note left <font color=blue>Driver is Ready to measure the Temperature <font color=blue>and waiting for hardware trigger. end note loop HW <- : External HW trigger note left <font color=blue>Driver start measuring Temperature... end note NVIC <- HW : end of measurement interrupt DTS <- NVIC : HAL_DTS_IRQHandler User <- DTS: HAL_DTS_CpltCallback note left <font color=green>User can retrieve the Temperature end note User --> DTS: DTS --> NVIC : User -> DTS:HAL_DTS_GetSensorTemperature() User <-- DTS: HAL_OK note left <font color=blue>User can trigger to start another measurement <font color=green>or execute any configuration end note end User -> DTS:HAL_DTS_StopSensor_IT() note over DTS Sensor state = <font color=green> IDLE. end note User <-- DTS: HAL_OK note left User can execute any configuration end note @enduml

Called functions:

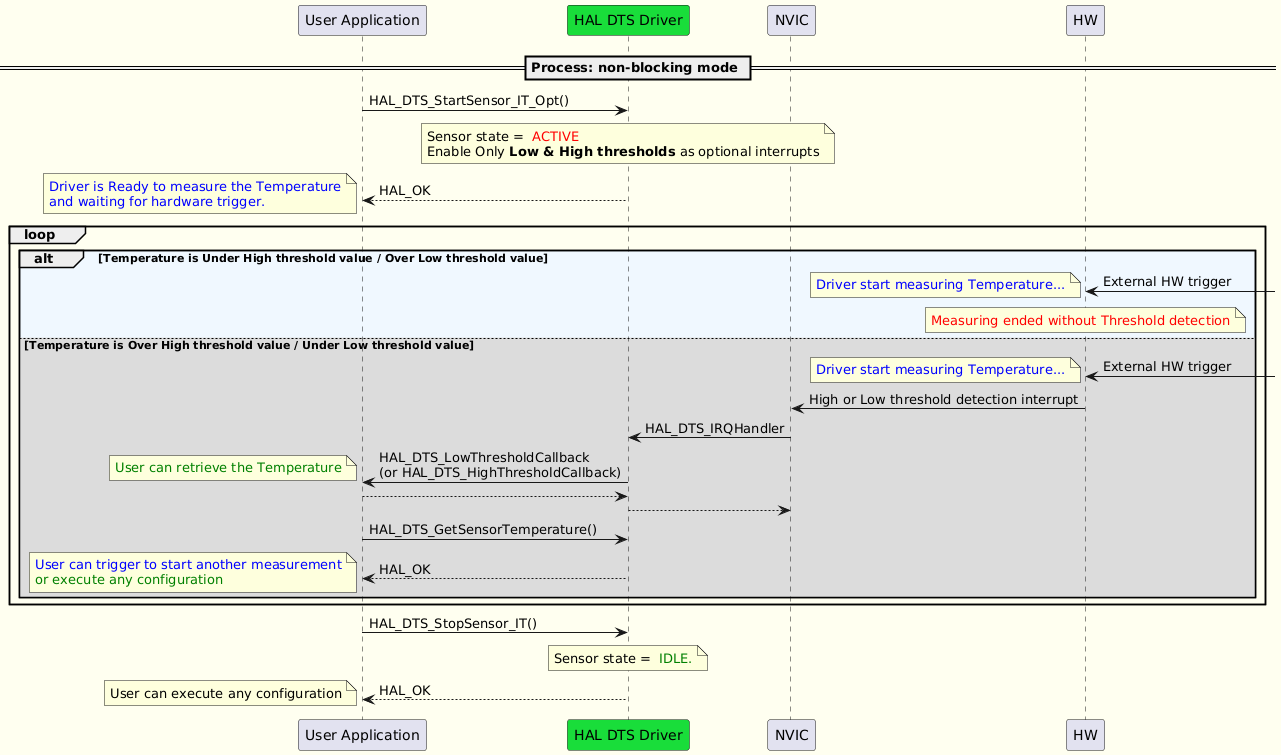

User application to detect temperature thresholds in non-Blocking mode with hardware trigger

@startuml skinparam backgroundColor #FFFFF0 participant "User Application" as User participant "HAL DTS Driver" as DTS #19DD3A participant "NVIC" as NVIC participant "HW" as HW == Process: non-blocking mode == User -> DTS:HAL_DTS_StartSensor_IT_Opt() note over DTS Sensor state = <font color=red> ACTIVE Enable Only **Low & High thresholds** as optional interrupts end note User <-- DTS: HAL_OK note left <font color=blue>Driver is Ready to measure the Temperature <font color=blue>and waiting for hardware trigger. end note loop #ivory alt #aliceblue Temperature is Under High threshold value / Over Low threshold value HW <- : External HW trigger note left <font color=blue>Driver start measuring Temperature... end note note over HW <font color=red>Measuring ended without Threshold detection end note else #gainsboro Temperature is Over High threshold value / Under Low threshold value HW <- : External HW trigger note left <font color=blue>Driver start measuring Temperature... end note NVIC <- HW : High or Low threshold detection interrupt DTS <- NVIC : HAL_DTS_IRQHandler User <- DTS: HAL_DTS_LowThresholdCallback \n(or HAL_DTS_HighThresholdCallback) note left <font color=green>User can retrieve the Temperature end note User --> DTS: DTS --> NVIC : User -> DTS:HAL_DTS_GetSensorTemperature() User <-- DTS: HAL_OK note left <font color=blue>User can trigger to start another measurement <font color=green>or execute any configuration end note end end User -> DTS:HAL_DTS_StopSensor_IT() note over DTS Sensor state = <font color=green> IDLE. end note User <-- DTS: HAL_OK note left User can execute any configuration end note @enduml

Called functions:

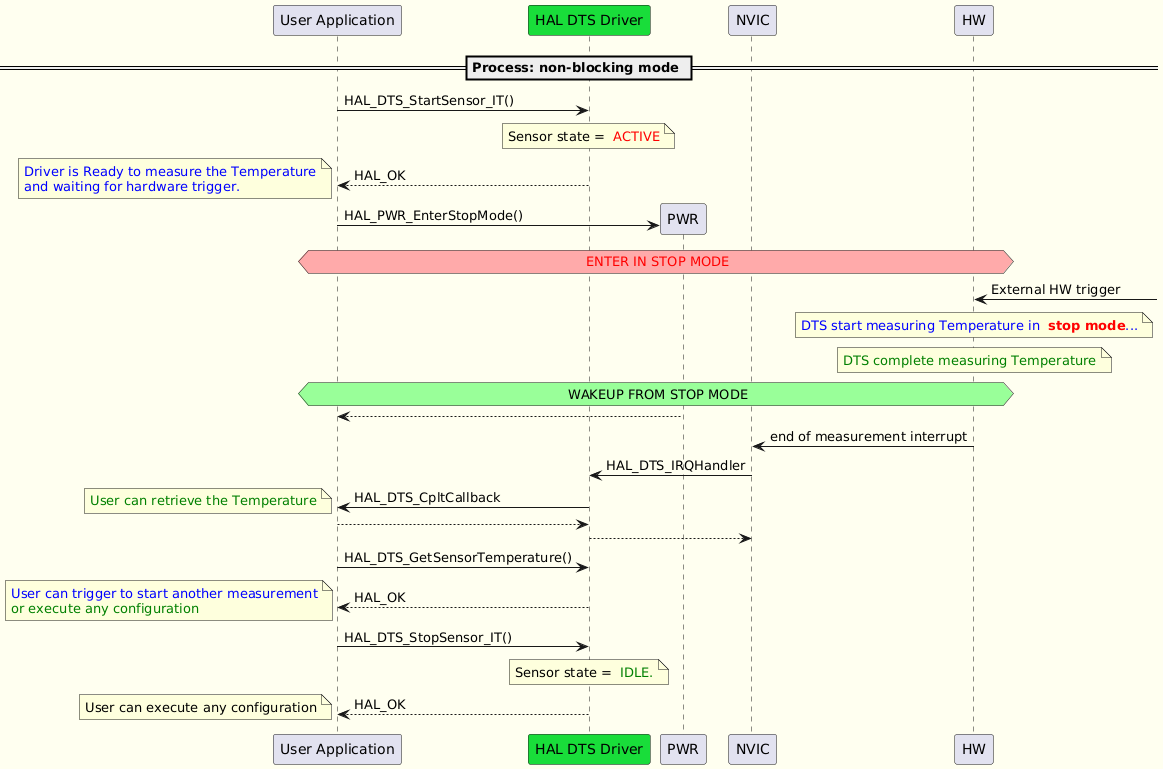

User application to Wakeup From Stop/Sleep mode at end of measurement

@startuml skinparam backgroundColor #FFFFF0 participant "User Application" as User participant "HAL DTS Driver" as DTS #19DD3A participant "PWR" as PWR participant "NVIC" as NVIC participant "HW" as HW == Process: non-blocking mode == User -> DTS:HAL_DTS_StartSensor_IT() note over DTS Sensor state = <font color=red> ACTIVE end note User <-- DTS: HAL_OK note left <font color=blue>Driver is Ready to measure the Temperature <font color=blue>and waiting for hardware trigger. end note User -> PWR**: HAL_PWR_EnterStopMode() hnote across #FFAAAA <font color=red> ENTER IN STOP MODE end note HW <-: External HW trigger note over HW <font color=blue>DTS start measuring Temperature in <color red> **stop mode**</color>... end note note over HW <font color=green>DTS complete measuring Temperature end note hnote across #99FF99 <font color=black> WAKEUP FROM STOP MODE end note User <-- PWR: NVIC <- HW: end of measurement interrupt DTS <- NVIC : HAL_DTS_IRQHandler User <- DTS: HAL_DTS_CpltCallback note left <font color=green>User can retrieve the Temperature end note User --> DTS: DTS --> NVIC : User -> DTS:HAL_DTS_GetSensorTemperature() User <-- DTS: HAL_OK note left <font color=blue>User can trigger to start another measurement <font color=green>or execute any configuration end note User -> DTS:HAL_DTS_StopSensor_IT() note over DTS Sensor state = <font color=green> IDLE. end note User <-- DTS:HAL_OK note left User can execute any configuration end note @enduml

Called functions:
