STM32H7Pxx HAL Drivers
HAL CRC Overview ¶
Introducing CRC ¶
- group CRC_Introduction
-
The CRC hardware abstraction layer provides a set of APIs to configure and control the CRC peripheral on STM32 microcontrollers.
The CRC (Cyclic Redundancy Check) calculation unit is used to compute a CRC code from 8-, 16-, or 32-bit data words and a generator polynomial.
Among other applications, CRC-based techniques are used to verify data transmission or storage integrity. Within the scope of functional safety standards, they offer a means of verifying flash memory integrity.
The CRC calculation unit helps compute a software signature at runtime, to be compared with a reference signature generated at link time and stored at a given memory location.
Module and files ¶
The following diagram illustrates the CRC module and its associated files.
Component diagram ¶

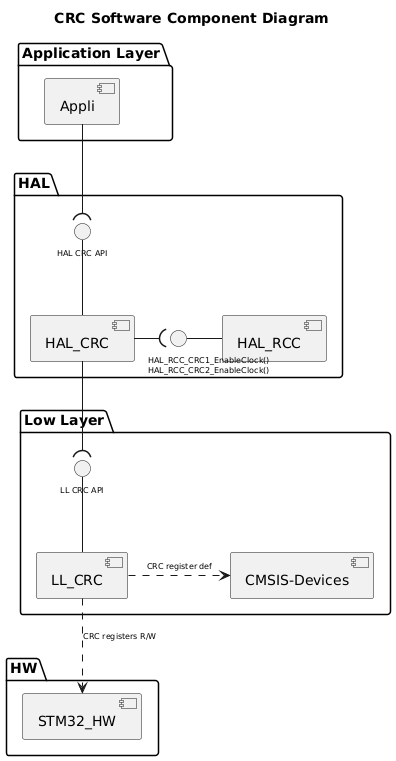

The following diagram illustrates the software components involved in the CRC module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
' The Driver name to be csutomized according to the driver
' Example CRC, I2C, NVM, FLASH, ....
!$ppp = "CRC"
' The HAL driver use a core driver - default value 0
!$use_ppp_core = 0
' When using a core driver : the core driver name
!$core = "XXX" + "_CORE"
' enable/disable LL RCC interfaces depandencies - default value 0
!$use_ll_rcc = 0
' the driver provide an LL layer : default value 1
' Set to 0 if core is set to 1
!if ($use_ppp_core == 1)
!$use_ppp_ll = 0
!else
!$use_ppp_ll = 1
!endif
' the driver provide a HAL Layer : default value 1
!$use_ppp_hal = 1
' the HAL driver use HAL services : default value 1
!$use_hal_service = 0
' the HAL driver use HAL RCC services : default value 1
!$use_hal_rcc = 1
' the HAL driver use HAL DMA services : default value 1
!$use_hal_dma = 0
' The driver use HAL_RCC_PPP_GetClockFreq()
!$use_kernel_clock = 0
' HAL driver use depandencies with generic instead of interfaces
!$use_hal_generic_dep = 0
' The driver use interrupts : defautl value 1
' Example CCB --> no interrupts
!$use_ppp_isr = 0
' The driver use an extented file : default value 0
' Example of Usage NVM, FLASH
!$use_hal_ppp_extend = 0
' The HAL Driver extension name
!$ppp_extend = "ITF"
' The HAL Driver interface
!$hal_api_itf = "HAL " + $ppp + " API"
' The HAL Driver extended interface
!$hal_api_ext_itf = "HAL " + $ppp + " " + $ppp_extend + " API"
' The Use Application Interface
!$appli_itf = $ppp+ " User Callback"
!$appli_ext_itf = "\n" + $ppp+ " " + $ppp_extend + " User Callback"
' The HAL PPP name
!$ppp_name = "HAL_" + $ppp
!$ppp_ext_name = "HAL_" + $ppp+ "_" + $ppp_extend
' The PPP isr
!$ppp_ISR = $ppp + " ISR"
!$ppp_ext_ISR = $ppp+ " " + $ppp_extend + " ISR"
' The LL Driver name
!$ll_ppp = "LL_" + $ppp
!$hal_dma_itf = "HAL_DMA_StartDirectXfer_IT_Opt()\nHAL_DMA_Abort_IT"
!if ($use_kernel_clock == 1)
!if (defined GENERATOR_CRC2_NOT_AVAILABLE)
!$hal_rcc_itf = "\t\t\tHAL_RCC_"+$ppp+"_GetClockFreq()\n\t\t\tHAL_RCC_"+$ppp+"_EnableClock()"
!else
!$hal_rcc_itf = "\t\t\tHAL_RCC_"+$ppp+"_GetClockFreq()\n\t\t\tHAL_RCC_"+$ppp+"1_EnableClock()\n\t\t\tHAL_RCC_"+$ppp+"2_EnableClock()"
!endif
!else
!if <(defined GENERATOR_CRC2_NOT_AVAILABLE)
!$hal_rcc_itf = "\t\t\tHAL_RCC_"+$ppp+"_EnableClock()"
!else
!$hal_rcc_itf = "\t\t\tHAL_RCC_"+$ppp+"1_EnableClock()\n\t\t\tHAL_RCC_"+$ppp+"2_EnableClock()"
!endif
!endif
!$hal_ppp_itf = "Half transfer complete\nTransfer complete\nError callback\nAbort callback"
' HAL Generic interface for the PPP driver
!$hal_generic_itf = "HAL_GetTick()\n"
!$ll_ppp_itf = "LL " + $ppp +" API"
' HW
!$ppp_xIRQ = $ppp+"x_IRQ"
<style>
componentDiagram {
arrow {
FontSize 8
}
interface {
FontSize 8
}
}
</style>
title $ppp Software Component Diagram
Package "Application Layer" {
component [Appli]
!if ($use_ppp_isr == 1)
interface "$appli_itf" as APPLI_Interface
[Appli] -r- APPLI_Interface
!if ($use_hal_ppp_extend == 1)
interface "$appli_ext_itf" as APPLI_EXT_Interface
[Appli] -l- APPLI_EXT_Interface
!endif
!endif
}
package "HAL" {
!if ($use_hal_ppp_extend == 1)
[$ppp_name]
[$ppp_ext_name]
!else
[$ppp_name]
!endif
!if ($use_hal_dma == 1)
interface "$hal_ppp_itf" as HAL_PPP_Interface
[$ppp_name] -d- HAL_PPP_Interface
!endif
interface "$hal_api_itf" as HAL_PPP_APPLI_Interface
!if ($use_hal_ppp_extend == 1)
interface "$hal_api_ext_itf" as HAL_PPP_APPLI_EXT_Interface
[$ppp_name] -u- HAL_PPP_APPLI_Interface
[$ppp_ext_name] -u- HAL_PPP_APPLI_EXT_Interface
'[$ppp_ext_name] -u-(
[$ppp_name] ..> [$ppp_ext_name] : <<include>>
!else
[$ppp_name] -u- HAL_PPP_APPLI_Interface
!endif
!if ($use_hal_generic_dep == 0)
!if ($use_hal_service == 1)
[HAL_SERVICE]
interface "$hal_generic_itf" as HAL_Service_Interface
[HAL_SERVICE] -r- HAL_Service_Interface
[$ppp_name] -l-( HAL_Service_Interface
!if ($use_hal_ppp_extend == 1)
[$ppp_ext_name] -r-( HAL_Service_Interface
!endif
!endif
!else
[HAL_SERVICE]
[$ppp_name] ..> [HAL_SERVICE]
!endif
!if ($use_hal_dma == 1)
[HAL_DMA]
interface "$hal_dma_itf" as HAL_DMA_Interface
[HAL_DMA] -u- HAL_DMA_Interface
[HAL_DMA] -u-( HAL_PPP_Interface
[$ppp_name] --( HAL_DMA_Interface
!endif
!if ($use_hal_rcc == 1)
[HAL_RCC]
interface "$hal_rcc_itf" as HAL_RCC_Interface
[HAL_RCC] -l- HAL_RCC_Interface
[$ppp_name] -r-( HAL_RCC_Interface
!endif
}
[Appli] -d-( HAL_PPP_APPLI_Interface
!if ($use_hal_ppp_extend == 1)
[Appli] -d-( HAL_PPP_APPLI_EXT_Interface
!endif
!if ($use_ppp_isr == 1)
[$ppp_name] -u-( APPLI_Interface
!if ($use_hal_ppp_extend == 1)
[$ppp_ext_name] -u-( APPLI_EXT_Interface
!endif
!endif
!if ($use_ppp_core ==1)
Package "Core Layer" {
[$core]
interface "core API" as Core_api_itf
[$core] -u- Core_api_itf
}
[$ppp_name] -d-( Core_api_itf
!endif
package "Low Layer" {
[CMSIS-Devices]
!if ($use_ppp_ll == 1)
[$ll_ppp]
interface "$ll_ppp_itf" as LL_PPP_Interface
[$ll_ppp] -u- LL_PPP_Interface
!endif
!if ($use_ppp_isr == 1)
interface "$ppp_ISR" as PPP_ISR
[$ppp_ISR] -u- PPP_ISR
[$ppp_ISR]
!if ($use_hal_ppp_extend == 1)
interface "$ppp_ext_ISR" as PPP_EXT_ISR
[$ppp_ISR] -u- PPP_EXT_ISR
[$ppp_ext_name] -d-( PPP_EXT_ISR
!endif
!endif
!if ($use_ll_rcc == 1)
[LL_RCC]
interface "LL RCC API" as LL_RCC_API
[LL_RCC] -u- LL_RCC_API
[HAL_RCC] -d-(LL_RCC_API
!endif
!if ($use_hal_dma == 1)
[DMA ISR]
interface "DMA ISR" as DMA_ISR
[DMA ISR] -u- DMA_ISR
!endif
}
package "HW" {
[STM32_HW]
!if ($use_ppp_isr == 1)
interface "$ppp_xIRQ" as PPPx_IRQ
[STM32_HW] -u- PPPx_IRQ
!endif
!if ($use_hal_dma == 1)
interface "DMAx_IRQ_Ch" as DMA_IRQ_CH
[STM32_HW] -u- DMA_IRQ_CH
[DMA ISR] -d-( DMA_IRQ_CH
[HAL_DMA] --( DMA_ISR
!endif
}
!if ($use_ppp_ll == 1)
!if ($use_hal_ppp_extend == 1)
[$ppp_ext_name] -d-( LL_PPP_Interface
!else
[$ppp_name] -d-( LL_PPP_Interface
!endif
[$ll_ppp] .r.> [CMSIS-Devices]: $ppp register def
[STM32_HW] <.u. [$ll_ppp] : $ppp registers R/W
!else
!if ($use_ppp_core == 1)
[$core] .l.> [CMSIS-Devices]: $ppp register def
[STM32_HW] <.u. [$core] : $ppp registers R/W
!else
[$ppp_name] .d.> [CMSIS-Devices]: $ppp register def
[STM32_HW] <.l. [$ppp_name] : $ppp registers R/W
!endif
!endif
!if ($use_ppp_isr == 1)
[$ppp_ISR] -d-( PPPx_IRQ
[$ppp_name] -d-( PPP_ISR
!endif
!if ($use_ll_rcc == 1)
[STM32_HW] <.u. [LL_RCC] : RCC registers R/W
!endif
@enduml](../../../../_images/plantuml-ff8d3adb133c4e8b6596f97f481f55c27e1c4b69.png)
Configuration table ¶
The following table lists the configuration defines for the HAL CRC module, specifying their locations, default values, and descriptions:
- group CRC_Configuration_Table
-
¶
Configuration inside the CRC driver ¶
Config defines
Description
Default value
Note
PRODUCT
from IDE
NA
Example: STM32H7PXX
USE_ASSERT_DBG_PARAM
from IDE
NA
Enable parameter asserts
USE_ASSERT_DBG_STATE
from IDE
NA
Enable state asserts
USE_HAL_CHECK_PARAM
from stm32h7pxx_hal_conf.h
0
Runtime parameter check
USE_HAL_CRC_MODULE
from stm32h7pxx_hal_conf.h
1
Enable the HAL CRC module
USE_HAL_CRC_CLK_ENABLE_MODEL
from stm32h7pxx_hal_conf.h
HAL_CLK_ENABLE_PERIPH_ONLY
Enable HAL_CRC_CLK
USE_HAL_CRC_USER_DATA
from stm32h7pxx_hal_conf.h
0
Allow user data usage
