HAL ADC Use Cases ¶

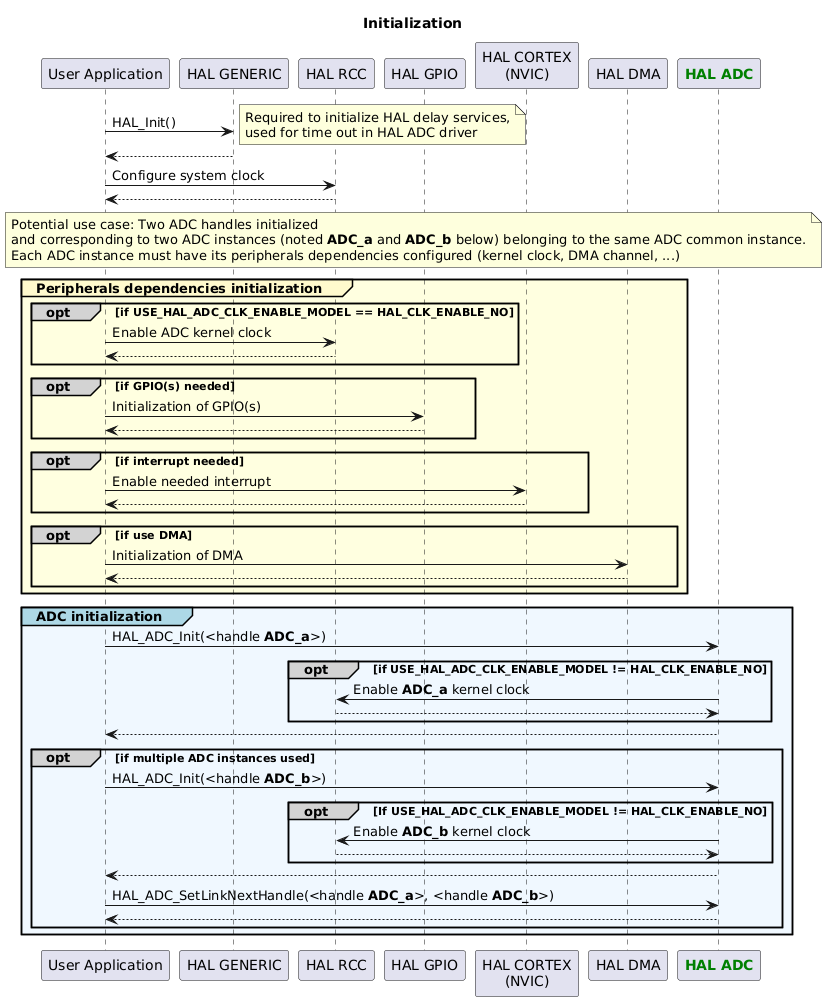

HAL ADC Handle Initialization ¶

$@startuml 'skinparam handwritten true title: Initialization ' Fix order of each column participant "User Application" as appli participant "HAL GENERIC" as GENERIC participant "HAL RCC" as RCC participant "HAL GPIO" as GPIO participant "HAL CORTEX\n(NVIC)" as CORTEX participant "HAL DMA" as DMA participant "HAL ADC" as ADC appli->GENERIC : HAL_Init() note right Required to initialize HAL delay services, used for time out in HAL ADC driver end note GENERIC --> appli appli->RCC : Configure system clock RCC --> appli note across Potential use case: Two ADC handles initialized and corresponding to two ADC instances (noted **ADC_a** and **ADC_b** below) belonging to the same ADC common instance. Each ADC instance must have its peripherals dependencies configured (kernel clock, DMA channel, ...) end note group#LemonChiffon #LightYellow Peripherals dependencies initialization opt#lightgrey #LightYellow if USE_HAL_ADC_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO appli->RCC : Enable ADC kernel clock RCC --> appli end opt#lightgrey #LightYellow if GPIO(s) needed appli->GPIO : Initialization of GPIO(s) GPIO-->appli end opt#lightgrey #LightYellow if interrupt needed appli->CORTEX : Enable needed interrupt CORTEX-->appli end opt#lightgrey #LightYellow if use DMA appli->DMA : Initialization of DMA DMA-->appli end end group#LightBlue #AliceBlue ADC initialization appli->ADC : HAL_ADC_Init(<handle **ADC_a**>) opt#lightgrey #AliceBlue if USE_HAL_ADC_CLK_ENABLE_MODEL != HAL_CLK_ENABLE_NO ADC->RCC : Enable **ADC_a** kernel clock RCC --> ADC end ADC --> appli opt#lightgrey #AliceBlue if multiple ADC instances used appli->ADC : HAL_ADC_Init(<handle **ADC_b**>) opt#lightgrey #AliceBlue If USE_HAL_ADC_CLK_ENABLE_MODEL != HAL_CLK_ENABLE_NO ADC->RCC : Enable **ADC_b** kernel clock RCC --> ADC end ADC --> appli appli->ADC : HAL_ADC_SetLinkNextHandle(<handle **ADC_a**>, <handle **ADC_b**>) ADC --> appli end end @enduml$

Called functions:

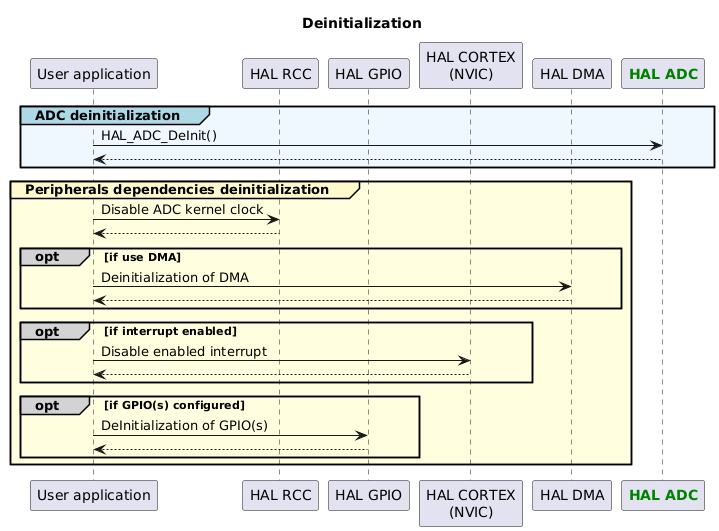

HAL ADC Deinitialization ¶

$@startuml title: Deinitialization participant "User application" as appli participant "HAL RCC" as RCC participant "HAL GPIO" as GPIO participant "HAL CORTEX\n(NVIC)" as CORTEX participant "HAL DMA" as DMA participant "HAL ADC" as ADC group#LightBlue #AliceBlue ADC deinitialization appli->ADC : HAL_ADC_DeInit() appli<--ADC end group#LemonChiffon #LightYellow Peripherals dependencies deinitialization appli->RCC : Disable ADC kernel clock RCC --> appli opt#lightgrey if use DMA appli->DMA : Deinitialization of DMA DMA-->appli end opt#lightgrey if interrupt enabled appli->CORTEX : Disable enabled interrupt CORTEX-->appli end opt#lightgrey if GPIO(s) configured appli->GPIO : DeInitialization of GPIO(s) GPIO-->appli end end @enduml$

Called functions:

HAL_ADC_DeInit()

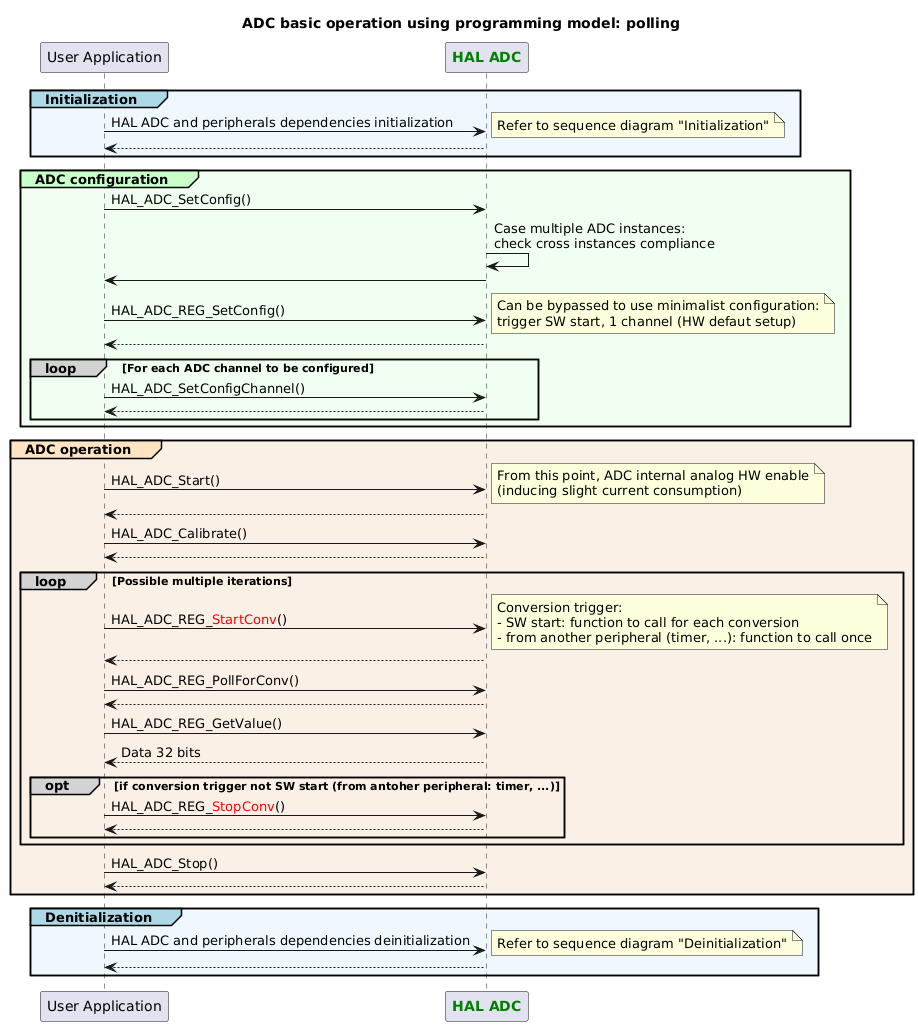

ADC Basic Operation: Polling ¶

$@startuml title: ADC basic operation using programming model: polling participant "User Application" as appli participant "HAL ADC" as ADC group#LightBlue #AliceBlue Initialization appli->ADC : HAL ADC and peripherals dependencies initialization note right Refer to sequence diagram "Initialization" end note return end group#TECHNOLOGY #HoneyDew ADC configuration appli->ADC : HAL_ADC_SetConfig() ADC->ADC : Case multiple ADC instances:\ncheck cross instances compliance ADC->appli appli->ADC : HAL_ADC_REG_SetConfig() note right Can be bypassed to use minimalist configuration: trigger SW start, 1 channel (HW defaut setup) end note return loop#lightgrey For each ADC channel to be configured appli->ADC : HAL_ADC_SetConfigChannel() return end end group#Bisque #Linen ADC operation appli->ADC : HAL_ADC_Start() note right From this point, ADC internal analog HW enable (inducing slight current consumption) end note return appli->ADC : HAL_ADC_Calibrate() return loop#lightgrey Possible multiple iterations appli->ADC : HAL_ADC_REG_<color:red>StartConv</color>() note right Conversion trigger: - SW start: function to call for each conversion - from another peripheral (timer, ...): function to call once end note return appli->ADC : HAL_ADC_REG_PollForConv() return appli->ADC : HAL_ADC_REG_GetValue() ADC --> appli: Data 32 bits opt#lightgrey if conversion trigger not SW start (from antoher peripheral: timer, ...) appli->ADC : HAL_ADC_REG_<color:red>StopConv</color>() return end end appli->ADC : HAL_ADC_Stop() return end group#LightBlue #AliceBlue Denitialization appli->ADC : HAL ADC and peripherals dependencies deinitialization note right Refer to sequence diagram "Deinitialization" end note return end @enduml$

Called functions:

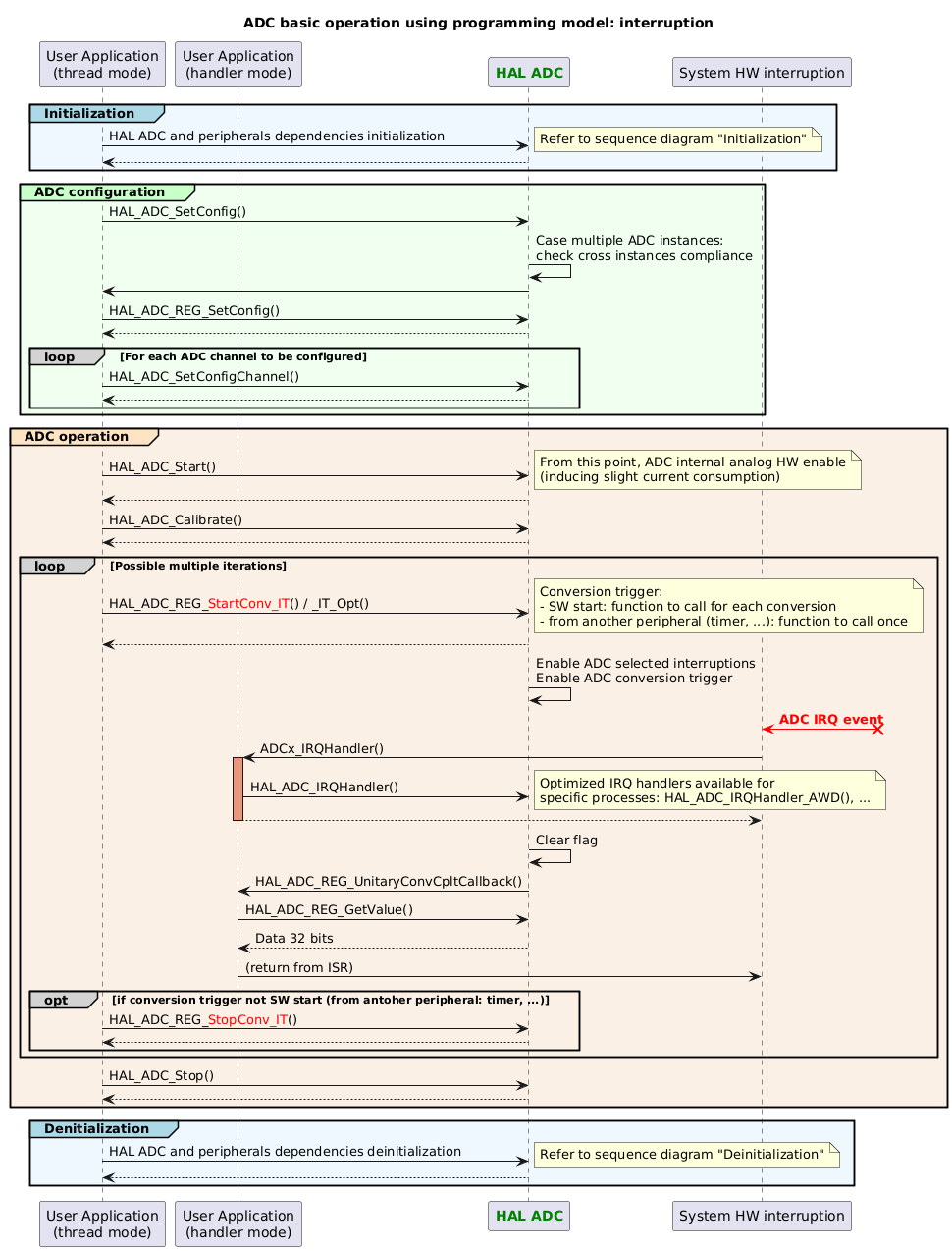

ADC Basic Operation: Interruption ¶

$@startuml title: ADC basic operation using programming model: interruption participant "User Application\n(thread mode)" as appli participant "User Application\n(handler mode)" as appli_IRQ participant "HAL ADC" as ADC participant "System HW interruption" as interruption group#LightBlue #AliceBlue Initialization appli->ADC : HAL ADC and peripherals dependencies initialization note right Refer to sequence diagram "Initialization" end note return end group#TECHNOLOGY #HoneyDew ADC configuration appli->ADC : HAL_ADC_SetConfig() ADC->ADC : Case multiple ADC instances:\ncheck cross instances compliance ADC->appli appli->ADC : HAL_ADC_REG_SetConfig() return loop#lightgrey For each ADC channel to be configured appli->ADC : HAL_ADC_SetConfigChannel() return end end group#Bisque #Linen ADC operation appli->ADC : HAL_ADC_Start() note right From this point, ADC internal analog HW enable (inducing slight current consumption) end note return appli->ADC : HAL_ADC_Calibrate() return loop#lightgrey Possible multiple iterations appli->ADC : HAL_ADC_REG_<color:red>StartConv_IT</color>() / _IT_Opt() note right Conversion trigger: - SW start: function to call for each conversion - from another peripheral (timer, ...): function to call once end note return ADC->ADC : Enable ADC selected interruptions\nEnable ADC conversion trigger interruption <[#red]-x? : ADC IRQ event interruption -> appli_IRQ : ADCx_IRQHandler() activate appli_IRQ #DarkSalmon appli_IRQ -> ADC : HAL_ADC_IRQHandler() note right Optimized IRQ handlers available for specific processes: HAL_ADC_IRQHandler_AWD(), ... end note return ADC -> ADC : Clear flag ADC -> appli_IRQ: HAL_ADC_REG_UnitaryConvCpltCallback() appli_IRQ->ADC : HAL_ADC_REG_GetValue() ADC --> appli_IRQ: Data 32 bits appli_IRQ -> interruption : (return from ISR) deactivate appli_IRQ opt#lightgrey if conversion trigger not SW start (from antoher peripheral: timer, ...) appli->ADC : HAL_ADC_REG_<color:red>StopConv_IT</color>() return end end appli->ADC : HAL_ADC_Stop() return end group#LightBlue #AliceBlue Denitialization appli->ADC : HAL ADC and peripherals dependencies deinitialization note right Refer to sequence diagram "Deinitialization" end note return end @enduml$

Called functions:

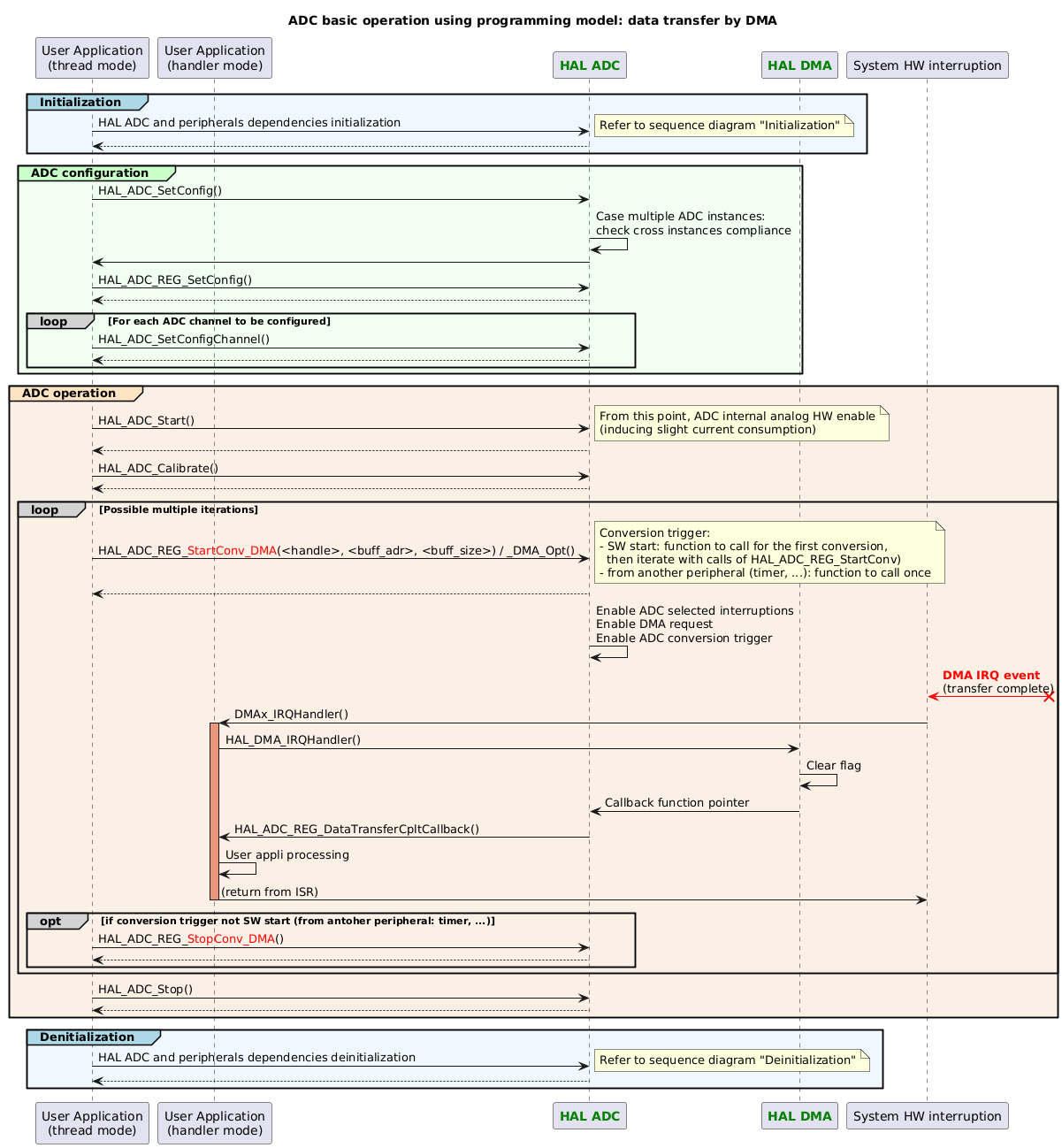

ADC Basic Operation: DMA ¶

$@startuml title: ADC basic operation using programming model: data transfer by DMA participant "User Application\n(thread mode)" as appli participant "User Application\n(handler mode)" as appli_IRQ participant "HAL ADC" as ADC participant "HAL DMA" as DMA participant "System HW interruption" as interruption group#LightBlue #AliceBlue Initialization appli->ADC : HAL ADC and peripherals dependencies initialization note right Refer to sequence diagram "Initialization" end note return end group#TECHNOLOGY #HoneyDew ADC configuration appli->ADC : HAL_ADC_SetConfig() ADC->ADC : Case multiple ADC instances:\ncheck cross instances compliance ADC->appli appli->ADC : HAL_ADC_REG_SetConfig() return loop#lightgrey For each ADC channel to be configured appli->ADC : HAL_ADC_SetConfigChannel() return end end group#Bisque #Linen ADC operation appli->ADC : HAL_ADC_Start() note right From this point, ADC internal analog HW enable (inducing slight current consumption) end note return appli->ADC : HAL_ADC_Calibrate() return loop#lightgrey Possible multiple iterations appli->ADC : HAL_ADC_REG_<color:red>StartConv_DMA</color>(<handle>, <buff_adr>, <buff_size>) / _DMA_Opt() note right Conversion trigger: - SW start: function to call for the first conversion, then iterate with calls of HAL_ADC_REG_StartConv) - from another peripheral (timer, ...): function to call once end note return ADC->ADC : Enable ADC selected interruptions\nEnable DMA request\nEnable ADC conversion trigger interruption <[#red]-x? : DMA IRQ event\n(transfer complete) interruption -> appli_IRQ : DMAx_IRQHandler() activate appli_IRQ #DarkSalmon appli_IRQ -> DMA : HAL_DMA_IRQHandler() DMA -> DMA : Clear flag DMA->ADC : Callback function pointer ADC -> appli_IRQ: HAL_ADC_REG_DataTransferCpltCallback() appli_IRQ -> appli_IRQ : User appli processing appli_IRQ -> interruption : (return from ISR) deactivate appli_IRQ opt#lightgrey if conversion trigger not SW start (from antoher peripheral: timer, ...) appli->ADC : HAL_ADC_REG_<color:red>StopConv_DMA</color>() return end end appli->ADC : HAL_ADC_Stop() return end group#LightBlue #AliceBlue Denitialization appli->ADC : HAL ADC and peripherals dependencies deinitialization note right Refer to sequence diagram "Deinitialization" end note return end @enduml$

Called functions:

ADC Features Operation: All Config ¶

$@startuml title: ADC features operation: use all configuration features participant "User Application" as appli participant "HAL ADC" as ADC group#LightBlue #AliceBlue Initialization appli->ADC : HAL ADC and peripherals dependencies initialization note right Refer to sequence diagram "Initialization" end note return end group#TECHNOLOGY #HoneyDew ADC configuration appli->ADC : HAL_ADC_SetConfig() ADC->ADC : Case multiple ADC instances:\ncheck cross instances compliance ADC->appli appli->ADC : HAL_ADC_SetConfig<color:red>PostProcessing</color>() return appli->ADC : HAL_ADC_SetConfig<color:red>LowPower</color>() return appli->ADC : HAL_ADC_REG_SetConfig() return loop#lightgrey For each ADC channel to be configured appli->ADC : HAL_ADC_SetConfigChannel() return end appli->ADC : HAL_ADC_SetConfig<color:red>AnalogWD</color>() return appli->ADC : HAL_ADC_SetConfig<color:red>OverSampling</color>() return appli->ADC : HAL_ADC_SetConfig<color:red>Offset</color>() return end group#Bisque #Linen ADC operation appli->ADC : HAL ADC conversion management note right Refer to sequence diagrams "ADC basic operation" end note end group#LightBlue #AliceBlue Denitialization appli->ADC : HAL ADC and peripherals dependencies deinitialization note right Refer to sequence diagram "Deinitialization" end note return end @enduml$

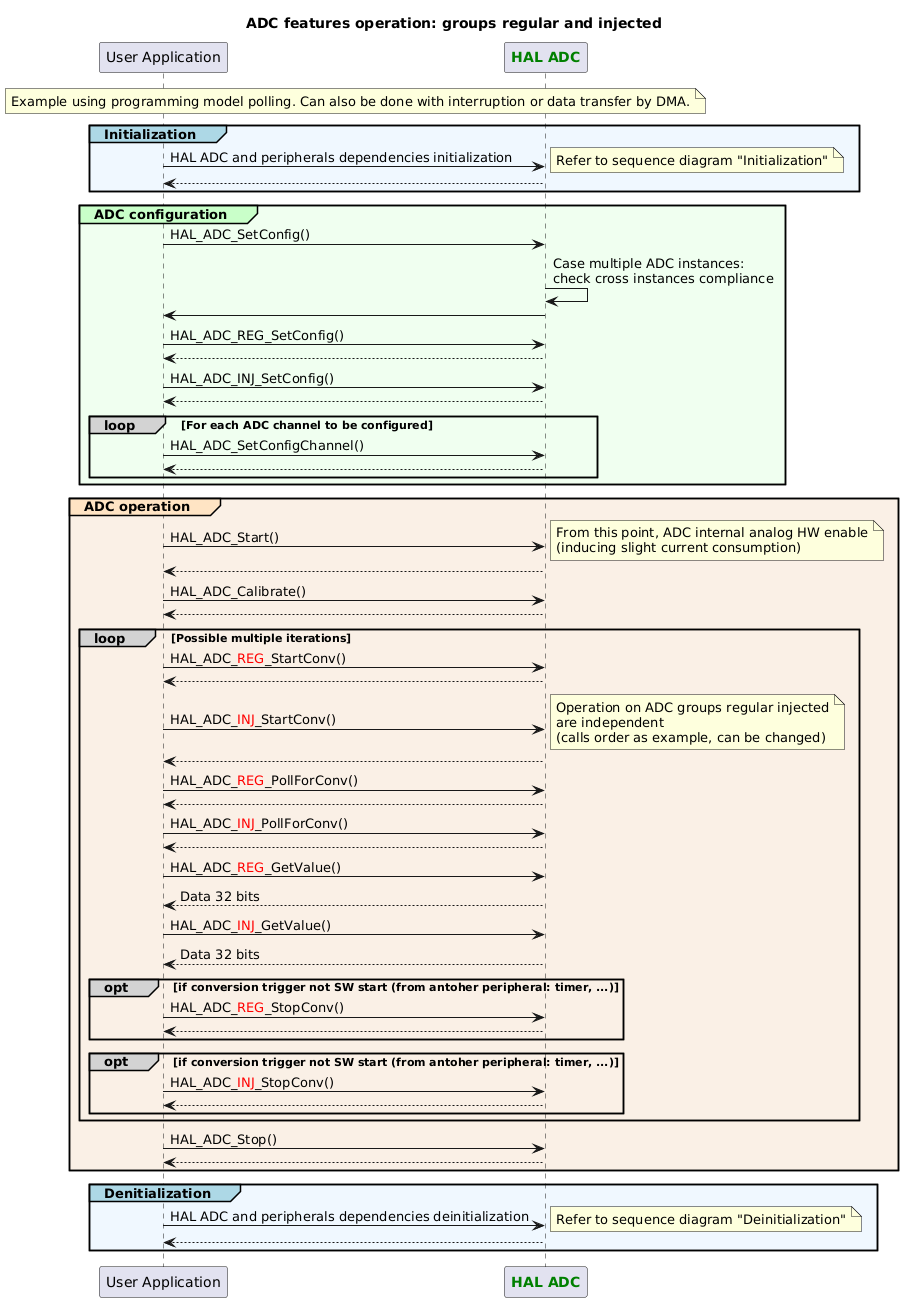

ADC Features Operation: Groups Regular and Injected ¶

$@startuml title: ADC features operation: groups regular and injected note across Example using programming model polling. Can also be done with interruption or data transfer by DMA. end note participant "User Application" as appli participant "HAL ADC" as ADC group#LightBlue #AliceBlue Initialization appli->ADC : HAL ADC and peripherals dependencies initialization note right Refer to sequence diagram "Initialization" end note return end group#TECHNOLOGY #HoneyDew ADC configuration appli->ADC : HAL_ADC_SetConfig() ADC->ADC : Case multiple ADC instances:\ncheck cross instances compliance ADC->appli appli->ADC : HAL_ADC_REG_SetConfig() return appli->ADC : HAL_ADC_INJ_SetConfig() return loop#lightgrey For each ADC channel to be configured appli->ADC : HAL_ADC_SetConfigChannel() return end end group#Bisque #Linen ADC operation appli->ADC : HAL_ADC_Start() note right From this point, ADC internal analog HW enable (inducing slight current consumption) end note return appli->ADC : HAL_ADC_Calibrate() return loop#lightgrey Possible multiple iterations appli->ADC : HAL_ADC_<color:red>REG</color>_StartConv() return appli->ADC : HAL_ADC_<color:red>INJ</color>_StartConv() note right Operation on ADC groups regular injected are independent (calls order as example, can be changed) end note return appli->ADC : HAL_ADC_<color:red>REG</color>_PollForConv() return appli->ADC : HAL_ADC_<color:red>INJ</color>_PollForConv() return appli->ADC : HAL_ADC_<color:red>REG</color>_GetValue() ADC --> appli: Data 32 bits appli->ADC : HAL_ADC_<color:red>INJ</color>_GetValue() ADC --> appli: Data 32 bits opt#lightgrey if conversion trigger not SW start (from antoher peripheral: timer, ...) appli->ADC : HAL_ADC_<color:red>REG</color>_StopConv() return end opt#lightgrey if conversion trigger not SW start (from antoher peripheral: timer, ...) appli->ADC : HAL_ADC_<color:red>INJ</color>_StopConv() return end end appli->ADC : HAL_ADC_Stop() return end group#LightBlue #AliceBlue Denitialization appli->ADC : HAL ADC and peripherals dependencies deinitialization note right Refer to sequence diagram "Deinitialization" end note return end @enduml$

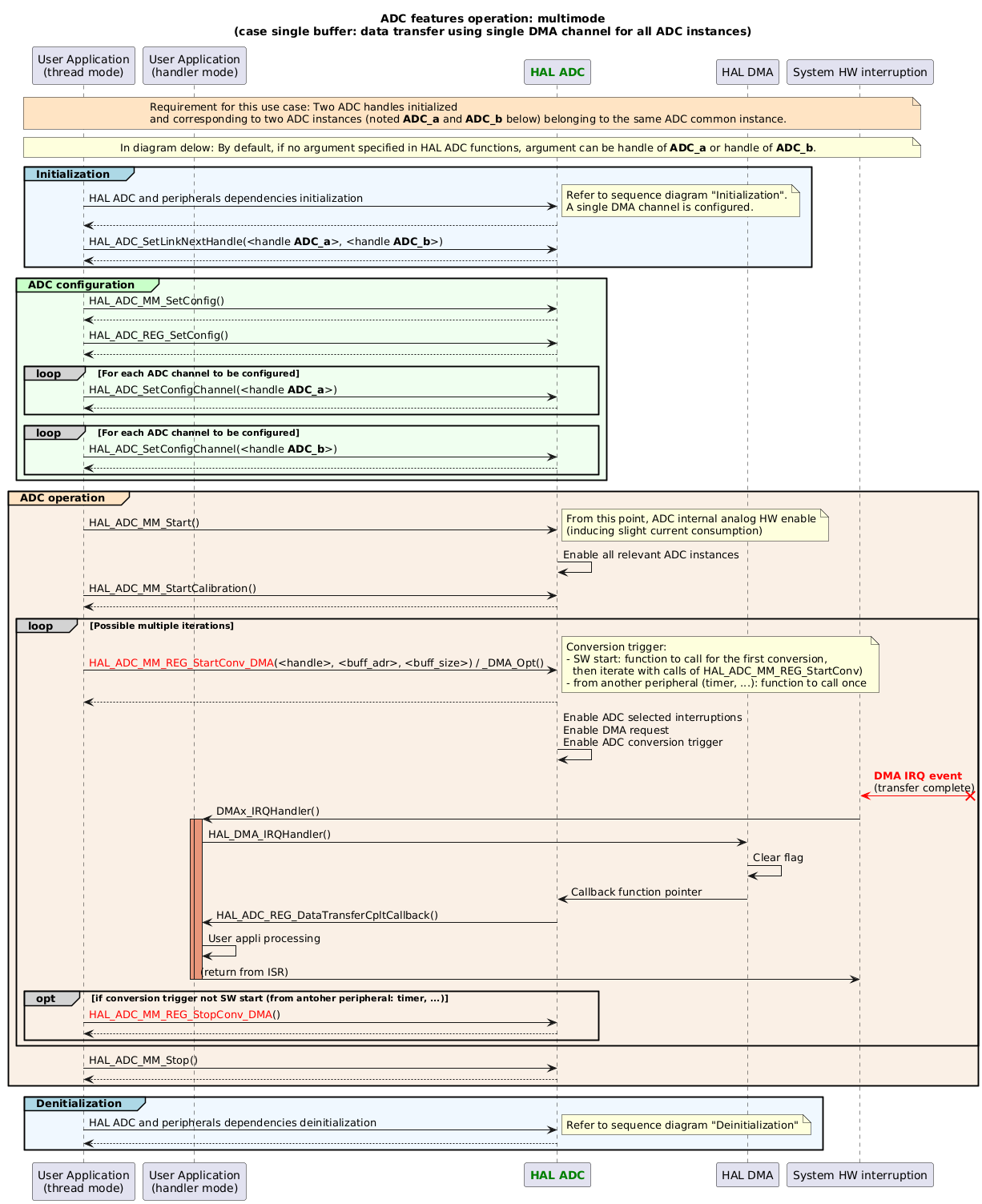

ADC Features Operation: Multimode Single Buffer ¶

$@startuml title: ADC features operation: multimode\n(case single buffer: data transfer using single DMA channel for all ADC instances) participant "User Application\n(thread mode)" as appli participant "User Application\n(handler mode)" as appli_IRQ participant "HAL ADC" as ADC participant "HAL DMA" as DMA participant "System HW interruption" as interruption note across #Bisque Requirement for this use case: Two ADC handles initialized and corresponding to two ADC instances (noted **ADC_a** and **ADC_b** below) belonging to the same ADC common instance. end note note across In diagram delow: By default, if no argument specified in HAL ADC functions, argument can be handle of **ADC_a** or handle of **ADC_b**. end note group#LightBlue #AliceBlue Initialization appli->ADC : HAL ADC and peripherals dependencies initialization note right Refer to sequence diagram "Initialization". A single DMA channel is configured. end note return appli->ADC : HAL_ADC_SetLinkNextHandle(<handle **ADC_a**>, <handle **ADC_b**>) ADC --> appli end group#TECHNOLOGY #HoneyDew ADC configuration appli->ADC : HAL_ADC_MM_SetConfig() return appli->ADC : HAL_ADC_REG_SetConfig() return loop#lightgrey For each ADC channel to be configured appli->ADC : HAL_ADC_SetConfigChannel(<handle **ADC_a**>) return end loop#lightgrey For each ADC channel to be configured appli->ADC : HAL_ADC_SetConfigChannel(<handle **ADC_b**>) return end end group#Bisque #Linen ADC operation appli->ADC : HAL_ADC_MM_Start() note right From this point, ADC internal analog HW enable (inducing slight current consumption) end note ADC -> ADC : Enable all relevant ADC instances appli->ADC : HAL_ADC_MM_StartCalibration() return loop#lightgrey Possible multiple iterations appli->ADC : <color:red>HAL_ADC_MM_REG_StartConv_DMA</color>(<handle>, <buff_adr>, <buff_size>) / _DMA_Opt() note right Conversion trigger: - SW start: function to call for the first conversion, then iterate with calls of HAL_ADC_MM_REG_StartConv) - from another peripheral (timer, ...): function to call once end note return ADC->ADC : Enable ADC selected interruptions\nEnable DMA request\nEnable ADC conversion trigger interruption <[#red]-x? : DMA IRQ event\n(transfer complete) interruption -> appli_IRQ : DMAx_IRQHandler() activate appli_IRQ #DarkSalmon activate appli_IRQ #DarkSalmon appli_IRQ -> DMA : HAL_DMA_IRQHandler() DMA -> DMA : Clear flag DMA->ADC : Callback function pointer ADC -> appli_IRQ: HAL_ADC_REG_DataTransferCpltCallback() appli_IRQ -> appli_IRQ : User appli processing appli_IRQ -> interruption : (return from ISR) deactivate appli_IRQ deactivate appli_IRQ opt#lightgrey if conversion trigger not SW start (from antoher peripheral: timer, ...) appli->ADC : <color:red>HAL_ADC_MM_REG_StopConv_DMA</color>() return end end appli->ADC : HAL_ADC_MM_Stop() return end group#LightBlue #AliceBlue Denitialization appli->ADC : HAL ADC and peripherals dependencies deinitialization note right Refer to sequence diagram "Deinitialization" end note return end @enduml$

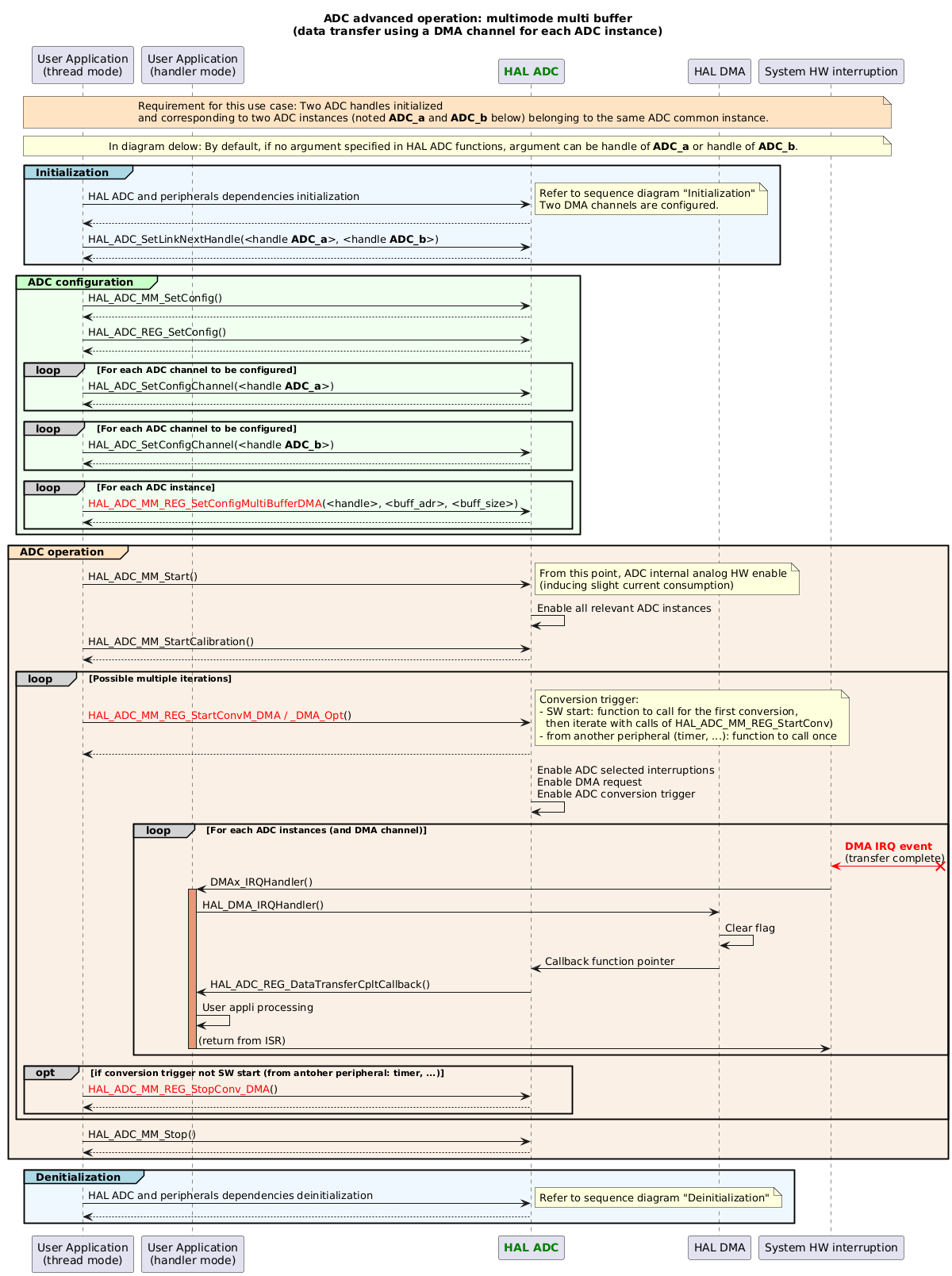

ADC Features Operation: Multimode ¶

$@startuml title: ADC advanced operation: multimode multi buffer\n(data transfer using a DMA channel for each ADC instance) participant "User Application\n(thread mode)" as appli participant "User Application\n(handler mode)" as appli_IRQ participant "HAL ADC" as ADC participant "HAL DMA" as DMA participant "System HW interruption" as interruption note across #Bisque Requirement for this use case: Two ADC handles initialized and corresponding to two ADC instances (noted **ADC_a** and **ADC_b** below) belonging to the same ADC common instance. end note note across In diagram delow: By default, if no argument specified in HAL ADC functions, argument can be handle of **ADC_a** or handle of **ADC_b**. end note group#LightBlue #AliceBlue Initialization appli->ADC : HAL ADC and peripherals dependencies initialization note right Refer to sequence diagram "Initialization" Two DMA channels are configured. end note return appli->ADC : HAL_ADC_SetLinkNextHandle(<handle **ADC_a**>, <handle **ADC_b**>) ADC --> appli end group#TECHNOLOGY #HoneyDew ADC configuration appli->ADC : HAL_ADC_MM_SetConfig() return appli->ADC : HAL_ADC_REG_SetConfig() return loop#lightgrey For each ADC channel to be configured appli->ADC : HAL_ADC_SetConfigChannel(<handle **ADC_a**>) return end loop#lightgrey For each ADC channel to be configured appli->ADC : HAL_ADC_SetConfigChannel(<handle **ADC_b**>) return end loop#lightgrey For each ADC instance appli->ADC : <color:red>HAL_ADC_MM_REG_SetConfigMultiBufferDMA</color>(<handle>, <buff_adr>, <buff_size>) return end end group#Bisque #Linen ADC operation appli->ADC : HAL_ADC_MM_Start() note right From this point, ADC internal analog HW enable (inducing slight current consumption) end note ADC -> ADC : Enable all relevant ADC instances appli->ADC : HAL_ADC_MM_StartCalibration() return loop#lightgrey Possible multiple iterations appli->ADC : <color:red>HAL_ADC_MM_REG_StartConvM_DMA / _DMA_Opt</color>() note right Conversion trigger: - SW start: function to call for the first conversion, then iterate with calls of HAL_ADC_MM_REG_StartConv) - from another peripheral (timer, ...): function to call once end note return ADC->ADC : Enable ADC selected interruptions\nEnable DMA request\nEnable ADC conversion trigger loop#lightgrey For each ADC instances (and DMA channel) interruption <[#red]-x? : DMA IRQ event\n(transfer complete) interruption -> appli_IRQ : DMAx_IRQHandler() activate appli_IRQ #DarkSalmon appli_IRQ -> DMA : HAL_DMA_IRQHandler() DMA -> DMA : Clear flag DMA->ADC : Callback function pointer ADC -> appli_IRQ: HAL_ADC_REG_DataTransferCpltCallback() appli_IRQ -> appli_IRQ : User appli processing appli_IRQ -> interruption : (return from ISR) deactivate appli_IRQ end opt#lightgrey if conversion trigger not SW start (from antoher peripheral: timer, ...) appli->ADC : <color:red>HAL_ADC_MM_REG_StopConv_DMA</color>() return end end appli->ADC : HAL_ADC_MM_Stop() return end group#LightBlue #AliceBlue Denitialization appli->ADC : HAL ADC and peripherals dependencies deinitialization note right Refer to sequence diagram "Deinitialization" end note return end @enduml$
