HAL CRS Use Cases

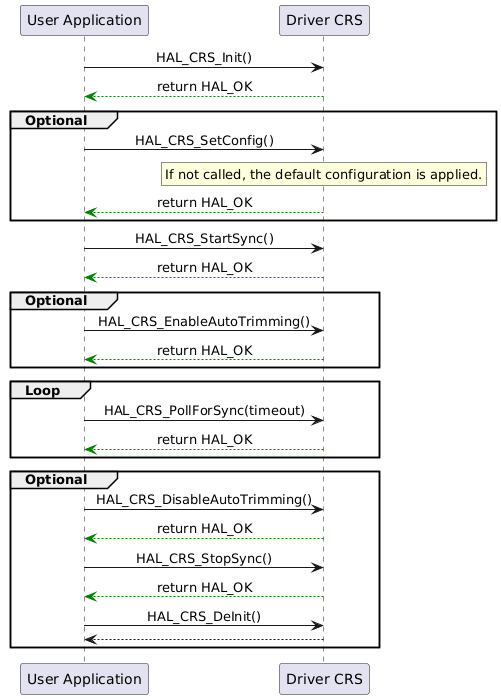

CRS in Polling mode

Called functions:

• HAL_CRS_Init()

• HAL_CRS_SetConfig()

• HAL_CRS_StartSync()

• HAL_CRS_EnableAutoTrimming()

• HAL_CRS_PollForSync()

• HAL_CRS_DisableAutoTrimming()

• HAL_CRS_StopSync()

• HAL_CRS_DeInit()

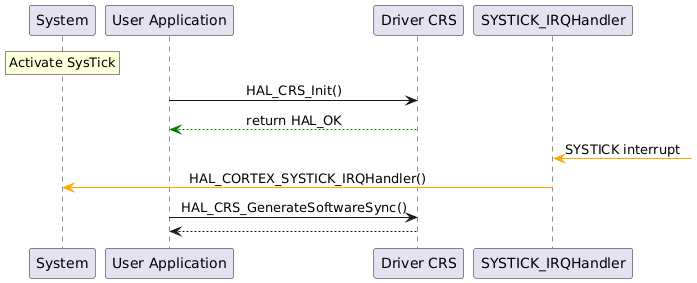

CRS Software Synchronization

Called functions:

• HAL_CRS_Init()

• HAL_CRS_GenerateSoftwareSync()

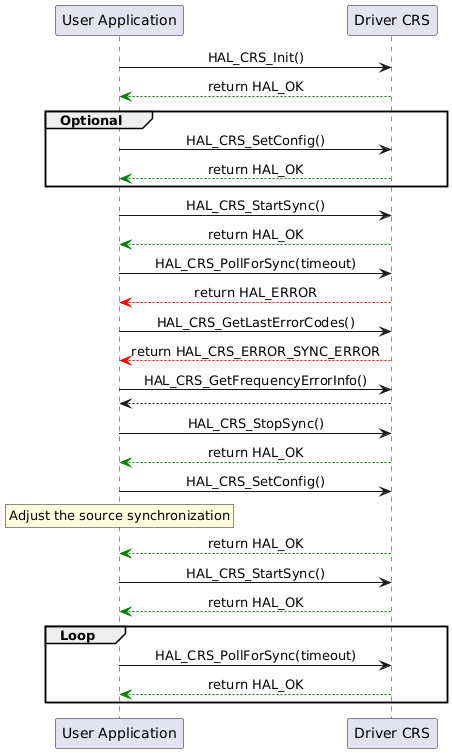

CRS in Polling mode with Synchronization Error

Called functions:

• HAL_CRS_Init()

• HAL_CRS_SetConfig()

• HAL_CRS_StartSync()

• HAL_CRS_PollForSync()

• HAL_CRS_GetLastErrorCodes()

• HAL_CRS_GetFrequencyErrorInfo()

• HAL_CRS_StopSync()

CRS in Interrupt mode with SYNC event OK interrupt

Called functions:

• HAL_CRS_Init()

• HAL_CRS_RegisterSyncOkCallback()

• HAL_CRS_SetConfig()

• HAL_CRS_StartSync_IT()

• HAL_CRS_IRQHandler()

• HAL_CRS_SyncOkCallback()

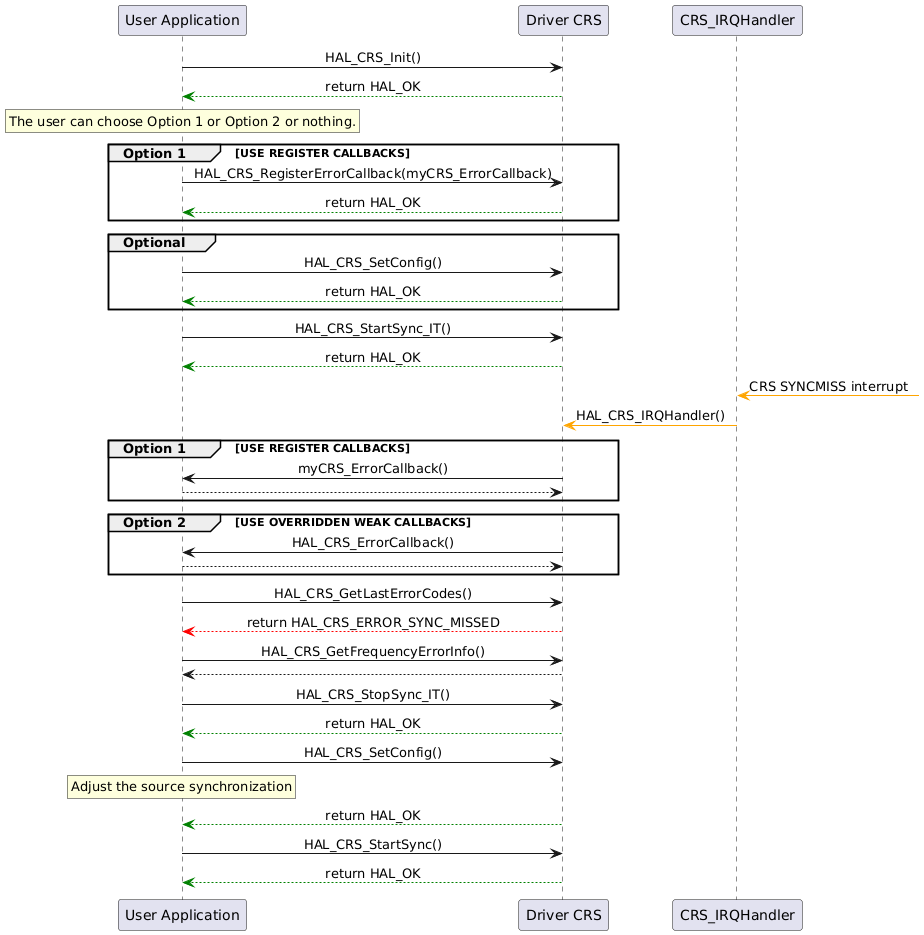

CRS in Interrupt mode with synchronization missed interrupt

Called functions:

• HAL_CRS_Init()

• HAL_CRS_RegisterErrorCallback()

• HAL_CRS_SetConfig()

• HAL_CRS_StartSync_IT()

• HAL_CRS_IRQHandler()

• HAL_CRS_ErrorCallback()

• HAL_CRS_GetLastErrorCodes()

• HAL_CRS_GetFrequencyErrorInfo()

• HAL_CRS_StopSync_IT()
