HAL EXTI Use Cases

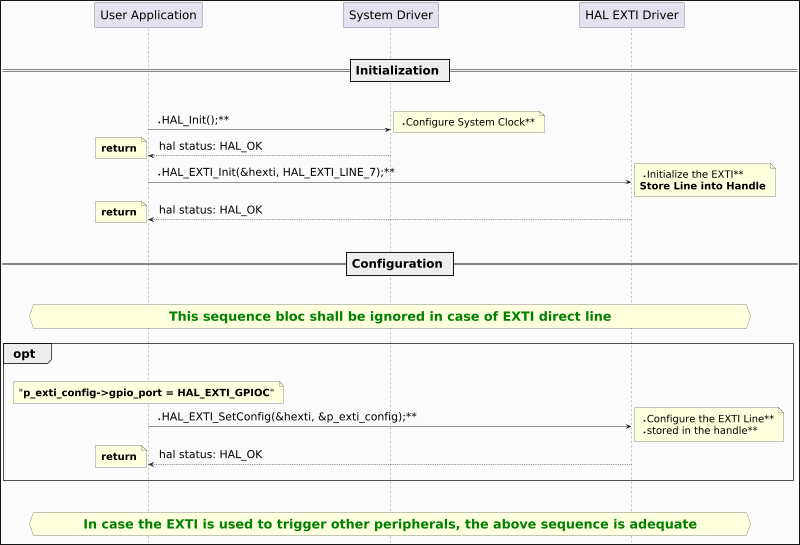

User application initializing and configuring an EXTI line (Direct)

@startuml hide footbox skinparam ParticipantPadding 150 skinparam DefaultFontSize 26 skinparam ArrowFontSize 24 skinparam NoteFontSize 22 skinparam boxPadding 80 skinparam backgroundColor #FBFBFB skinparam DiagramBorderColor #black skinparam DiagramBorderThickness 2 skinparam Padding 6 scale 800 Width !pragma teoz true ||| ||| == Initialization == ||| ||| "User Application" -> "System Driver": ** HAL_Init();** note right: ** Configure System Clock** "System Driver" --> "User Application": hal status: HAL_OK note left: **return** "User Application" -> "HAL EXTI Driver": ** HAL_EXTI_Init(&hexti, HAL_EXTI_LINE_7);** note right: ** Initialize the EXTI**\n**Store Line into Handle** "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: **return** ||| ||| == Configuration == ||| ||| hnote across:**<size:28><color:GREEN>This sequence bloc shall be ignored in case of EXTI direct line</size>** ||| group opt ||| note over "User Application": "**p_exti_config->gpio_port = HAL_EXTI_GPIOC**" "User Application" -> "HAL EXTI Driver": ** HAL_EXTI_SetConfig(&hexti, &p_exti_config);** note right: ** Configure the EXTI Line**\n** stored in the handle** "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: **return** ||| end group ||| ||| hnote across:**<size:28><color:GREEN>In case the EXTI is used to trigger other peripherals, \ the above sequence is adequate</size>** @enduml

Called functions:

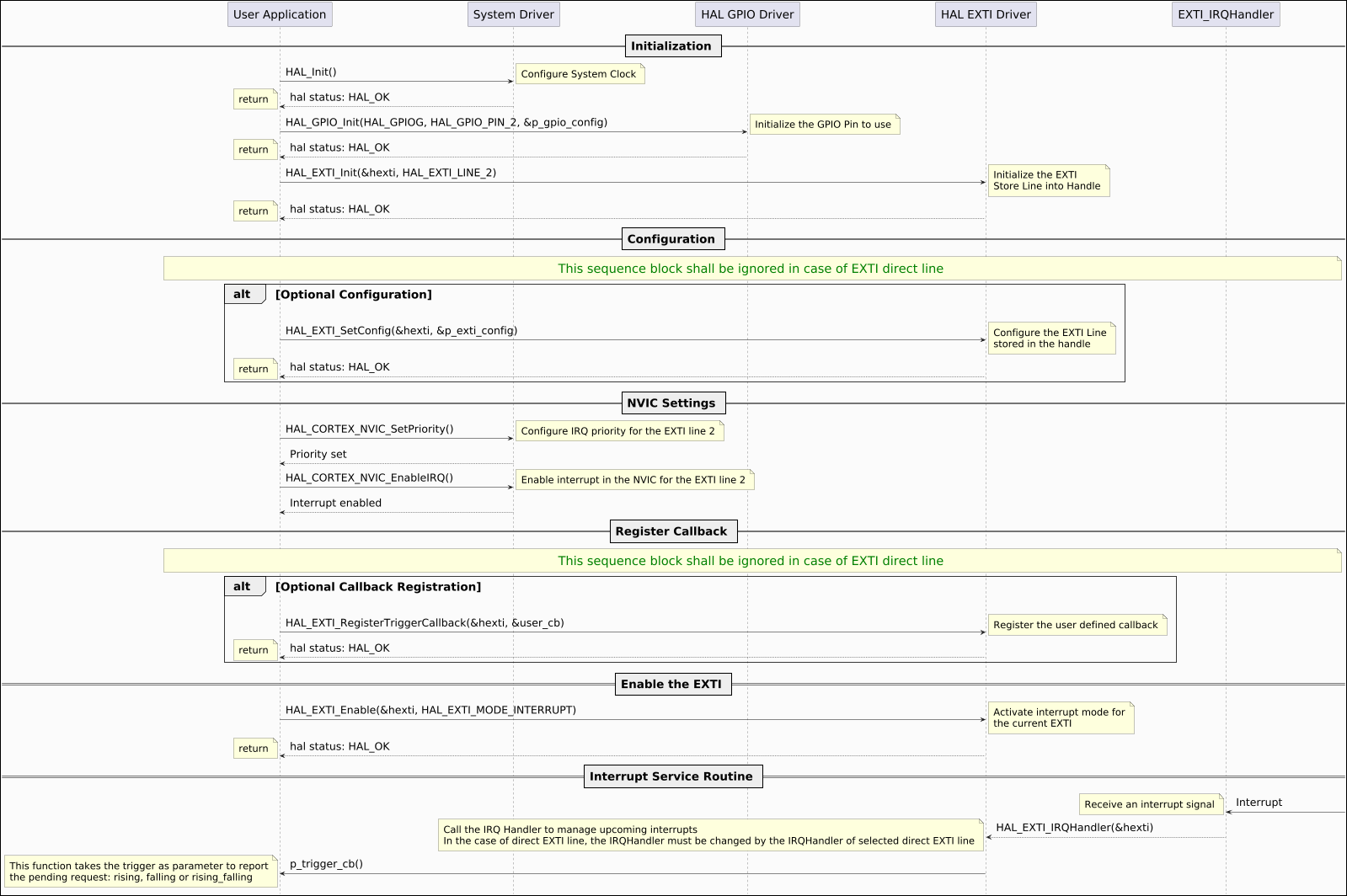

User application managing an interrupt with an Interrupt Service Routine (Direct)

@startuml hide footbox skinparam ParticipantPadding 150 skinparam DefaultFontSize 26 skinparam ArrowFontSize 24 skinparam NoteFontSize 22 skinparam boxPadding 80 skinparam backgroundColor #FBFBFB skinparam DiagramBorderColor #black skinparam DiagramBorderThickness 2 skinparam Padding 6 scale 1600 Width !pragma teoz true == Initialization == "User Application" -> "System Driver": HAL_Init() note right: Configure System Clock "System Driver" --> "User Application": hal status: HAL_OK note left: return "User Application" -> "HAL GPIO Driver": HAL_GPIO_Init(HAL_GPIOG, HAL_GPIO_PIN_2, &p_gpio_config) note right: Initialize the GPIO Pin to use "HAL GPIO Driver" --> "User Application": hal status: HAL_OK note left: return "User Application" -> "HAL EXTI Driver": HAL_EXTI_Init(&hexti, HAL_EXTI_LINE_2) note right: Initialize the EXTI\nStore Line into Handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Configuration == note across: <size:28><color:GREEN>This sequence block shall be ignored in case of EXTI direct line</size> alt Optional Configuration "User Application" -> "HAL EXTI Driver": HAL_EXTI_SetConfig(&hexti, &p_exti_config) note right: Configure the EXTI Line\nstored in the handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return end == NVIC Settings == "User Application" -> "System Driver": HAL_CORTEX_NVIC_SetPriority() note right: Configure IRQ priority for the EXTI line 2 "System Driver" --> "User Application": Priority set "User Application" -> "System Driver": HAL_CORTEX_NVIC_EnableIRQ() note right: Enable interrupt in the NVIC for the EXTI line 2 "System Driver" --> "User Application": Interrupt enabled == Register Callback == note across: <size:28><color:GREEN>This sequence block shall be ignored in case of EXTI direct line</size> alt Optional Callback Registration "User Application" -> "HAL EXTI Driver": HAL_EXTI_RegisterTriggerCallback(&hexti, &user_cb) note right: Register the user defined callback "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return end == Enable the EXTI == "User Application" -> "HAL EXTI Driver": HAL_EXTI_Enable(&hexti, HAL_EXTI_MODE_INTERRUPT) note right: Activate interrupt mode for\nthe current EXTI "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Interrupt Service Routine == "EXTI_IRQHandler" <- : Interrupt note left: Receive an interrupt signal "EXTI_IRQHandler" --> "HAL EXTI Driver": HAL_EXTI_IRQHandler(&hexti) note left: Call the IRQ Handler to manage upcoming interrupts\nIn the case of direct EXTI line, the IRQHandler must be changed by the IRQHandler of selected direct EXTI line "HAL EXTI Driver" -> "User Application": p_trigger_cb() note left: This function takes the trigger as parameter to report\nthe pending request: rising, falling or rising_falling @enduml

Called functions:

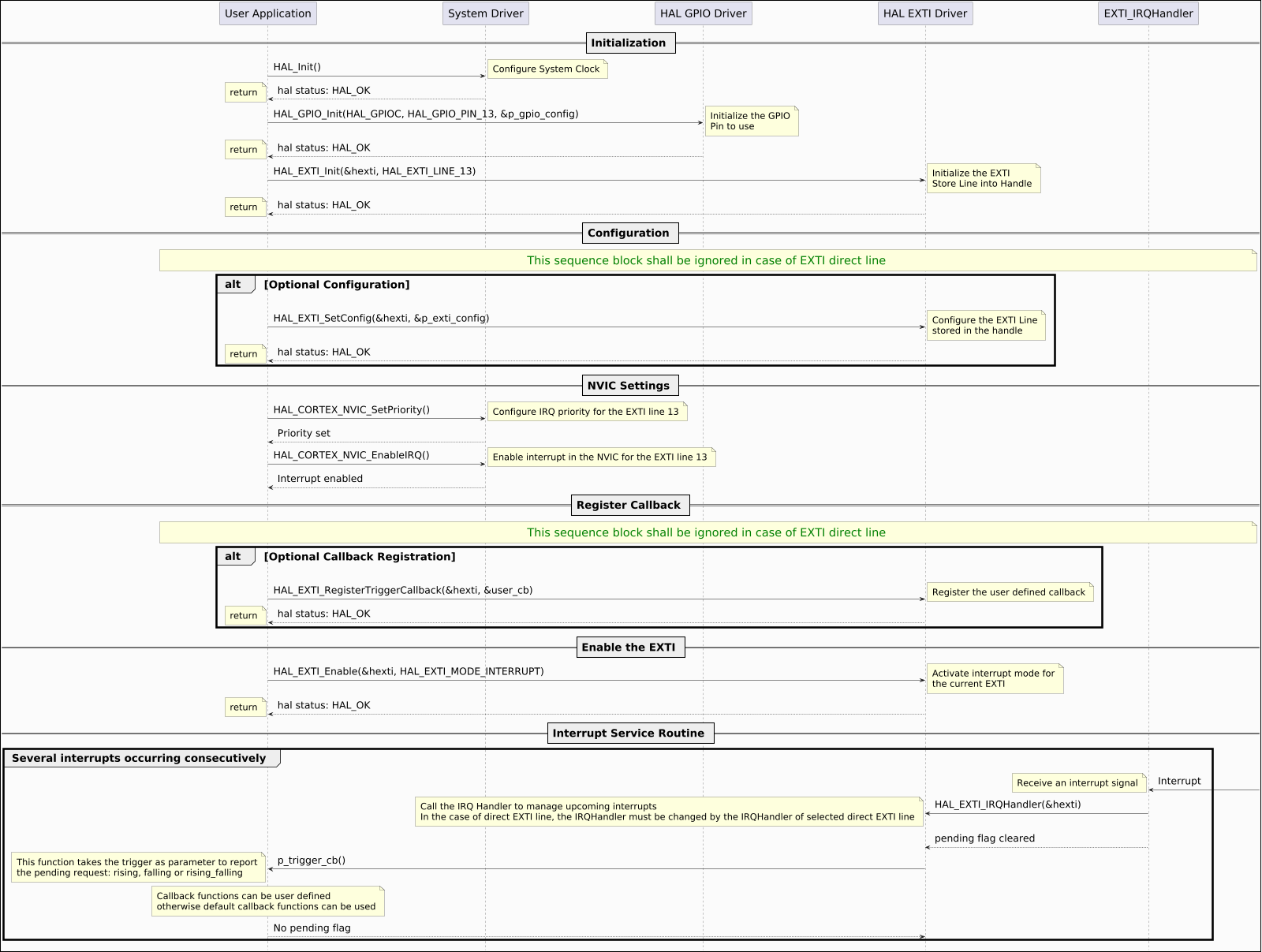

User application managing consecutive interrupts with Interrupt Service Routine (Direct)

@startuml hide footbox skinparam ParticipantPadding 150 skinparam DefaultFontSize 26 skinparam ArrowFontSize 24 skinparam NoteFontSize 22 skinparam boxPadding 80 skinparam backgroundColor #FBFBFB skinparam DiagramBorderColor #black skinparam DiagramBorderThickness 2 skinparam Padding 6 skinparam SequenceGroupBorderThickness 5 scale 1600 Width !pragma teoz true == Initialization == "User Application" -> "System Driver": HAL_Init() note right: Configure System Clock "System Driver" --> "User Application": hal status: HAL_OK note left: return "User Application" -> "HAL GPIO Driver": HAL_GPIO_Init(HAL_GPIOC, HAL_GPIO_PIN_13, &p_gpio_config) note right: Initialize the GPIO\nPin to use "HAL GPIO Driver" --> "User Application": hal status: HAL_OK note left: return "User Application" -> "HAL EXTI Driver": HAL_EXTI_Init(&hexti, HAL_EXTI_LINE_13) note right: Initialize the EXTI\nStore Line into Handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Configuration == note across: <size:28><color:GREEN>This sequence block shall be ignored in case of EXTI direct line</size> alt Optional Configuration "User Application" -> "HAL EXTI Driver": HAL_EXTI_SetConfig(&hexti, &p_exti_config) note right: Configure the EXTI Line\nstored in the handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return end == NVIC Settings == "User Application" -> "System Driver": HAL_CORTEX_NVIC_SetPriority() note right: Configure IRQ priority for the EXTI line 13 "System Driver" --> "User Application": Priority set "User Application" -> "System Driver": HAL_CORTEX_NVIC_EnableIRQ() note right: Enable interrupt in the NVIC for the EXTI line 13 "System Driver" --> "User Application": Interrupt enabled == Register Callback == note across: <size:28><color:GREEN>This sequence block shall be ignored in case of EXTI direct line</size> alt Optional Callback Registration "User Application" -> "HAL EXTI Driver": HAL_EXTI_RegisterTriggerCallback(&hexti, &user_cb) note right: Register the user defined callback "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return end == Enable the EXTI == "User Application" -> "HAL EXTI Driver": HAL_EXTI_Enable(&hexti, HAL_EXTI_MODE_INTERRUPT) note right: Activate interrupt mode for\nthe current EXTI "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Interrupt Service Routine == group Several interrupts occurring consecutively "EXTI_IRQHandler" <- : Interrupt note left: Receive an interrupt signal "EXTI_IRQHandler" -> "HAL EXTI Driver": HAL_EXTI_IRQHandler(&hexti) note left: Call the IRQ Handler to manage upcoming interrupts\nIn the case of direct EXTI line, the IRQHandler must be changed by the IRQHandler of selected direct EXTI line "EXTI_IRQHandler" --> "HAL EXTI Driver": pending flag cleared "HAL EXTI Driver" -> "User Application": p_trigger_cb() note left: This function takes the trigger as parameter to report\nthe pending request: rising, falling or rising_falling note over "User Application": Callback functions can be user defined\notherwise default callback functions can be used "User Application" --> "HAL EXTI Driver": No pending flag end @enduml

Called functions:

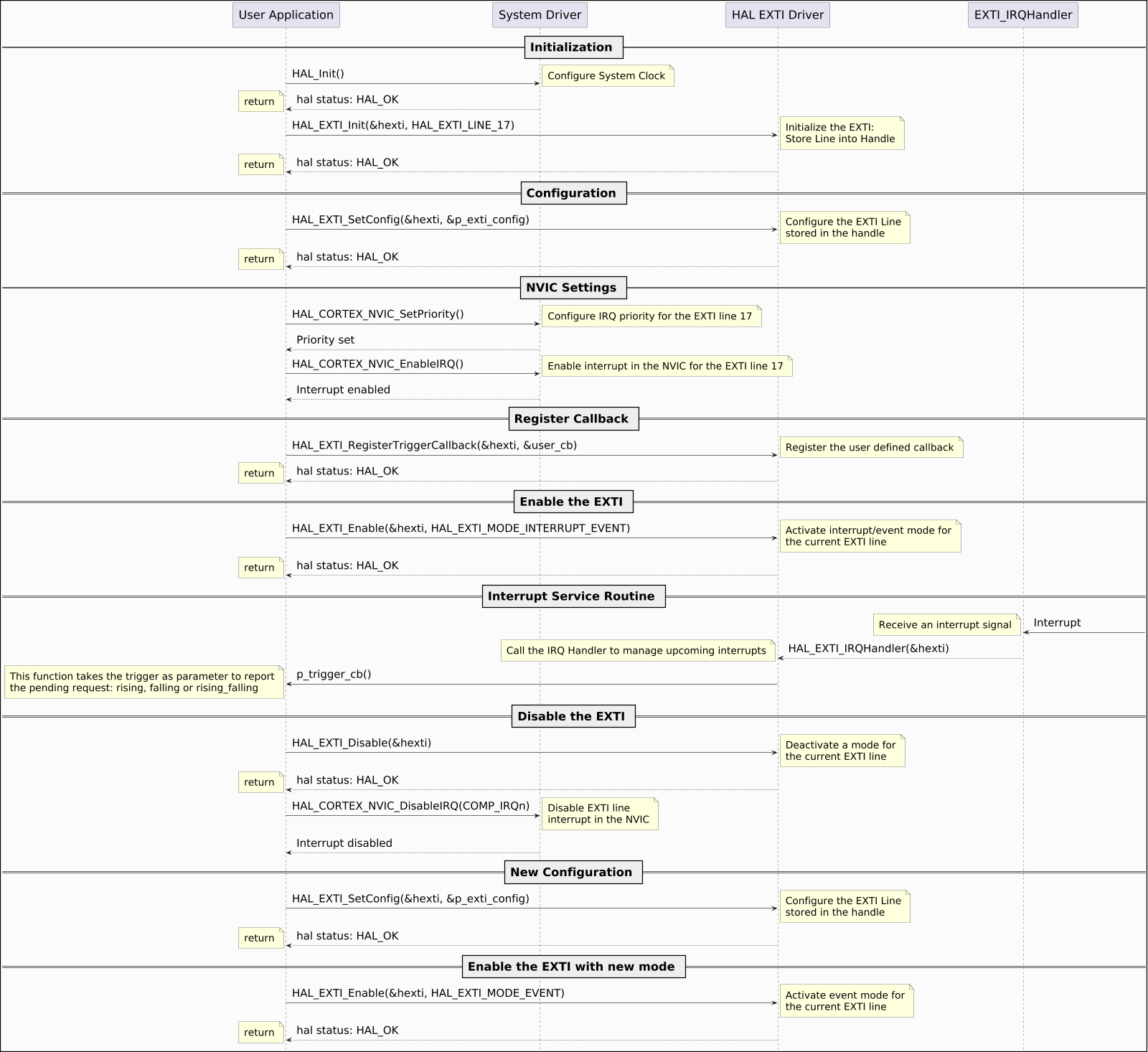

User application changing the EXTI configuration

@startuml hide footbox skinparam ParticipantPadding 150 skinparam DefaultFontSize 26 skinparam ArrowFontSize 24 skinparam NoteFontSize 22 skinparam boxPadding 80 skinparam backgroundColor #FBFBFB skinparam DiagramBorderColor #black skinparam DiagramBorderThickness 2 skinparam Padding 6 scale 1600 Width !pragma teoz true == Initialization == "User Application" -> "System Driver": HAL_Init() note right: Configure System Clock "System Driver" --> "User Application": hal status: HAL_OK note left: return "User Application" -> "HAL EXTI Driver": HAL_EXTI_Init(&hexti, HAL_EXTI_LINE_17) note right: Initialize the EXTI:\nStore Line into Handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Configuration == "User Application" -> "HAL EXTI Driver": HAL_EXTI_SetConfig(&hexti, &p_exti_config) note right: Configure the EXTI Line\nstored in the handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == NVIC Settings == "User Application" -> "System Driver": HAL_CORTEX_NVIC_SetPriority() note right: Configure IRQ priority for the EXTI line 17 "System Driver" --> "User Application": Priority set "User Application" -> "System Driver": HAL_CORTEX_NVIC_EnableIRQ() note right: Enable interrupt in the NVIC for the EXTI line 17 "System Driver" --> "User Application": Interrupt enabled == Register Callback == "User Application" -> "HAL EXTI Driver": HAL_EXTI_RegisterTriggerCallback(&hexti, &user_cb) note right: Register the user defined callback "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Enable the EXTI == "User Application" -> "HAL EXTI Driver": HAL_EXTI_Enable(&hexti, HAL_EXTI_MODE_INTERRUPT_EVENT) note right: Activate interrupt/event mode for\nthe current EXTI line "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Interrupt Service Routine == "EXTI_IRQHandler" <- : Interrupt note left: Receive an interrupt signal "EXTI_IRQHandler" --> "HAL EXTI Driver": HAL_EXTI_IRQHandler(&hexti) note left: Call the IRQ Handler to manage upcoming interrupts "HAL EXTI Driver" -> "User Application": p_trigger_cb() note left: This function takes the trigger as parameter to report\nthe pending request: rising, falling or rising_falling == Disable the EXTI == "User Application" -> "HAL EXTI Driver": HAL_EXTI_Disable(&hexti) note right: Deactivate a mode for\nthe current EXTI line "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return "User Application" -> "System Driver": HAL_CORTEX_NVIC_DisableIRQ(COMP_IRQn) note right: Disable EXTI line\ninterrupt in the NVIC "System Driver" --> "User Application": Interrupt disabled == New Configuration == "User Application" -> "HAL EXTI Driver": HAL_EXTI_SetConfig(&hexti, &p_exti_config) note right: Configure the EXTI Line\nstored in the handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Enable the EXTI with new mode == "User Application" -> "HAL EXTI Driver": HAL_EXTI_Enable(&hexti, HAL_EXTI_MODE_EVENT) note right: Activate event mode for\nthe current EXTI line "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return @enduml

Called functions:

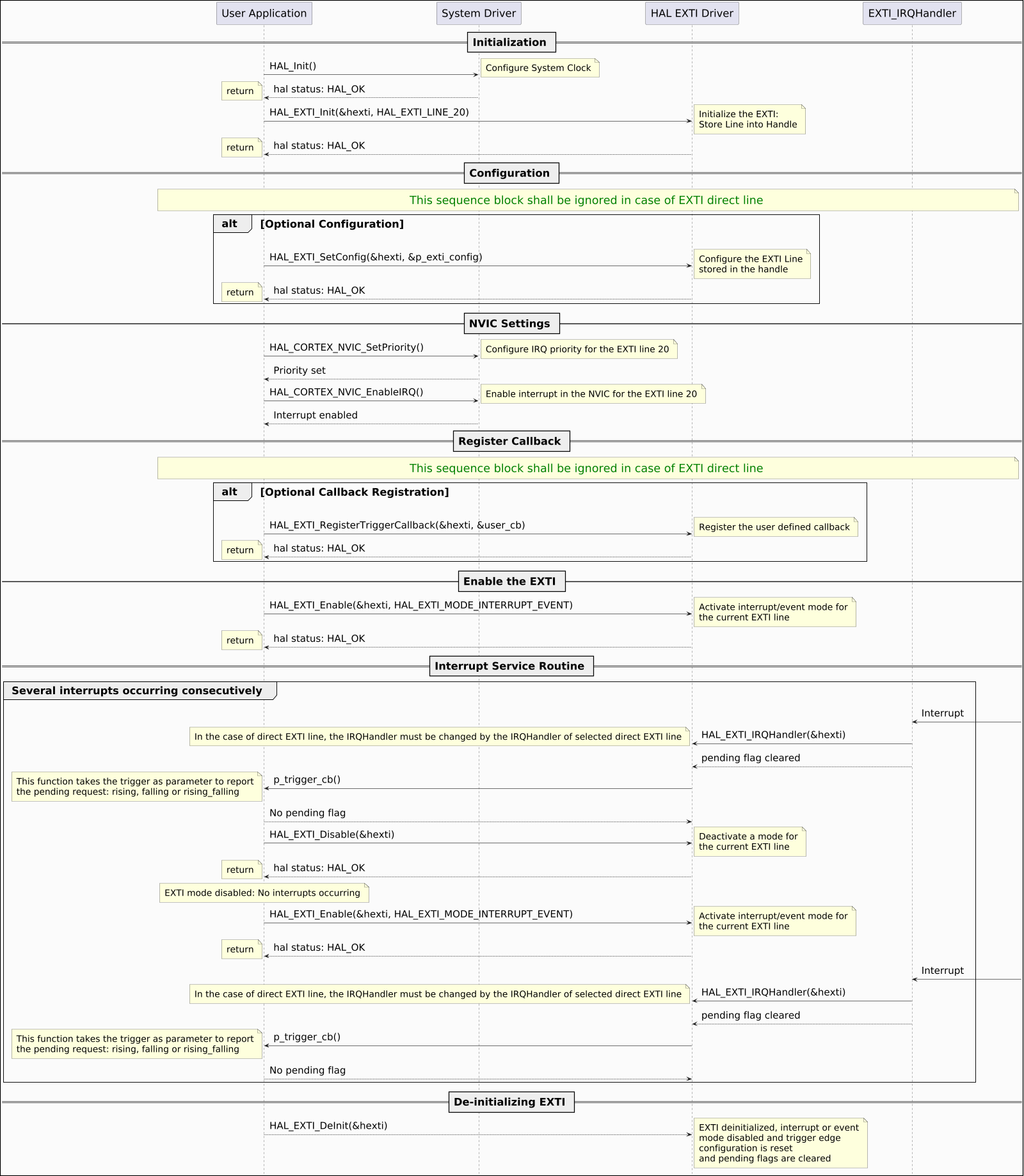

User application deinitializing EXTI (Direct)

@startuml hide footbox skinparam ParticipantPadding 150 skinparam DefaultFontSize 26 skinparam ArrowFontSize 24 skinparam NoteFontSize 22 skinparam boxPadding 80 skinparam backgroundColor #FBFBFB skinparam DiagramBorderColor #black skinparam DiagramBorderThickness 2 skinparam Padding 6 scale 1600 Width !pragma teoz true == Initialization == "User Application" -> "System Driver": HAL_Init() note right: Configure System Clock "System Driver" --> "User Application": hal status: HAL_OK note left: return "User Application" -> "HAL EXTI Driver": HAL_EXTI_Init(&hexti, HAL_EXTI_LINE_20) note right: Initialize the EXTI:\nStore Line into Handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Configuration == note across: <size:28><color:GREEN>This sequence block shall be ignored in case of EXTI direct line</size> alt Optional Configuration "User Application" -> "HAL EXTI Driver": HAL_EXTI_SetConfig(&hexti, &p_exti_config) note right: Configure the EXTI Line\nstored in the handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return end == NVIC Settings == "User Application" -> "System Driver": HAL_CORTEX_NVIC_SetPriority() note right: Configure IRQ priority for the EXTI line 20 "System Driver" --> "User Application": Priority set "User Application" -> "System Driver": HAL_CORTEX_NVIC_EnableIRQ() note right: Enable interrupt in the NVIC for the EXTI line 20 "System Driver" --> "User Application": Interrupt enabled == Register Callback == note across: <size:28><color:GREEN>This sequence block shall be ignored in case of EXTI direct line</size> alt Optional Callback Registration "User Application" -> "HAL EXTI Driver": HAL_EXTI_RegisterTriggerCallback(&hexti, &user_cb) note right: Register the user defined callback "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return end == Enable the EXTI == "User Application" -> "HAL EXTI Driver": HAL_EXTI_Enable(&hexti, HAL_EXTI_MODE_INTERRUPT_EVENT) note right: Activate interrupt/event mode for\nthe current EXTI line "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Interrupt Service Routine == group Several interrupts occurring consecutively "EXTI_IRQHandler" <- : Interrupt "EXTI_IRQHandler" -> "HAL EXTI Driver": HAL_EXTI_IRQHandler(&hexti) note left: In the case of direct EXTI line, the IRQHandler must be changed by the IRQHandler of selected direct EXTI line "EXTI_IRQHandler" --> "HAL EXTI Driver": pending flag cleared "HAL EXTI Driver" -> "User Application": p_trigger_cb() note left: This function takes the trigger as parameter to report\nthe pending request: rising, falling or rising_falling "User Application" --> "HAL EXTI Driver": No pending flag "User Application" -> "HAL EXTI Driver": HAL_EXTI_Disable(&hexti) note right: Deactivate a mode for\nthe current EXTI line "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return note over "User Application": EXTI mode disabled: No interrupts occurring "User Application" -> "HAL EXTI Driver": HAL_EXTI_Enable(&hexti, HAL_EXTI_MODE_INTERRUPT_EVENT) note right: Activate interrupt/event mode for\nthe current EXTI line "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return "EXTI_IRQHandler" <- : Interrupt "EXTI_IRQHandler" -> "HAL EXTI Driver": HAL_EXTI_IRQHandler(&hexti) note left: In the case of direct EXTI line, the IRQHandler must be changed by the IRQHandler of selected direct EXTI line "EXTI_IRQHandler" --> "HAL EXTI Driver": pending flag cleared "HAL EXTI Driver" -> "User Application": p_trigger_cb() note left: This function takes the trigger as parameter to report\nthe pending request: rising, falling or rising_falling "User Application" --> "HAL EXTI Driver": No pending flag end == De-initializing EXTI == "HAL EXTI Driver" <-- "User Application": HAL_EXTI_DeInit(&hexti) note right: EXTI deinitialized, interrupt or event\nmode disabled and trigger edge\nconfiguration is reset\nand pending flags are cleared @enduml

Called functions:

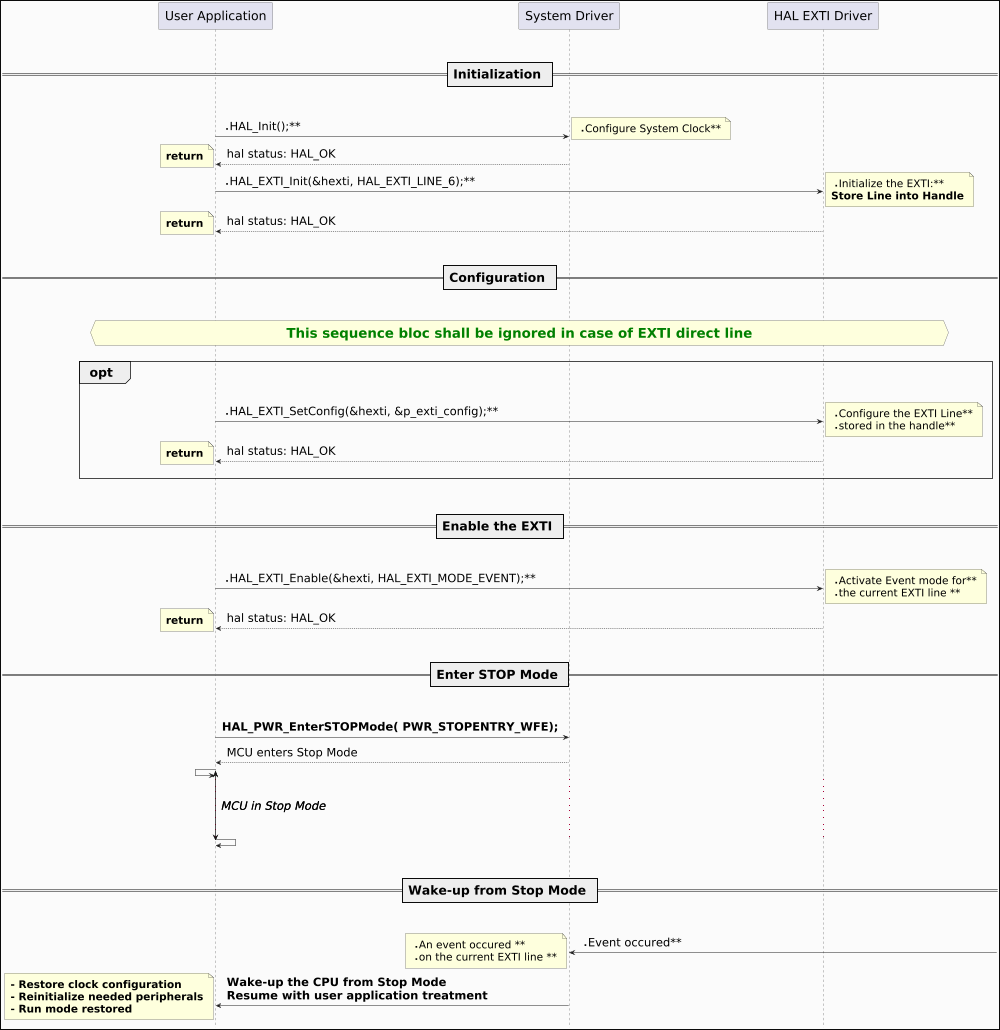

User application with Wake-up from Stop Mode via event (Direct)

@startuml hide footbox skinparam ParticipantPadding 150 skinparam DefaultFontSize 26 skinparam ArrowFontSize 24 skinparam NoteFontSize 22 skinparam boxPadding 80 skinparam backgroundColor #FBFBFB skinparam DiagramBorderColor #black skinparam DiagramBorderThickness 2 skinparam Padding 6 scale 1000 Width !pragma teoz true ||| ||| == Initialization == ||| ||| "User Application" -> "System Driver": ** HAL_Init();** note right: ** Configure System Clock** "System Driver" --> "User Application": hal status: HAL_OK note left: **return** "User Application" -> "HAL EXTI Driver": ** HAL_EXTI_Init(&hexti, HAL_EXTI_LINE_6);** note right: ** Initialize the EXTI:**\n**Store Line into Handle** "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: **return** ||| ||| == Configuration == ||| ||| hnote across:**<size:28><color:GREEN>This sequence bloc shall be ignored in case of EXTI direct line</size>** ||| group opt ||| "User Application" -> "HAL EXTI Driver": ** HAL_EXTI_SetConfig(&hexti, &p_exti_config);** note right: ** Configure the EXTI Line**\n** stored in the handle** "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: **return** ||| end group ||| ||| == Enable the EXTI == ||| ||| "User Application" -> "HAL EXTI Driver": ** HAL_EXTI_Enable(&hexti, HAL_EXTI_MODE_EVENT);** note right: ** Activate Event mode for**\n** the current EXTI line ** "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: **return** ||| ||| == Enter STOP Mode == ||| ||| "User Application" -> "System Driver": **HAL_PWR_EnterSTOPMode( PWR_STOPENTRY_WFE);** "System Driver" --> "User Application": MCU enters Stop Mode {start} "User Application" <- "User Application" ... ... ... {end} "User Application" -> "User Application" {start} <-> {end}: <i>MCU in Stop Mode ||| ||| == Wake-up from Stop Mode == ||| ||| "System Driver"<- : ** Event occured** note right: ** An event occured **\n** on the current EXTI line ** "User Application" <- "System Driver": **Wake-up the CPU from Stop Mode**\n**Resume with user application treatment** note left: **- Restore clock configuration**\n**- Reinitialize needed peripherals**\n**- Run mode restored** @enduml

Called functions:

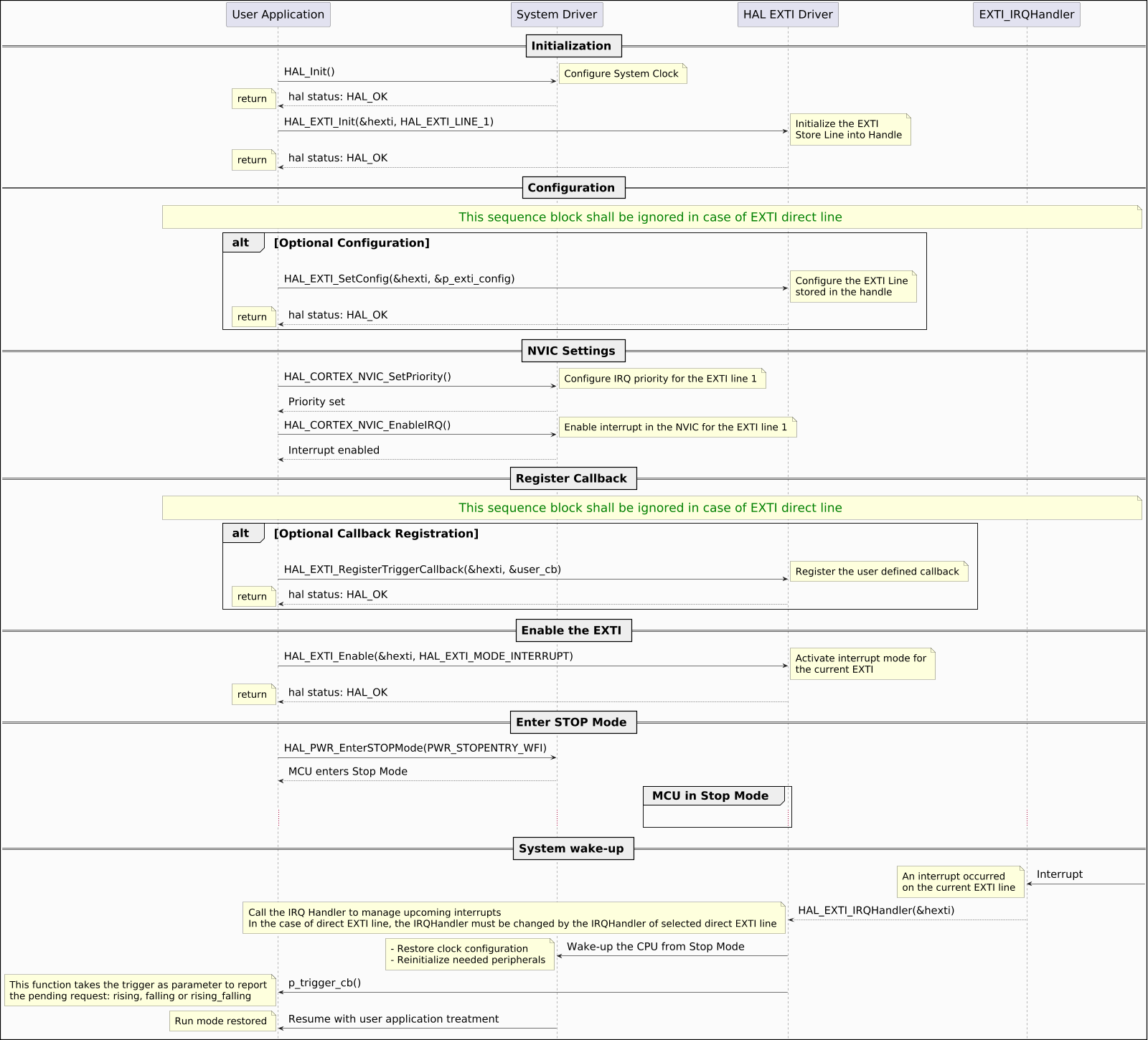

Wake-up from Stop Mode through an interrupt (Direct)

@startuml hide footbox skinparam ParticipantPadding 150 skinparam DefaultFontSize 26 skinparam ArrowFontSize 24 skinparam NoteFontSize 22 skinparam boxPadding 80 skinparam backgroundColor #FBFBFB skinparam DiagramBorderColor #black skinparam DiagramBorderThickness 2 skinparam Padding 6 scale 1600 Width !pragma teoz true == Initialization == "User Application" -> "System Driver": HAL_Init() note right: Configure System Clock "System Driver" --> "User Application": hal status: HAL_OK note left: return "User Application" -> "HAL EXTI Driver": HAL_EXTI_Init(&hexti, HAL_EXTI_LINE_1) note right: Initialize the EXTI\nStore Line into Handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Configuration == note across: <size:28><color:GREEN>This sequence block shall be ignored in case of EXTI direct line</size> alt Optional Configuration "User Application" -> "HAL EXTI Driver": HAL_EXTI_SetConfig(&hexti, &p_exti_config) note right: Configure the EXTI Line\nstored in the handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return end == NVIC Settings == "User Application" -> "System Driver": HAL_CORTEX_NVIC_SetPriority() note right: Configure IRQ priority for the EXTI line 1 "System Driver" --> "User Application": Priority set "User Application" -> "System Driver": HAL_CORTEX_NVIC_EnableIRQ() note right: Enable interrupt in the NVIC for the EXTI line 1 "System Driver" --> "User Application": Interrupt enabled == Register Callback == note across: <size:28><color:GREEN>This sequence block shall be ignored in case of EXTI direct line</size> alt Optional Callback Registration "User Application" -> "HAL EXTI Driver": HAL_EXTI_RegisterTriggerCallback(&hexti, &user_cb) note right: Register the user defined callback "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return end == Enable the EXTI == "User Application" -> "HAL EXTI Driver": HAL_EXTI_Enable(&hexti, HAL_EXTI_MODE_INTERRUPT) note right: Activate interrupt mode for\nthe current EXTI "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Enter STOP Mode == "User Application" -> "System Driver": HAL_PWR_EnterSTOPMode(PWR_STOPENTRY_WFI) "System Driver" --> "User Application": MCU enters Stop Mode group MCU in Stop Mode ... end == System wake-up == "EXTI_IRQHandler" <- : Interrupt note right: An interrupt occurred\non the current EXTI line "EXTI_IRQHandler" --> "HAL EXTI Driver": HAL_EXTI_IRQHandler(&hexti) note left: Call the IRQ Handler to manage upcoming interrupts\nIn the case of direct EXTI line, the IRQHandler must be changed by the IRQHandler of selected direct EXTI line "HAL EXTI Driver" -> "System Driver": Wake-up the CPU from Stop Mode note left: - Restore clock configuration\n- Reinitialize needed peripherals "HAL EXTI Driver" -> "User Application": p_trigger_cb() note left: This function takes the trigger as parameter to report\nthe pending request: rising, falling or rising_falling "System Driver" -> "User Application": Resume with user application treatment note left: Run mode restored @enduml

Called functions:

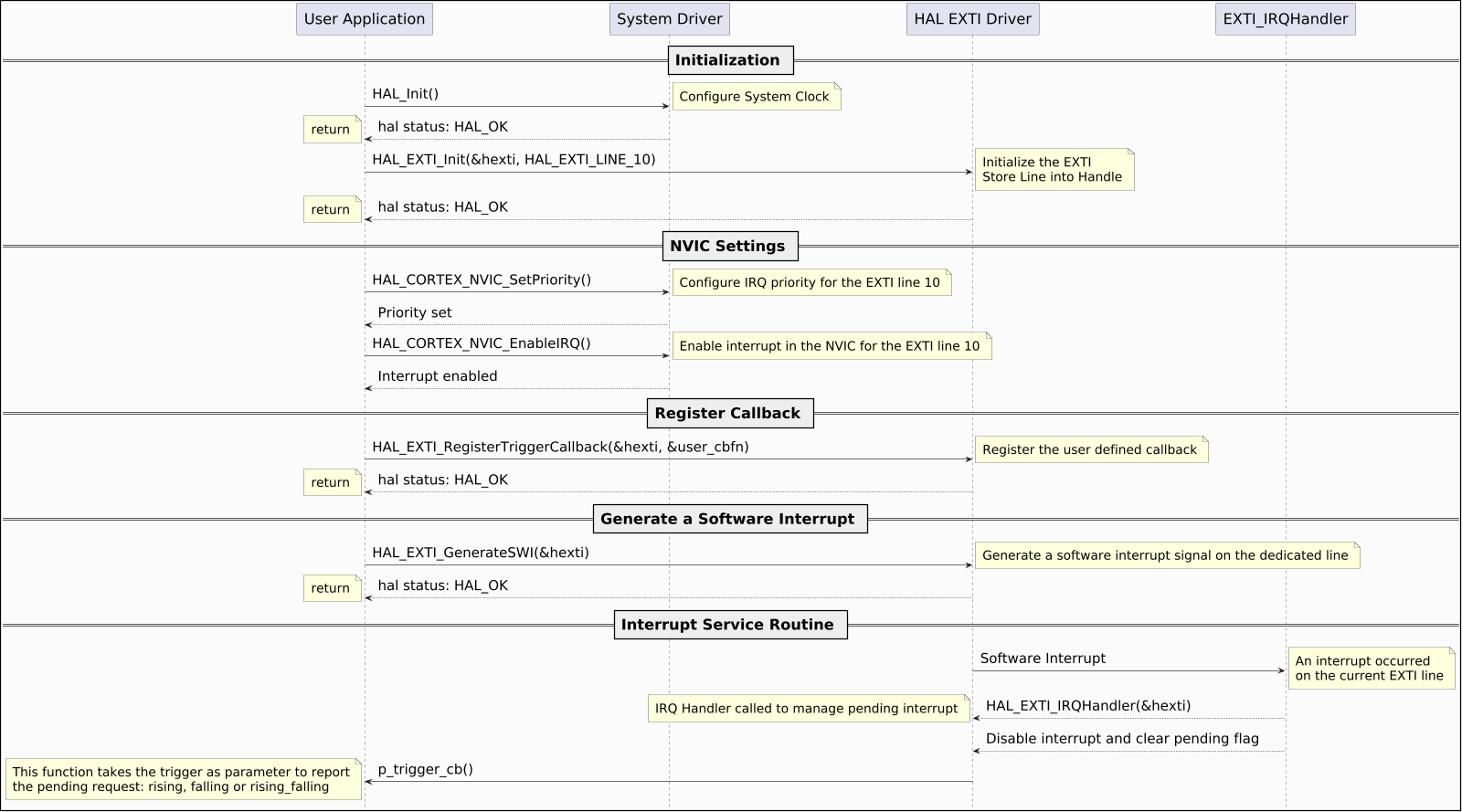

Generating a software interrupt

@startuml hide footbox skinparam ParticipantPadding 150 skinparam DefaultFontSize 26 skinparam ArrowFontSize 24 skinparam NoteFontSize 22 skinparam boxPadding 80 skinparam backgroundColor #FBFBFB skinparam DiagramBorderColor #black skinparam DiagramBorderThickness 2 skinparam Padding 6 scale 1600 Width !pragma teoz true == Initialization == "User Application" -> "System Driver": HAL_Init() note right: Configure System Clock "System Driver" --> "User Application": hal status: HAL_OK note left: return "User Application" -> "HAL EXTI Driver": HAL_EXTI_Init(&hexti, HAL_EXTI_LINE_10) note right: Initialize the EXTI\nStore Line into Handle "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == NVIC Settings == "User Application" -> "System Driver": HAL_CORTEX_NVIC_SetPriority() note right: Configure IRQ priority for the EXTI line 10 "System Driver" --> "User Application": Priority set "User Application" -> "System Driver": HAL_CORTEX_NVIC_EnableIRQ() note right: Enable interrupt in the NVIC for the EXTI line 10 "System Driver" --> "User Application": Interrupt enabled == Register Callback == "User Application" -> "HAL EXTI Driver": HAL_EXTI_RegisterTriggerCallback(&hexti, &user_cbfn) note right: Register the user defined callback "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Generate a Software Interrupt == "User Application" -> "HAL EXTI Driver": HAL_EXTI_GenerateSWI(&hexti) note right: Generate a software interrupt signal on the dedicated line "HAL EXTI Driver" --> "User Application": hal status: HAL_OK note left: return == Interrupt Service Routine == "EXTI_IRQHandler" <- "HAL EXTI Driver": Software Interrupt note right: An interrupt occurred\non the current EXTI line "EXTI_IRQHandler" --> "HAL EXTI Driver": HAL_EXTI_IRQHandler(&hexti) note left: IRQ Handler called to manage pending interrupt "EXTI_IRQHandler" --> "HAL EXTI Driver": Disable interrupt and clear pending flag "HAL EXTI Driver" -> "User Application": p_trigger_cb() note left: This function takes the trigger as parameter to report\nthe pending request: rising, falling or rising_falling @enduml

Called functions:
