HAL RCC Overview ¶
Introducing RCC ¶
- group RCC_Introduction
-
The RCC (Reset and Clock Control) Hardware Abstraction Layer (HAL) provides a comprehensive set of APIs to interface with the STM32C5xx RCC peripheral.
It simplifies the configuration, initialization and management of system and peripheral clocks, reset control, and privilege attributes.
The driver supports multiple oscillators (HSI, PSI, HSE, LSE, LSI). HSI oscillator is split into three independent clock outputs: HSIS, HSIDIV3, and HSIK. PSI oscillator is split into three independent clock outputs: PSIS, PSIDIV3, and PSIK.
Key features include configuration of all bus prescalers, highly flexible peripheral kernel clock control, clock security system management (CSS), low-power clock gating and system reset to default states.
Peripheral clock management APIs allow enabling, disabling, and resetting clocks on various buses (AHB, APB) with fine-grained control.
Privileged access levels attributes management functions allow configuration of privileged and public access rights to RCC resources.
The HAL RCC driver ensures some degree of portability and consistent behavior across STM32C5xx microcontroller series for common features, facilitating robust, privilege, and power-efficient clock and reset management in diverse embedded applications.
Module and files ¶
The following diagram illustrates the RCC module and its associated files.

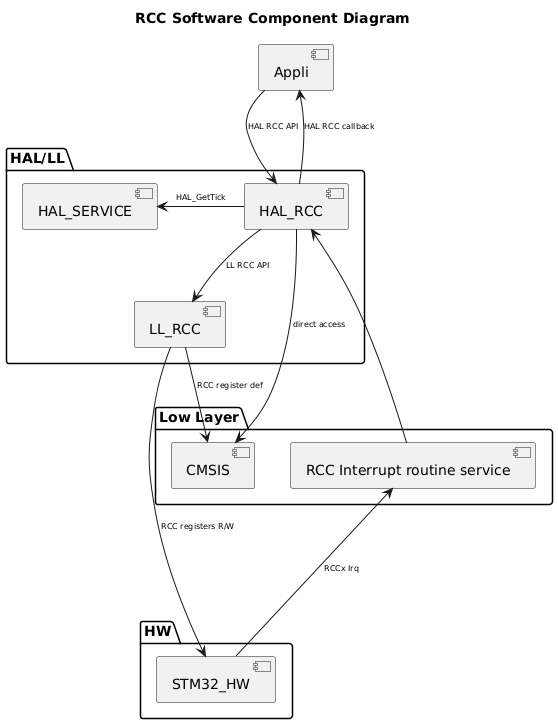

Component diagram ¶
The following diagram illustrates the software components involved in the RCC module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title RCC Software Component Diagram
package "HAL/LL" {
[HAL_SERVICE]
[HAL_RCC]
[LL_RCC]
}
package "Low Layer" {
[CMSIS]
[RCC Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_RCC] : HAL RCC API
[Appli] <-- [HAL_RCC] : HAL RCC callback
[HAL_RCC] --> [LL_RCC] : LL RCC API
[HAL_RCC] --> [CMSIS]: direct access
[HAL_RCC] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_RCC] <-- [RCC Interrupt routine service]
[LL_RCC] --> [CMSIS]:RCC register def
[STM32_HW] -u--> [RCC Interrupt routine service]: RCCx Irq
[STM32_HW] <-u-- [LL_RCC] : RCC registers R/W
@enduml](../../../../_images/plantuml-01b00cd866bc8556f80999f9c9b916c194a70c72.png)
Configuration table ¶
The following table lists the configuration defines for the HAL RCC module, specifying their locations, default values, and descriptions:
- group RCC_Configuration_Table
-
¶
Configuration inside the RCC driver ¶
Config defines
Description
Default value
Note
PRODUCT
from IDE
Defined
The selected product (ex STM32C562xx)
PERIPHERAL
from CMSIS
Defined
Peripheral available on the selected product
USE_ASSERT_DBG_PARAM
from IDE
None
When defined, enable the params assert
USE_HAL_CHECK_PARAM
from hal_conf.h
0
When set, parameters are checked in runtime
USE_HAL_RCC_MODULE
from hal_conf.h
1
When set, HAL RCC module is enabled
USE_EXTERNAL_ENV
from IDE
Defined
When set, ext. oscillators values are defined
LSE_VALUE
From stm32_external_env.h
32 KHz
Frequency of LSE oscillator (USE_EXTERNAL_ENV)
HSE_VALUE
From stm32_external_env.h
24 or 48 MHz
Frequency of HSE oscillator (USE_EXTERNAL_ENV)
HSI_VALUE
st32c5xxxx.h
144 MHz
Frequency of HSI oscillator
HSI48_VALUE
st32c5xxxx.h
48 MHz
Frequency of HSI48 oscillator
HSI_RESET_VALUE
st32c5xxxx.h
48 MHz
Frequency of system core clock after reset
USE_HAL_RCC_RESET_PERIPH_CLOCK_MANAGEMENT
from hal_conf.h
0
When set, RCC peripherals configuration reset
USE_HAL_RCC_RESET_RTC_DOMAIN
from hal_conf.h
0
When set, Resources under backup domain reset
