HAL HASH Use Cases

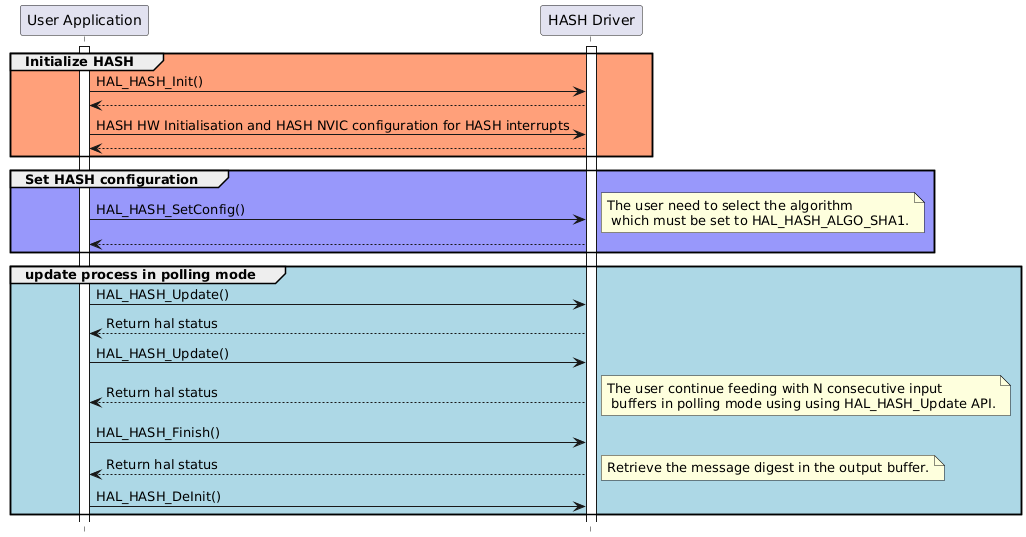

User application starting a HASH update process in polling mode using SHA1 algorithm

@startuml hide footbox participant "User Application" as part1 participant "HASH Driver" as part2 activate part1 activate part2 group #lightsalmon Initialize HASH part1->part2 : HAL_HASH_Init() part2 --> "part1" part1->part2 : HASH HW Initialisation and HASH NVIC configuration for HASH interrupts part2 --> part1 end group #9898fb Set HASH configuration "part1"->part2 : HAL_HASH_SetConfig() note right: The user need to select the algorithm \n which must be set to HAL_HASH_ALGO_SHA1. part2 --> "part1" end group #lightblue update process in polling mode part1->part2 : HAL_HASH_Update() part2 --> part1 : Return hal status part1->part2 : HAL_HASH_Update() part2 --> part1 : Return hal status note right: The user continue feeding with N consecutive input \n buffers in polling mode using using HAL_HASH_Update API. part1->part2 : HAL_HASH_Finish() part2 --> part1 : Return hal status note right: Retrieve the message digest in the output buffer. part1->part2 : HAL_HASH_DeInit() end @enduml

Functions called:

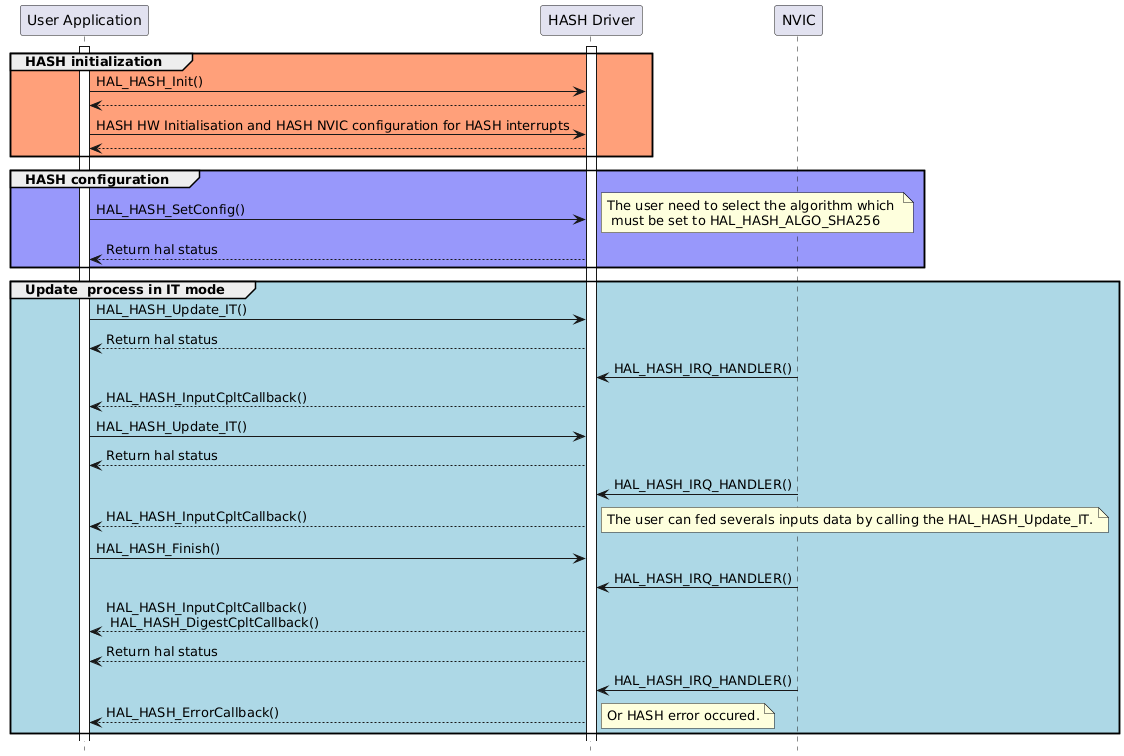

User application starting a HASH Update process in IT mode using SHA256 algorithm

@startuml hide footbox participant "User Application" as part1 participant "HASH Driver" as part2 participant "NVIC" as part3 activate part1 activate part2 group #lightsalmon HASH initialization part1->part2 : HAL_HASH_Init() part2 --> part1 part1->part2 : HASH HW Initialisation and HASH NVIC configuration for HASH interrupts part2 --> part1 end group #9898fb HASH configuration part1->part2 : HAL_HASH_SetConfig() note right: The user need to select the algorithm which \n must be set to HAL_HASH_ALGO_SHA256 part2 --> part1 : Return hal status end group #lightblue Update process in IT mode part1->part2 : HAL_HASH_Update_IT() part2 --> part1 : Return hal status part3 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_InputCpltCallback() part1->part2 : HAL_HASH_Update_IT() part2 --> part1 : Return hal status part3 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_InputCpltCallback() note right: The user can fed severals inputs data by calling the HAL_HASH_Update_IT. part1->part2 : HAL_HASH_Finish() part3 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_InputCpltCallback() \n HAL_HASH_DigestCpltCallback() part2 --> part1 : Return hal status part3 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_ErrorCallback() note right: Or HASH error occured. end @enduml

Functions called:

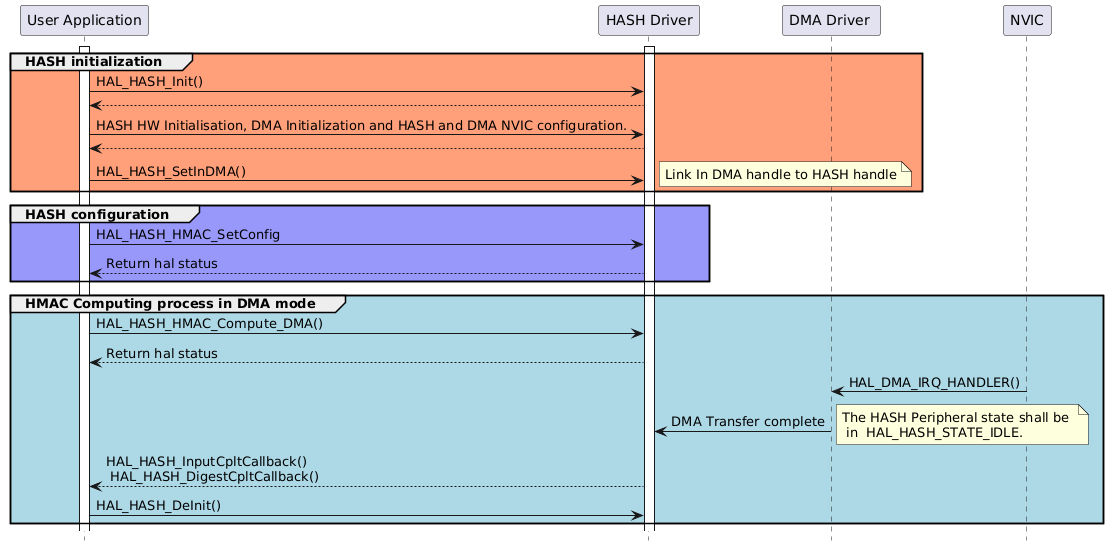

User application starting a HASH-HMAC computation process in DMA mode using SHA224 algorithm

@startuml hide footbox participant "User Application" as part1 participant "HASH Driver" as part2 participant "DMA Driver " as part3 participant "NVIC" as part4 activate part1 activate part2 group #lightsalmon HASH initialization part1->part2 : HAL_HASH_Init() part2 --> part1 part1->part2 : HASH HW Initialisation, DMA Initialization and HASH and DMA NVIC configuration. part2 --> part1 part1->part2 : HAL_HASH_SetInDMA() note right: Link In DMA handle to HASH handle end group #9898fb HASH configuration part1->part2 : HAL_HASH_HMAC_SetConfig part2 --> part1 : Return hal status end group #lightblue HMAC Computing process in DMA mode part1->part2 : HAL_HASH_HMAC_Compute_DMA() part2 --> part1 : Return hal status part4 -> part3 : HAL_DMA_IRQ_HANDLER() part3 -> part2 : DMA Transfer complete note right: The HASH Peripheral state shall be \n in HAL_HASH_STATE_IDLE. part2--> part1 : HAL_HASH_InputCpltCallback() \n HAL_HASH_DigestCpltCallback() part1->part2 : HAL_HASH_DeInit() end @enduml

Functions called:

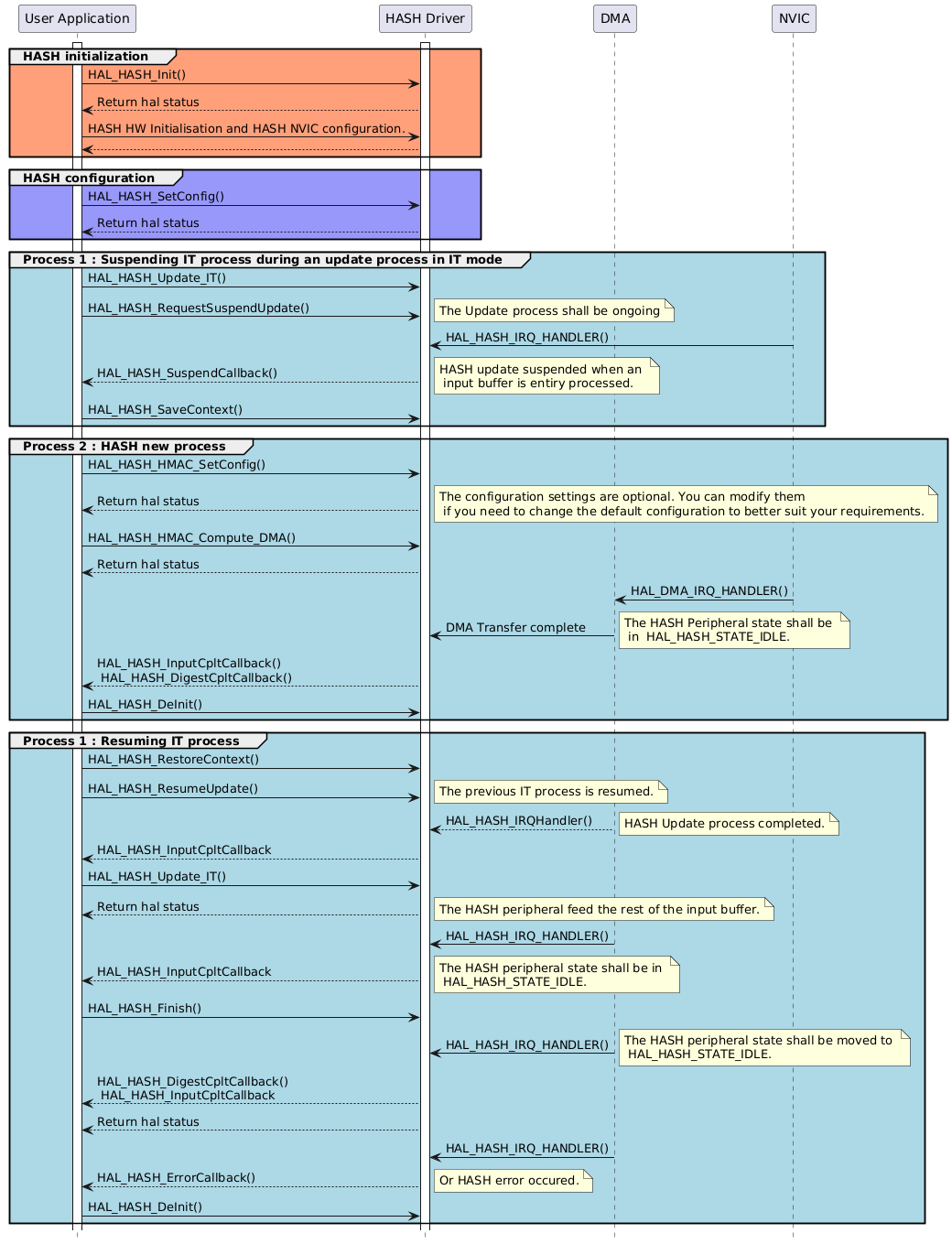

User application suspending and Resuming a HASH process in IT mode

@startuml hide footbox participant "User Application" as part1 participant "HASH Driver" as part2 participant "DMA" as part3 participant "NVIC" as part4 activate part1 activate part2 group #lightsalmon HASH initialization part1->part2 : HAL_HASH_Init() part2 --> part1 : Return hal status part1->part2 : HASH HW Initialisation and HASH NVIC configuration. part2 --> part1 end group #9898fb HASH configuration part1->part2 : HAL_HASH_SetConfig() part2 --> part1 : Return hal status end group #lightblue Process 1 : Suspending IT process during an update process in IT mode part1->part2 : HAL_HASH_Update_IT() part1->part2 : HAL_HASH_RequestSuspendUpdate() note right : The Update process shall be ongoing part4 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_SuspendCallback() note right: HASH update suspended when an \n input buffer is entiry processed. part1->part2 : HAL_HASH_SaveContext() end group #lightblue Process 2 : HASH new process part1->part2 : HAL_HASH_HMAC_SetConfig() part2 --> part1 : Return hal status note right: The configuration settings are optional. You can modify them \n if you need to change the default configuration to better suit your requirements. part1->part2 : HAL_HASH_HMAC_Compute_DMA() part2 --> part1 : Return hal status part4 -> part3 : HAL_DMA_IRQ_HANDLER() part3 -> part2 : DMA Transfer complete note right: The HASH Peripheral state shall be \n in HAL_HASH_STATE_IDLE. part2--> part1 : HAL_HASH_InputCpltCallback() \n HAL_HASH_DigestCpltCallback() part1->part2 : HAL_HASH_DeInit() end group #lightblue Process 1 : Resuming IT process part1->part2 : HAL_HASH_RestoreContext() part1->part2 : HAL_HASH_ResumeUpdate() note right: The previous IT process is resumed. part3--> part2 : HAL_HASH_IRQHandler() note right: HASH Update process completed. part2--> part1 : HAL_HASH_InputCpltCallback part1->part2 : HAL_HASH_Update_IT() part2 --> part1 : Return hal status note right: The HASH peripheral feed the rest of the input buffer. part3 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_InputCpltCallback note right: The HASH peripheral state shall be in \n HAL_HASH_STATE_IDLE. part1->part2 : HAL_HASH_Finish() part3 -> part2 : HAL_HASH_IRQ_HANDLER() note right: The HASH peripheral state shall be moved to \n HAL_HASH_STATE_IDLE. part2--> part1 : HAL_HASH_DigestCpltCallback() \n HAL_HASH_InputCpltCallback part2 --> part1 : Return hal status part3 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_ErrorCallback() note right: Or HASH error occured. part1->part2 : HAL_HASH_DeInit() end @enduml

Functions called:

User application starting a HASH update process in polling mode using SHA512 algorithm

@startuml hide footbox participant "User Application" as part1 participant "HASH Driver" as part2 activate part1 activate part2 group #lightsalmon Initialize HASH part1->part2 : HAL_HASH_Init() part2 --> "part1" part1->part2 : HASH HW Initialisation and HASH NVIC configuration for HASH interrupts part2 --> part1 end group #9898fb Set HASH configuration "part1"->part2 : HAL_HASH_SetConfig() note right: The user need to select the algorithm \n which must be set to HAL_HASH_ALGO_SHA512. part2 --> "part1" end group #lightblue Update process in polling mode part1->part2 : HAL_HASH_Update() part2 --> part1 : Return hal status part1->part2 : HAL_HASH_Update() part2 --> part1 : Return hal status note right: The user continue feeding with N consecutive input \n buffers in polling mode using using HAL_HASH_Update API. part1->part2 : HAL_HASH_Finish() part2 --> part1 : Return hal status note right: Retrieve the message digest in the output buffer. part1->part2 : HAL_HASH_DeInit() end @enduml

Functions called:

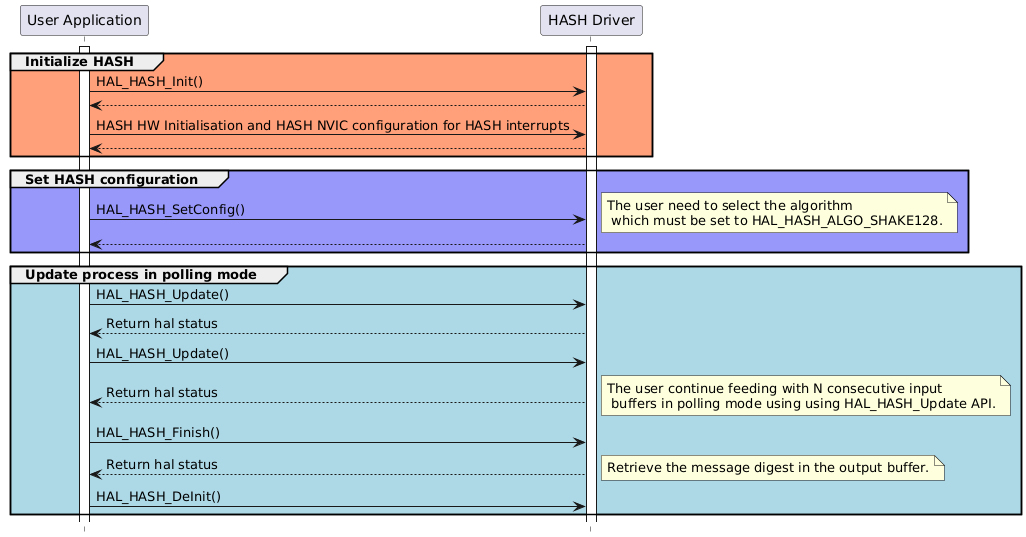

User application starting a HASH Update process in polling mode using SHAKE128 algorithm

@startuml hide footbox participant "User Application" as part1 participant "HASH Driver" as part2 activate part1 activate part2 group #lightsalmon Initialize HASH part1->part2 : HAL_HASH_Init() part2 --> "part1" part1->part2 : HASH HW Initialisation and HASH NVIC configuration for HASH interrupts part2 --> part1 end group #9898fb Set HASH configuration "part1"->part2 : HAL_HASH_SetConfig() note right: The user need to select the algorithm \n which must be set to HAL_HASH_ALGO_SHAKE128. part2 --> "part1" end group #lightblue Update process in polling mode part1->part2 : HAL_HASH_Update() part2 --> part1 : Return hal status part1->part2 : HAL_HASH_Update() part2 --> part1 : Return hal status note right: The user continue feeding with N consecutive input \n buffers in polling mode using using HAL_HASH_Update API. part1->part2 : HAL_HASH_Finish() part2 --> part1 : Return hal status note right: Retrieve the message digest in the output buffer. part1->part2 : HAL_HASH_DeInit() end @enduml

Functions called:

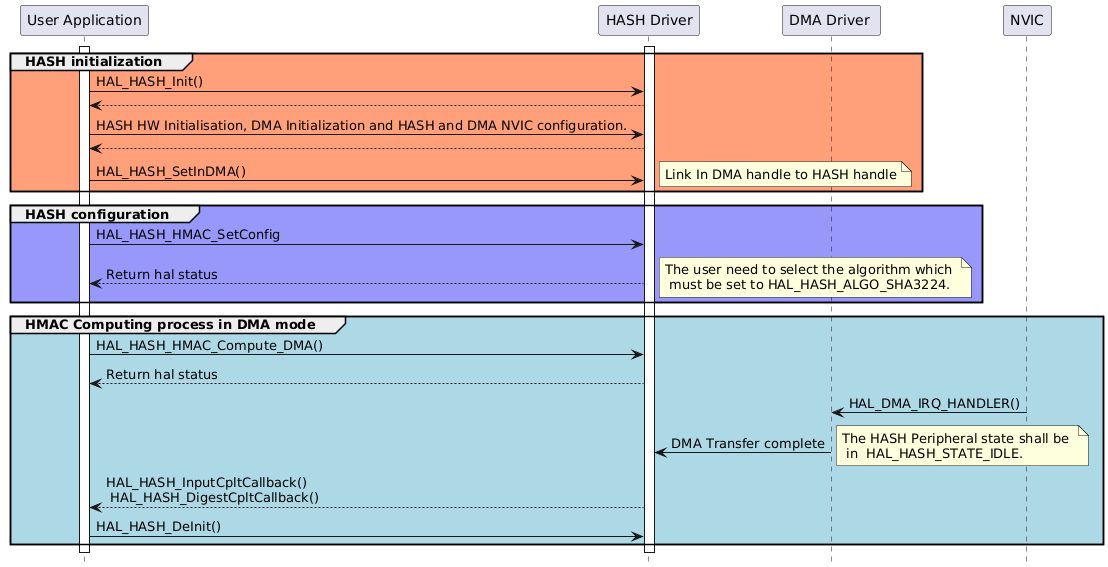

User application starting a HASH-HMAC computation process in DMA mode using SHA3224 algorithm

@startuml hide footbox participant "User Application" as part1 participant "HASH Driver" as part2 participant "DMA Driver " as part3 participant "NVIC" as part4 activate part1 activate part2 group #lightsalmon HASH initialization part1->part2 : HAL_HASH_Init() part2 --> part1 part1->part2 : HASH HW Initialisation, DMA Initialization and HASH and DMA NVIC configuration. part2 --> part1 part1->part2 : HAL_HASH_SetInDMA() note right: Link In DMA handle to HASH handle end group #9898fb HASH configuration part1->part2 : HAL_HASH_HMAC_SetConfig part2 --> part1 : Return hal status note right: The user need to select the algorithm which \n must be set to HAL_HASH_ALGO_SHA3224. end group #lightblue HMAC Computing process in DMA mode part1->part2 : HAL_HASH_HMAC_Compute_DMA() part2 --> part1 : Return hal status part4 -> part3 : HAL_DMA_IRQ_HANDLER() part3 -> part2 : DMA Transfer complete note right: The HASH Peripheral state shall be \n in HAL_HASH_STATE_IDLE. part2--> part1 : HAL_HASH_InputCpltCallback() \n HAL_HASH_DigestCpltCallback() part1->part2 : HAL_HASH_DeInit() end @enduml

Functions called:

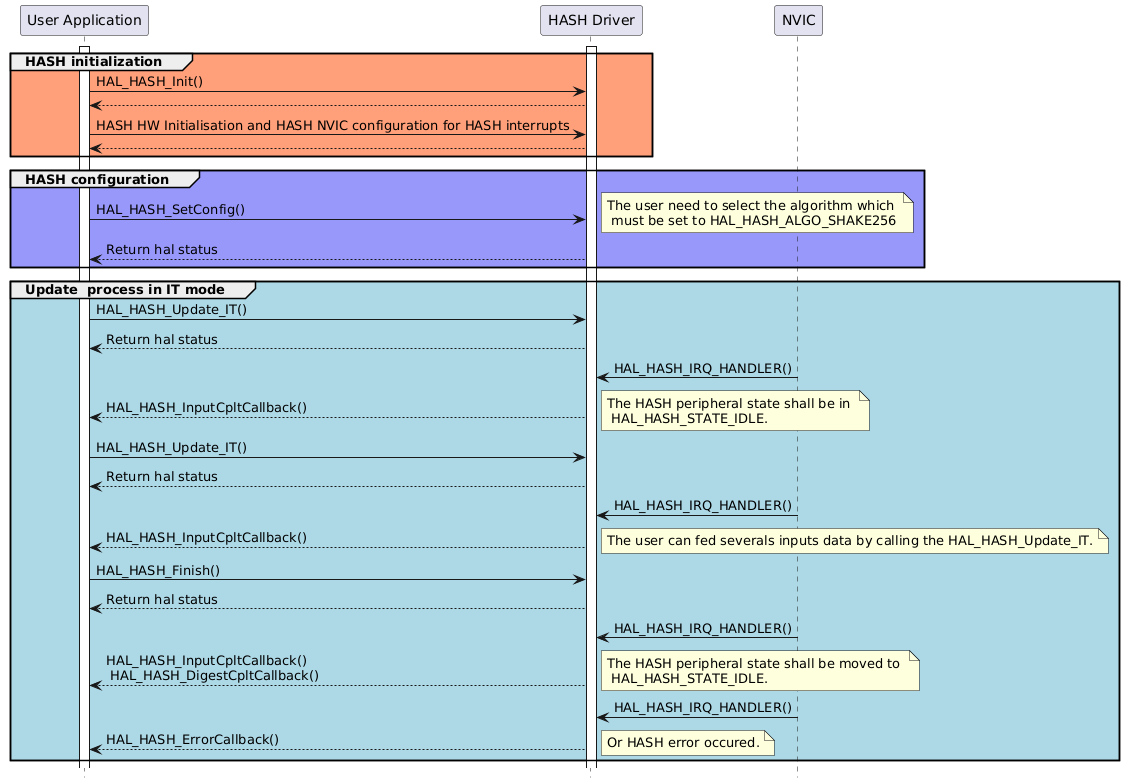

User application starting a HASH Update process in IT mode using SHAKE256 algorithm

@startuml hide footbox participant "User Application" as part1 participant "HASH Driver" as part2 participant "NVIC" as part3 activate part1 activate part2 group #lightsalmon HASH initialization part1->part2 : HAL_HASH_Init() part2 --> part1 part1->part2 : HASH HW Initialisation and HASH NVIC configuration for HASH interrupts part2 --> part1 end group #9898fb HASH configuration part1->part2 : HAL_HASH_SetConfig() note right: The user need to select the algorithm which \n must be set to HAL_HASH_ALGO_SHAKE256 part2 --> part1 : Return hal status end group #lightblue Update process in IT mode part1->part2 : HAL_HASH_Update_IT() part2 --> part1 : Return hal status part3 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_InputCpltCallback() note right: The HASH peripheral state shall be in \n HAL_HASH_STATE_IDLE. part1->part2 : HAL_HASH_Update_IT() part2 --> part1 : Return hal status part3 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_InputCpltCallback() note right: The user can fed severals inputs data by calling the HAL_HASH_Update_IT. part1->part2 : HAL_HASH_Finish() part2 --> part1 : Return hal status part3 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_InputCpltCallback() \n HAL_HASH_DigestCpltCallback() note right: The HASH peripheral state shall be moved to \n HAL_HASH_STATE_IDLE. part3 -> part2 : HAL_HASH_IRQ_HANDLER() part2--> part1 : HAL_HASH_ErrorCallback() note right: Or HASH error occured. end @enduml

Functions called:
