STM32C5xx HAL Drivers
HAL IWDG Use Cases ¶

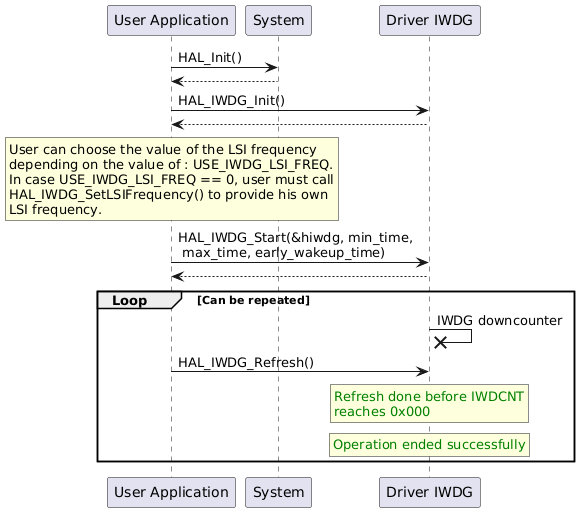

IWDG Refresh Correctly ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
"User Application"->"Driver IWDG" : HAL_IWDG_Init()
"Driver IWDG" --> "User Application"
rnote over "User Application"
User can choose the value of the LSI frequency
depending on the value of : USE_IWDG_LSI_FREQ.
In case USE_IWDG_LSI_FREQ == 0, user must call
HAL_IWDG_SetLSIFrequency() to provide his own
LSI frequency.
endrnote
"User Application" -> "Driver IWDG" : HAL_IWDG_Start(&hiwdg, min_time,\n max_time, early_wakeup_time)
"Driver IWDG" --> "User Application"
group Loop [Can be repeated]
"Driver IWDG" ->x "Driver IWDG" : IWDG downcounter
"User Application" -> "Driver IWDG" : HAL_IWDG_Refresh()
rnote over "Driver IWDG"
<color #green>Refresh done before IWDCNT
<color #green>reaches 0x000
endrnote
rnote over "Driver IWDG"
<color #green>Operation ended successfully
endrnote
end
@enduml](../../../../_images/plantuml-ea6b34ae226315781e04d8279d52ae32aca95dd1.png)
Functions called:

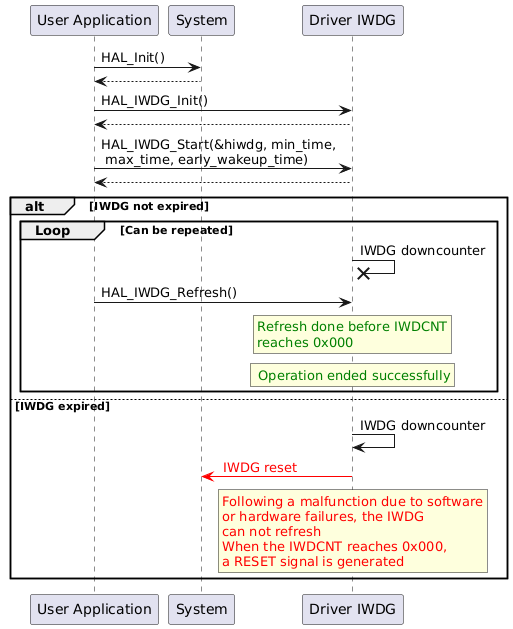

IWDG Cannot Refresh ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
"User Application"->"Driver IWDG" : HAL_IWDG_Init()
"Driver IWDG" --> "User Application"
"User Application" -> "Driver IWDG" : HAL_IWDG_Start(&hiwdg, min_time,\n max_time, early_wakeup_time)
"Driver IWDG" --> "User Application"
alt IWDG not expired
group Loop [Can be repeated]
"Driver IWDG" ->x "Driver IWDG" : IWDG downcounter
"User Application" -> "Driver IWDG" : HAL_IWDG_Refresh()
rnote over "Driver IWDG"
<color #green>Refresh done before IWDCNT
<color #green>reaches 0x000
endrnote
rnote over "Driver IWDG"
<color #green> Operation ended successfully
endrnote
end
else IWDG expired
"Driver IWDG" -> "Driver IWDG" : IWDG downcounter
"Driver IWDG" -[#red]> "System" : <color #red> IWDG reset </color>
rnote over "Driver IWDG"
<color #red>Following a malfunction due to software
<color #red>or hardware failures, the IWDG
<color #red>can not refresh
<color #red>When the IWDCNT reaches 0x000,
<color #red>a RESET signal is generated
endrnote
end
@enduml](../../../../_images/plantuml-c82a9e52450981a1a73c53e6a60ec911a43251b5.png)
Functions called:

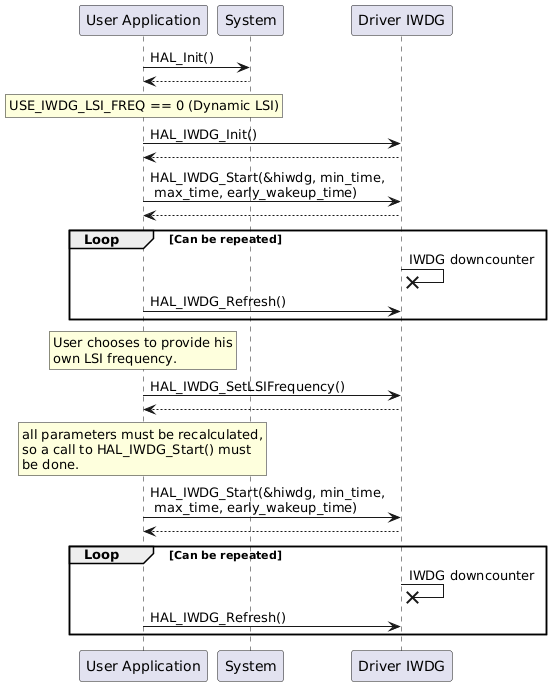

LSI Frequency Modification ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
rnote over "User Application"
USE_IWDG_LSI_FREQ == 0 (Dynamic LSI)
endrnote
"User Application"->"Driver IWDG" : HAL_IWDG_Init()
"Driver IWDG" --> "User Application"
"User Application" -> "Driver IWDG" : HAL_IWDG_Start(&hiwdg, min_time,\n max_time, early_wakeup_time)
"Driver IWDG" --> "User Application"
group Loop [Can be repeated]
"Driver IWDG" ->x "Driver IWDG" : IWDG downcounter
"User Application" -> "Driver IWDG" : HAL_IWDG_Refresh()
end
rnote over "User Application"
User chooses to provide his
own LSI frequency.
endrnote
"User Application"->"Driver IWDG" : HAL_IWDG_SetLSIFrequency()
"Driver IWDG" --> "User Application"
rnote over "User Application"
all parameters must be recalculated,
so a call to HAL_IWDG_Start() must
be done.
endrnote
"User Application" -> "Driver IWDG" : HAL_IWDG_Start(&hiwdg, min_time,\n max_time, early_wakeup_time)
"Driver IWDG" --> "User Application"
group Loop [Can be repeated]
"Driver IWDG" ->x "Driver IWDG" : IWDG downcounter
"User Application" -> "Driver IWDG" : HAL_IWDG_Refresh()
end
@enduml](../../../../_images/plantuml-61b9c94cceecc718edcef45e15b8157f69821dd6.png)
Functions called:

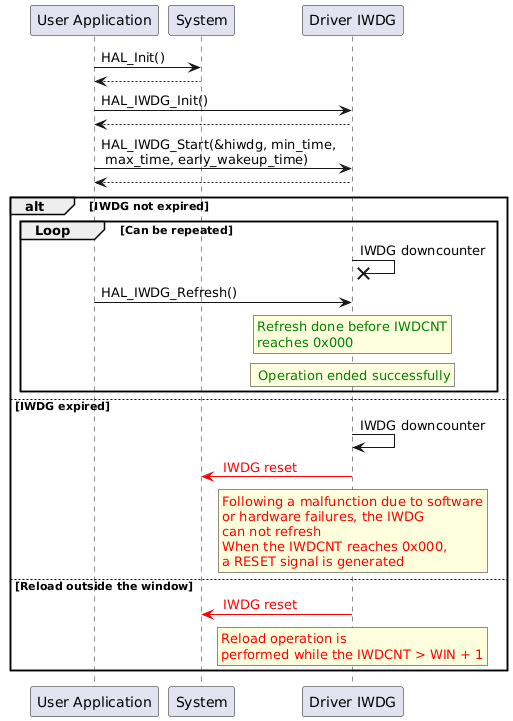

Window Option is Activated ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
"User Application"->"Driver IWDG" : HAL_IWDG_Init()
"Driver IWDG" --> "User Application"
"User Application" -> "Driver IWDG" : HAL_IWDG_Start(&hiwdg, min_time,\n max_time, early_wakeup_time)
"Driver IWDG" --> "User Application"
alt IWDG not expired
group Loop [Can be repeated]
"Driver IWDG" ->x "Driver IWDG" : IWDG downcounter
"User Application" -> "Driver IWDG" : HAL_IWDG_Refresh()
rnote over "Driver IWDG"
<color #green>Refresh done before IWDCNT
<color #green>reaches 0x000
endrnote
rnote over "Driver IWDG"
<color #green> Operation ended successfully
endrnote
end
else IWDG expired
"Driver IWDG" -> "Driver IWDG" : IWDG downcounter
"Driver IWDG" -[#red]> "System" : <color #red> IWDG reset </color>
rnote over "Driver IWDG"
<color #red>Following a malfunction due to software
<color #red>or hardware failures, the IWDG
<color #red>can not refresh
<color #red>When the IWDCNT reaches 0x000,
<color #red>a RESET signal is generated
endrnote
else Reload outside the window
"Driver IWDG" -[#red]> "System" : <color #red> IWDG reset </color>
rnote over "Driver IWDG"
<color #red>Reload operation is
<color #red>performed while the IWDCNT > WIN + 1
endrnote
end
@enduml](../../../../_images/plantuml-b89d5b56d54b2c3f6372e752aceb0d98cdc9a00c.png)
Functions called:

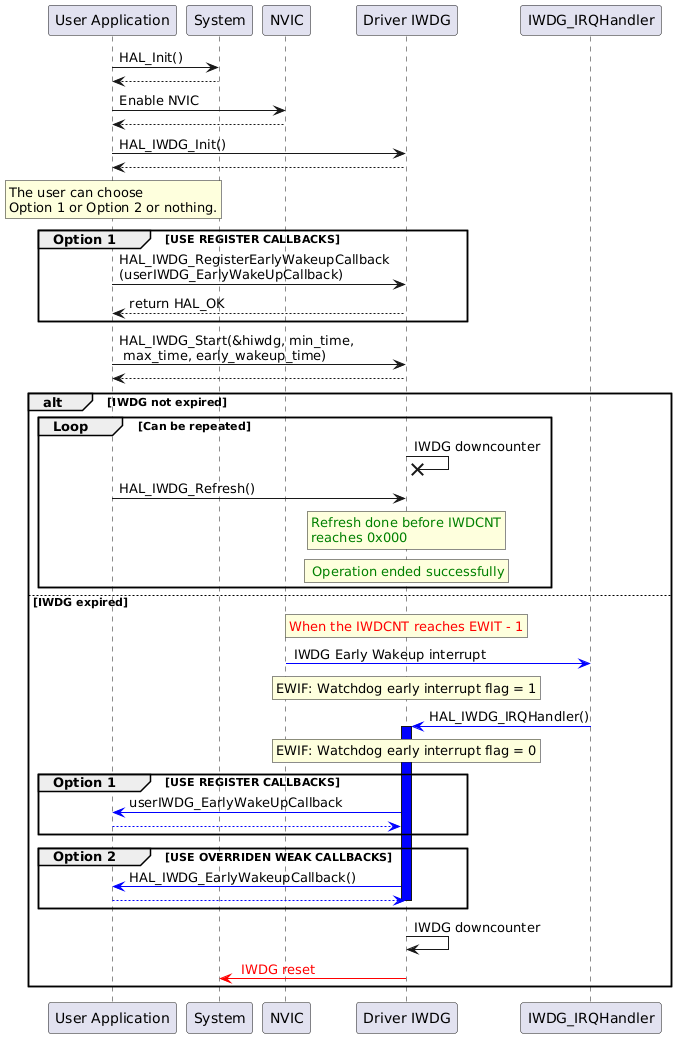

Early Wakeup Interrupt Option is Activated ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
"User Application" -> "NVIC" : Enable NVIC
"NVIC" --> "User Application"
"User Application"->"Driver IWDG" : HAL_IWDG_Init()
"Driver IWDG" --> "User Application"
rnote over "User Application"
The user can choose
Option 1 or Option 2 or nothing.
endrnote
group Option 1 [USE REGISTER CALLBACKS]
"User Application" -> "Driver IWDG" : HAL_IWDG_RegisterEarlyWakeupCallback\n(userIWDG_EarlyWakeUpCallback)
"Driver IWDG" --> "User Application" : return HAL_OK
end
"User Application" -> "Driver IWDG" : HAL_IWDG_Start(&hiwdg, min_time,\n max_time, early_wakeup_time)
"Driver IWDG" --> "User Application"
alt IWDG not expired
group Loop [Can be repeated]
"Driver IWDG" ->x "Driver IWDG" : IWDG downcounter
"User Application" -> "Driver IWDG" : HAL_IWDG_Refresh()
rnote over "Driver IWDG"
<color #green>Refresh done before IWDCNT
<color #green>reaches 0x000
endrnote
rnote over "Driver IWDG"
<color #green> Operation ended successfully
endrnote
end
else IWDG expired
rnote over "Driver IWDG"
<color #red>When the IWDCNT reaches EWIT - 1
endrnote
"IWDG_IRQHandler" <[#Blue]- "NVIC" : IWDG Early Wakeup interrupt
rnote over "Driver IWDG"
EWIF: Watchdog early interrupt flag = 1
endrnote
"IWDG_IRQHandler" -[#Blue]> "Driver IWDG" : HAL_IWDG_IRQHandler()
activate "Driver IWDG" #Blue
rnote over "Driver IWDG"
EWIF: Watchdog early interrupt flag = 0
endrnote
group Option 1 [USE REGISTER CALLBACKS]
"Driver IWDG" -[#Blue]> "User Application" :userIWDG_EarlyWakeUpCallback
"User Application" -[#Blue]-> "Driver IWDG"
end
group Option 2 [USE OVERRIDEN WEAK CALLBACKS]
"Driver IWDG" -[#Blue]> "User Application" : HAL_IWDG_EarlyWakeupCallback()
"User Application" -[#Blue]-> "Driver IWDG"
deactivate "Driver IWDG"
end
"Driver IWDG" -> "Driver IWDG" : IWDG downcounter
"Driver IWDG" -[#red]> "System" : <color #red> IWDG reset </color>
end
@enduml](../../../../_images/plantuml-4eaae2aaf3e80deb3942fec9b8d866163faee9cc.png)
Functions called:

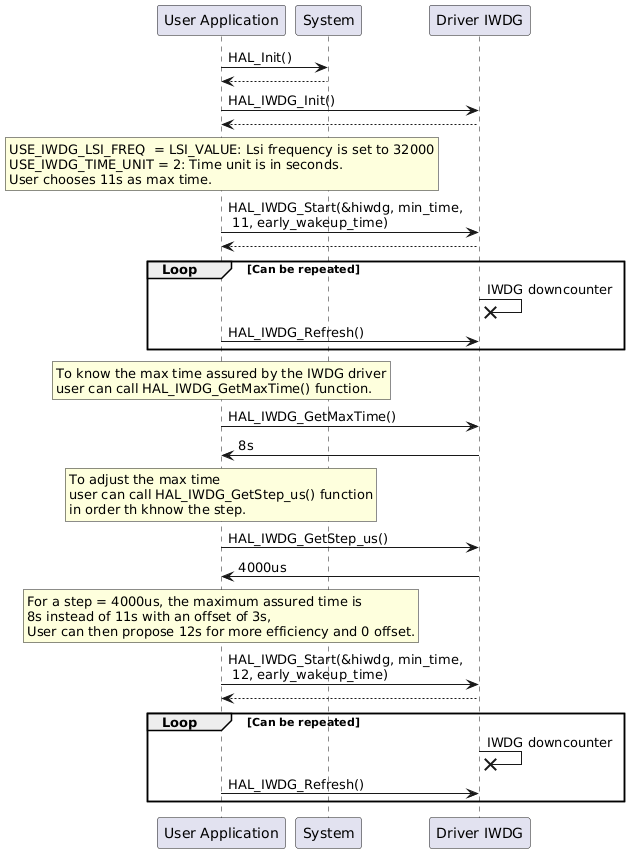

Use Case for Max Time Adjustment ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
"User Application"->"Driver IWDG" : HAL_IWDG_Init()
"Driver IWDG" --> "User Application"
rnote over "User Application"
USE_IWDG_LSI_FREQ = LSI_VALUE: Lsi frequency is set to 32000
USE_IWDG_TIME_UNIT = 2: Time unit is in seconds.
User chooses 11s as max time.
endrnote
"User Application" -> "Driver IWDG" : HAL_IWDG_Start(&hiwdg, min_time,\n 11, early_wakeup_time)
"Driver IWDG" --> "User Application"
group Loop [Can be repeated]
"Driver IWDG" ->x "Driver IWDG" : IWDG downcounter
"User Application" -> "Driver IWDG" : HAL_IWDG_Refresh()
end
rnote over "User Application"
To know the max time assured by the IWDG driver
user can call HAL_IWDG_GetMaxTime() function.
endrnote
"User Application"->"Driver IWDG" : HAL_IWDG_GetMaxTime()
"Driver IWDG" -> "User Application" : 8s
rnote over "User Application"
To adjust the max time
user can call HAL_IWDG_GetStep_us() function
in order th khnow the step.
endrnote
"User Application"->"Driver IWDG" : HAL_IWDG_GetStep_us()
"Driver IWDG" -> "User Application" : 4000us
rnote over "User Application"
For a step = 4000us, the maximum assured time is
8s instead of 11s with an offset of 3s,
User can then propose 12s for more efficiency and 0 offset.
endrnote
"User Application" -> "Driver IWDG" : HAL_IWDG_Start(&hiwdg, min_time,\n 12, early_wakeup_time)
"Driver IWDG" --> "User Application"
group Loop [Can be repeated]
"Driver IWDG" ->x "Driver IWDG" : IWDG downcounter
"User Application" -> "Driver IWDG" : HAL_IWDG_Refresh()
end
@enduml](../../../../_images/plantuml-0ac2a8cdff9a57c4df56e2b07e506b132ef2b668.png)
Functions called:
