HAL SMARTCARD Use Cases

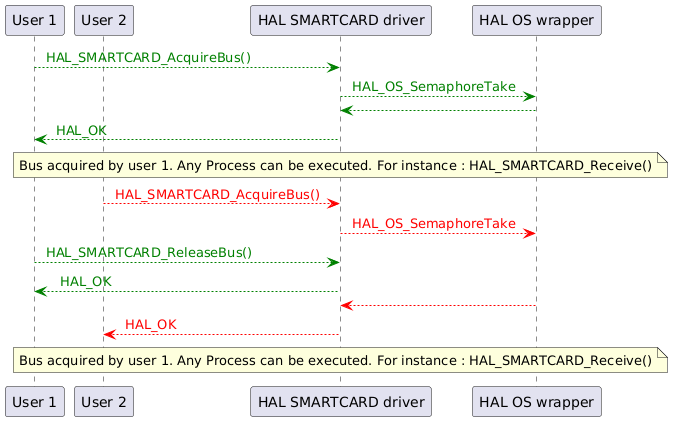

Acquire Release Bus

Called functions:

• HAL_SMARTCARD_AcquireBus()

• HAL_SMARTCARD_ReleaseBus()

• HAL_SMARTCARD_Receive()

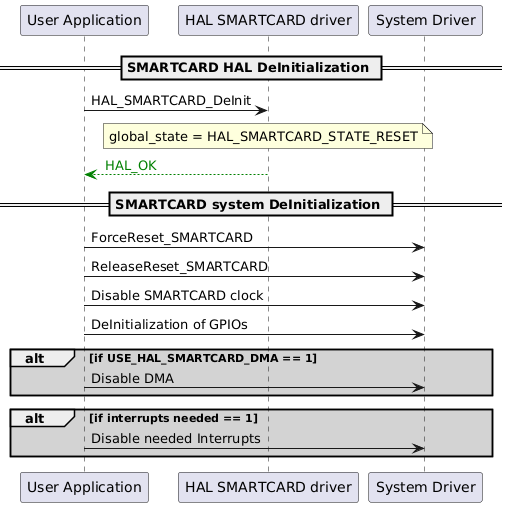

Full Denit

Called functions:

• HAL_SMARTCARD_DeInit()

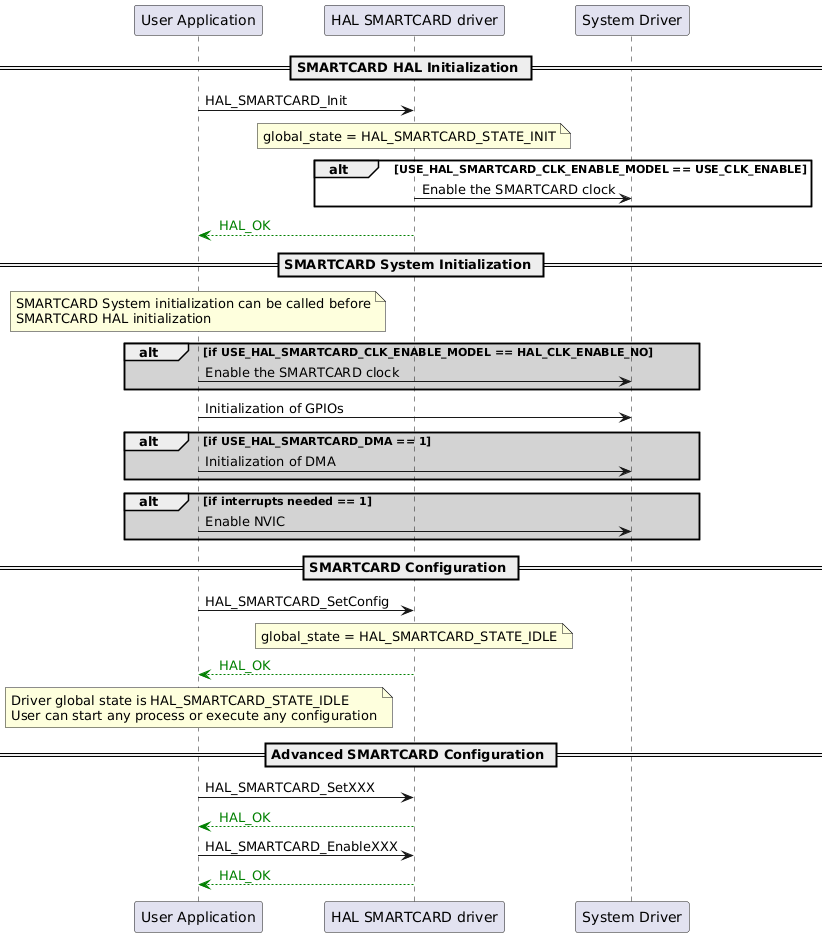

Full Init

Called functions:

• HAL_SMARTCARD_Init()

• HAL_SMARTCARD_SetConfig()

• HAL_SMARTCARD_EnableXXX()

Prerequisite

Called functions:

• HAL_Init()

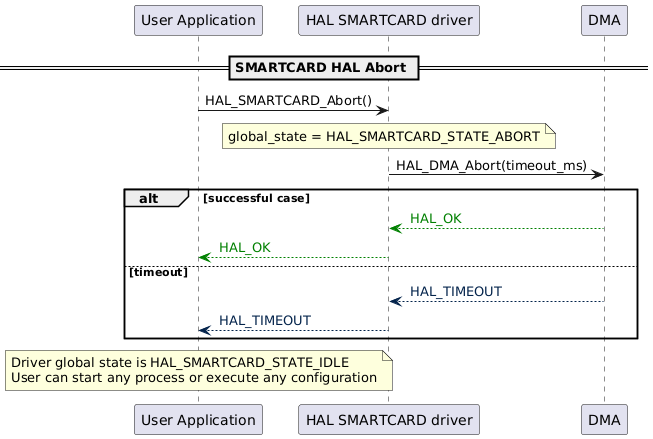

Process Abort

Called functions:

• HAL_SMARTCARD_Abort()

• HAL_DMA_Abort()

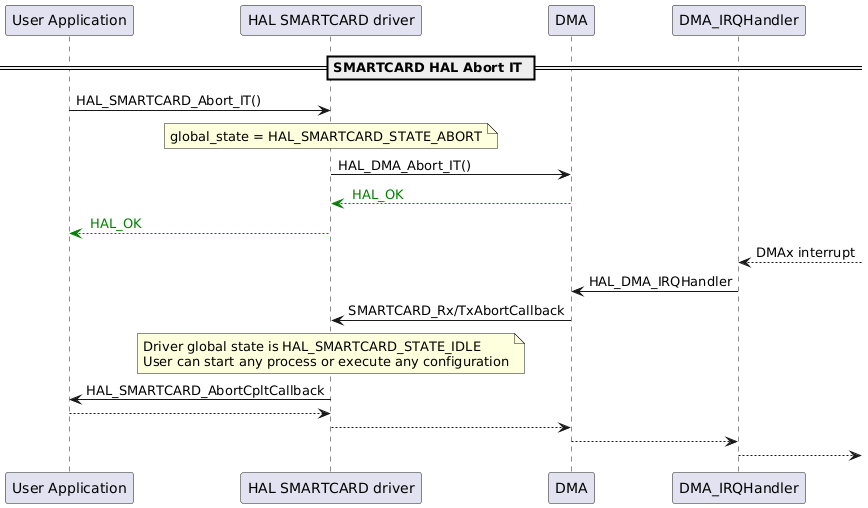

Process Abort IT

Called functions:

• HAL_SMARTCARD_Abort_IT()

• HAL_DMA_Abort_IT()

• HAL_SMARTCARD_AbortCpltCallback()

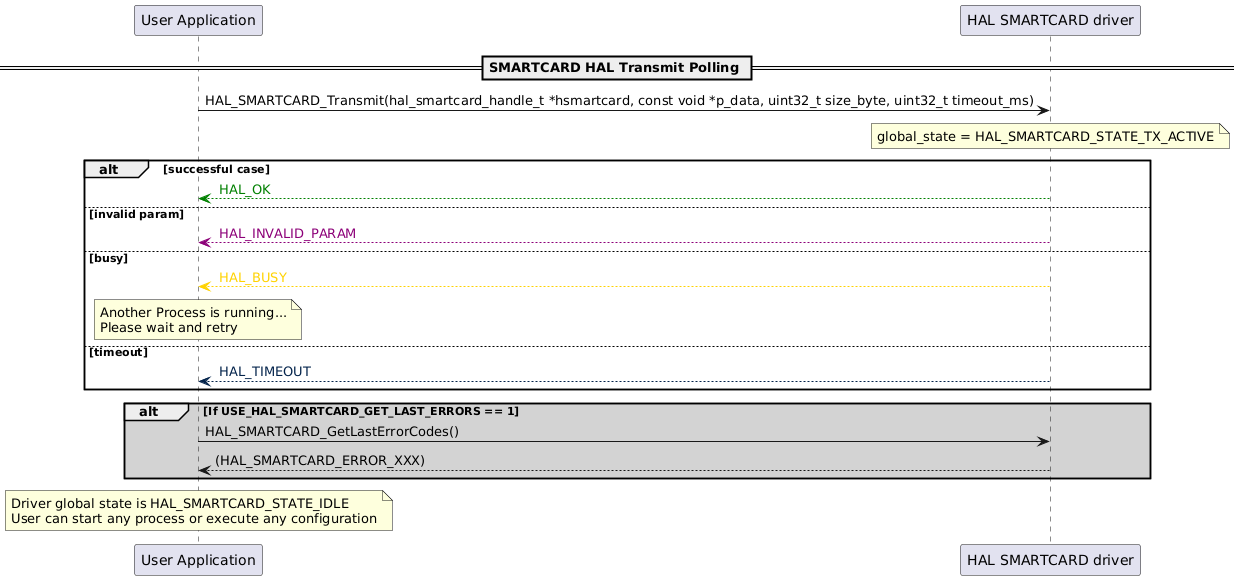

Process TX Polling

Called functions:

• HAL_SMARTCARD_Transmit()

• HAL_SMARTCARD_GetLastErrorCodes()

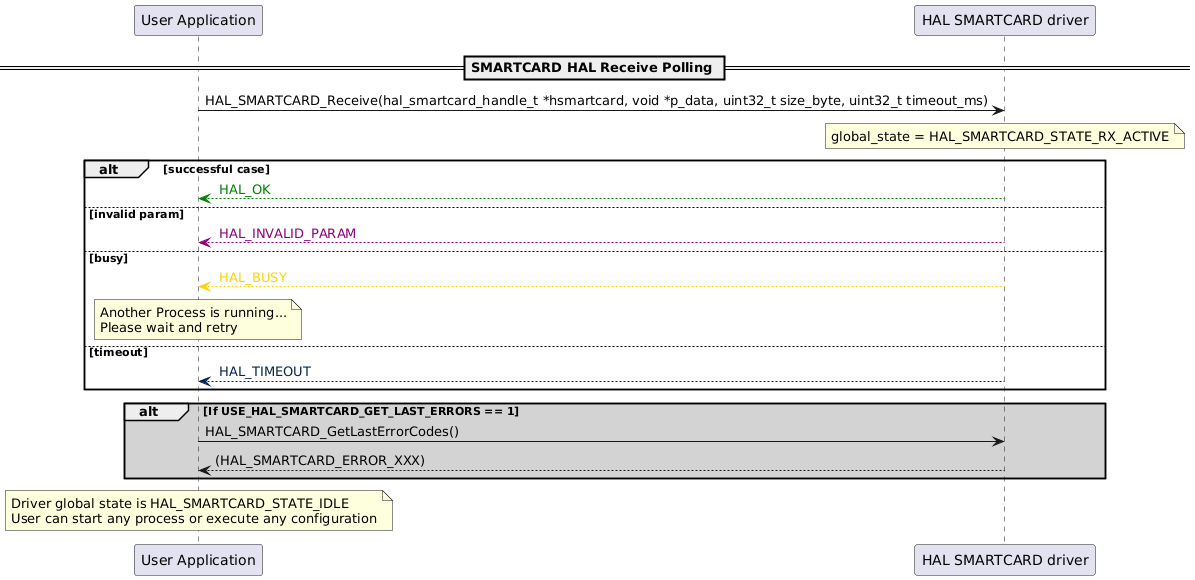

Process RX Polling

Called functions:

• HAL_SMARTCARD_Receive()

• HAL_SMARTCARD_GetLastErrorCodes()

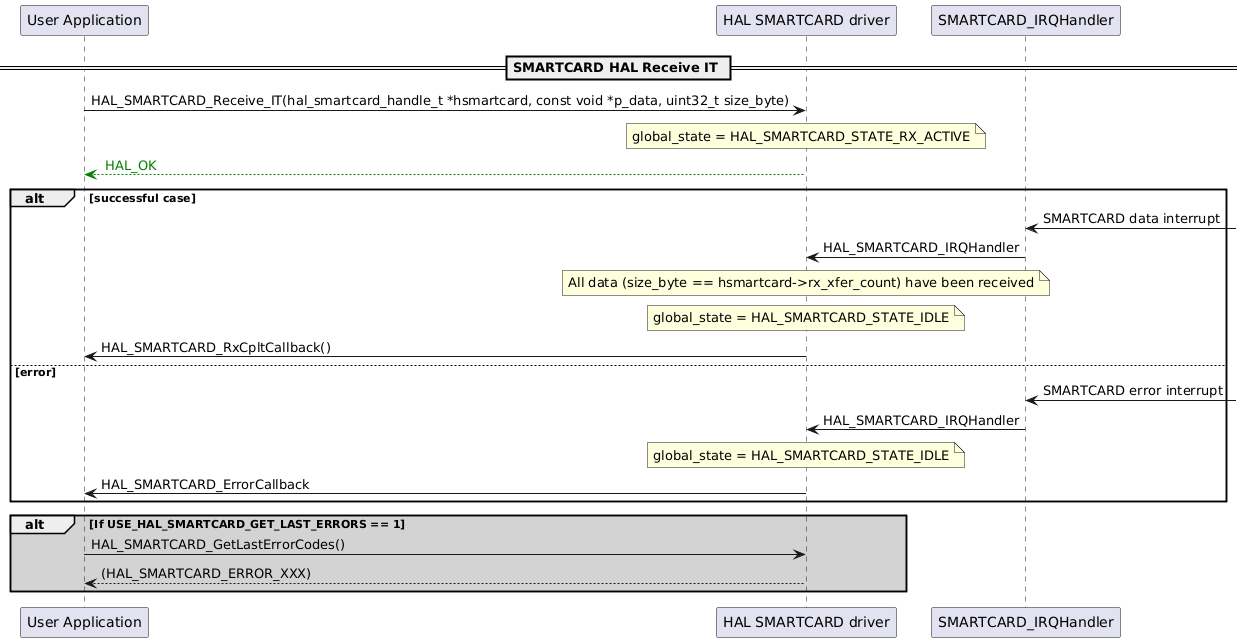

Process Rx IT

Called functions:

• HAL_SMARTCARD_Receive_IT()

• HAL_SMARTCARD_RxCpltCallback()

• HAL_SMARTCARD_ErrorCallback()

• HAL_SMARTCARD_GetLastErrorCodes()

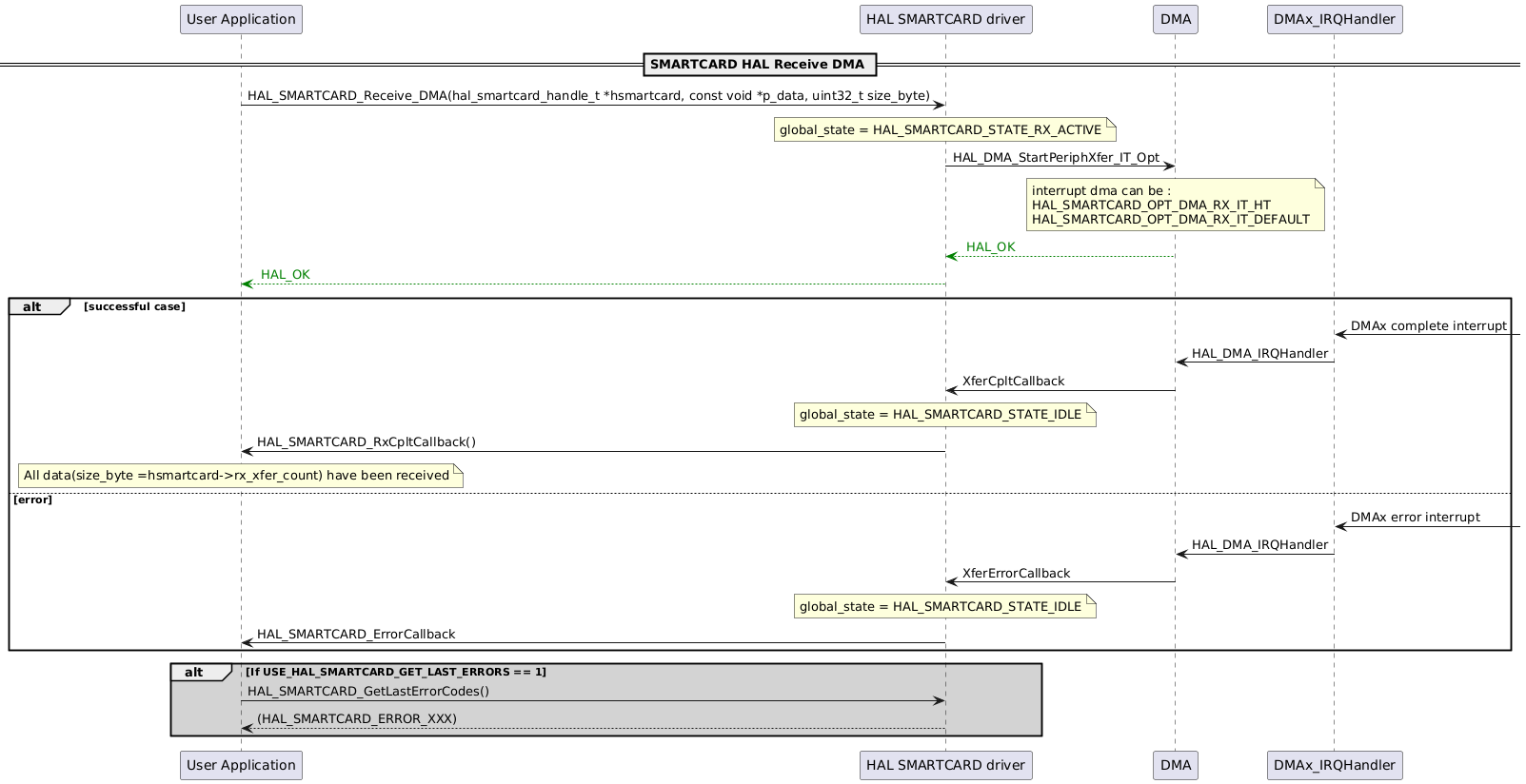

Process Rx DMA

Called functions:

• HAL_SMARTCARD_Receive_DMA()

• HAL_SMARTCARD_RxCpltCallback()

• HAL_SMARTCARD_ErrorCallback()

• HAL_SMARTCARD_GetLastErrorCodes()

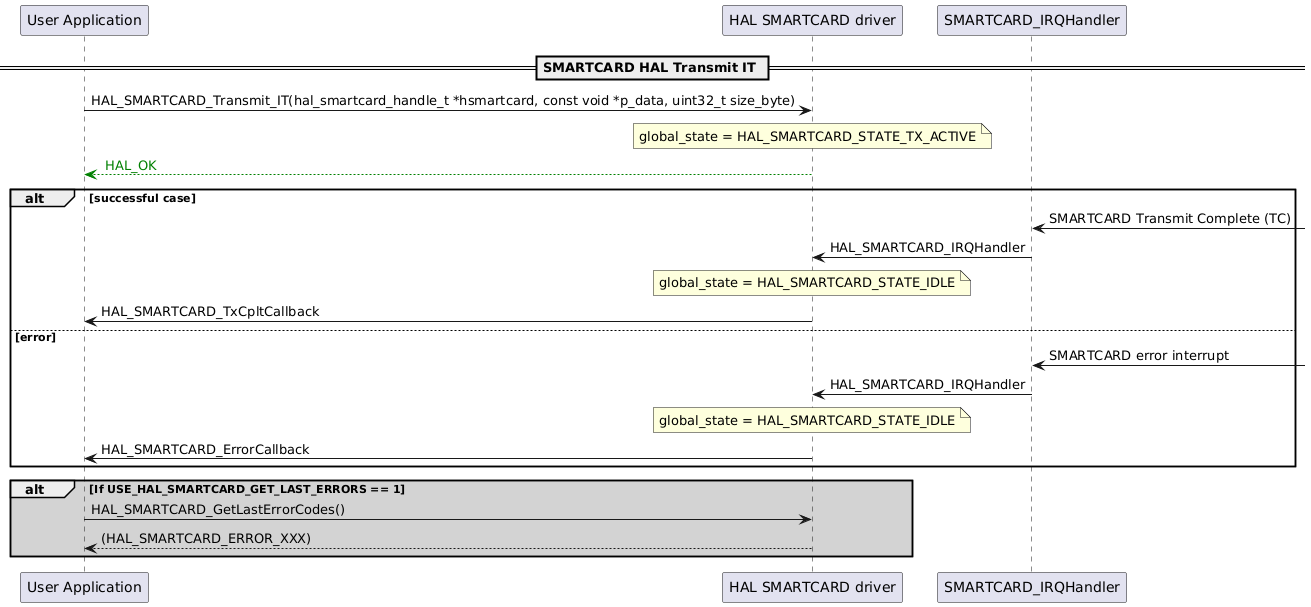

Process Tx IT

Called functions:

• HAL_SMARTCARD_Transmit_IT()

• HAL_SMARTCARD_TxCpltCallback()

• HAL_SMARTCARD_ErrorCallback()

• HAL_SMARTCARD_GetLastErrorCodes()

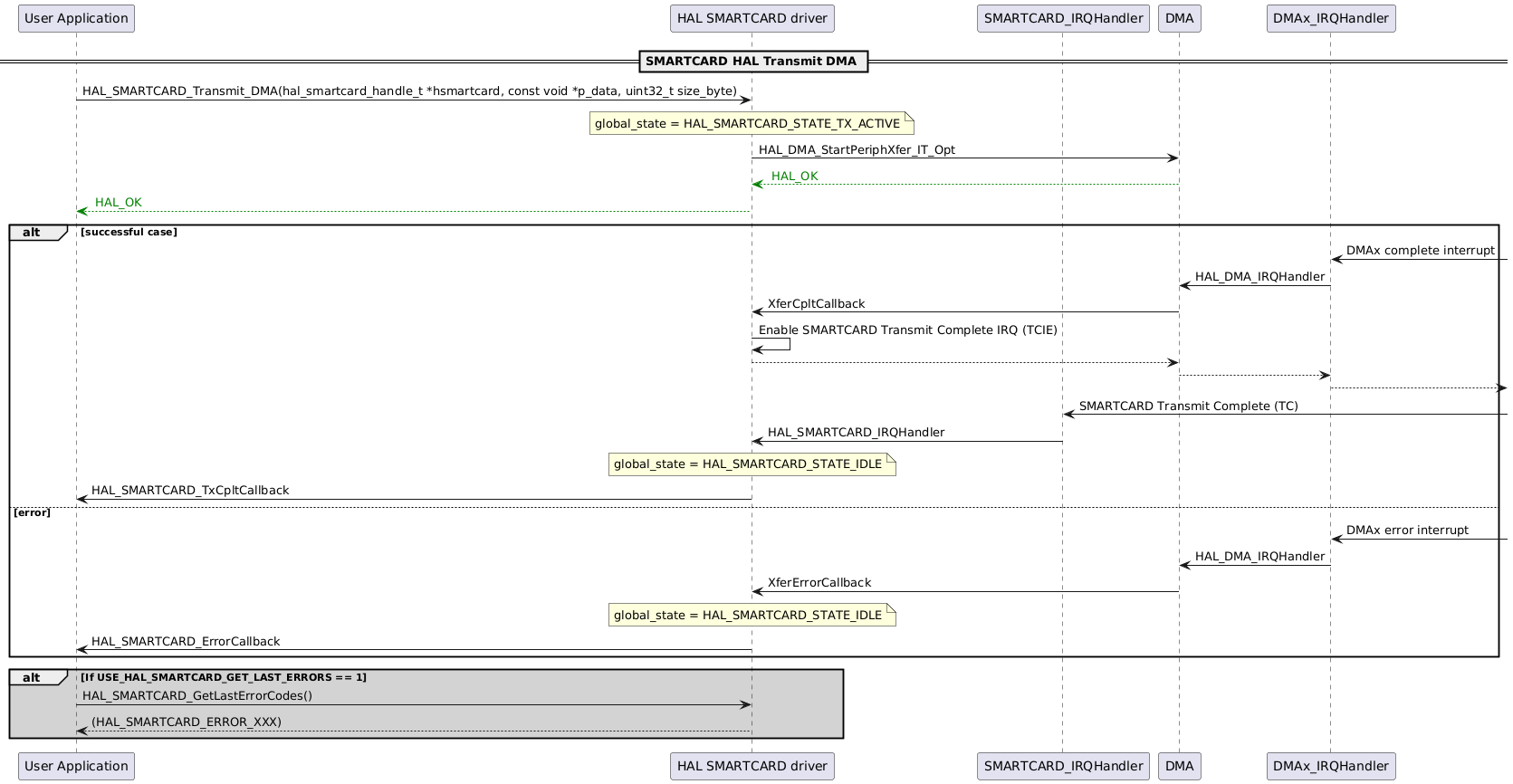

Process Tx DMA

Called functions:

• HAL_SMARTCARD_Transmit_DMA()

• HAL_SMARTCARD_TxCpltCallback()

• HAL_SMARTCARD_ErrorCallback()

• HAL_SMARTCARD_GetLastErrorCodes()
