HAL XSPI Use Cases

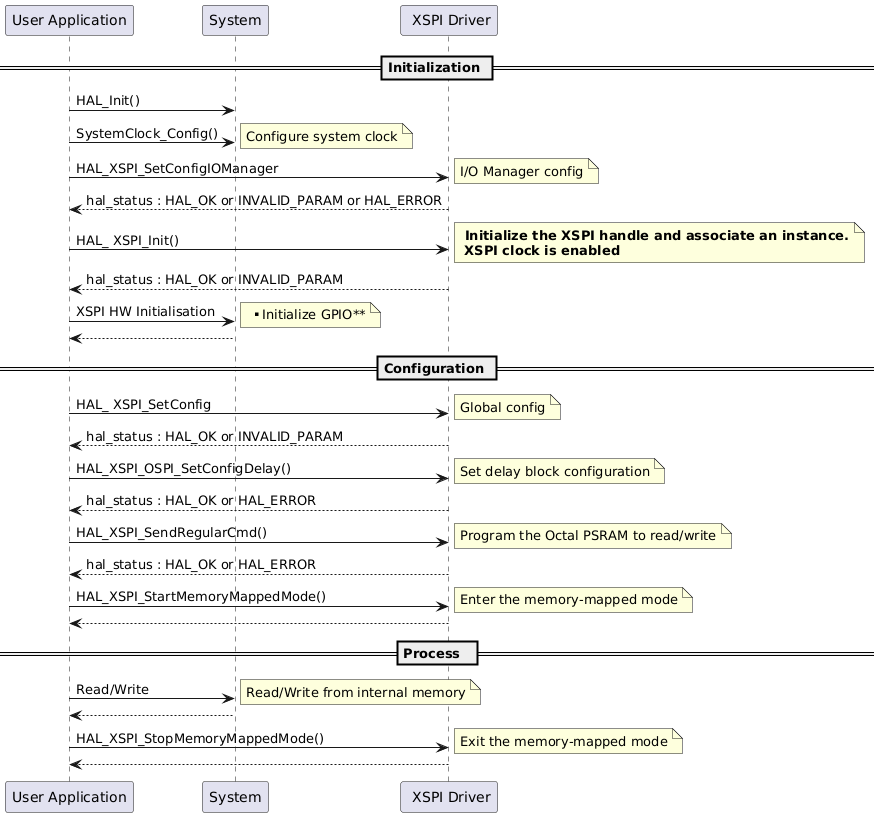

User Application Starting a Write/Read in Memory-Mapped Mode for Octal PSRAM Memory

@startuml == Initialization == "User Application"->"System" : HAL_Init() "User Application"->"System" : SystemClock_Config() note right: Configure system clock "User Application"->" XSPI Driver" : HAL_XSPI_SetConfigIOManager note right:I/O Manager config " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM or HAL_ERROR "User Application"->" XSPI Driver" : HAL_ XSPI_Init() note right: <b> Initialize the XSPI handle and associate an instance.\n <b>XSPI clock is enabled " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM "User Application"->"System" : XSPI HW Initialisation note right: ** Initialize GPIO** "System" --> "User Application" == Configuration == "User Application"->" XSPI Driver" : HAL_ XSPI_SetConfig note right:Global config " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM "User Application"->" XSPI Driver" : HAL_XSPI_OSPI_SetConfigDelay() note right:Set delay block configuration " XSPI Driver" --> "User Application":hal_status : HAL_OK or HAL_ERROR "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() note right:Program the Octal PSRAM to read/write " XSPI Driver" --> "User Application" :hal_status : HAL_OK or HAL_ERROR "User Application"->" XSPI Driver" : HAL_XSPI_StartMemoryMappedMode() note right: Enter the memory-mapped mode " XSPI Driver" --> "User Application" == Process == "User Application"->"System" :Read/Write note right: Read/Write from internal memory "User Application" <-- "System" "User Application"->" XSPI Driver" : HAL_XSPI_StopMemoryMappedMode() note right: Exit the memory-mapped mode " XSPI Driver" --> "User Application" @enduml

Functions called:

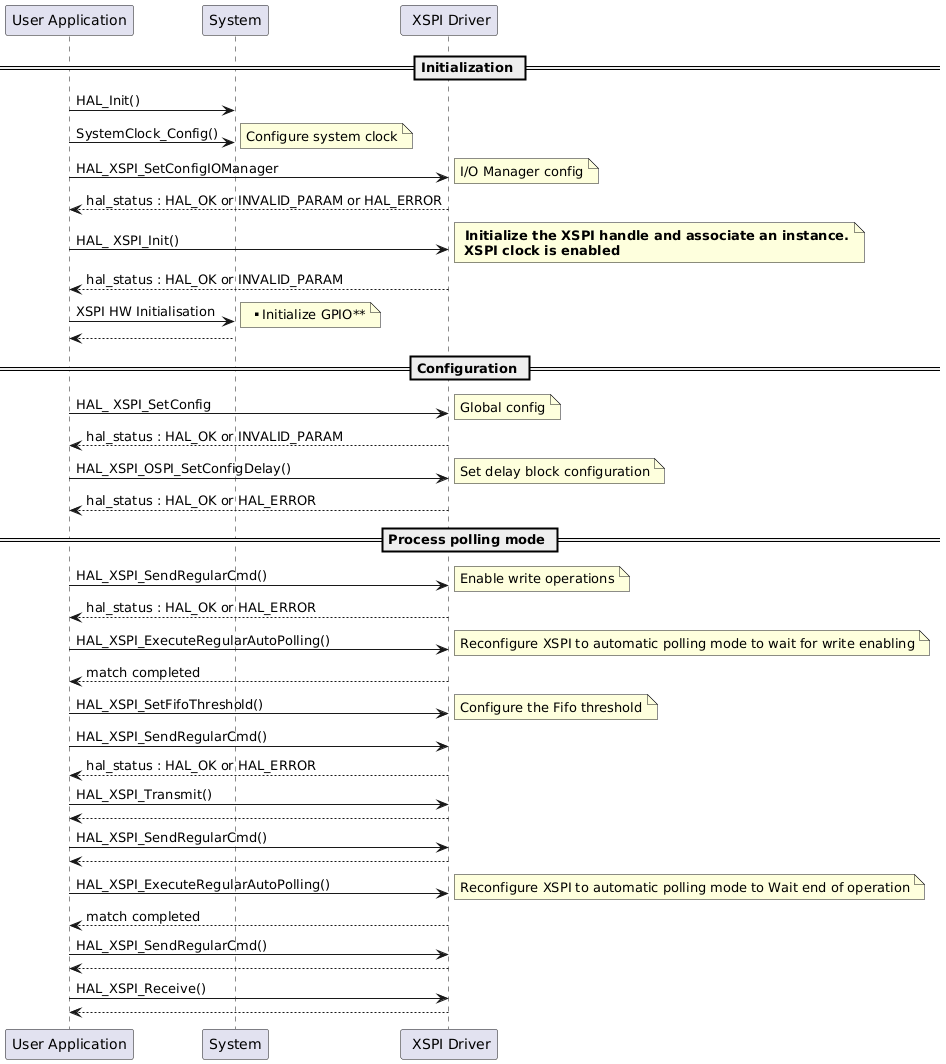

User Application Starting a Write/Read in Polling Mode for Regular Memory (Flash)

@startuml == Initialization == "User Application"->"System" : HAL_Init() "User Application"->"System" : SystemClock_Config() note right: Configure system clock "User Application"->" XSPI Driver" : HAL_XSPI_SetConfigIOManager note right:I/O Manager config " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM or HAL_ERROR "User Application"->" XSPI Driver" : HAL_ XSPI_Init() note right: <b> Initialize the XSPI handle and associate an instance.\n <b>XSPI clock is enabled " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM "User Application"->"System" : XSPI HW Initialisation note right: ** Initialize GPIO** "System" --> "User Application" == Configuration == "User Application"->" XSPI Driver" : HAL_ XSPI_SetConfig note right:Global config " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM "User Application"->" XSPI Driver" : HAL_XSPI_OSPI_SetConfigDelay() note right:Set delay block configuration " XSPI Driver" --> "User Application":hal_status : HAL_OK or HAL_ERROR == Process polling mode == "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() note right:Enable write operations " XSPI Driver" --> "User Application" :hal_status : HAL_OK or HAL_ERROR "User Application"->" XSPI Driver" : HAL_XSPI_ExecuteRegularAutoPolling() note right:Reconfigure XSPI to automatic polling mode to wait for write enabling " XSPI Driver" --> "User Application": match completed "User Application"->" XSPI Driver" : HAL_XSPI_SetFifoThreshold() note right:Configure the Fifo threshold "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() " XSPI Driver" --> "User Application" :hal_status : HAL_OK or HAL_ERROR "User Application"->" XSPI Driver" : HAL_XSPI_Transmit() " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_ExecuteRegularAutoPolling() note right:Reconfigure XSPI to automatic polling mode to Wait end of operation " XSPI Driver" --> "User Application": match completed "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_Receive() " XSPI Driver" --> "User Application" @enduml

Functions called:

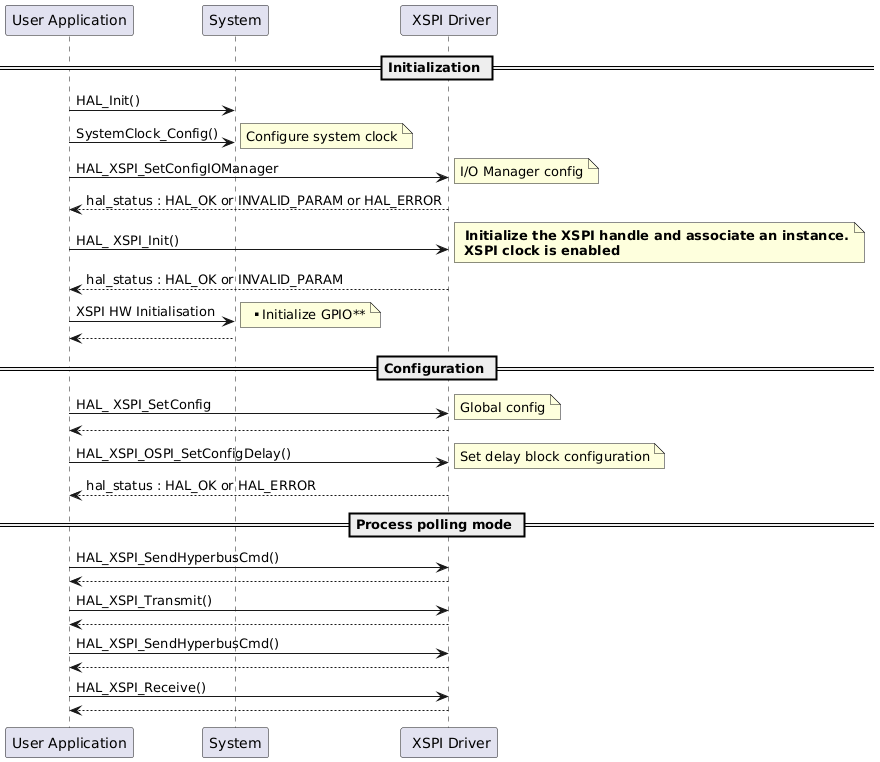

User Application Starting a Write/Read in Polling Mode for Hyperbus Memory (HyperRAM)

@startuml == Initialization == "User Application"->"System" : HAL_Init() "User Application"->"System" : SystemClock_Config() note right: Configure system clock "User Application"->" XSPI Driver" : HAL_XSPI_SetConfigIOManager note right: I/O Manager config " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM or HAL_ERROR "User Application"->" XSPI Driver" : HAL_ XSPI_Init() note right: <b> Initialize the XSPI handle and associate an instance.\n <b>XSPI clock is enabled " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM "User Application"->"System" : XSPI HW Initialisation note right: ** Initialize GPIO** "System" --> "User Application" == Configuration == "User Application"->" XSPI Driver" : HAL_ XSPI_SetConfig note right:Global config " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_OSPI_SetConfigDelay() note right:Set delay block configuration " XSPI Driver" --> "User Application":hal_status : HAL_OK or HAL_ERROR == Process polling mode == "User Application"->" XSPI Driver" : HAL_XSPI_SendHyperbusCmd() " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_Transmit() " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_SendHyperbusCmd() " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_Receive() " XSPI Driver" --> "User Application" @enduml

Functions called:

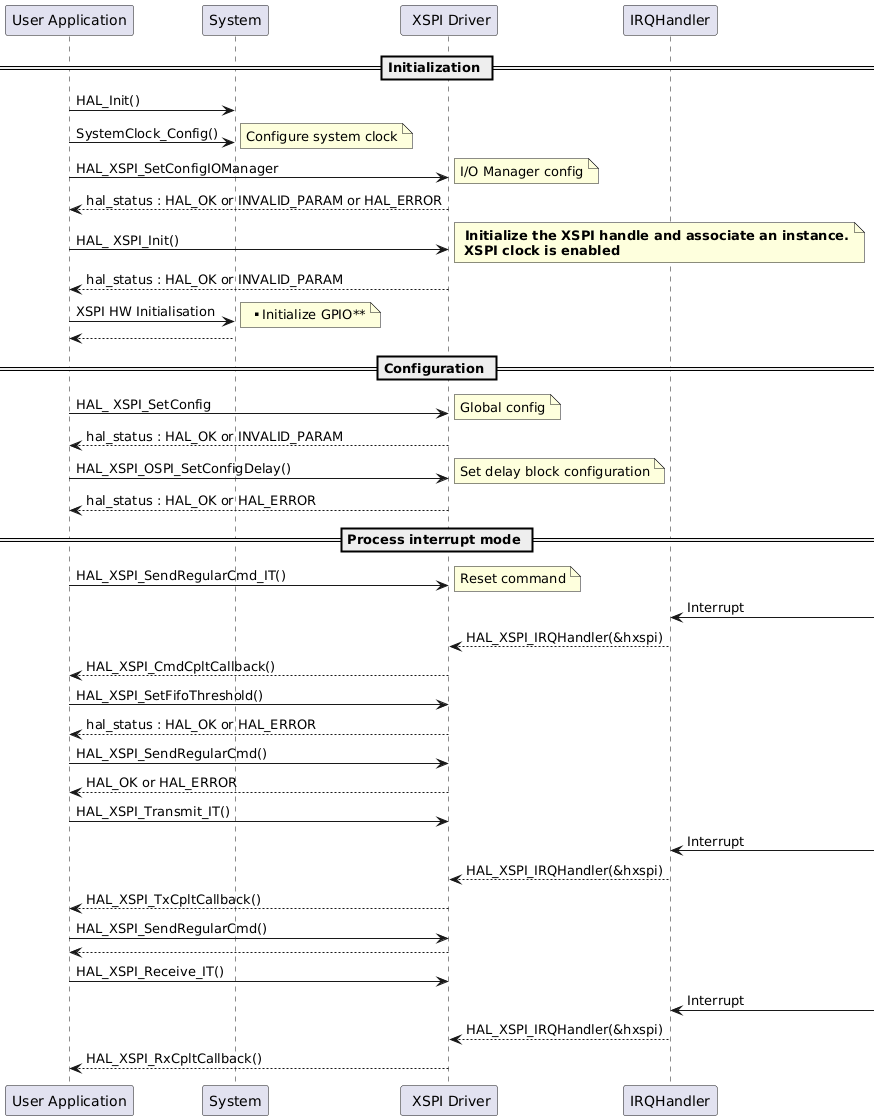

User Application Starting a Write/Read in Interrupt Mode for Regular Memory (PSRAM)

@startuml == Initialization == "User Application"->"System" : HAL_Init() "User Application"->"System" : SystemClock_Config() note right: Configure system clock "User Application"->" XSPI Driver" : HAL_XSPI_SetConfigIOManager note right:I/O Manager config " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM or HAL_ERROR "User Application"->" XSPI Driver" : HAL_ XSPI_Init() note right: <b> Initialize the XSPI handle and associate an instance.\n <b>XSPI clock is enabled " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM "User Application"->"System" : XSPI HW Initialisation note right: ** Initialize GPIO** "System" --> "User Application" == Configuration == "User Application"->" XSPI Driver" : HAL_ XSPI_SetConfig note right:Global config " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM "User Application"->" XSPI Driver" : HAL_XSPI_OSPI_SetConfigDelay() note right:Set delay block configuration " XSPI Driver" --> "User Application":hal_status : HAL_OK or HAL_ERROR == Process interrupt mode == "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd_IT() note right:Reset command "IRQHandler"<- : Interrupt "IRQHandler" --> " XSPI Driver" : HAL_XSPI_IRQHandler(&hxspi) " XSPI Driver"-->"User Application" : HAL_XSPI_CmdCpltCallback() "User Application"->" XSPI Driver" : HAL_XSPI_SetFifoThreshold() " XSPI Driver" --> "User Application" :hal_status : HAL_OK or HAL_ERROR "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() " XSPI Driver" --> "User Application" : HAL_OK or HAL_ERROR "User Application"->" XSPI Driver" : HAL_XSPI_Transmit_IT() "IRQHandler"<- : Interrupt "IRQHandler" --> " XSPI Driver" : HAL_XSPI_IRQHandler(&hxspi) " XSPI Driver"-->"User Application" : HAL_XSPI_TxCpltCallback() "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_Receive_IT() "IRQHandler"<- : Interrupt "IRQHandler" --> " XSPI Driver" : HAL_XSPI_IRQHandler(&hxspi) " XSPI Driver"-->"User Application" : HAL_XSPI_RxCpltCallback() @enduml

Functions called:

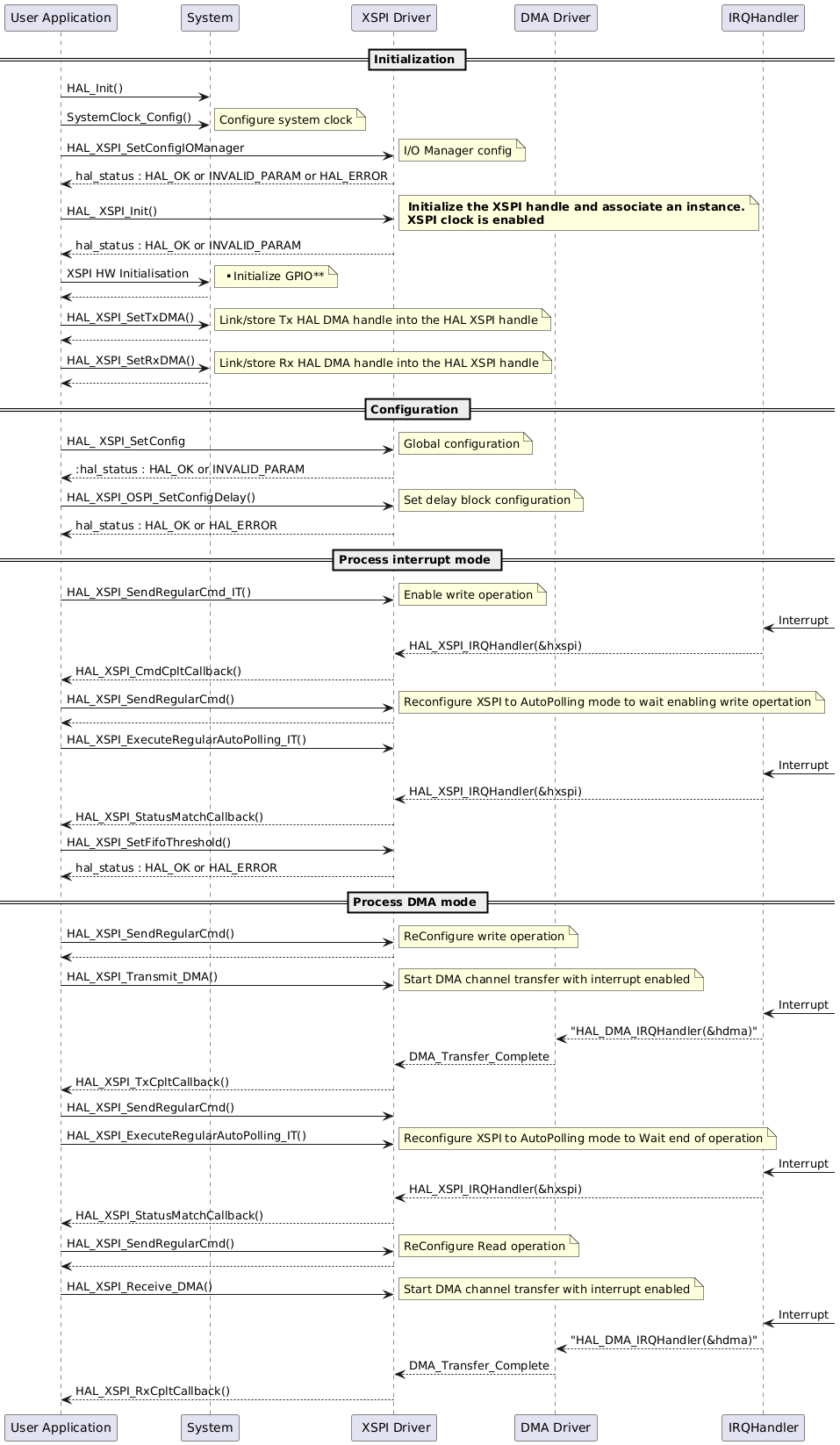

User Application Starting a Write/Read in DMA Mode for Regular Memory (Flash)

@startuml == Initialization == "User Application"->"System" : HAL_Init() "User Application"->"System" : SystemClock_Config() note right: Configure system clock "User Application"->" XSPI Driver" : HAL_XSPI_SetConfigIOManager note right:I/O Manager config " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM or HAL_ERROR "User Application"->" XSPI Driver" : HAL_ XSPI_Init() note right: <b> Initialize the XSPI handle and associate an instance.\n <b>XSPI clock is enabled " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM "User Application"->"System" : XSPI HW Initialisation note right: ** Initialize GPIO** "System" --> "User Application" "User Application"->"System" : HAL_XSPI_SetTxDMA() note right: Link/store Tx HAL DMA handle into the HAL XSPI handle "User Application" <-- "System" "User Application"->"System" : HAL_XSPI_SetRxDMA() note right: Link/store Rx HAL DMA handle into the HAL XSPI handle "User Application" <-- "System" == Configuration == "User Application"->" XSPI Driver" : HAL_ XSPI_SetConfig note right: Global configuration " XSPI Driver" --> "User Application" ::hal_status : HAL_OK or INVALID_PARAM "User Application"->" XSPI Driver" : HAL_XSPI_OSPI_SetConfigDelay() note right:Set delay block configuration " XSPI Driver" --> "User Application":hal_status : HAL_OK or HAL_ERROR == Process interrupt mode == participant "DMA Driver" "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd_IT() note right:Enable write operation "IRQHandler"<- : Interrupt "IRQHandler" --> " XSPI Driver" : HAL_XSPI_IRQHandler(&hxspi) " XSPI Driver"-->"User Application" : HAL_XSPI_CmdCpltCallback() "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() note right:Reconfigure XSPI to AutoPolling mode to wait enabling write opertation " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_ExecuteRegularAutoPolling_IT() "IRQHandler"<- : Interrupt "IRQHandler" --> " XSPI Driver" : HAL_XSPI_IRQHandler(&hxspi) " XSPI Driver"-->"User Application" : HAL_XSPI_StatusMatchCallback() "User Application"->" XSPI Driver" : HAL_XSPI_SetFifoThreshold() " XSPI Driver" --> "User Application" :hal_status : HAL_OK or HAL_ERROR == Process DMA mode == "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() note right:ReConfigure write operation " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_Transmit_DMA() note right: Start DMA channel transfer with interrupt enabled "IRQHandler"<- : Interrupt "DMA Driver"<--"IRQHandler":"HAL_DMA_IRQHandler(&hdma)" "DMA Driver" --> " XSPI Driver" : DMA_Transfer_Complete " XSPI Driver"-->"User Application" : HAL_XSPI_TxCpltCallback() "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() "User Application"->" XSPI Driver" : HAL_XSPI_ExecuteRegularAutoPolling_IT() note right: Reconfigure XSPI to AutoPolling mode to Wait end of operation "IRQHandler"<- : Interrupt "IRQHandler" --> " XSPI Driver" : HAL_XSPI_IRQHandler(&hxspi) " XSPI Driver"-->"User Application" : HAL_XSPI_StatusMatchCallback() "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() note right:ReConfigure Read operation " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_Receive_DMA() note right: Start DMA channel transfer with interrupt enabled "IRQHandler"<- : Interrupt "DMA Driver"<--"IRQHandler":"HAL_DMA_IRQHandler(&hdma)" "DMA Driver" --> " XSPI Driver" : DMA_Transfer_Complete " XSPI Driver"-->"User Application" : HAL_XSPI_RxCpltCallback() @enduml

Functions called:

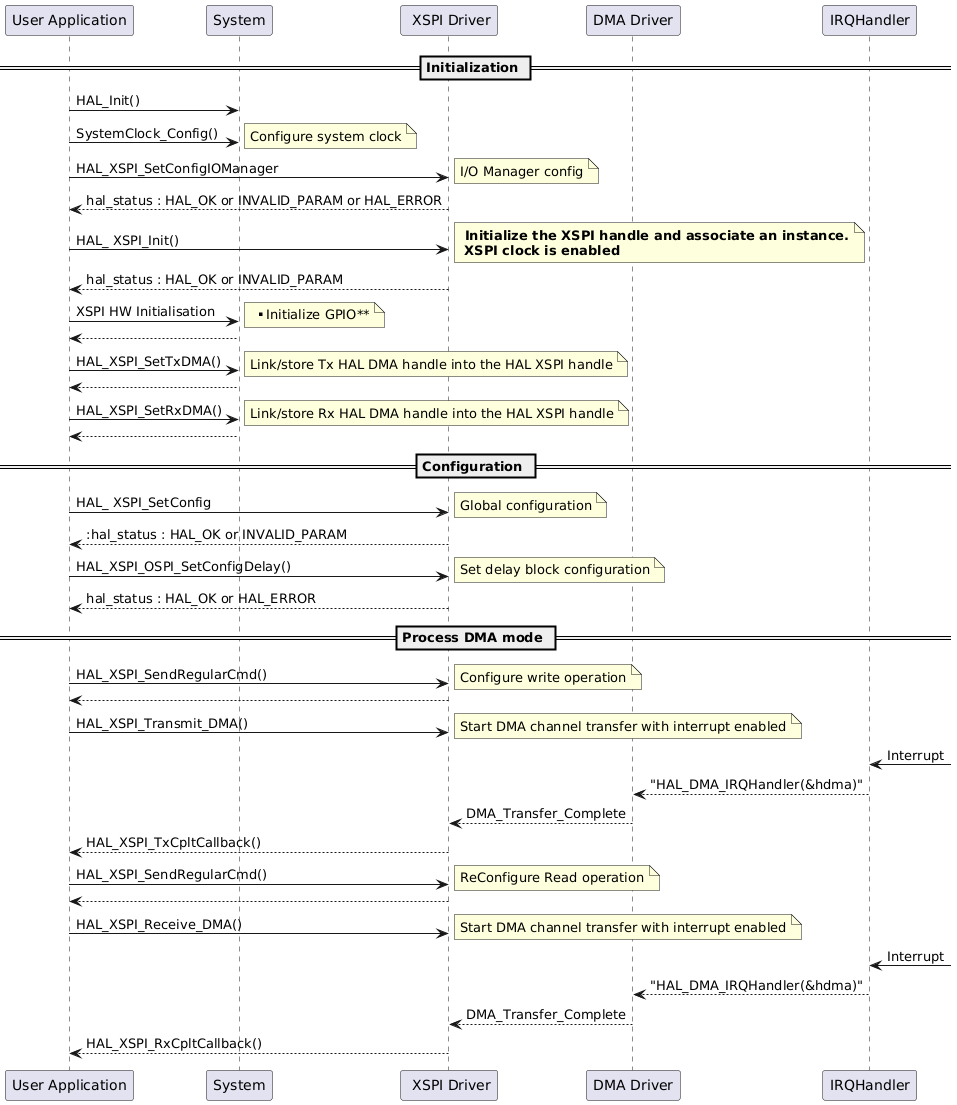

User Application Starting a Write/Read in DMA Mode for Regular Memory (PSRAM)

@startuml == Initialization == "User Application"->"System" : HAL_Init() "User Application"->"System" : SystemClock_Config() note right: Configure system clock "User Application"->" XSPI Driver" : HAL_XSPI_SetConfigIOManager note right:I/O Manager config " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM or HAL_ERROR "User Application"->" XSPI Driver" : HAL_ XSPI_Init() note right: <b> Initialize the XSPI handle and associate an instance.\n <b>XSPI clock is enabled " XSPI Driver" --> "User Application":hal_status : HAL_OK or INVALID_PARAM "User Application"->"System" : XSPI HW Initialisation note right: ** Initialize GPIO** "System" --> "User Application" "User Application"->"System" : HAL_XSPI_SetTxDMA() note right: Link/store Tx HAL DMA handle into the HAL XSPI handle "User Application" <-- "System" "User Application"->"System" : HAL_XSPI_SetRxDMA() note right: Link/store Rx HAL DMA handle into the HAL XSPI handle "User Application" <-- "System" == Configuration == "User Application"->" XSPI Driver" : HAL_ XSPI_SetConfig note right: Global configuration " XSPI Driver" --> "User Application" ::hal_status : HAL_OK or INVALID_PARAM "User Application"->" XSPI Driver" : HAL_XSPI_OSPI_SetConfigDelay() note right:Set delay block configuration " XSPI Driver" --> "User Application":hal_status : HAL_OK or HAL_ERROR == Process DMA mode == "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() note right:Configure write operation " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_Transmit_DMA() note right: Start DMA channel transfer with interrupt enabled participant "DMA Driver" "IRQHandler"<- : Interrupt "DMA Driver"<--"IRQHandler":"HAL_DMA_IRQHandler(&hdma)" "DMA Driver" --> " XSPI Driver" : DMA_Transfer_Complete " XSPI Driver"-->"User Application" : HAL_XSPI_TxCpltCallback() "User Application"->" XSPI Driver" : HAL_XSPI_SendRegularCmd() note right:ReConfigure Read operation " XSPI Driver" --> "User Application" "User Application"->" XSPI Driver" : HAL_XSPI_Receive_DMA() note right: Start DMA channel transfer with interrupt enabled "IRQHandler"<- : Interrupt "DMA Driver"<--"IRQHandler":"HAL_DMA_IRQHandler(&hdma)" "DMA Driver" --> " XSPI Driver" : DMA_Transfer_Complete " XSPI Driver"-->"User Application" : HAL_XSPI_RxCpltCallback() @enduml

Functions called:
