HAL SPI Use Cases

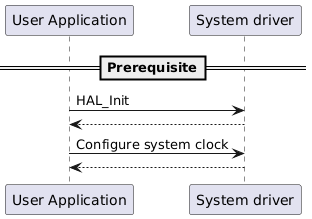

Prerequisite

@startuml ==Prerequisite== "User Application"->"System driver" : HAL_Init "System driver" --> "User Application" "User Application"->"System driver" : Configure system clock "System driver" --> "User Application" @enduml

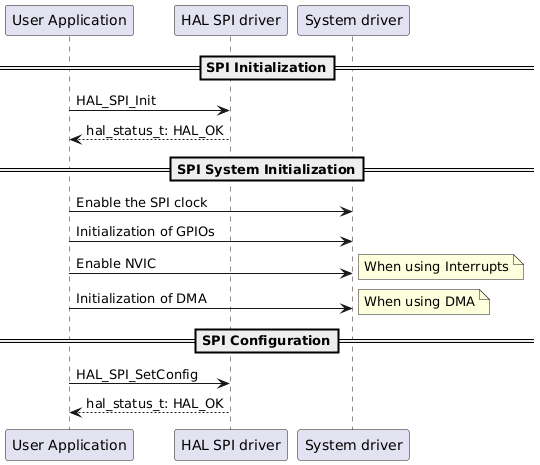

Full SPI Initialization Sequence

@startuml ==SPI Initialization== "User Application"->"HAL SPI driver" : HAL_SPI_Init "User Application" <-- "HAL SPI driver" : hal_status_t: HAL_OK ==SPI System Initialization== "User Application"->"System driver" : Enable the SPI clock "User Application"->"System driver" : Initialization of GPIOs "User Application"->"System driver" : Enable NVIC note right: When using Interrupts "User Application"->"System driver" : Initialization of DMA note right: When using DMA ==SPI Configuration== "User Application"->"HAL SPI driver" : HAL_SPI_SetConfig "User Application" <-- "HAL SPI driver" :hal_status_t: HAL_OK @enduml

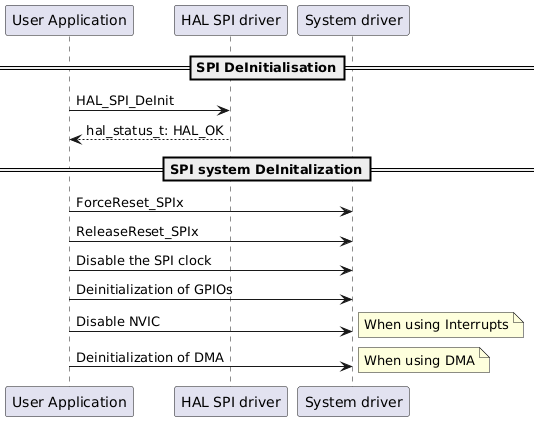

Full SPI Deinitialization Sequence

@startuml ==SPI DeInitialisation== "User Application"->"HAL SPI driver" : HAL_SPI_DeInit "User Application"<--"HAL SPI driver" :hal_status_t: HAL_OK ==SPI system DeInitalization== "User Application"->"System driver" : ForceReset_SPIx "User Application"->"System driver" : ReleaseReset_SPIx "User Application"->"System driver" : Disable the SPI clock "User Application"->"System driver" : Deinitialization of GPIOs "User Application"->"System driver" : Disable NVIC note right: When using Interrupts "User Application"->"System driver" : Deinitialization of DMA note right: When using DMA @enduml

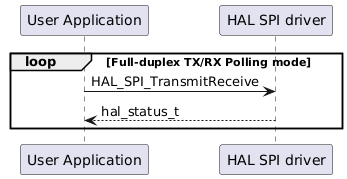

Process Polling

@startuml group loop [Full-duplex TX/RX Polling mode] "User Application"->"HAL SPI driver" : HAL_SPI_TransmitReceive "User Application" <-- "HAL SPI driver" : hal_status_t end @enduml

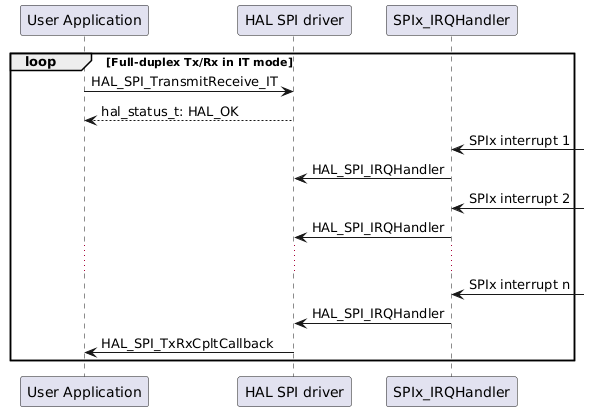

Process Full-Duplex IT

@startuml group loop [Full-duplex Tx/Rx in IT mode] "User Application"->"HAL SPI driver" : HAL_SPI_TransmitReceive_IT "User Application" <-- "HAL SPI driver" :hal_status_t: HAL_OK "SPIx_IRQHandler" <- : SPIx interrupt 1 "HAL SPI driver" <- "SPIx_IRQHandler" : HAL_SPI_IRQHandler "SPIx_IRQHandler" <- : SPIx interrupt 2 "HAL SPI driver" <- "SPIx_IRQHandler" : HAL_SPI_IRQHandler ... "SPIx_IRQHandler" <- : SPIx interrupt n "HAL SPI driver" <- "SPIx_IRQHandler" : HAL_SPI_IRQHandler "User Application" <- "HAL SPI driver" : HAL_SPI_TxRxCpltCallback end @enduml

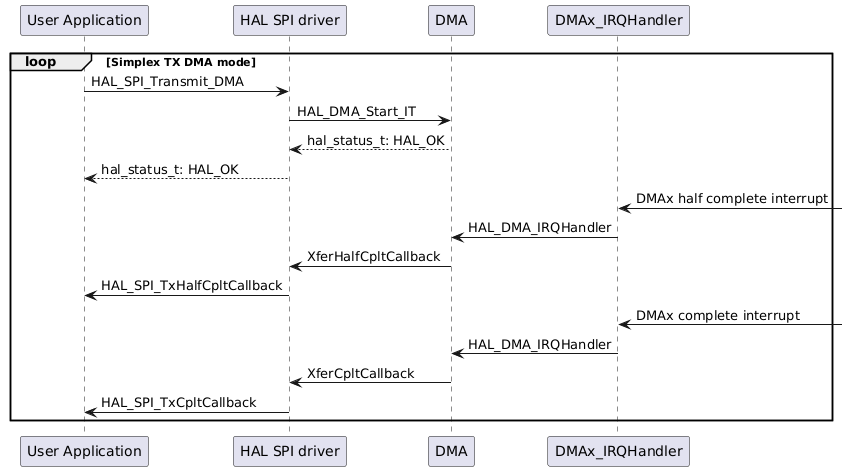

Process Simplex TX DMA

@startuml group loop [Simplex TX DMA mode] "User Application"->"HAL SPI driver" : HAL_SPI_Transmit_DMA "HAL SPI driver"-> "DMA" : HAL_DMA_Start_IT "DMA" --> "HAL SPI driver" : hal_status_t: HAL_OK "User Application" <-- "HAL SPI driver" : hal_status_t: HAL_OK "DMAx_IRQHandler" <- : DMAx half complete interrupt "DMAx_IRQHandler" -> "DMA" : HAL_DMA_IRQHandler "DMA" -> "HAL SPI driver" : XferHalfCpltCallback "HAL SPI driver"-> "User Application" : HAL_SPI_TxHalfCpltCallback "DMAx_IRQHandler" <- : DMAx complete interrupt "DMAx_IRQHandler" -> "DMA" : HAL_DMA_IRQHandler "DMA" -> "HAL SPI driver" : XferCpltCallback "HAL SPI driver"-> "User Application" : HAL_SPI_TxCpltCallback end @enduml

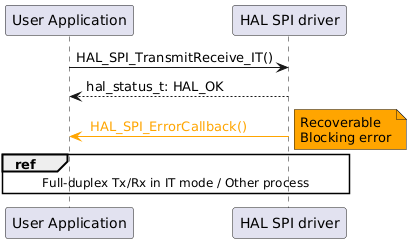

Recoverable Blocking Error

@startuml "User Application"->"HAL SPI driver" : HAL_SPI_TransmitReceive_IT() "User Application" <-- "HAL SPI driver" : hal_status_t: HAL_OK "User Application" <-[#Orange] "HAL SPI driver" : <color #Orange> HAL_SPI_ErrorCallback() </color> note right #Orange : Recoverable\nBlocking error ref over "User Application", "HAL SPI driver" : Full-duplex Tx/Rx in IT mode / Other process @enduml

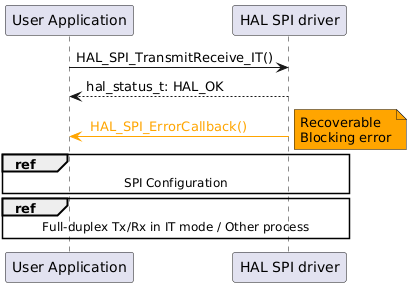

Recoverable Blocking Error: MODF

@startuml "User Application"->"HAL SPI driver" : HAL_SPI_TransmitReceive_IT() "User Application" <-- "HAL SPI driver" : hal_status_t: HAL_OK "User Application" <-[#Orange] "HAL SPI driver" : <color #Orange> HAL_SPI_ErrorCallback() </color> note right #Orange : Recoverable\nBlocking error ref over "User Application", "HAL SPI driver" : SPI Configuration ref over "User Application", "HAL SPI driver" : Full-duplex Tx/Rx in IT mode / Other process @enduml

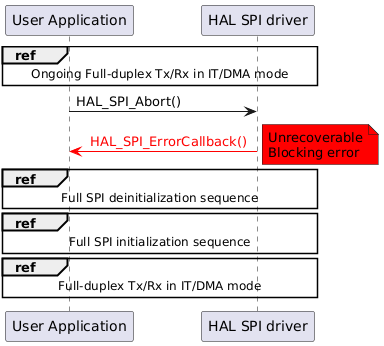

Unrecoverable Blocking Error: ABORT

@startuml ref over "User Application", "HAL SPI driver" : Ongoing Full-duplex Tx/Rx in IT/DMA mode "User Application"->"HAL SPI driver" : HAL_SPI_Abort() "User Application" <-[#FF0000] "HAL SPI driver" : <color #FF0000> HAL_SPI_ErrorCallback() </color> note right #FF0000 : Unrecoverable\nBlocking error ref over "User Application", "HAL SPI driver" : Full SPI deinitialization sequence ref over "User Application", "HAL SPI driver" : Full SPI initialization sequence ref over "User Application", "HAL SPI driver" : Full-duplex Tx/Rx in IT/DMA mode @enduml

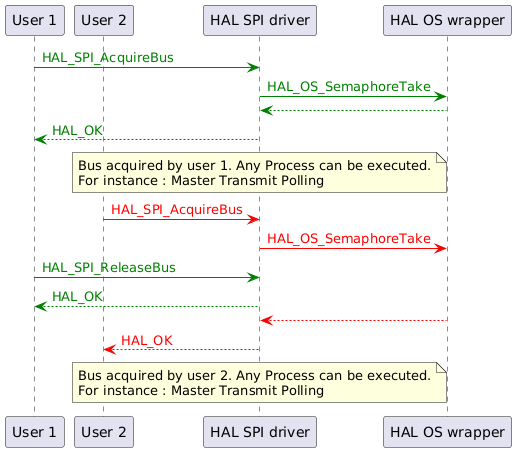

MUTEX Use

@startuml participant "User 1" participant "User 2" participant "HAL SPI driver" participant "HAL OS wrapper" "User 1"-[#green]>"HAL SPI driver" : <color #green>HAL_SPI_AcquireBus</color> "HAL SPI driver"-[#green]>"HAL OS wrapper" :<color #green>HAL_OS_SemaphoreTake</color> "HAL SPI driver" <-[#green]- "HAL OS wrapper" "User 1" <-[#green]- "HAL SPI driver" : <color #green>HAL_OK</color> note over "HAL SPI driver" : Bus acquired by user 1. Any Process can be executed.\nFor instance : Master Transmit Polling "User 2"-[#red]>"HAL SPI driver" : <color #red>HAL_SPI_AcquireBus</color> "HAL SPI driver"-[#red]>"HAL OS wrapper" :<color #red>HAL_OS_SemaphoreTake</color> "User 1"-[#green]>"HAL SPI driver" : <color #green>HAL_SPI_ReleaseBus</color> "User 1" <-[#green]- "HAL SPI driver" : <color #green>HAL_OK</color> "HAL SPI driver" <-[#red]- "HAL OS wrapper" "User 2" <-[#red]- "HAL SPI driver" : <color #red>HAL_OK</color> note over "HAL SPI driver" : Bus acquired by user 2. Any Process can be executed.\nFor instance : Master Transmit Polling @enduml
