HAL USART Use Cases

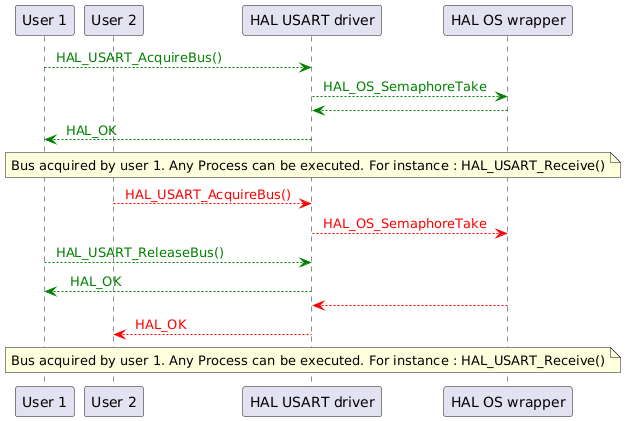

Acquire Release Bus

@startuml participant "User 1" as p1 participant "User 2" as p2 participant "HAL USART driver" as p3 participant "HAL OS wrapper" as p4 p1-[#green]->p3 : <color #Green> HAL_USART_AcquireBus() </color> p3-[#green]->p4 : <color #Green> HAL_OS_SemaphoreTake </color> p4-[#green]-->p3 p3-[#green]-->p1: <color #Green> HAL_OK </color> note over p3 Bus acquired by user 1. Any Process can be executed. For instance : HAL_USART_Receive() end note p2-[#red]->p3 : <color #Red> HAL_USART_AcquireBus() </color> p3-[#red]->p4 : <color #Red> HAL_OS_SemaphoreTake </color> p1-[#green]->p3 : <color #Green> HAL_USART_ReleaseBus() </color> p3-[#green]-->p1:<color #Green> HAL_OK </color> p4-[#red]-->p3 p3-[#red]-->p2: <color #Red> HAL_OK </color> note over p3 Bus acquired by user 1. Any Process can be executed. For instance : HAL_USART_Receive() end note @enduml

Called functions:

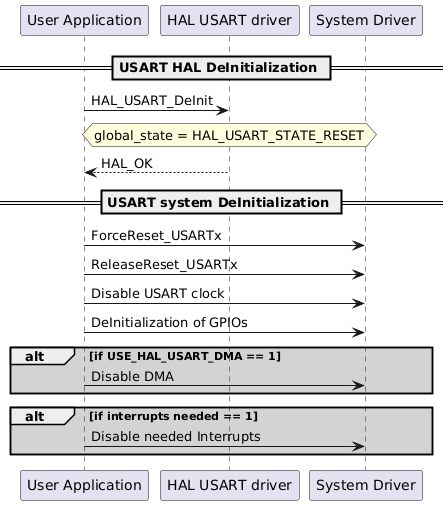

Full Denit

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 participant "System Driver" as p3 == USART HAL DeInitialization == p1->p2: HAL_USART_DeInit hnote over p2 global_state = HAL_USART_STATE_RESET end note p2-->p1: HAL_OK == USART system DeInitialization == p1->p3: ForceReset_USARTx p1->p3: ReleaseReset_USARTx p1->p3: Disable USART clock p1->p3: DeInitialization of GPIOs alt #lightgrey if USE_HAL_USART_DMA == 1 p1->p3: Disable DMA end alt #lightgrey if interrupts needed == 1 p1->p3: Disable needed Interrupts end @enduml

Called functions:

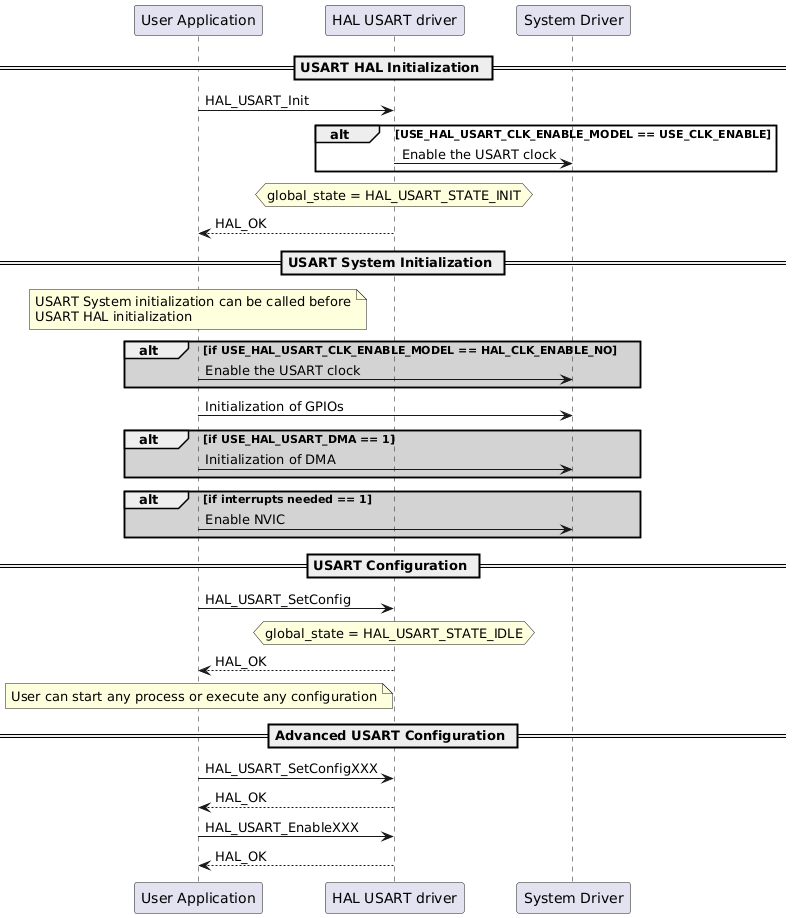

Full Init

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 participant "System Driver" as p3 == USART HAL Initialization == p1->p2: HAL_USART_Init alt USE_HAL_USART_CLK_ENABLE_MODEL == USE_CLK_ENABLE p2->p3: Enable the USART clock end hnote over p2 global_state = HAL_USART_STATE_INIT end note p2-->p1: HAL_OK == USART System Initialization == note over p1 USART System initialization can be called before USART HAL initialization end note alt #lightgrey if USE_HAL_USART_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO p1->p3: Enable the USART clock end p1->p3: Initialization of GPIOs alt #lightgrey if USE_HAL_USART_DMA == 1 p1->p3: Initialization of DMA end alt #lightgrey if interrupts needed == 1 p1->p3: Enable NVIC end == USART Configuration == p1->p2: HAL_USART_SetConfig hnote over p2 global_state = HAL_USART_STATE_IDLE end note p2-->p1:HAL_OK note over p1 User can start any process or execute any configuration end note == Advanced USART Configuration == p1->p2: HAL_USART_SetConfigXXX p2-->p1:HAL_OK p1->p2: HAL_USART_EnableXXX p2-->p1:HAL_OK @enduml

Called functions:

Prerequisite

@startuml participant "User Application" as p1 participant "System Driver" as p2 == Prerequisite == p1->p2: HAL_Init p2-->p1 p1->p2: Configure system clock p2-->p1 @enduml

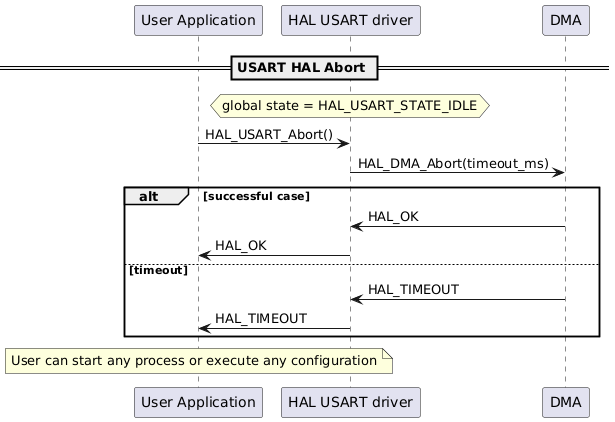

Process Abort

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 participant "DMA" as p3 == USART HAL Abort == hnote over p2 global state = HAL_USART_STATE_IDLE end note p1->p2: HAL_USART_Abort() p2->p3: HAL_DMA_Abort(timeout_ms) alt successful case p3->p2: HAL_OK p2->p1: HAL_OK else timeout p3->p2: HAL_TIMEOUT p2->p1: HAL_TIMEOUT end note over p1 User can start any process or execute any configuration end note @enduml

Called functions:

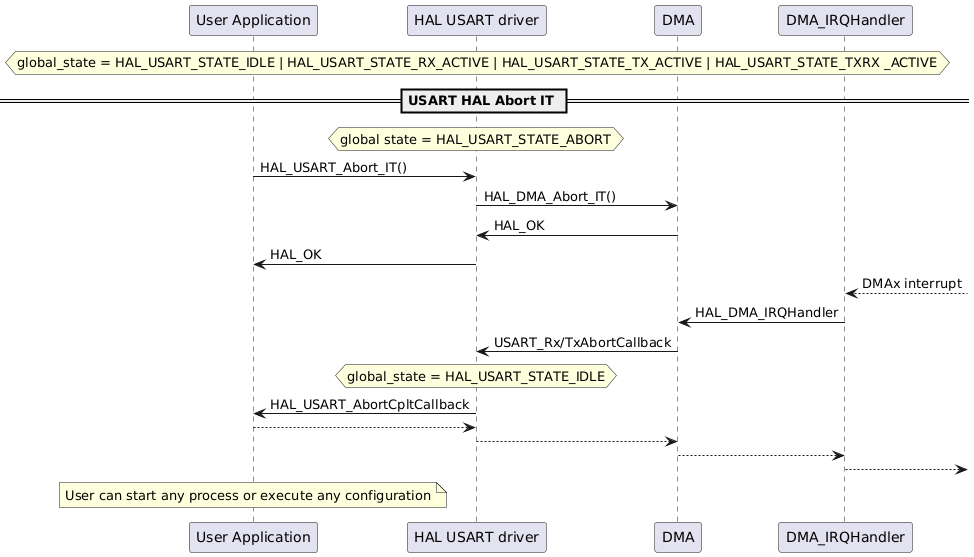

Process Abort IT

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 participant "DMA" as p3 participant "DMA_IRQHandler" as p4 hnote over p2 global_state = HAL_USART_STATE_IDLE | HAL_USART_STATE_RX_ACTIVE | HAL_USART_STATE_TX_ACTIVE | HAL_USART_STATE_TXRX _ACTIVE end note == USART HAL Abort IT == hnote over p2 global state = HAL_USART_STATE_ABORT end note p1->p2: HAL_USART_Abort_IT() p2->p3: HAL_DMA_Abort_IT() p3->p2: HAL_OK p2->p1: HAL_OK p4<--: DMAx interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: USART_Rx/TxAbortCallback hnote over p2 global_state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_AbortCpltCallback p1-->p2 p2-->p3 p3-->p4 p4--> note over p1 User can start any process or execute any configuration end note @enduml

Called functions:

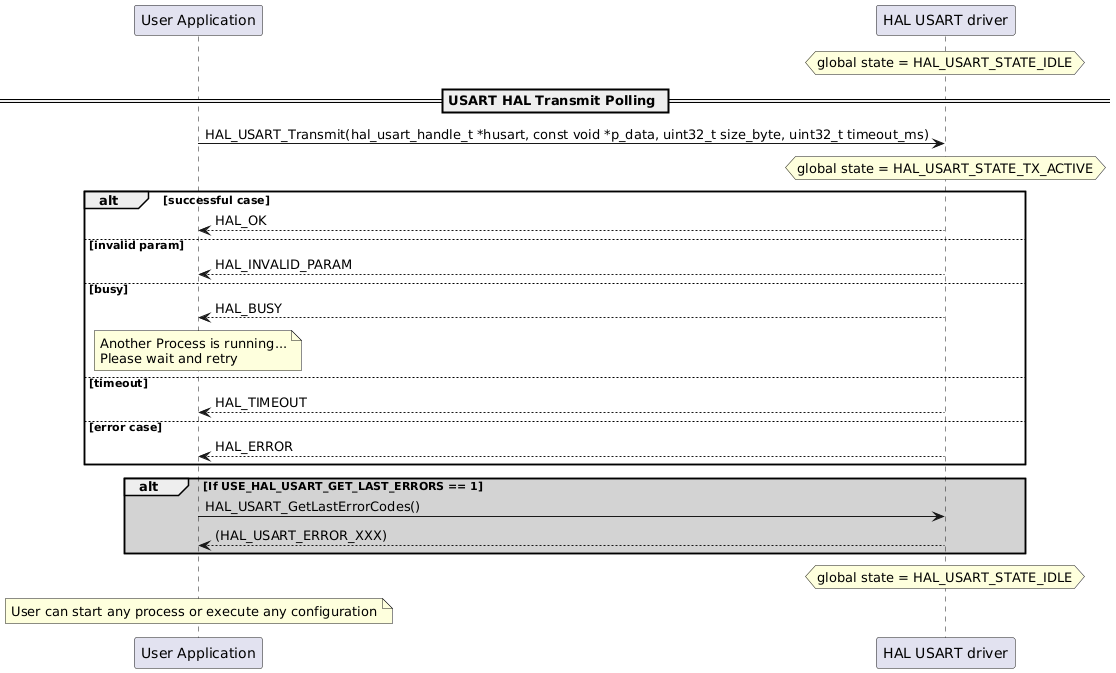

Process Polling

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 hnote over p2 global state = HAL_USART_STATE_IDLE end note == USART HAL Transmit Polling == p1->p2: HAL_USART_Transmit(hal_usart_handle_t *husart, const void *p_data, uint32_t size_byte, uint32_t timeout_ms) hnote over p2 global state = HAL_USART_STATE_TX_ACTIVE end note alt successful case p2-->p1: HAL_OK else invalid param p2-->p1: HAL_INVALID_PARAM else busy p2-->p1: HAL_BUSY note over p1 Another Process is running... Please wait and retry end note else timeout p2-->p1: HAL_TIMEOUT else error case p2-->p1: HAL_ERROR end alt #lightgrey If USE_HAL_USART_GET_LAST_ERRORS == 1 p1->p2: HAL_USART_GetLastErrorCodes() p2-->p1: (HAL_USART_ERROR_XXX) end hnote over p2 global state = HAL_USART_STATE_IDLE end note note over p1 User can start any process or execute any configuration end note @enduml

Called functions:

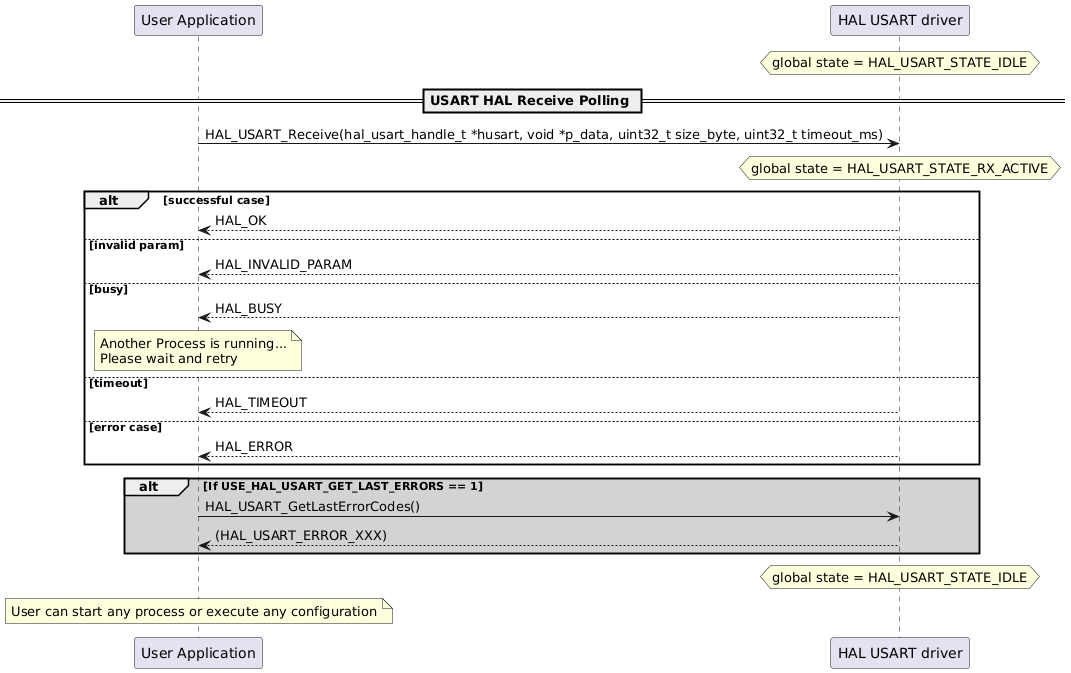

Process Polling

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 hnote over p2 global state = HAL_USART_STATE_IDLE end note == USART HAL Receive Polling == p1->p2: HAL_USART_Receive(hal_usart_handle_t *husart, void *p_data, uint32_t size_byte, uint32_t timeout_ms) hnote over p2 global state = HAL_USART_STATE_RX_ACTIVE end note alt successful case p2-->p1: HAL_OK else invalid param p2-->p1: HAL_INVALID_PARAM else busy p2-->p1: HAL_BUSY note over p1 Another Process is running... Please wait and retry end note else timeout p2-->p1: HAL_TIMEOUT else error case p2-->p1: HAL_ERROR end alt #lightgrey If USE_HAL_USART_GET_LAST_ERRORS == 1 p1->p2: HAL_USART_GetLastErrorCodes() p2-->p1: (HAL_USART_ERROR_XXX) end hnote over p2 global state = HAL_USART_STATE_IDLE end note note over p1 User can start any process or execute any configuration end note @enduml

Called functions:

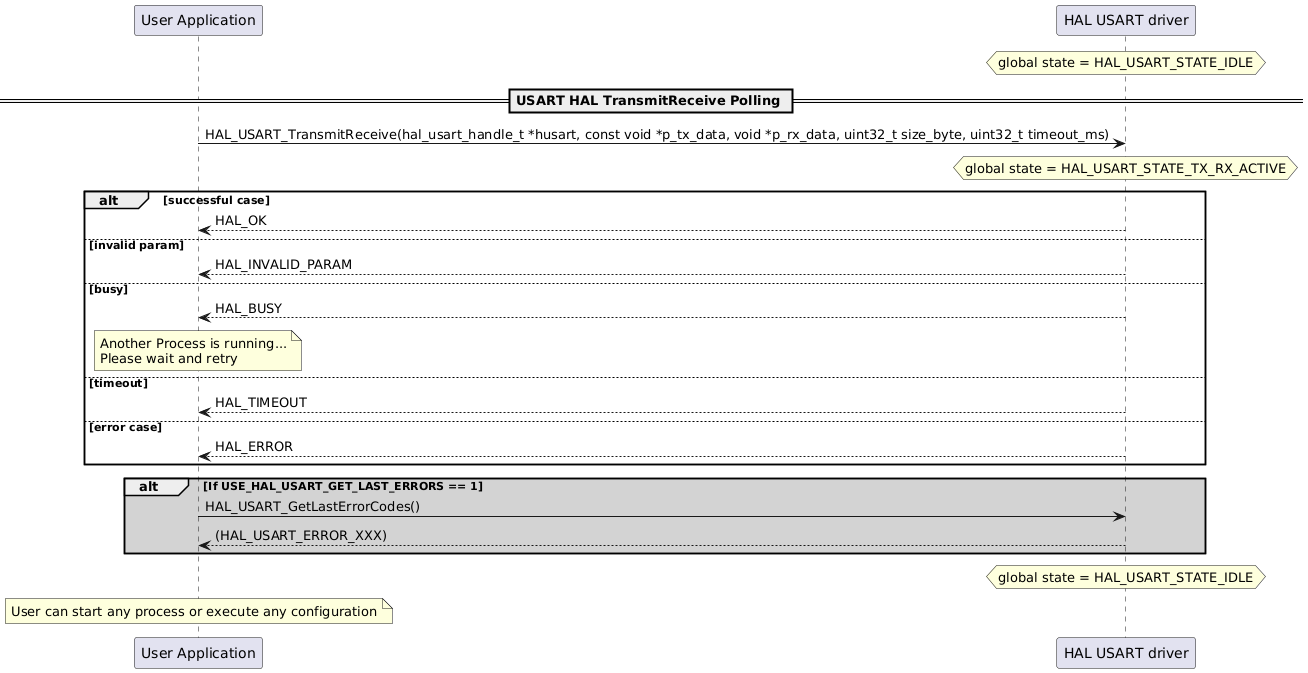

Process Polling

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 hnote over p2 global state = HAL_USART_STATE_IDLE end note == USART HAL TransmitReceive Polling == p1->p2: HAL_USART_TransmitReceive(hal_usart_handle_t *husart, const void *p_tx_data, void *p_rx_data, uint32_t size_byte, uint32_t timeout_ms) hnote over p2 global state = HAL_USART_STATE_TX_RX_ACTIVE end note alt successful case p2-->p1: HAL_OK else invalid param p2-->p1: HAL_INVALID_PARAM else busy p2-->p1: HAL_BUSY note over p1 Another Process is running... Please wait and retry end note else timeout p2-->p1: HAL_TIMEOUT else error case p2-->p1: HAL_ERROR end alt #lightgrey If USE_HAL_USART_GET_LAST_ERRORS == 1 p1->p2: HAL_USART_GetLastErrorCodes() p2-->p1: (HAL_USART_ERROR_XXX) end hnote over p2 global state = HAL_USART_STATE_IDLE end note note over p1 User can start any process or execute any configuration end note @enduml

Called functions:

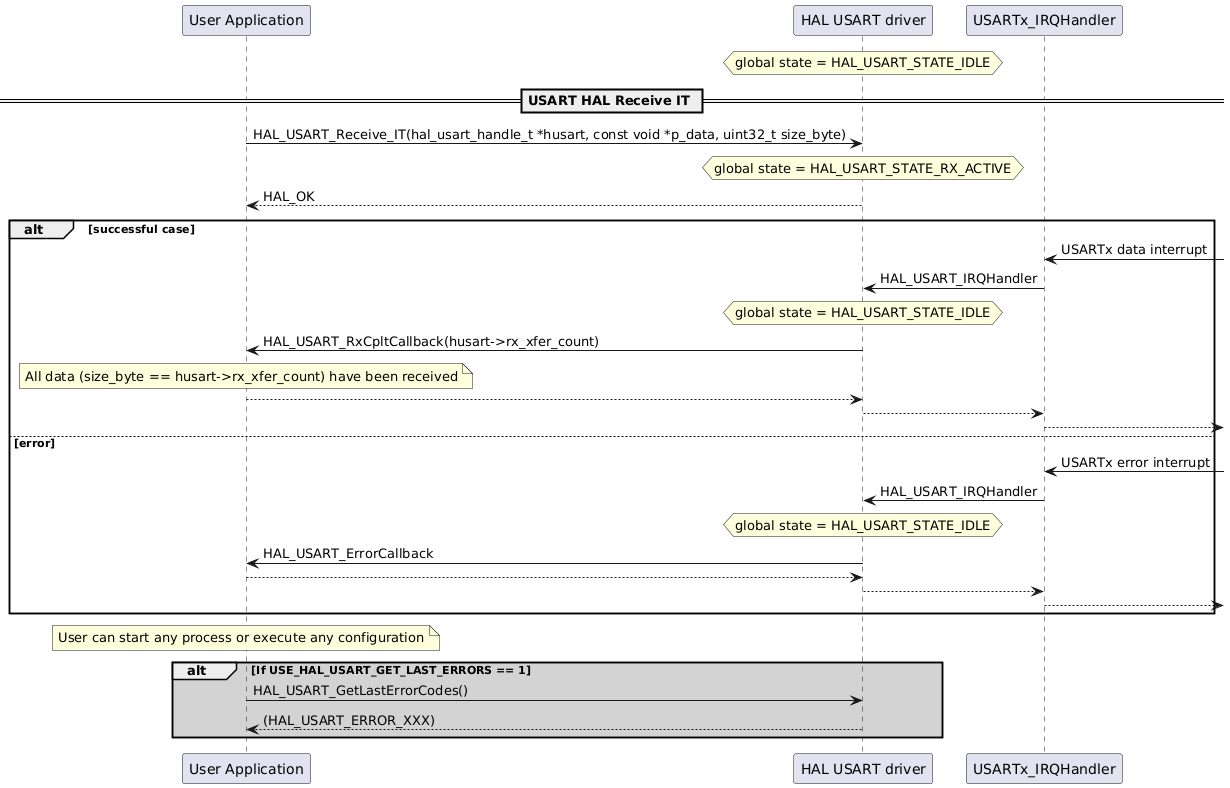

Process Rx IT

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 participant "USARTx_IRQHandler" as p3 hnote over p2 global state = HAL_USART_STATE_IDLE end note == USART HAL Receive IT == p1->p2: HAL_USART_Receive_IT(hal_usart_handle_t *husart, const void *p_data, uint32_t size_byte) hnote over p2 global state = HAL_USART_STATE_RX_ACTIVE end note p2-->p1: HAL_OK alt successful case p3<-: USARTx data interrupt p3->p2: HAL_USART_IRQHandler hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_RxCpltCallback(husart->rx_xfer_count) note over p1: All data (size_byte == husart->rx_xfer_count) have been received p1-->p2 p2-->p3 p3--> else error p3<-: USARTx error interrupt p3->p2:HAL_USART_IRQHandler hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_ErrorCallback p1-->p2 p2-->p3 p3--> end note over p1 User can start any process or execute any configuration end note alt #lightgrey If USE_HAL_USART_GET_LAST_ERRORS == 1 p1->p2: HAL_USART_GetLastErrorCodes() p2-->p1: (HAL_USART_ERROR_XXX) end @enduml

Called functions:

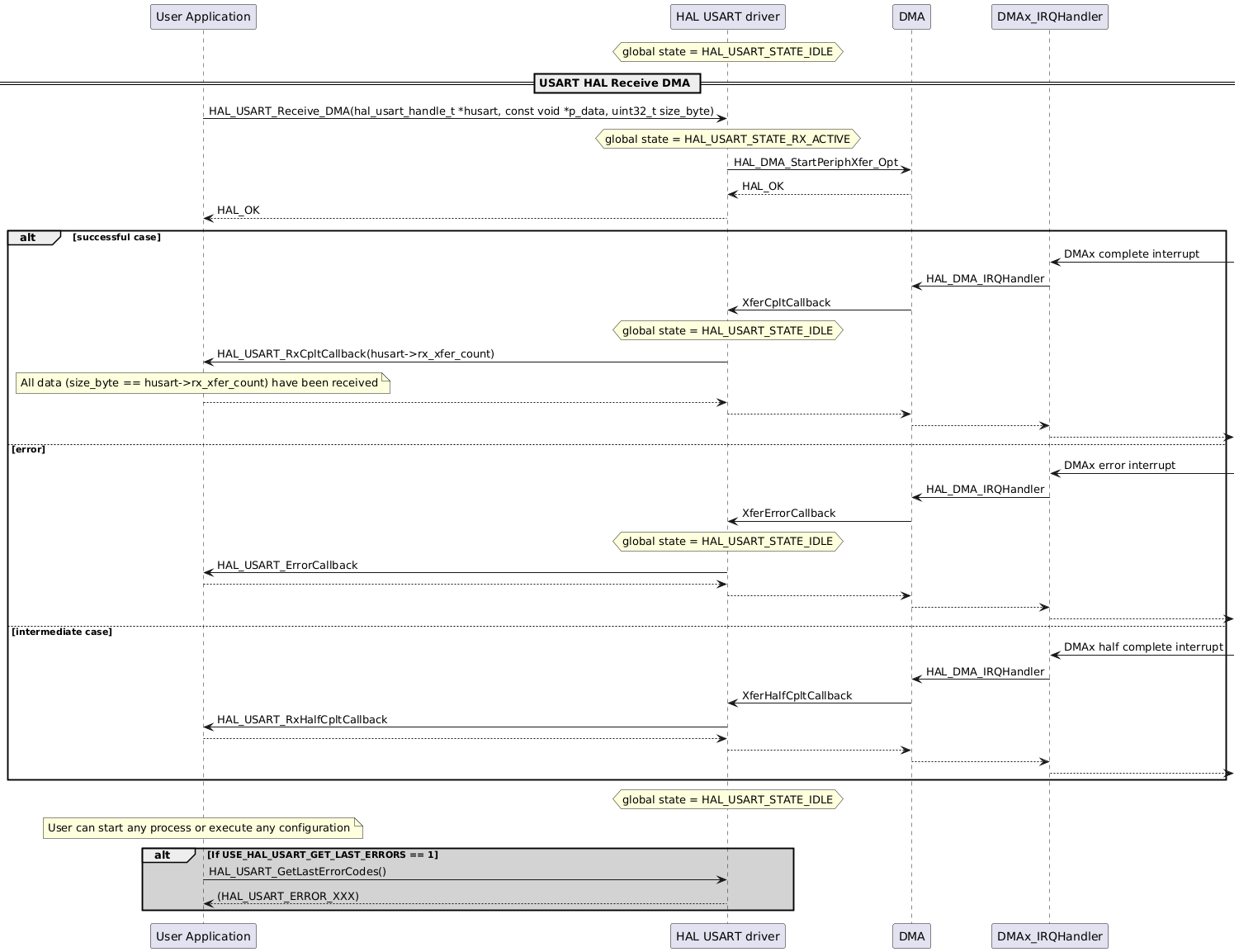

Process Rx DMA

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 participant "DMA" as p3 participant "DMAx_IRQHandler" as p4 hnote over p2 global state = HAL_USART_STATE_IDLE end note == USART HAL Receive DMA == p1->p2: HAL_USART_Receive_DMA(hal_usart_handle_t *husart, const void *p_data, uint32_t size_byte) hnote over p2 global state = HAL_USART_STATE_RX_ACTIVE end note p2->p3: HAL_DMA_StartPeriphXfer_Opt p3-->p2: HAL_OK p2-->p1: HAL_OK alt successful case p4<-: DMAx complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferCpltCallback hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_RxCpltCallback(husart->rx_xfer_count) note over p1: All data (size_byte == husart->rx_xfer_count) have been received p1-->p2 p2-->p3 p3-->p4 p4--> else error p4<-: DMAx error interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferErrorCallback hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_ErrorCallback p1-->p2 p2-->p3 p3-->p4 p4--> else intermediate case p4<-: DMAx half complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferHalfCpltCallback p2->p1: HAL_USART_RxHalfCpltCallback p1-->p2 p2-->p3 p3-->p4 p4--> end hnote over p2 global state = HAL_USART_STATE_IDLE end note note over p1 User can start any process or execute any configuration end note alt #lightgrey If USE_HAL_USART_GET_LAST_ERRORS == 1 p1->p2: HAL_USART_GetLastErrorCodes() p2-->p1: (HAL_USART_ERROR_XXX) end @enduml

Called functions:

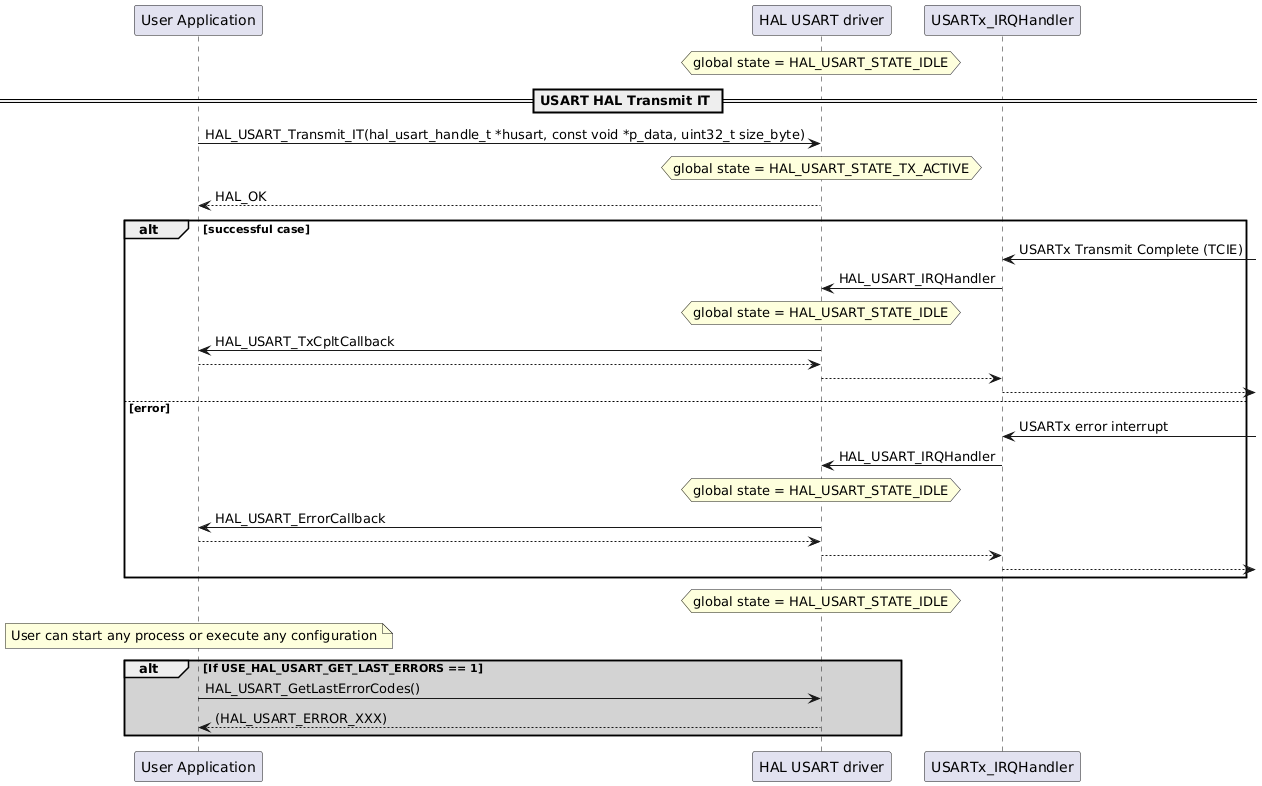

Process Tx IT

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 participant "USARTx_IRQHandler" as p3 hnote over p2 global state = HAL_USART_STATE_IDLE end note == USART HAL Transmit IT == p1->p2: HAL_USART_Transmit_IT(hal_usart_handle_t *husart, const void *p_data, uint32_t size_byte) hnote over p2 global state = HAL_USART_STATE_TX_ACTIVE end note p2-->p1: HAL_OK alt successful case p3<-: USARTx Transmit Complete (TCIE) p3->p2: HAL_USART_IRQHandler hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_TxCpltCallback p1-->p2 p2-->p3 p3--> else error p3<-: USARTx error interrupt p3->p2:HAL_USART_IRQHandler hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_ErrorCallback p1-->p2 p2-->p3 p3--> end hnote over p2 global state = HAL_USART_STATE_IDLE end note note over p1 User can start any process or execute any configuration end note alt #lightgrey If USE_HAL_USART_GET_LAST_ERRORS == 1 p1->p2: HAL_USART_GetLastErrorCodes() p2-->p1: (HAL_USART_ERROR_XXX) end @enduml

Called functions:

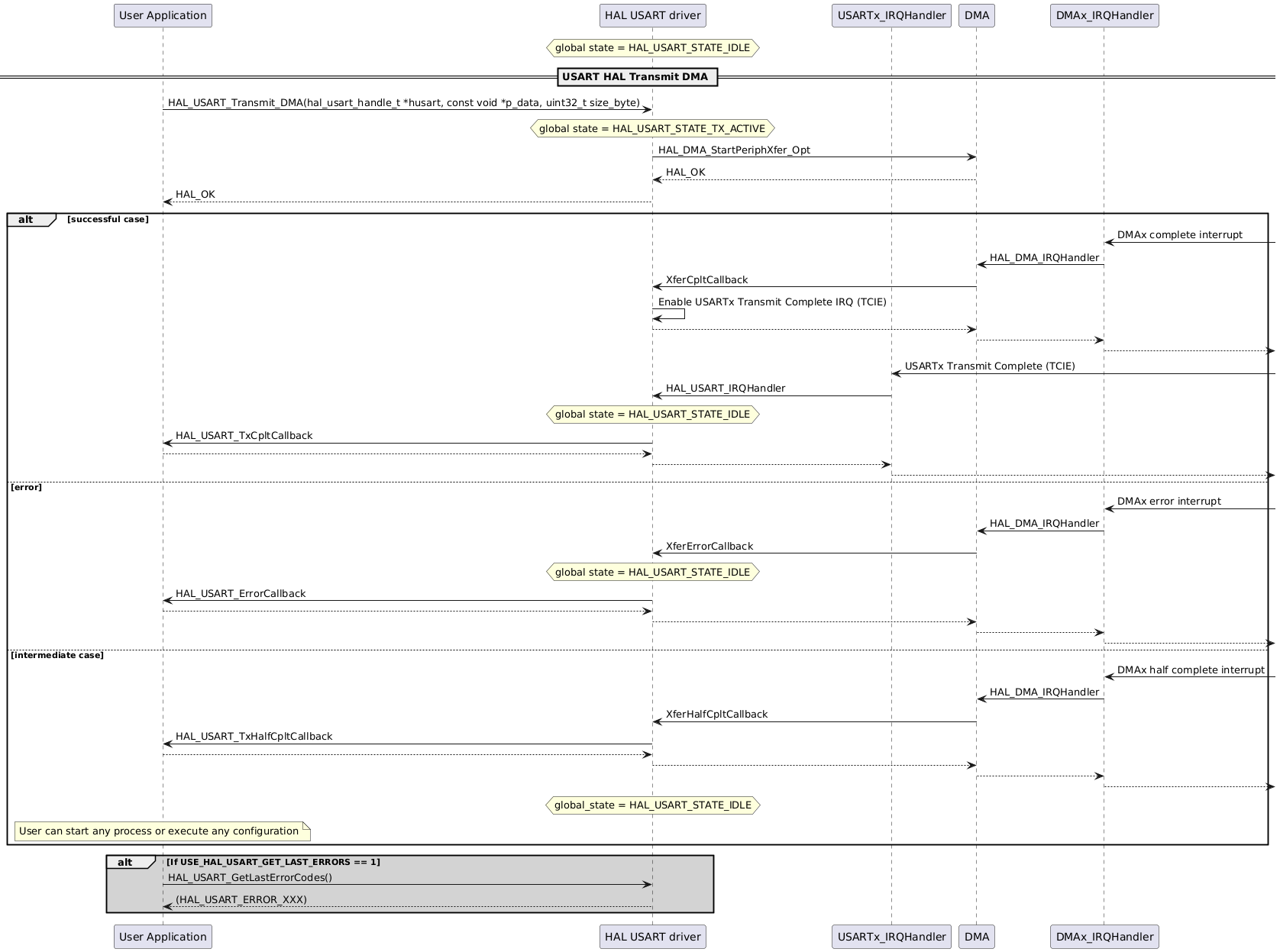

Process Tx DMA

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 participant "USARTx_IRQHandler" as p5 participant "DMA" as p3 participant "DMAx_IRQHandler" as p4 hnote over p2 global state = HAL_USART_STATE_IDLE end note == USART HAL Transmit DMA == p1->p2: HAL_USART_Transmit_DMA(hal_usart_handle_t *husart, const void *p_data, uint32_t size_byte) hnote over p2 global state = HAL_USART_STATE_TX_ACTIVE end note p2->p3: HAL_DMA_StartPeriphXfer_Opt p3-->p2: HAL_OK p2-->p1: HAL_OK alt successful case p4<-: DMAx complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferCpltCallback p2->p2: Enable USARTx Transmit Complete IRQ (TCIE) p2-->p3 p3-->p4 p4--> p5<-: USARTx Transmit Complete (TCIE) p5->p2: HAL_USART_IRQHandler hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_TxCpltCallback p1-->p2 p2-->p5 p5--> else error p4<-: DMAx error interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferErrorCallback hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_ErrorCallback p1-->p2 p2-->p3 p3-->p4 p4--> else intermediate case p4<-: DMAx half complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferHalfCpltCallback p2->p1: HAL_USART_TxHalfCpltCallback p1-->p2 p2-->p3 p3-->p4 p4--> hnote over p2 global_state = HAL_USART_STATE_IDLE end note note over p1 User can start any process or execute any configuration end note end alt #lightgrey If USE_HAL_USART_GET_LAST_ERRORS == 1 p1->p2: HAL_USART_GetLastErrorCodes() p2-->p1: (HAL_USART_ERROR_XXX) end @enduml

Called functions:

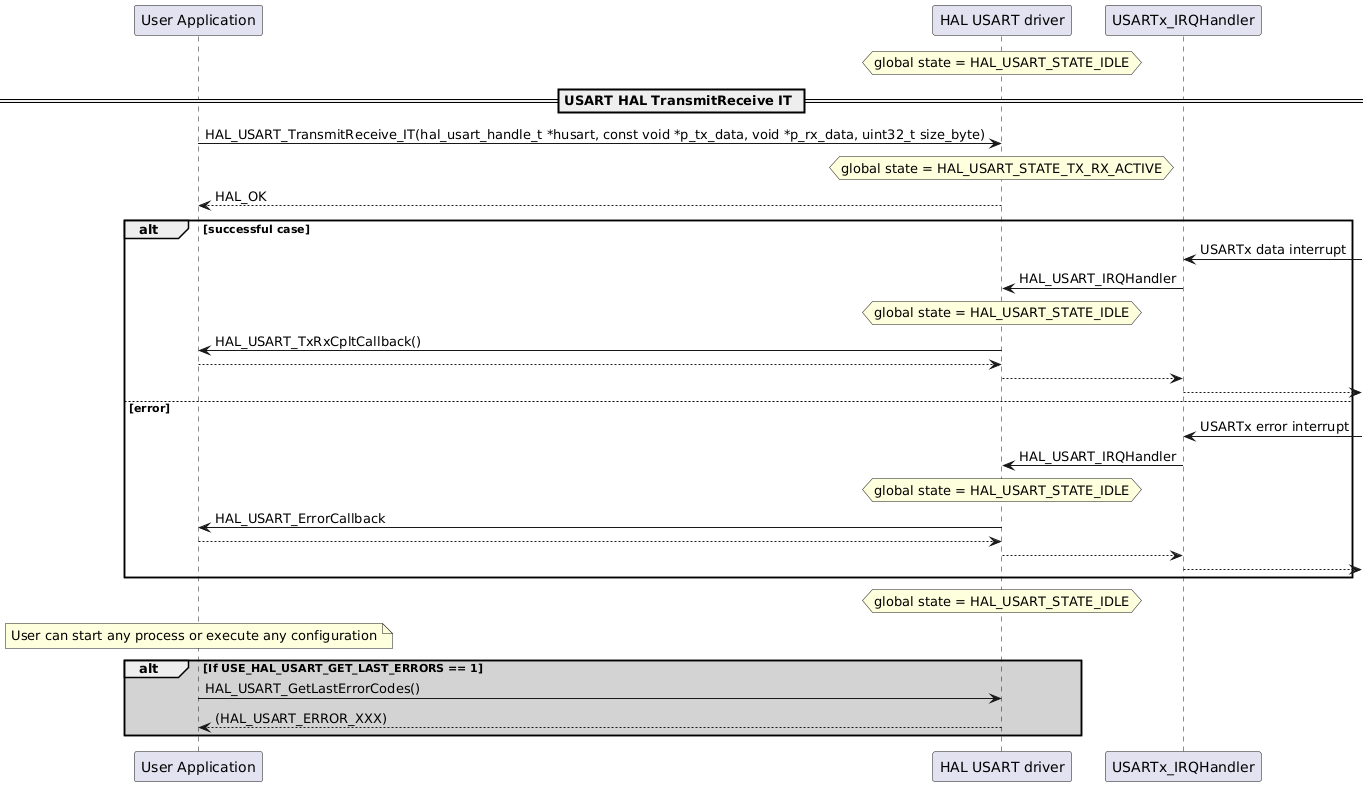

Process TxRx IT

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 participant "USARTx_IRQHandler" as p3 hnote over p2 global state = HAL_USART_STATE_IDLE end note == USART HAL TransmitReceive IT == p1->p2: HAL_USART_TransmitReceive_IT(hal_usart_handle_t *husart, const void *p_tx_data, void *p_rx_data, uint32_t size_byte) hnote over p2 global state = HAL_USART_STATE_TX_RX_ACTIVE end note p2-->p1: HAL_OK alt successful case p3<-: USARTx data interrupt p3->p2: HAL_USART_IRQHandler hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_TxRxCpltCallback() p1-->p2 p2-->p3 p3--> else error p3<-: USARTx error interrupt p3->p2:HAL_USART_IRQHandler hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_ErrorCallback p1-->p2 p2-->p3 p3--> end hnote over p2 global state = HAL_USART_STATE_IDLE end note note over p1 User can start any process or execute any configuration end note alt #lightgrey If USE_HAL_USART_GET_LAST_ERRORS == 1 p1->p2: HAL_USART_GetLastErrorCodes() p2-->p1: (HAL_USART_ERROR_XXX) end @enduml

Called functions:

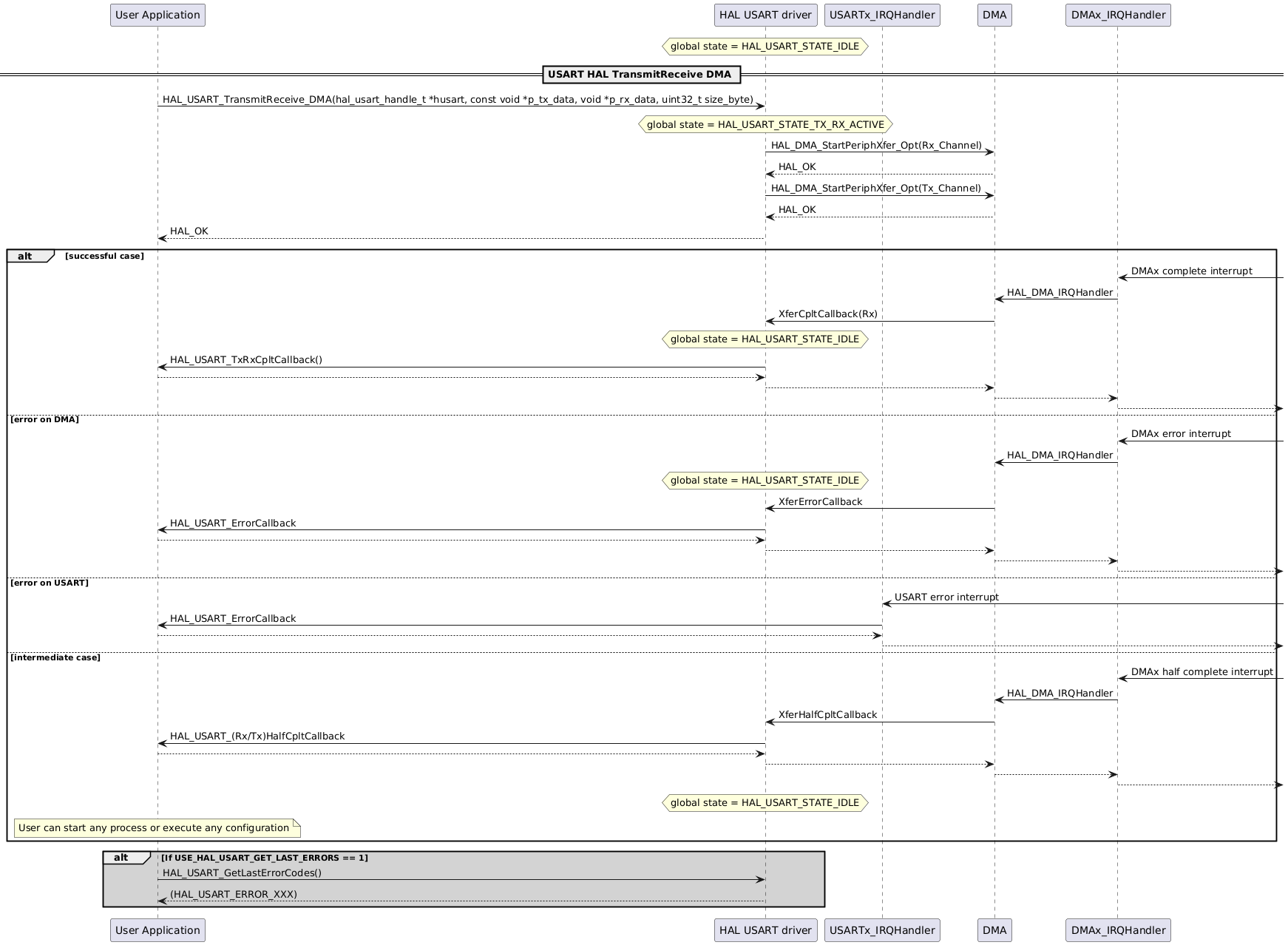

Process TxRx DMA

@startuml participant "User Application" as p1 participant "HAL USART driver" as p2 participant "USARTx_IRQHandler" as p3 participant "DMA" as p4 participant "DMAx_IRQHandler" as p5 hnote over p2 global state = HAL_USART_STATE_IDLE end note == USART HAL TransmitReceive DMA == p1->p2: HAL_USART_TransmitReceive_DMA(hal_usart_handle_t *husart, const void *p_tx_data, void *p_rx_data, uint32_t size_byte) hnote over p2 global state = HAL_USART_STATE_TX_RX_ACTIVE end note p2->p4: HAL_DMA_StartPeriphXfer_Opt(Rx_Channel) p4-->p2: HAL_OK p2->p4: HAL_DMA_StartPeriphXfer_Opt(Tx_Channel) p4-->p2: HAL_OK p2-->p1: HAL_OK alt successful case p5<-: DMAx complete interrupt p5->p4: HAL_DMA_IRQHandler p4->p2: XferCpltCallback(Rx) hnote over p2 global state = HAL_USART_STATE_IDLE end note p2->p1: HAL_USART_TxRxCpltCallback() p1-->p2 p2-->p4 p4-->p5 p5--> else error on DMA p5<-: DMAx error interrupt p5->p4: HAL_DMA_IRQHandler hnote over p2 global state = HAL_USART_STATE_IDLE end note p4->p2: XferErrorCallback p2->p1: HAL_USART_ErrorCallback p1-->p2 p2-->p4 p4-->p5 p5--> else error on USART p3<-: USART error interrupt p3->p1: HAL_USART_ErrorCallback p1-->p3 p3--> else intermediate case p5<-: DMAx half complete interrupt p5->p4: HAL_DMA_IRQHandler p4->p2: XferHalfCpltCallback p2->p1: HAL_USART_(Rx/Tx)HalfCpltCallback p1-->p2 p2-->p4 p4-->p5 p5--> hnote over p2 global state = HAL_USART_STATE_IDLE end note note over p1 User can start any process or execute any configuration end note end alt #lightgrey If USE_HAL_USART_GET_LAST_ERRORS == 1 p1->p2: HAL_USART_GetLastErrorCodes() p2-->p1: (HAL_USART_ERROR_XXX) end @enduml

Called functions:
