HAL DAC Use Cases ¶

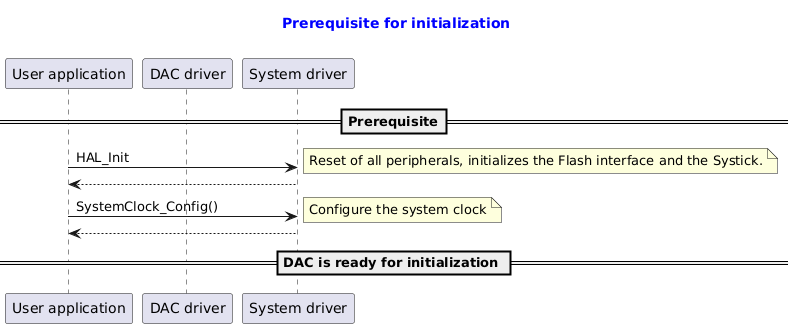

Prerequisite ¶

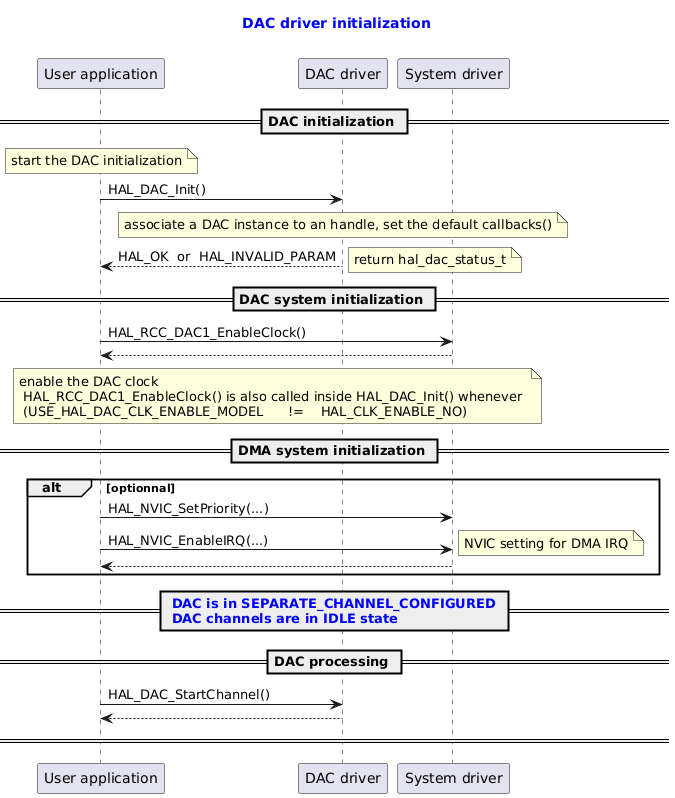

DAC Initialization ¶

$@startuml title DAC driver initialization end title ' Fix order of each column participant "User application" as user participant "DAC driver" as dac participant "System driver" as system == DAC initialization == note over user: start the DAC initialization user -> dac : HAL_DAC_Init() note over dac : associate a DAC instance to an handle, set the default callbacks() dac --> user : HAL_OK or HAL_INVALID_PARAM note right: return hal_dac_status_t == DAC system initialization == user -> system : HAL_RCC_DAC1_EnableClock() system --> user note over user, system: enable the DAC clock\n HAL_RCC_DAC1_EnableClock() is also called inside HAL_DAC_Init() whenever \n (USE_HAL_DAC_CLK_ENABLE_MODEL \t != \t HAL_CLK_ENABLE_NO) == DMA system initialization == alt optionnal user -> system : HAL_NVIC_SetPriority(...) user -> system : HAL_NVIC_EnableIRQ(...) note right: NVIC setting for DMA IRQ system --> user end == DAC is in SEPARATE_CHANNEL_CONFIGURED \n DAC channels are in IDLE state == == DAC processing == user -> dac : HAL_DAC_StartChannel() dac --> user == == @enduml$

Called functions:

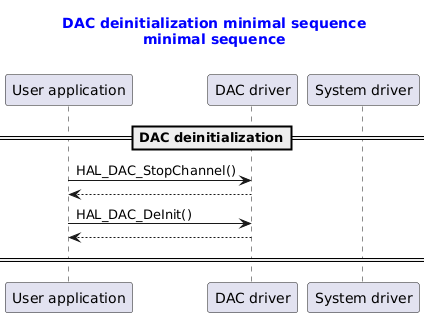

DAC Deinitialization Minimal Sequence ¶

@startuml

title
 DAC deinitialization minimal sequence
 minimal sequence

end title

participant "User application" as user
participant "DAC driver" as dac
participant "System driver" as system

==DAC deinitialization==
user -> dac : HAL_DAC_StopChannel()
dac --> user
user -> dac : HAL_DAC_DeInit()
dac --> user
== ==

@enduml

Called functions:

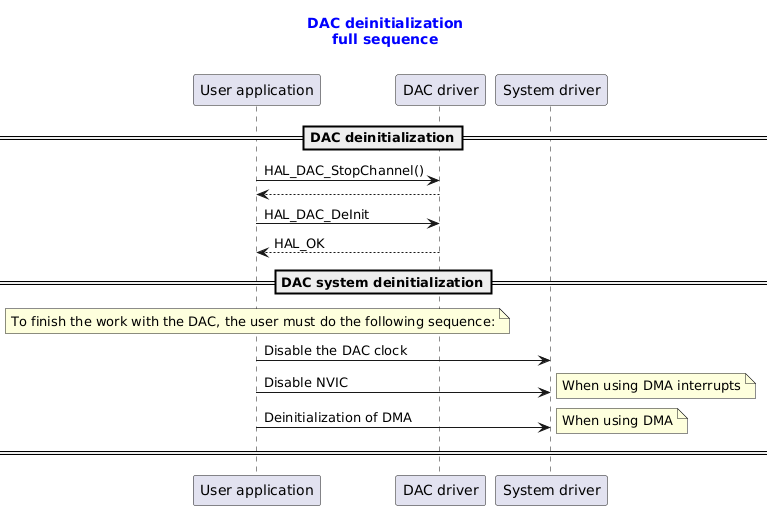

DAC Deinitialization Full Sequence ¶

Called functions:

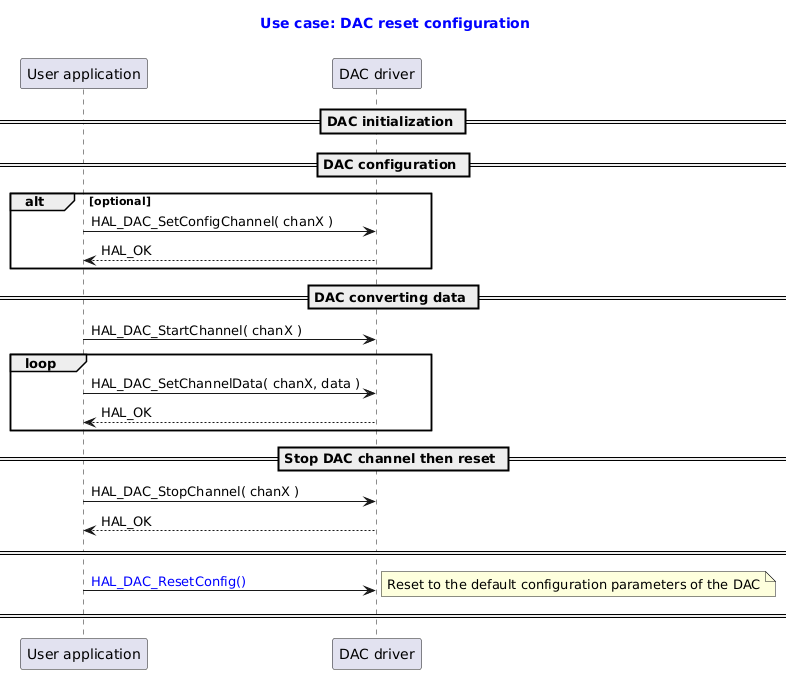

DAC Reset Configuration ¶

Called functions:

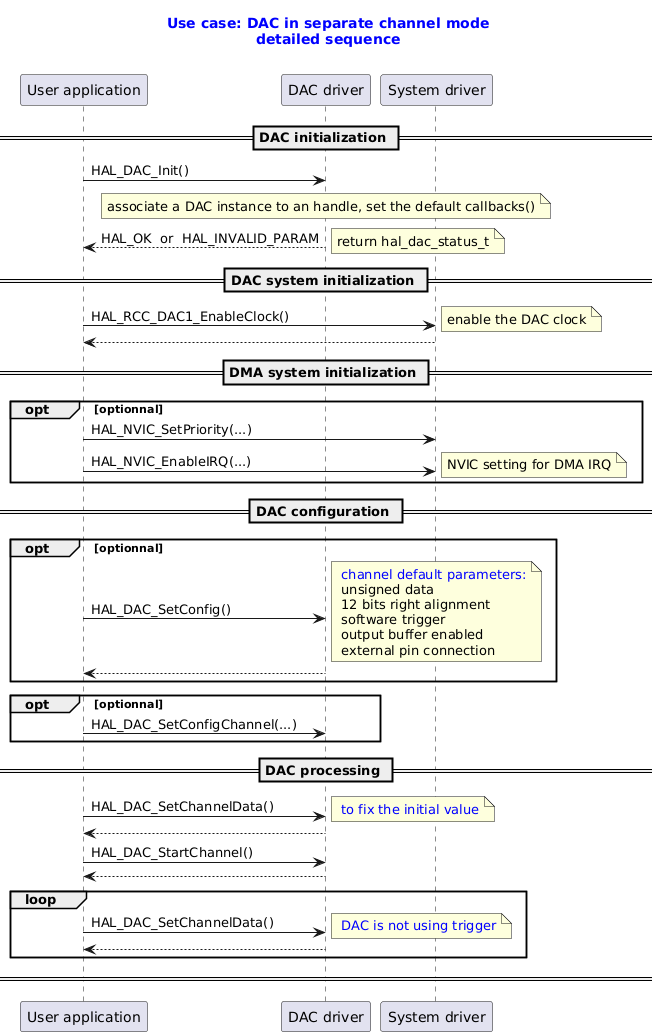

DAC Separate Channel Mode ¶

$@startuml title Use case: DAC in separate channel mode detailed sequence end title ' Fix order of each column participant "User application" as user participant "DAC driver" as dac participant "System driver" as system == DAC initialization == user -> dac : HAL_DAC_Init() note over dac : associate a DAC instance to an handle, set the default callbacks() dac --> user : HAL_OK or HAL_INVALID_PARAM note right: return hal_dac_status_t == DAC system initialization == user -> system : HAL_RCC_DAC1_EnableClock() note right: enable the DAC clock system --> user == DMA system initialization == opt optionnal user -> system : HAL_NVIC_SetPriority(...) user -> system : HAL_NVIC_EnableIRQ(...) note right: NVIC setting for DMA IRQ end == DAC configuration == opt optionnal user -> dac : HAL_DAC_SetConfig() note right: channel default parameters:\n unsigned data \n 12 bits right alignment \n software trigger \n output buffer enabled \n external pin connection dac --> user end opt optionnal user -> dac : HAL_DAC_SetConfigChannel(...) end == DAC processing == user ->dac : HAL_DAC_SetChannelData() note right: to fix the initial value dac --> user user -> dac : HAL_DAC_StartChannel() dac --> user loop user ->dac : HAL_DAC_SetChannelData() note right: DAC is not using trigger dac --> user end == == @enduml$

Called functions:

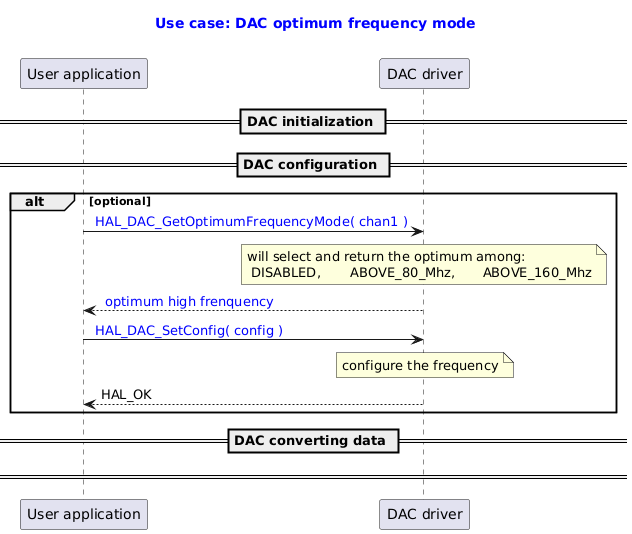

DAC Optimum Frequency Mode ¶

$@startuml title Use case: DAC optimum frequency mode end title participant "User application" as user participant "DAC driver" as dac == DAC initialization == == DAC configuration == alt optional user -> dac : HAL_DAC_GetOptimumFrequencyMode( chan1 ) note over dac: will select and return the optimum among: \n DISABLED, \t ABOVE_80_Mhz, \t ABOVE_160_Mhz dac --> user: optimum high frenquency user -> dac : HAL_DAC_SetConfig( config ) note over dac: configure the frequency dac --> user : HAL_OK end == DAC converting data == == == @enduml$

Called functions:

DAC Output Buffer Calibration ¶

$@startuml title Use case: DAC channel output buffer: calibration end title participant "User application" as user participant "DAC driver" as dac == DAC initialization == == DAC channel output buffer: calibration == group optional user -> dac : HAL_DAC_CalibrateChannelBuffer( chan ) note over dac: Run the calibration process of a DAC channel. \nAt the end, this process sets the computed calibration value in the trimming register (DAC_CCR_OTRIMx)\n in replacement of the previous one (factory one the first time). dac --> user: HAL_OK \t or \t HAL_ERROR end == DAC get or set calibration value == group optional note over user, dac: Retrieve the trimming value from DAC_CCR_OTRIMx register. user -> dac : HAL_DAC_GetChannelBufferCalibrationValue( chan, value ) dac --> user : trimming value note over user, dac: Set a trimming value. user -> dac : HAL_DAC_SetChannelBufferCalibrationValue( chan, value ) dac --> user : HAL_OK end == DAC configuration == == == @enduml$

Called functions:

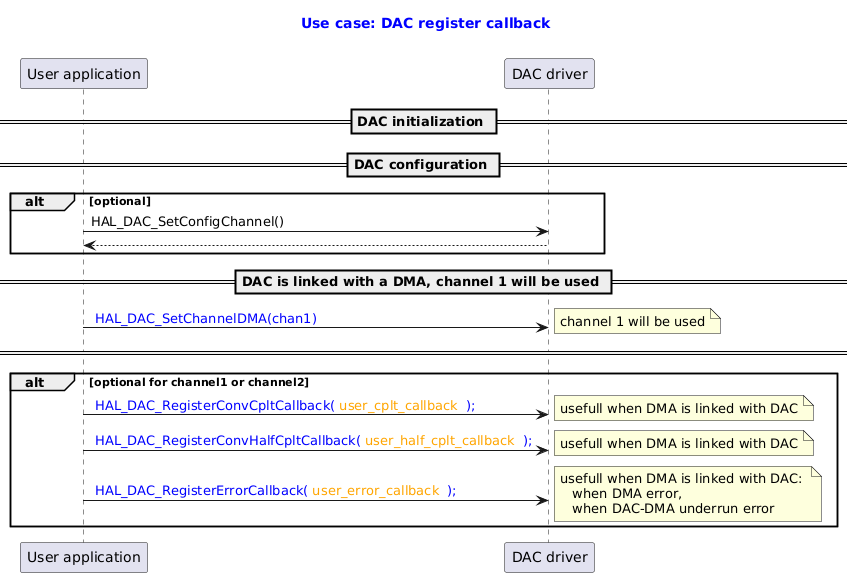

DAC Register Callback ¶

$@startuml title Use case: DAC register callback end title participant "User application" as user participant "DAC driver" as dac == DAC initialization == == DAC configuration == alt optional user -> dac : HAL_DAC_SetConfigChannel() dac --> user end == DAC is linked with a DMA, channel 1 will be used == user -> dac : HAL_DAC_SetChannelDMA(chan1) note right: channel 1 will be used == == alt optional for channel1 or channel2 user -> dac : HAL_DAC_RegisterConvCpltCallback( user_cplt_callback ); note right: usefull when DMA is linked with DAC user -> dac : HAL_DAC_RegisterConvHalfCpltCallback( user_half_cplt_callback ); note right: usefull when DMA is linked with DAC user -> dac : HAL_DAC_RegisterErrorCallback( user_error_callback ); note right: usefull when DMA is linked with DAC: \n when DMA error, \n when DAC-DMA underrun error end @enduml$

Called functions:

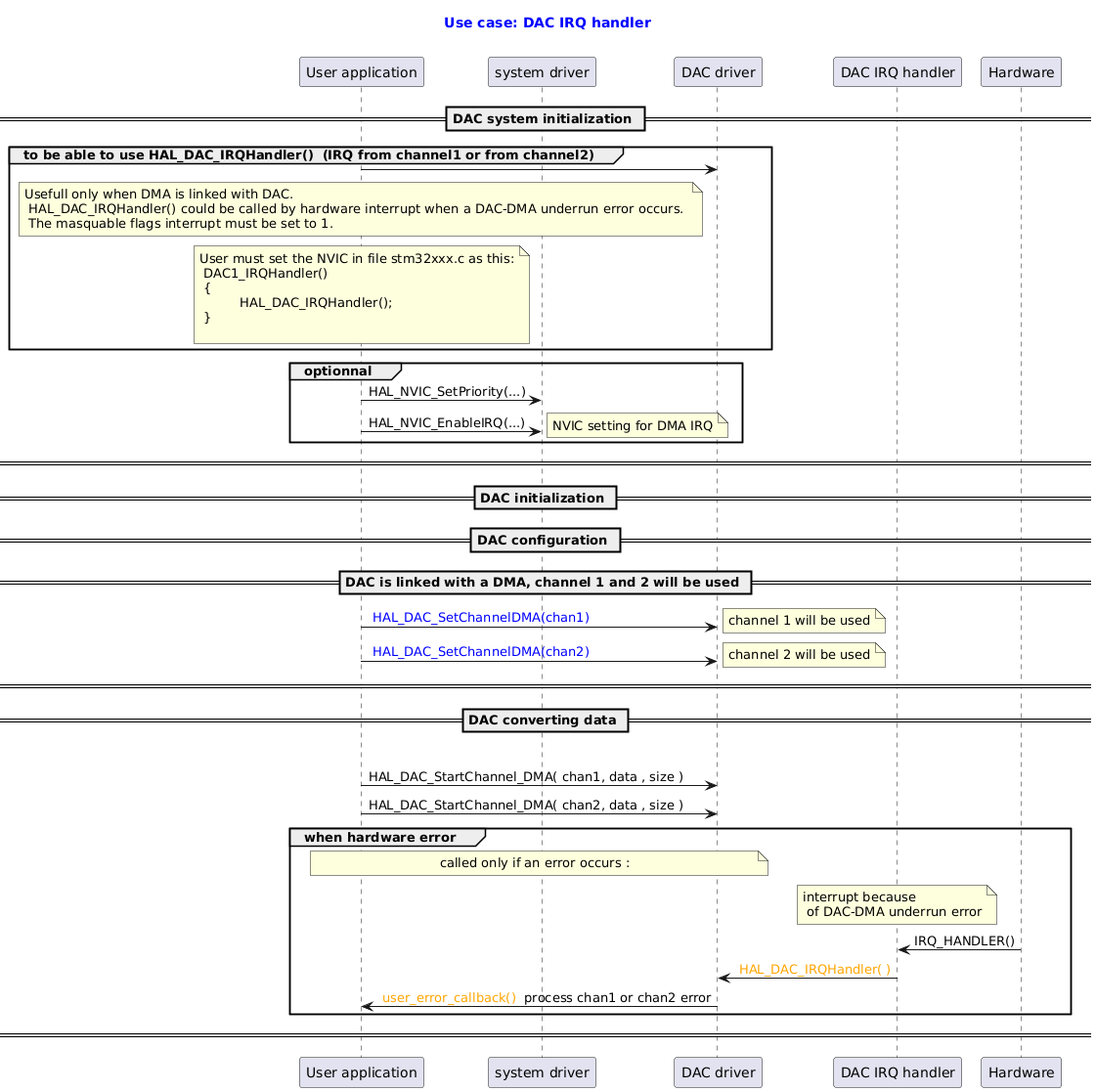

DAC IRQ Handler ¶

$@startuml title Use case: DAC IRQ handler end title participant "User application" as user participant "system driver" as syst participant "DAC driver" as dac participant "DAC IRQ handler" as isr participant "Hardware" as hrdw == DAC system initialization == group to be able to use HAL_DAC_IRQHandler() (IRQ from channel1 or from channel2) user -> dac note over user: Usefull only when DMA is linked with DAC. \n HAL_DAC_IRQHandler() could be called by hardware interrupt when a DAC-DMA underrun error occurs. \n The masquable flags interrupt must be set to 1. note over user: User must set the NVIC in file stm32xxx.c as this:\n DAC1_IRQHandler()\n {\n \t HAL_DAC_IRQHandler();\n }\n end group optionnal user -> syst : HAL_NVIC_SetPriority(...) user -> syst : HAL_NVIC_EnableIRQ(...) note right: NVIC setting for DMA IRQ end == == == DAC initialization == == DAC configuration == == DAC is linked with a DMA, channel 1 and 2 will be used == user -> dac : HAL_DAC_SetChannelDMA(chan1) note right: channel 1 will be used user -> dac : HAL_DAC_SetChannelDMA(chan2) note right: channel 2 will be used == == == DAC converting data == group convertion user -> dac : HAL_DAC_StartChannel_DMA( chan1, data , size ) user -> dac : HAL_DAC_StartChannel_DMA( chan2, data , size ) group when hardware error note over user, dac: called only if an error occurs : note over isr: interrupt because\n of DAC-DMA underrun error hrdw -> isr : IRQ_HANDLER() isr -> dac : HAL_DAC_IRQHandler( ) dac -> user : user_error_callback() process chan1 or chan2 error end == == @enduml$

Called functions:

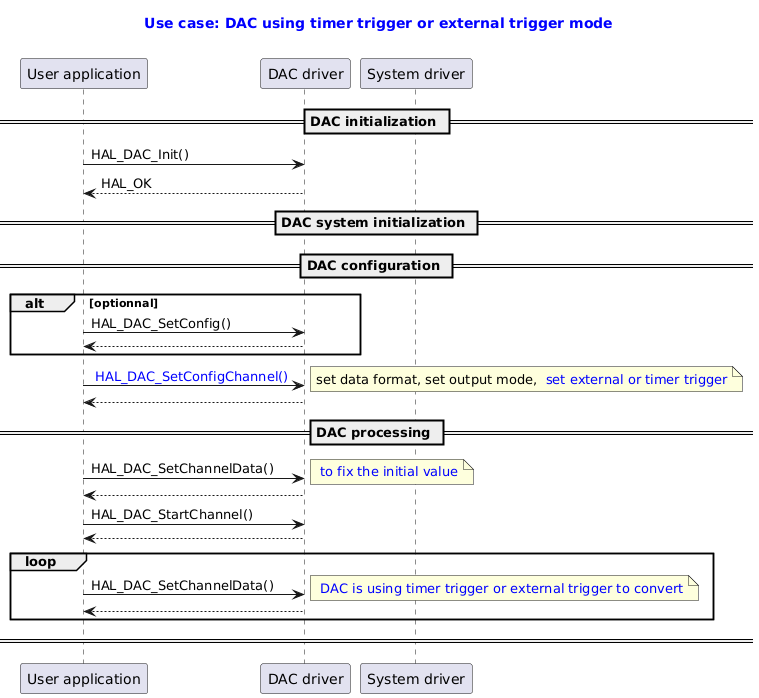

DAC Using Timer Trigger Mode ¶

Called functions:

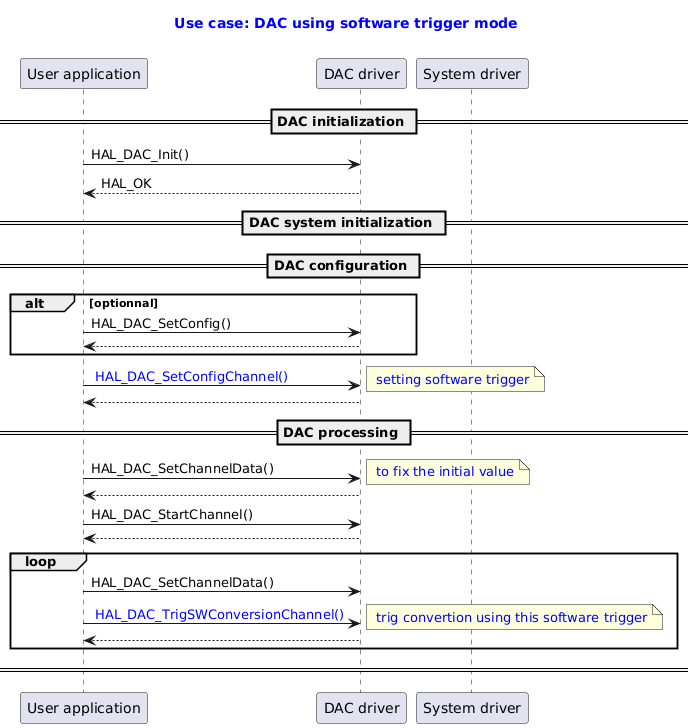

DAC Using Software Trigger Mode ¶

Called functions:

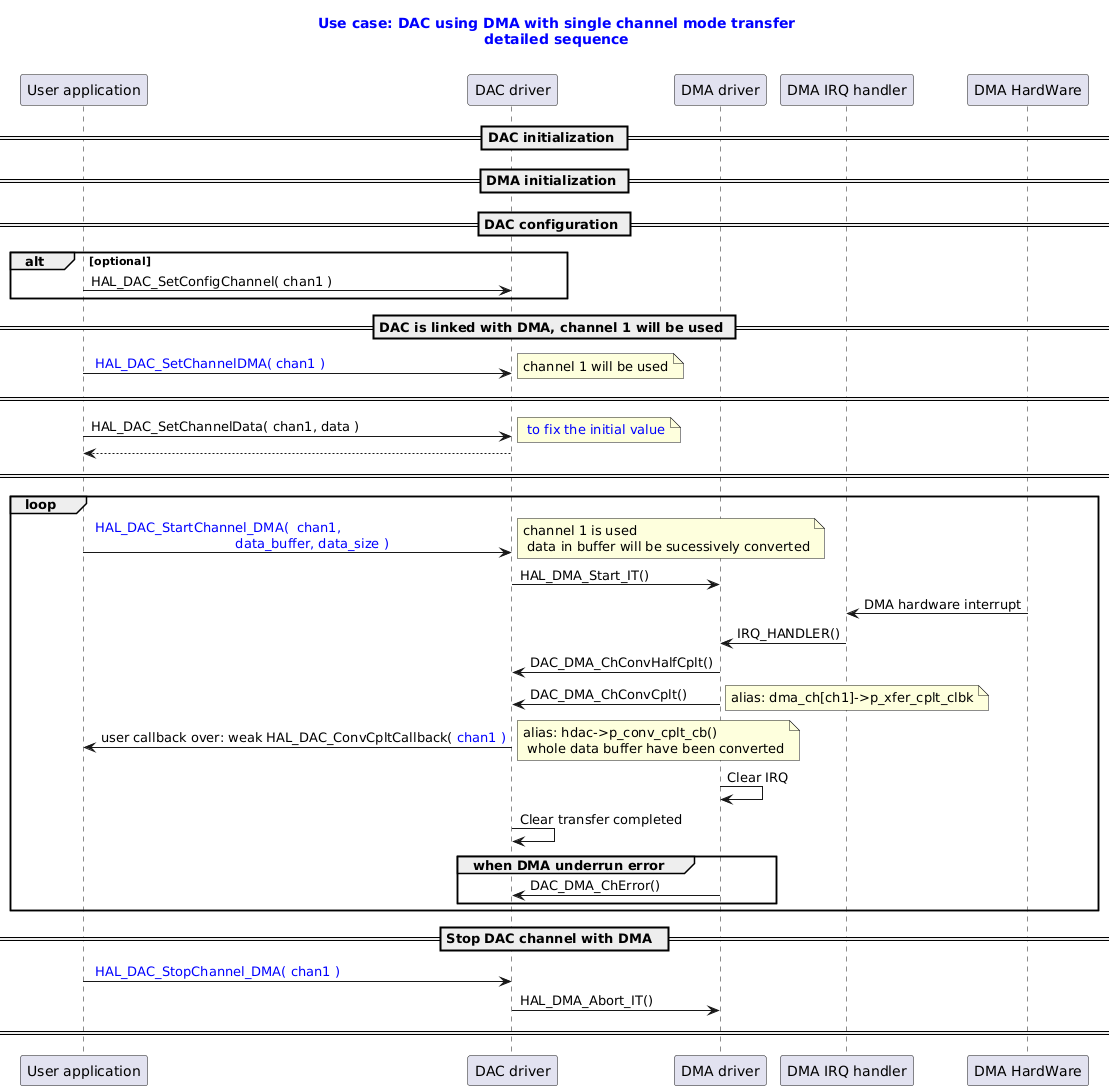

DAC Using DMA with Single Channel Mode Transfer ¶

$@startuml title Use case: DAC using DMA with single channel mode transfer detailed sequence end title participant "User application" as user participant "DAC driver" as dac participant "DMA driver" as dma participant "DMA IRQ handler" as isr participant "DMA HardWare" as dmahd == DAC initialization == == DMA initialization == == DAC configuration == alt optional user -> dac : HAL_DAC_SetConfigChannel( chan1 ) end == DAC is linked with DMA, channel 1 will be used == user -> dac : HAL_DAC_SetChannelDMA( chan1 ) note right: channel 1 will be used == == user ->dac : HAL_DAC_SetChannelData( chan1, data ) note right: to fix the initial value dac --> user == == loop user -> dac : HAL_DAC_StartChannel_DMA( chan1, \n data_buffer, data_size ) note right: channel 1 is used\n data in buffer will be sucessively converted dac -> dma : HAL_DMA_Start_IT() dmahd -> isr : DMA hardware interrupt isr -> dma : IRQ_HANDLER() dma -> dac : DAC_DMA_ChConvHalfCplt() dma -> dac : DAC_DMA_ChConvCplt() note right: alias: dma_ch[ch1]->p_xfer_cplt_clbk dac -> user : user callback over: weak HAL_DAC_ConvCpltCallback( chan1 ) note right: alias: hdac->p_conv_cplt_cb()\n whole data buffer have been converted dma -> dma : Clear IRQ dac -> dac : Clear transfer completed group when DMA underrun error dma -> dac : DAC_DMA_ChError() end end == Stop DAC channel with DMA == user -> dac : HAL_DAC_StopChannel_DMA( chan1 ) dac -> dma : HAL_DMA_Abort_IT() == == @enduml$

Called functions:

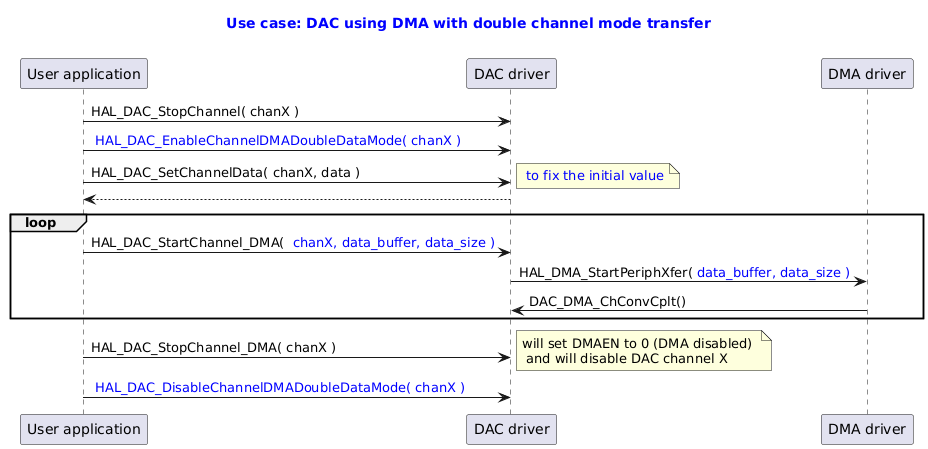

DAC Using DMA with Double Channel Mode Transfer ¶

$@startuml title Use case: DAC using DMA with double channel mode transfer end title participant "User application" as user participant "DAC driver" as dac participant "DMA driver" as dma user -> dac : HAL_DAC_StopChannel( chanX ) user -> dac : HAL_DAC_EnableChannelDMADoubleDataMode( chanX ) user ->dac : HAL_DAC_SetChannelData( chanX, data ) note right: to fix the initial value dac --> user loop user -> dac : HAL_DAC_StartChannel_DMA( chanX, data_buffer, data_size ) dac -> dma : HAL_DMA_StartPeriphXfer( data_buffer, data_size ) dma -> dac : DAC_DMA_ChConvCplt() end user -> dac : HAL_DAC_StopChannel_DMA( chanX ) note right : will set DMAEN to 0 (DMA disabled) \n and will disable DAC channel X user -> dac : HAL_DAC_DisableChannelDMADoubleDataMode( chanX ) @enduml$

Called functions:

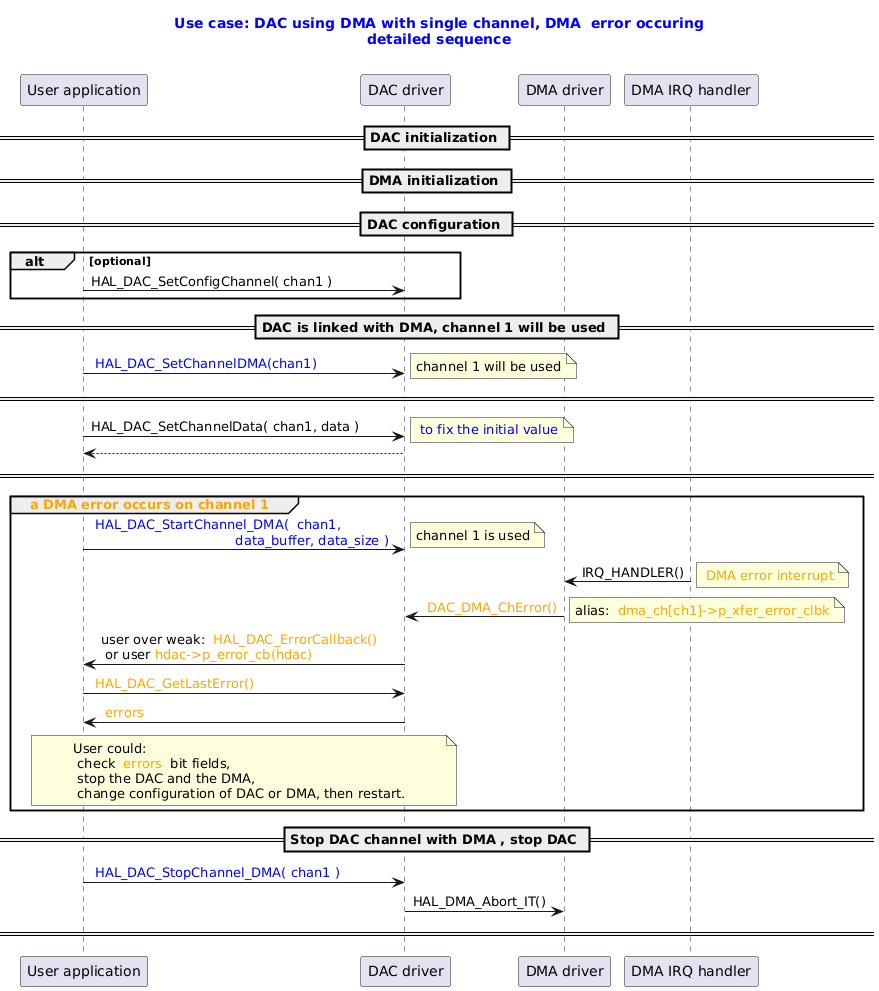

DAC Using DMA with Single Channel, DMA Error Occurring ¶

$@startuml title Use case: DAC using DMA with single channel, DMA error occuring detailed sequence end title participant "User application" as user participant "DAC driver" as dac participant "DMA driver" as dma participant "DMA IRQ handler" as isr == DAC initialization == == DMA initialization == == DAC configuration == alt optional user -> dac : HAL_DAC_SetConfigChannel( chan1 ) end == DAC is linked with DMA, channel 1 will be used == user -> dac : HAL_DAC_SetChannelDMA(chan1) note right: channel 1 will be used == == user ->dac : HAL_DAC_SetChannelData( chan1, data ) note right: to fix the initial value dac --> user == == group a DMA error occurs on channel 1 user -> dac : HAL_DAC_StartChannel_DMA( chan1, \n data_buffer, data_size ) note right: channel 1 is used isr -> dma : IRQ_HANDLER() note right : DMA error interrupt dma -> dac : DAC_DMA_ChError() note right: alias: dma_ch[ch1]->p_xfer_error_clbk dac -> user : user over weak: HAL_DAC_ErrorCallback() \n or user hdac->p_error_cb(hdac) user -> dac : HAL_DAC_GetLastError() dac -> user : errors note over user, dac: User could: \n check errors bit fields, \n stop the DAC and the DMA, \n change configuration of DAC or DMA, then restart. end == Stop DAC channel with DMA , stop DAC == user -> dac : HAL_DAC_StopChannel_DMA( chan1 ) dac -> dma : HAL_DMA_Abort_IT() == == @enduml$

Called functions:

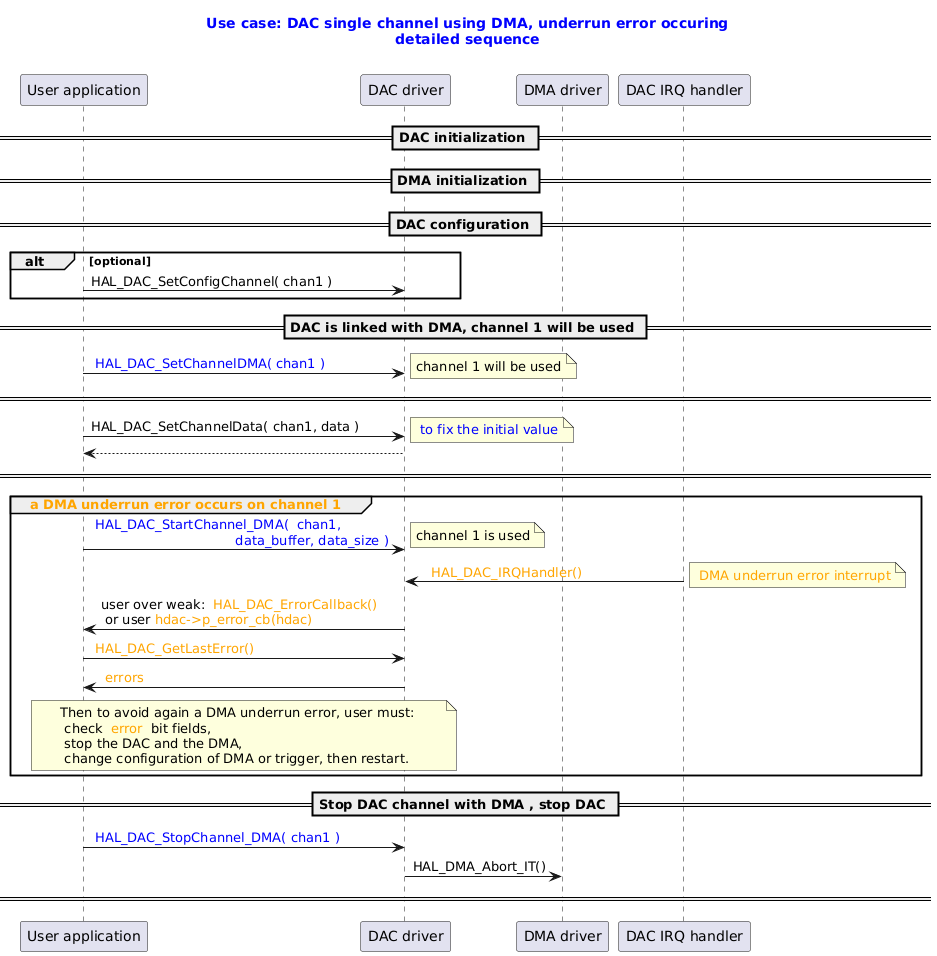

DAC Single Channel Using DMA, Underrun Error Occurring ¶

$@startuml title Use case: DAC single channel using DMA, underrun error occuring detailed sequence end title participant "User application" as user participant "DAC driver" as dac participant "DMA driver" as dma participant "DAC IRQ handler" as isr == DAC initialization == == DMA initialization == == DAC configuration == alt optional user -> dac : HAL_DAC_SetConfigChannel( chan1 ) end == DAC is linked with DMA, channel 1 will be used == user -> dac : HAL_DAC_SetChannelDMA( chan1 ) note right: channel 1 will be used == == user ->dac : HAL_DAC_SetChannelData( chan1, data ) note right: to fix the initial value dac --> user == == group a DMA underrun error occurs on channel 1 user -> dac : HAL_DAC_StartChannel_DMA( chan1, \n data_buffer, data_size ) note right: channel 1 is used isr -> dac : HAL_DAC_IRQHandler() note right : DMA underrun error interrupt dac -> user : user over weak: HAL_DAC_ErrorCallback() \n or user hdac->p_error_cb(hdac) user -> dac : HAL_DAC_GetLastError() dac -> user : errors note over user, dac: Then to avoid again a DMA underrun error, user must: \n check error bit fields, \n stop the DAC and the DMA, \n change configuration of DMA or trigger, then restart. end == Stop DAC channel with DMA , stop DAC == user -> dac : HAL_DAC_StopChannel_DMA( chan1 ) dac -> dma : HAL_DMA_Abort_IT() == == @enduml$

Called functions:

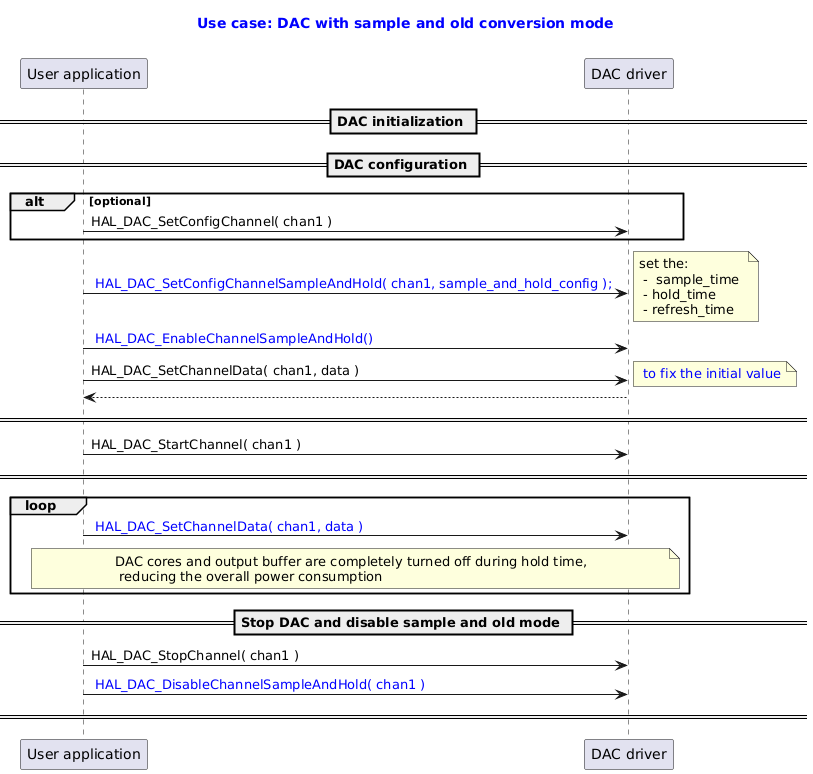

DAC with Sample and Hold Mode ¶

$@startuml title Use case: DAC with sample and old conversion mode end title participant "User application" as user participant "DAC driver" as dac == DAC initialization == == DAC configuration == alt optional user -> dac : HAL_DAC_SetConfigChannel( chan1 ) end user -> dac : HAL_DAC_SetConfigChannelSampleAndHold( chan1, sample_and_hold_config ); note right: set the:\n - sample_time \n - hold_time \n - refresh_time user -> dac : HAL_DAC_EnableChannelSampleAndHold() user ->dac : HAL_DAC_SetChannelData( chan1, data ) note right: to fix the initial value dac --> user == == user -> dac : HAL_DAC_StartChannel( chan1 ) == == loop user -> dac : HAL_DAC_SetChannelData( chan1, data ) note over user,dac: DAC cores and output buffer are completely turned off during hold time,\n reducing the overall power consumption end == Stop DAC and disable sample and old mode == user -> dac : HAL_DAC_StopChannel( chan1 ) user -> dac : HAL_DAC_DisableChannelSampleAndHold( chan1 ) == == @enduml$

Called functions:

DAC with Autonomous Mode ¶

$@startuml title Use case: DAC with autonomous mode (need to be in sample and hold mode with a DMA) end title participant "User application" as user participant "DAC driver" as dac participant "DMA driver" as dma participant "DMA hardware" as dmahdwr == System initialization == note over user, dac: dac_ker_ck low-power clock must be enabled by the RCC \n Enable dac_hold_ck clock for the DAC in the RCC == DAC initialization == == DMA initialization == == DAC is linked with DMA, here channel 1 will be used == user -> dac : HAL_DAC_SetChannelDMA( chan1 ) note right: channel 1 will be used == DAC configuration == group optional user -> dac : HAL_DAC_SetConfigChannel( chan1 ) end == == user -> dac : HAL_DAC_SetConfigChannelSampleAndHold( chan1, sample_and_hold_config ); note right: set the:\n - sample_time \n - hold_time \n - refresh_time user -> dac : HAL_DAC_EnableChannelSampleAndHold( chan1 ) user -> dac : HAL_DAC_AM_Enable() note right: Is applied to both channels of a DAC block.\n The device can operate in run, sleep or stop mode. user ->dac : HAL_DAC_SetChannelData( chan1, data ) note right: to fix the initial value dac --> user user -> dac : HAL_DAC_StartChannel( chan1 ) loop device operates in run mode user -> dac : HAL_DAC_StartChannel_DMA( chan1, data, size ) dac -> dma dma -> dmahdwr end loop device operates in sleep or stop mode dac -> dma dma -> dmahdwr note over dac,dma: Once the CPU is in stop mode, the DAC remains functional \n and can perform autonomous DMA transfers in sample and hold mode.\n DMA is now using the last data buffer given by HAL_DAC_StartChannel_DMA() end == Stop DAC, autonomous mode, and sample and hold mode == user -> dac : HAL_DAC_StopChannel( chan1 ) user -> dac : HAL_DAC_AM_Disable( ) user -> dac : HAL_DAC_DisablelSampleAndHold( chan1 ) == == @enduml$

Called functions:

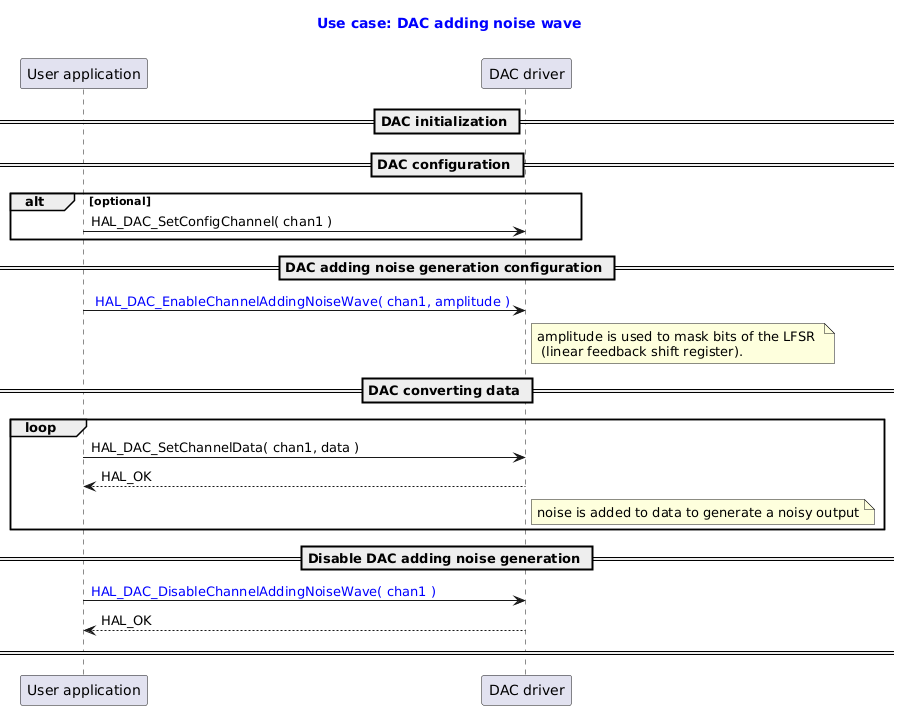

DAC Adding Noise Wave ¶

$@startuml title Use case: DAC adding noise wave end title participant "User application" as user participant "DAC driver" as dac == DAC initialization == == DAC configuration == alt optional user -> dac : HAL_DAC_SetConfigChannel( chan1 ) end == DAC adding noise generation configuration == user -> dac : HAL_DAC_EnableChannelAddingNoiseWave( chan1, amplitude ) note right dac : amplitude is used to mask bits of the LFSR \n (linear feedback shift register). == DAC converting data == loop user -> dac : HAL_DAC_SetChannelData( chan1, data ) dac --> user : HAL_OK note right dac : noise is added to data to generate a noisy output end == Disable DAC adding noise generation == user -> dac : HAL_DAC_DisableChannelAddingNoiseWave( chan1 ) dac --> user: HAL_OK == == @enduml$

Called functions:

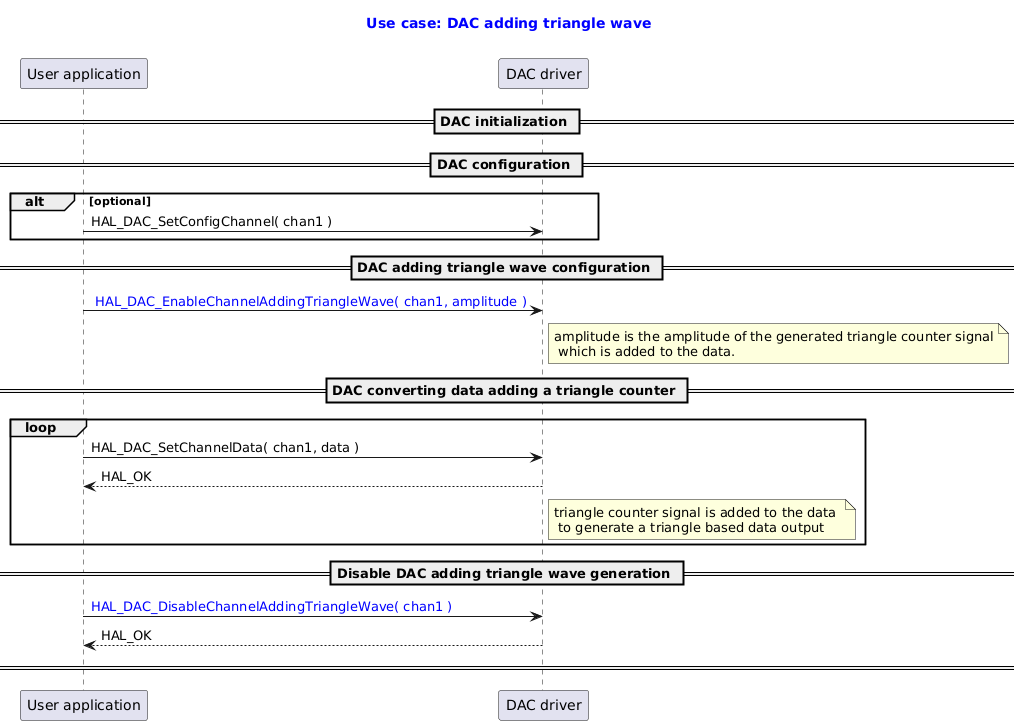

DAC Adding Triangle Wave ¶

$@startuml title Use case: DAC adding triangle wave end title participant "User application" as user participant "DAC driver" as dac == DAC initialization == == DAC configuration == alt optional user -> dac : HAL_DAC_SetConfigChannel( chan1 ) end == DAC adding triangle wave configuration == user -> dac : HAL_DAC_EnableChannelAddingTriangleWave( chan1, amplitude ) note right dac : amplitude is the amplitude of the generated triangle counter signal\n which is added to the data. == DAC converting data adding a triangle counter == loop user -> dac : HAL_DAC_SetChannelData( chan1, data ) dac --> user : HAL_OK note right dac : triangle counter signal is added to the data \n to generate a triangle based data output end == Disable DAC adding triangle wave generation == user -> dac : HAL_DAC_DisableChannelAddingTriangleWave( chan1 ) dac --> user: HAL_OK == == @enduml$

Called functions:

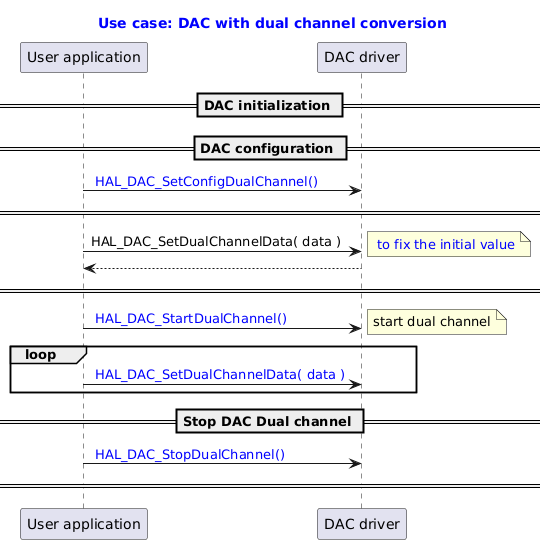

DAC with Dual Channel Conversion ¶

Called functions:

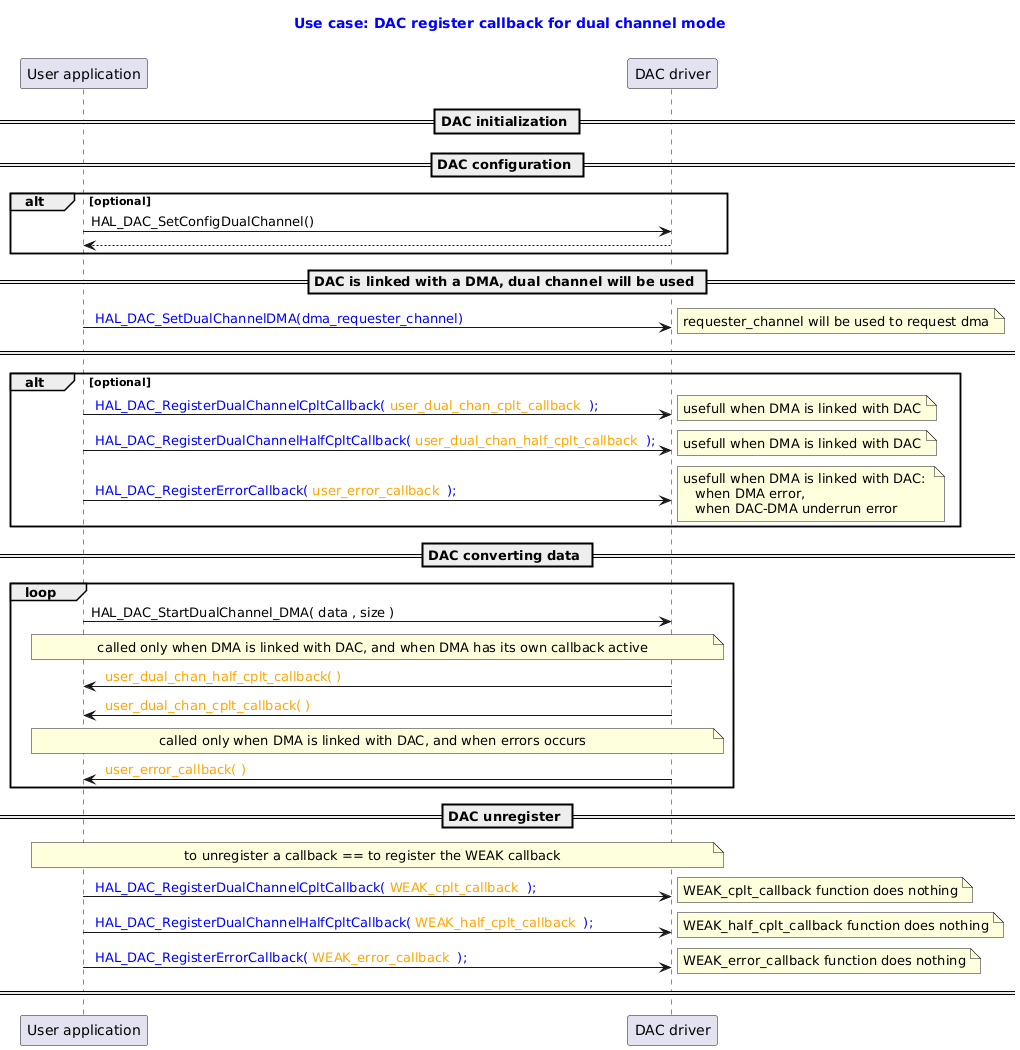

DAC Register Callback for Dual Channel Mode ¶

$@startuml title Use case: DAC register callback for dual channel mode end title participant "User application" as user participant "DAC driver" as dac == DAC initialization == == DAC configuration == alt optional user -> dac : HAL_DAC_SetConfigDualChannel() dac --> user end == DAC is linked with a DMA, dual channel will be used == user -> dac : HAL_DAC_SetDualChannelDMA(dma_requester_channel) note right: requester_channel will be used to request dma == == alt optional user -> dac : HAL_DAC_RegisterDualChannelCpltCallback( user_dual_chan_cplt_callback ); note right: usefull when DMA is linked with DAC user -> dac : HAL_DAC_RegisterDualChannelHalfCpltCallback( user_dual_chan_half_cplt_callback ); note right: usefull when DMA is linked with DAC user -> dac : HAL_DAC_RegisterErrorCallback( user_error_callback ); note right: usefull when DMA is linked with DAC: \n when DMA error, \n when DAC-DMA underrun error end == DAC converting data == loop user -> dac : HAL_DAC_StartDualChannel_DMA( data , size ) note over user, dac: called only when DMA is linked with DAC, and when DMA has its own callback active dac -> user: user_dual_chan_half_cplt_callback( ) dac -> user: user_dual_chan_cplt_callback( ) note over user, dac: called only when DMA is linked with DAC, and when errors occurs dac -> user: user_error_callback( ) end == DAC unregister == note over user, dac: to unregister a callback == to register the WEAK callback user -> dac : HAL_DAC_RegisterDualChannelCpltCallback( WEAK_cplt_callback ); note right: WEAK_cplt_callback function does nothing user -> dac : HAL_DAC_RegisterDualChannelHalfCpltCallback( WEAK_half_cplt_callback ); note right: WEAK_half_cplt_callback function does nothing user -> dac : HAL_DAC_RegisterErrorCallback( WEAK_error_callback ); note right: WEAK_error_callback function does nothing == == @enduml$

Called functions:

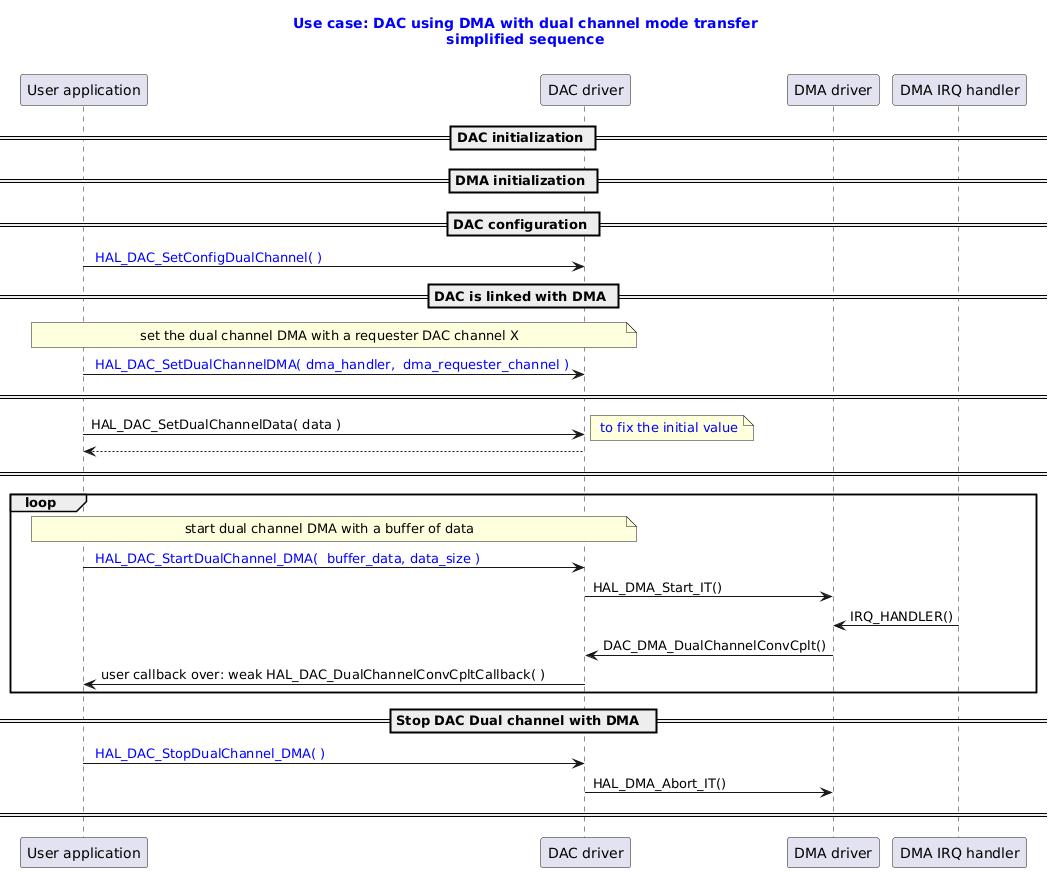

DAC Using DMA with Dual Channel Mode Transfer ¶

Called functions:
