HAL CRC use cases

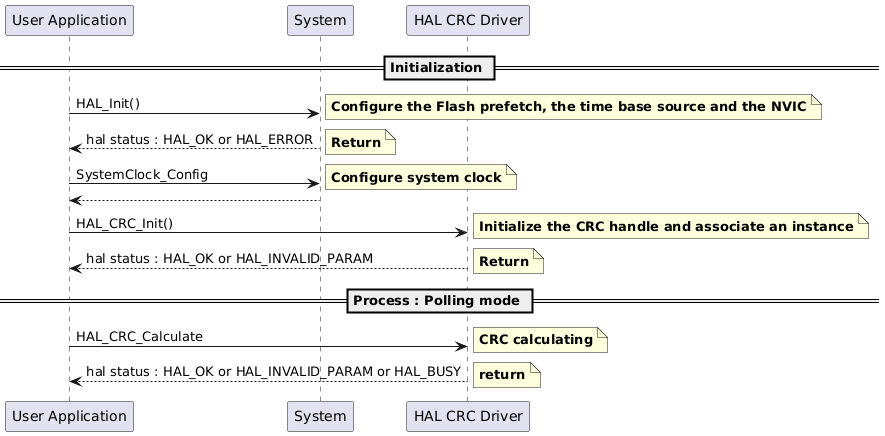

CRC calculation with default configuration

This diagram illustrates the prerequisite steps for initializing the system

@startuml ' To add a number by line 'autonumber ' Fix order of each column == Initialization == "User Application"->"System" : HAL_Init() note right: **Configure the Flash prefetch, the time base source and the NVIC** "System" --> "User Application": hal status : HAL_OK or HAL_ERROR note right: **Return** "User Application"->"System" : SystemClock_Config note right: **Configure system clock** "System" --> "User Application" "User Application"->"HAL CRC Driver" : HAL_CRC_Init() note right: **Initialize the CRC handle and associate an instance** "HAL CRC Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: **Return** == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **CRC calculating** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM or HAL_BUSY note right: **return** @enduml

Called functions:

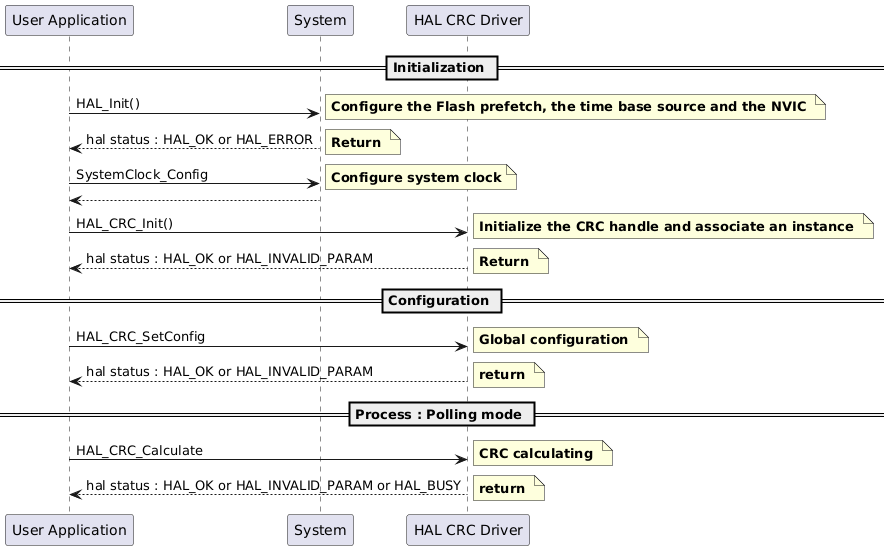

CRC Calculation with User Configuration

@startuml ' To add a number by line 'autonumber ' Fix order of each column == Initialization == "User Application"->"System" : HAL_Init() note right: **Configure the Flash prefetch, the time base source and the NVIC ** "System" --> "User Application": hal status : HAL_OK or HAL_ERROR note right: **Return ** "User Application"->"System" : SystemClock_Config note right: **Configure system clock** "System" --> "User Application" "User Application"->"HAL CRC Driver" : HAL_CRC_Init() note right: **Initialize the CRC handle and associate an instance ** "HAL CRC Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: **Return ** == Configuration == "User Application"->"HAL CRC Driver" : HAL_CRC_SetConfig note right: **Global configuration ** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: **return ** == Process : Polling mode == "User Application"->"HAL CRC Driver" :HAL_CRC_Calculate note right: **CRC calculating ** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM or HAL_BUSY note right: **return ** @enduml

Called functions:

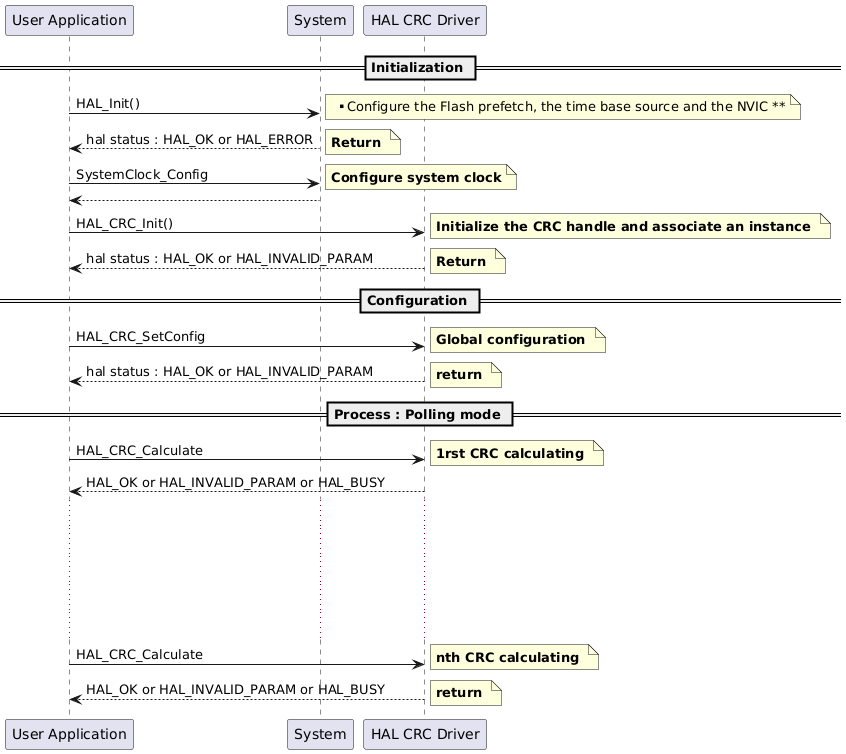

CRC Calculations with Consistent User Configuration

@startuml ' To add a number by line 'autonumber ' Fix order of each column == Initialization == "User Application"->"System" : HAL_Init() note right: ** Configure the Flash prefetch, the time base source and the NVIC ** "System" --> "User Application": hal status : HAL_OK or HAL_ERROR note right: **Return ** "User Application"->"System" : SystemClock_Config note right: **Configure system clock** "System" --> "User Application" "User Application"->"HAL CRC Driver" : HAL_CRC_Init() note right: **Initialize the CRC handle and associate an instance ** "HAL CRC Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: **Return ** == Configuration == "User Application"->"HAL CRC Driver" : HAL_CRC_SetConfig note right: **Global configuration ** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: **return ** == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **1rst CRC calculating ** "HAL CRC Driver" --> "User Application": HAL_OK or HAL_INVALID_PARAM or HAL_BUSY ... ... ... ... ... "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **nth CRC calculating ** "HAL CRC Driver" --> "User Application": HAL_OK or HAL_INVALID_PARAM or HAL_BUSY note right: **return ** @enduml

Called functions:

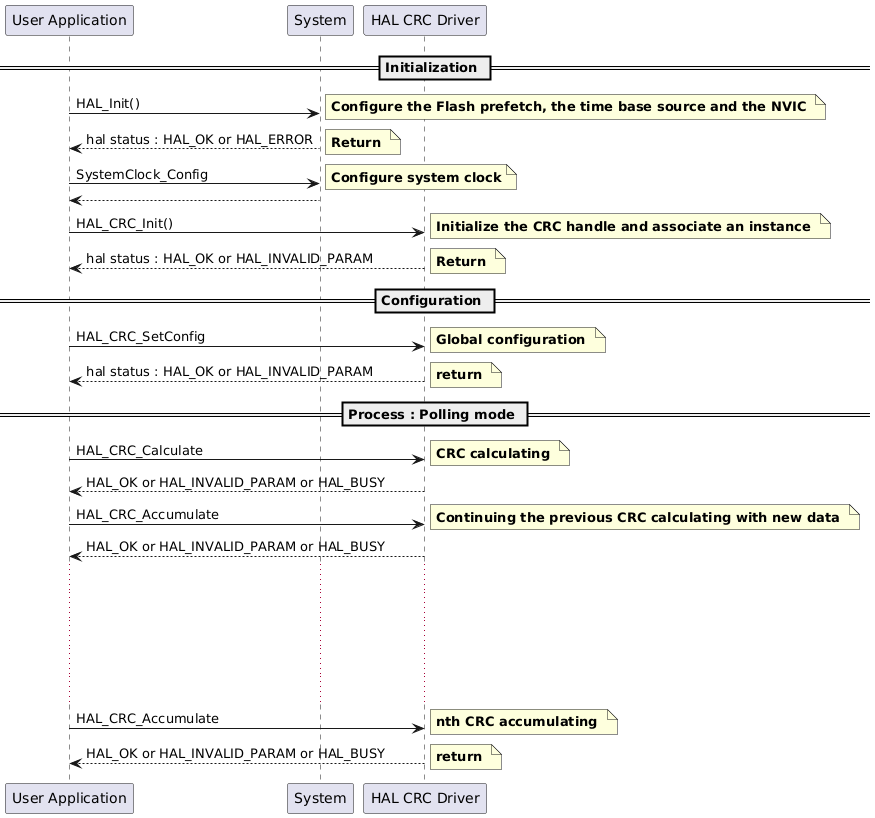

Continuing CRC Calculation on New Data

@startuml ' To add a number by line 'autonumber ' Fix order of each column == Initialization == "User Application"->"System" : HAL_Init() note right: **Configure the Flash prefetch, the time base source and the NVIC ** "System" --> "User Application": hal status : HAL_OK or HAL_ERROR note right: **Return ** "User Application"->"System" : SystemClock_Config note right: **Configure system clock** "System" --> "User Application" "User Application"->"HAL CRC Driver" : HAL_CRC_Init() note right: **Initialize the CRC handle and associate an instance ** "HAL CRC Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: **Return ** == Configuration == "User Application"->"HAL CRC Driver" : HAL_CRC_SetConfig note right: **Global configuration ** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: **return ** == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **CRC calculating ** "HAL CRC Driver" --> "User Application": HAL_OK or HAL_INVALID_PARAM or HAL_BUSY "User Application"->"HAL CRC Driver" : HAL_CRC_Accumulate note right: **Continuing the previous CRC calculating with new data ** "HAL CRC Driver" --> "User Application": HAL_OK or HAL_INVALID_PARAM or HAL_BUSY ... ... ... ... ... "User Application"->"HAL CRC Driver" : HAL_CRC_Accumulate note right: **nth CRC accumulating ** "HAL CRC Driver" --> "User Application": HAL_OK or HAL_INVALID_PARAM or HAL_BUSY note right: **return ** @enduml

Called functions:

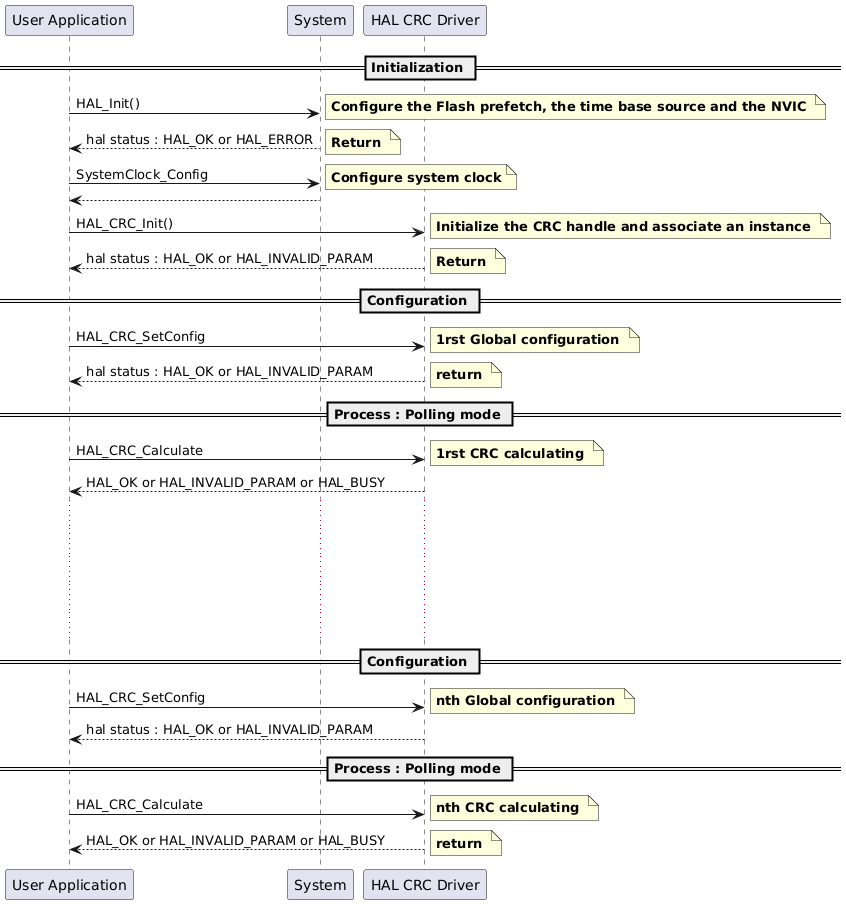

CRC Calculations with Different Configurations

@startuml ' To add a number by line 'autonumber ' Fix order of each column == Initialization == "User Application"->"System" : HAL_Init() note right: **Configure the Flash prefetch, the time base source and the NVIC ** "System" --> "User Application": hal status : HAL_OK or HAL_ERROR note right: **Return ** "User Application"->"System" : SystemClock_Config note right: **Configure system clock** "System" --> "User Application" "User Application"->"HAL CRC Driver" : HAL_CRC_Init() note right: **Initialize the CRC handle and associate an instance ** "HAL CRC Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: **Return ** == Configuration == "User Application"->"HAL CRC Driver" : HAL_CRC_SetConfig note right: **1rst Global configuration ** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: **return ** == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **1rst CRC calculating ** "HAL CRC Driver" --> "User Application": HAL_OK or HAL_INVALID_PARAM or HAL_BUSY ... ... ... ... ... == Configuration == "User Application"->"HAL CRC Driver" : HAL_CRC_SetConfig note right: **nth Global configuration ** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **nth CRC calculating ** "HAL CRC Driver" --> "User Application": HAL_OK or HAL_INVALID_PARAM or HAL_BUSY note right: **return ** @enduml

Called functions:

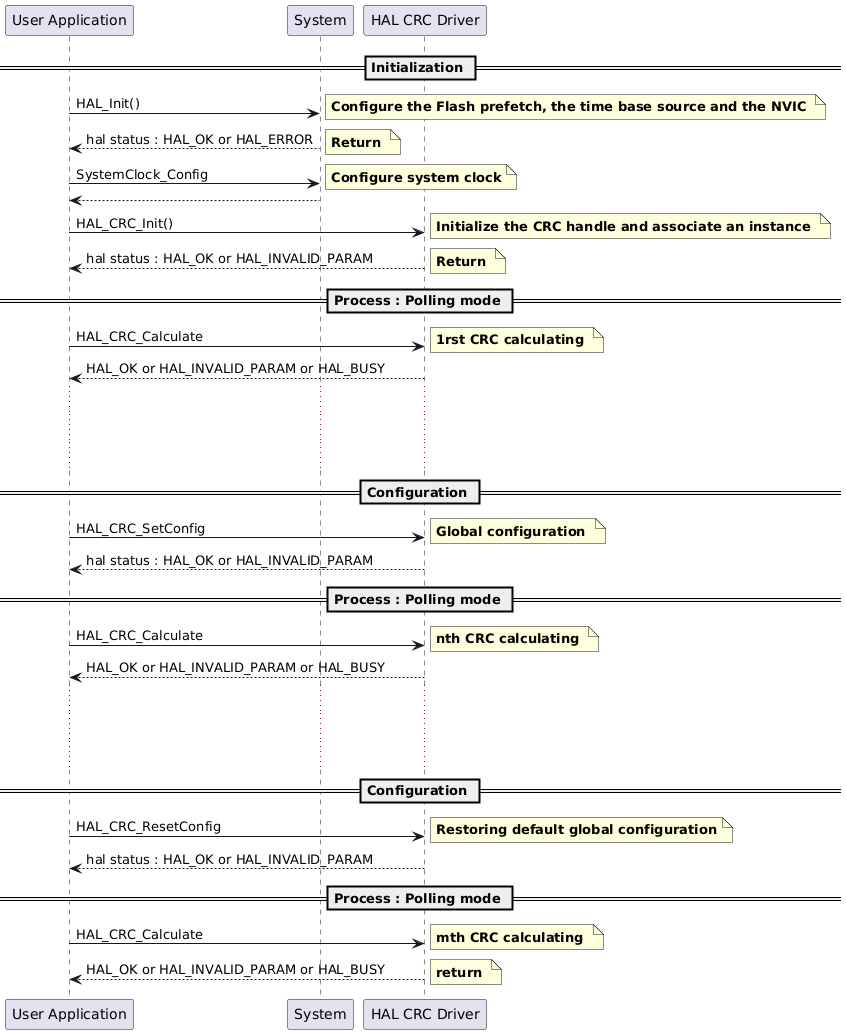

Restoring Default CRC Configuration

@startuml ' To add a number by line 'autonumber ' Fix order of each column == Initialization == "User Application"->"System" : HAL_Init() note right: **Configure the Flash prefetch, the time base source and the NVIC ** "System" --> "User Application": hal status : HAL_OK or HAL_ERROR note right: **Return ** "User Application"->"System" : SystemClock_Config note right: **Configure system clock** "System" --> "User Application" "User Application"->"HAL CRC Driver" : HAL_CRC_Init() note right: **Initialize the CRC handle and associate an instance ** "HAL CRC Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: **Return ** == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **1rst CRC calculating ** "HAL CRC Driver" --> "User Application": HAL_OK or HAL_INVALID_PARAM or HAL_BUSY ... ... ... == Configuration == "User Application"->"HAL CRC Driver" : HAL_CRC_SetConfig note right: **Global configuration ** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **nth CRC calculating ** "HAL CRC Driver" --> "User Application": HAL_OK or HAL_INVALID_PARAM or HAL_BUSY ... ... ... == Configuration == "User Application"->"HAL CRC Driver" : HAL_CRC_ResetConfig note right: **Restoring default global configuration** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **mth CRC calculating ** "HAL CRC Driver" --> "User Application": HAL_OK or HAL_INVALID_PARAM or HAL_BUSY note right: **return ** @enduml

Called functions:

CRC Calculation with Different Polynomial Configuration

@startuml ' To add a number by line 'autonumber ' Fix order of each column == Initialization == "User Application"->"System" : HAL_Init() note right: **Configure the Flash prefetch, the time base source and the NVIC ** "System" --> "User Application": hal status : HAL_OK or HAL_ERROR note right: **Return ** "User Application"->"System" : SystemClock_Config note right: **Configure system clock** "System" --> "User Application" "User Application"->"HAL CRC Driver" : HAL_CRC_Init() note right: **Initialize the CRC handle and associate an instance ** "HAL CRC Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: **Return ** == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **1rst CRC calculating ** "HAL CRC Driver" --> "User Application": hal status : HAL_INVALID_PARAM or HAL_BUSY ... ... ... ... ... "User Application"->"HAL CRC Driver" : HAL_CRC_SetConfigPolynomial note right: **Modifying the polynomial ** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **nth CRC calculating ** "HAL CRC Driver" --> "User Application": hal status : HAL_INVALID_PARAM or HAL_BUSY note right: **return ** @enduml

Called functions:

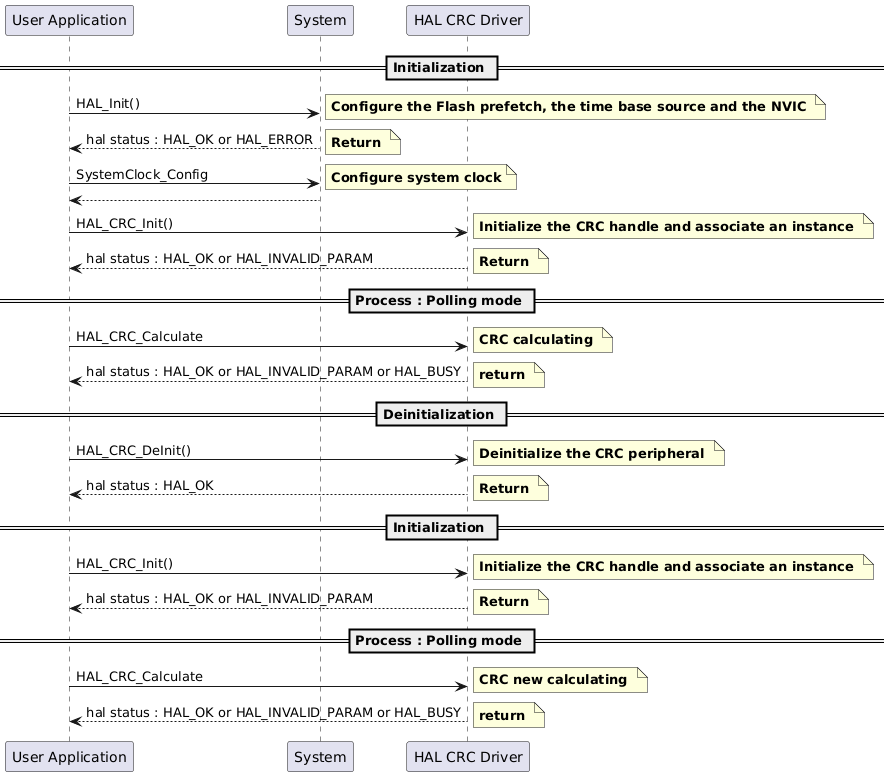

Deinitializing CRC Peripheral for New Process

@startuml ' To add a number by line 'autonumber ' Fix order of each column == Initialization == "User Application"->"System" : HAL_Init() note right: **Configure the Flash prefetch, the time base source and the NVIC ** "System" --> "User Application": hal status : HAL_OK or HAL_ERROR note right: **Return ** "User Application"->"System" : SystemClock_Config note right: **Configure system clock** "System" --> "User Application" "User Application"->"HAL CRC Driver" : HAL_CRC_Init() note right: **Initialize the CRC handle and associate an instance ** "HAL CRC Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: **Return ** == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **CRC calculating ** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM or HAL_BUSY note right: **return ** == Deinitialization == "User Application"->"HAL CRC Driver" : HAL_CRC_DeInit() note right: **Deinitialize the CRC peripheral ** "HAL CRC Driver" --> "User Application" : hal status : HAL_OK note right: **Return ** == Initialization == "User Application"->"HAL CRC Driver" : HAL_CRC_Init() note right: **Initialize the CRC handle and associate an instance ** "HAL CRC Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: **Return ** == Process : Polling mode == "User Application"->"HAL CRC Driver" : HAL_CRC_Calculate note right: **CRC new calculating ** "HAL CRC Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM or HAL_BUSY note right: **return ** @enduml

Called functions:
