HAL PKA use cases ¶

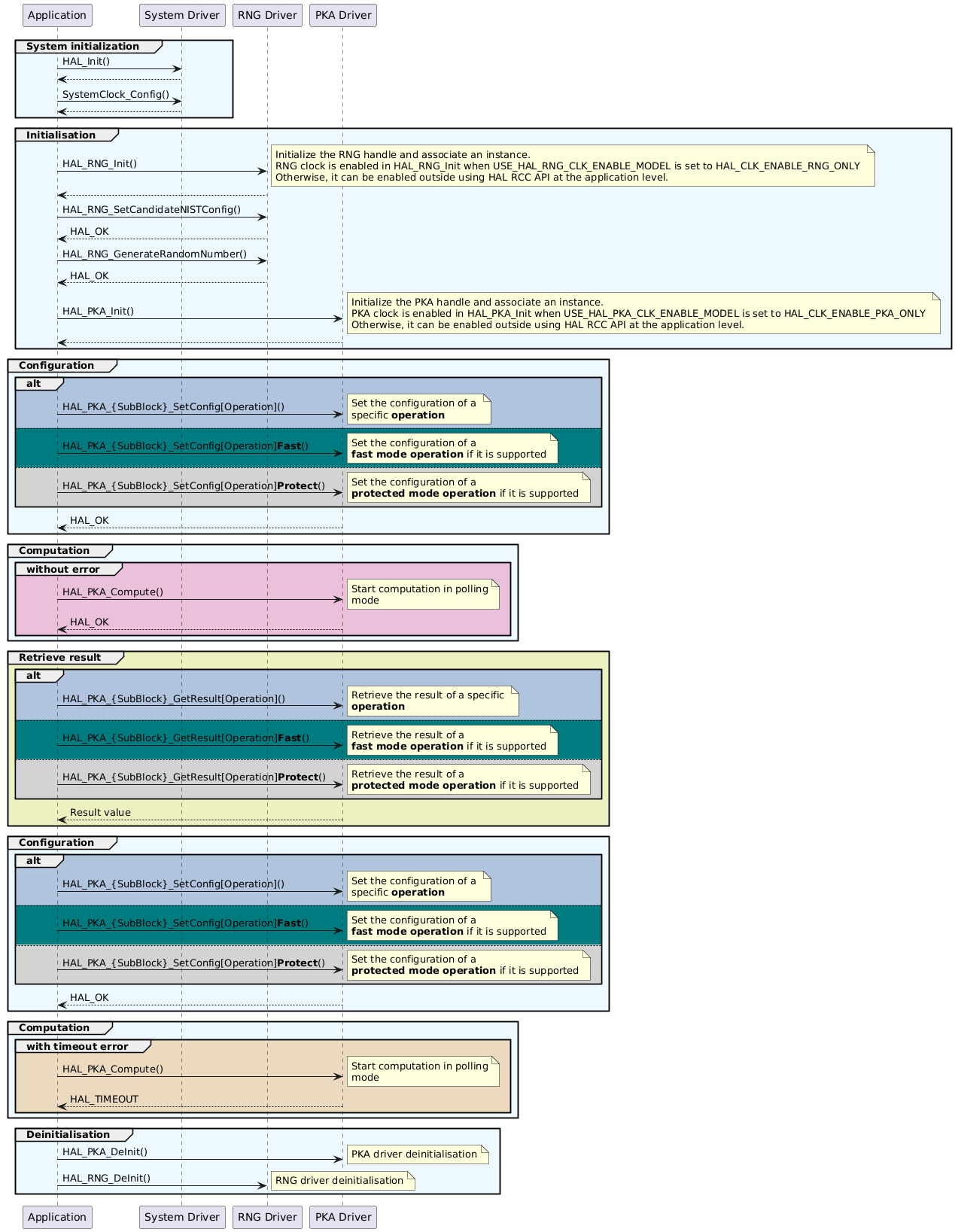

User application Polling mode, nominal case (no error), timeout case ¶

$@startuml group #edf9ff System initialization Application->"System Driver" : HAL_Init() "System Driver"-->Application : Application->"System Driver" : SystemClock_Config() "System Driver"-->Application end group #edf9ff Initialisation Application->"RNG Driver" : HAL_RNG_Init() note right: Initialize the RNG handle and associate an instance.\nRNG clock is enabled in HAL_RNG_Init when USE_HAL_RNG_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_RNG_ONLY \nOtherwise, it can be enabled outside using HAL RCC API at the application level. "RNG Driver"-->Application Application->"RNG Driver" : HAL_RNG_SetCandidateNISTConfig() "RNG Driver"-->Application: HAL_OK Application->"RNG Driver" : HAL_RNG_GenerateRandomNumber() "RNG Driver"-->Application: HAL_OK Application->"PKA Driver" : HAL_PKA_Init() note right: Initialize the PKA handle and associate an instance.\nPKA clock is enabled in HAL_PKA_Init when USE_HAL_PKA_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_PKA_ONLY \nOtherwise, it can be enabled outside using HAL RCC API at the application level. "PKA Driver"-->Application end group #edf9ff Configuration alt #LightSteelBlue Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]() note right: Set the configuration of a \nspecific operation else #007c80ff Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]Fast() note right: Set the configuration of a \nfast mode operation if it is supported else #LightGray Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]Protect() note right: Set the configuration of a \nprotected mode operation if it is supported end "PKA Driver"-->Application: HAL_OK end group #edf9ff Computation group #ebc0da without error Application->"PKA Driver" : HAL_PKA_Compute() note right: Start computation in polling\nmode "PKA Driver"-->Application: HAL_OK end end group #edf0bf Retrieve result alt #LightSteelBlue Application->"PKA Driver" : HAL_PKA_{SubBlock}_GetResult[Operation]() note right: Retrieve the result of a specific \noperation else #007c80ff Application->"PKA Driver" : HAL_PKA_{SubBlock}_GetResult[Operation]Fast() note right: Retrieve the result of a \nfast mode operation if it is supported else #LightGray Application->"PKA Driver" : HAL_PKA_{SubBlock}_GetResult[Operation]Protect() note right: Retrieve the result of a \nprotected mode operation if it is supported end "PKA Driver"-->Application: Result value end group #edf9ff Configuration alt #LightSteelBlue Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]() note right: Set the configuration of a \nspecific operation else #007c80ff Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]Fast() note right: Set the configuration of a \nfast mode operation if it is supported else #LightGray Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]Protect() note right: Set the configuration of a \nprotected mode operation if it is supported end "PKA Driver"-->Application: HAL_OK end group #edf9ff Computation group #ebdac0 with timeout error Application->"PKA Driver" : HAL_PKA_Compute() note right: Start computation in polling\nmode "PKA Driver"-->Application: HAL_TIMEOUT end end group #edf9ff Deinitialisation Application->"PKA Driver" : HAL_PKA_DeInit() note right: PKA driver deinitialisation Application->"RNG Driver" : HAL_RNG_DeInit() note right: RNG driver deinitialisation end @enduml$

Called functions:

HAL_PKA_Init()
HAL_PKA_{SubBlock}_SetConfig()
HAL_PKA_Compute()
HAL_PKA_{SubBlock}_GetResultOperation()
HAL_PKA_DeInit()

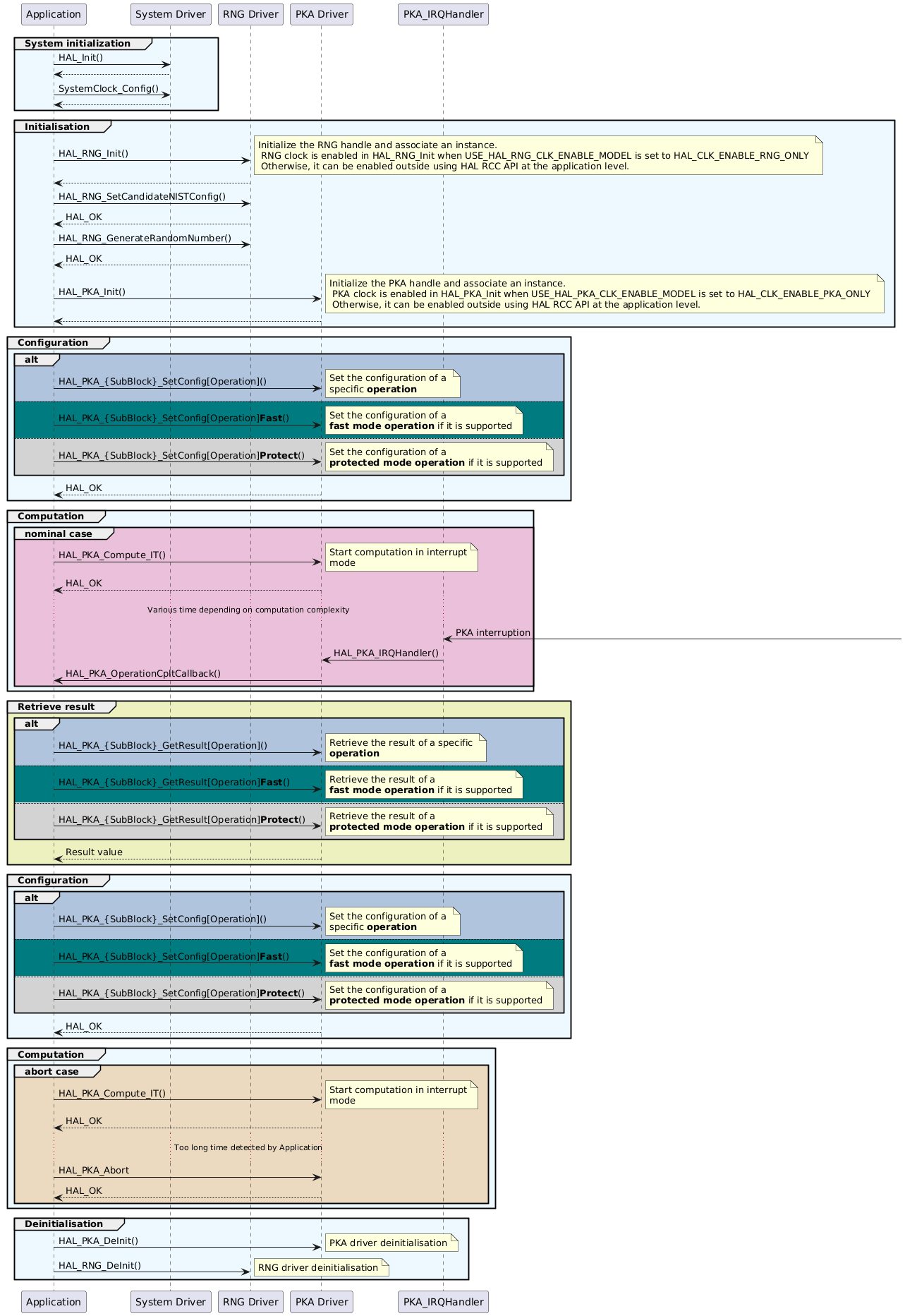

User application Interrupt mode, nominal case (no error), abort case ¶

$@startuml group #edf9ff System initialization Application->"System Driver" : HAL_Init() "System Driver"-->Application : Application->"System Driver" : SystemClock_Config() "System Driver"-->Application end group #edf9ff Initialisation Application->"RNG Driver" : HAL_RNG_Init() note right: Initialize the RNG handle and associate an instance.\n RNG clock is enabled in HAL_RNG_Init when USE_HAL_RNG_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_RNG_ONLY \n Otherwise, it can be enabled outside using HAL RCC API at the application level. "RNG Driver"-->Application Application->"RNG Driver" : HAL_RNG_SetCandidateNISTConfig() "RNG Driver"-->Application: HAL_OK Application->"RNG Driver" : HAL_RNG_GenerateRandomNumber() "RNG Driver"-->Application: HAL_OK Application->"PKA Driver" : HAL_PKA_Init() note right: Initialize the PKA handle and associate an instance.\n PKA clock is enabled in HAL_PKA_Init when USE_HAL_PKA_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_PKA_ONLY \n Otherwise, it can be enabled outside using HAL RCC API at the application level. "PKA Driver"-->Application end group #edf9ff Configuration alt #LightSteelBlue Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]() note right: Set the configuration of a \nspecific operation else #007c80ff Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]Fast() note right: Set the configuration of a \nfast mode operation if it is supported else #LightGray Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]Protect() note right: Set the configuration of a \nprotected mode operation if it is supported end "PKA Driver"-->Application: HAL_OK end group #edf9ff Computation group #ebc0da nominal case Application->"PKA Driver" : HAL_PKA_Compute_IT() note right: Start computation in interrupt\nmode "PKA Driver"-->Application: HAL_OK ... Various time depending on computation complexity ... "PKA_IRQHandler"<-] : PKA interruption "PKA_IRQHandler"->"PKA Driver" : HAL_PKA_IRQHandler() "PKA Driver"->Application : HAL_PKA_OperationCpltCallback() end end group #edf0bf Retrieve result alt #LightSteelBlue Application->"PKA Driver" : HAL_PKA_{SubBlock}_GetResult[Operation]() note right: Retrieve the result of a specific \noperation else #007c80ff Application->"PKA Driver" : HAL_PKA_{SubBlock}_GetResult[Operation]Fast() note right: Retrieve the result of a \nfast mode operation if it is supported else #LightGray Application->"PKA Driver" : HAL_PKA_{SubBlock}_GetResult[Operation]Protect() note right: Retrieve the result of a \nprotected mode operation if it is supported end "PKA Driver"-->Application: Result value end group #edf9ff Configuration alt #LightSteelBlue Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]() note right: Set the configuration of a \nspecific operation else #007c80ff Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]Fast() note right: Set the configuration of a \nfast mode operation if it is supported else #LightGray Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig[Operation]Protect() note right: Set the configuration of a \nprotected mode operation if it is supported end "PKA Driver"-->Application: HAL_OK end group #edf9ff Computation group #ebdac0 abort case Application->"PKA Driver" : HAL_PKA_Compute_IT() note right: Start computation in interrupt\nmode "PKA Driver"-->Application: HAL_OK ... Too long time detected by Application ... Application->"PKA Driver" : HAL_PKA_Abort "PKA Driver"-->Application: HAL_OK end end group #edf9ff Deinitialisation Application->"PKA Driver" : HAL_PKA_DeInit() note right: PKA driver deinitialisation Application->"RNG Driver" : HAL_RNG_DeInit() note right: RNG driver deinitialisation end @enduml$

Called functions:

HAL_PKA_Init()
HAL_PKA_{SubBlock}_SetConfig()
HAL_PKA_Compute_IT()
HAL_PKA_IRQHandler()
HAL_PKA_OperationCpltCallback()
HAL_PKA_{SubBlock}_GetResultOperation()
HAL_PKA_Abort()
HAL_PKA_DeInit()
