HAL RNG Use Cases

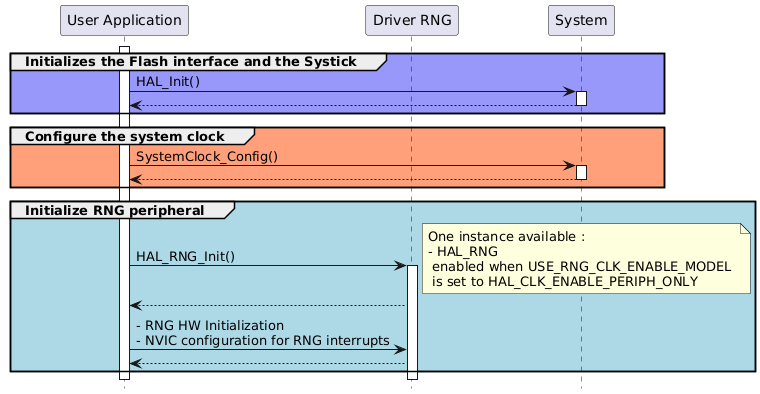

User application starting a driver

@startuml hide footbox ' To add a number by line 'autonumber ' Fix order of each column skinparam ParticipantPadding 40 participant "User Application" as part1 participant "Driver RNG" as part2 participant "System" as part3 activate part1 group #9898fb Initializes the Flash interface and the Systick part1->part3 : HAL_Init() activate part3 part3 --> part1 deactivate part3 end group #lightsalmon Configure the system clock part1->part3 : SystemClock_Config() activate part3 part3 --> part1 deactivate part3 end group #lightblue Initialize RNG peripheral part1->part2 ++ : HAL_RNG_Init() note right: One instance available : \n- HAL_RNG \n enabled when USE_RNG_CLK_ENABLE_MODEL \n is set to HAL_CLK_ENABLE_PERIPH_ONLY part2 --> part1 part1->part2 : - RNG HW Initialization\n- NVIC configuration for RNG interrupts part2 --> part1 end @enduml

Called functions:

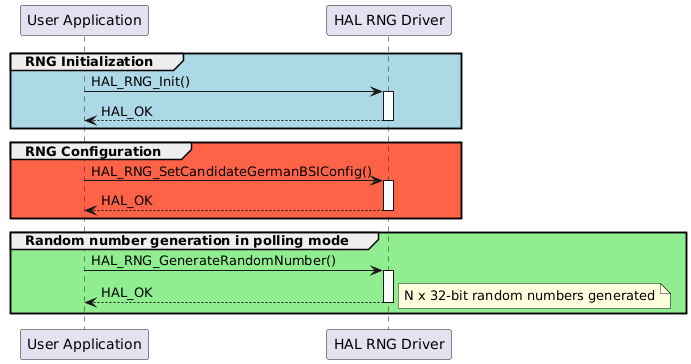

User application generate random numbers with GermanBSI candidate configuration in polling mode

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetCandidateGermanBSIConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in polling mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK note right : N x 32-bit random numbers generated deactivate "HAL RNG Driver" end @enduml

Called functions:

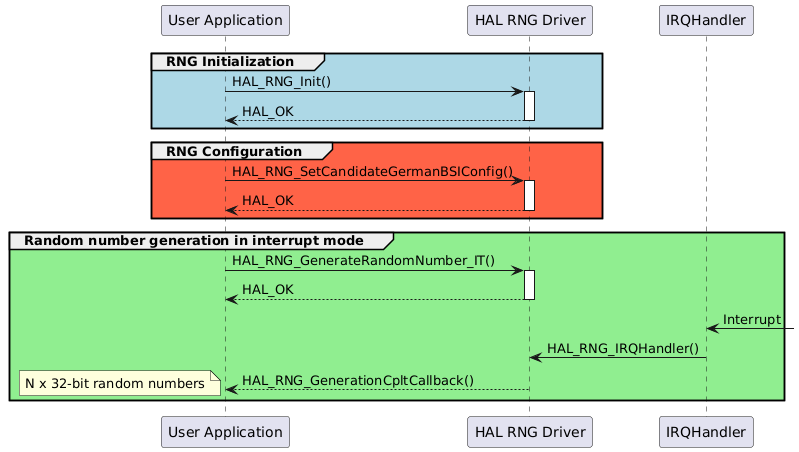

User application generate random numbers with GermanBSI candidate configuration in interrupt mode

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetCandidateGermanBSIConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in interrupt mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber_IT() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "IRQHandler" <-: Interrupt "IRQHandler"->"HAL RNG Driver": HAL_RNG_IRQHandler() "HAL RNG Driver" --> "User Application" : HAL_RNG_GenerationCpltCallback() note left: N x 32-bit random numbers end @enduml

Called functions:

User application generate random numbers with customized configuration in polling mode

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in polling mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK note right: N x 32-bit random numbers deactivate "HAL RNG Driver" end @enduml

Called functions:

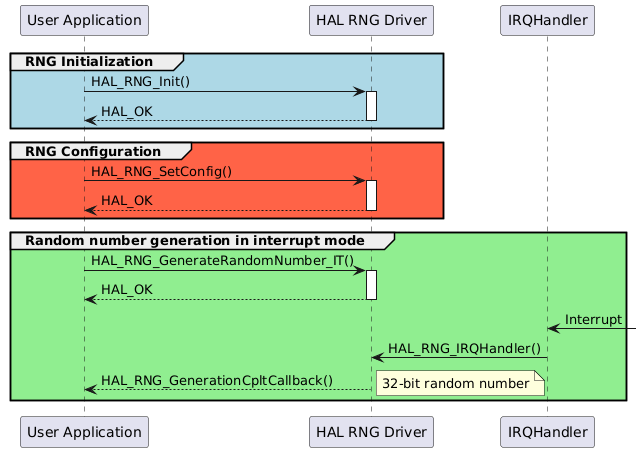

User application generate random numbers with customized configuration in interrupt mode

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in interrupt mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber_IT() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "IRQHandler" <-: Interrupt "IRQHandler"->"HAL RNG Driver": HAL_RNG_IRQHandler() "HAL RNG Driver" --> "User Application" : HAL_RNG_GenerationCpltCallback() note right : 32-bit random number end @enduml

Called functions:

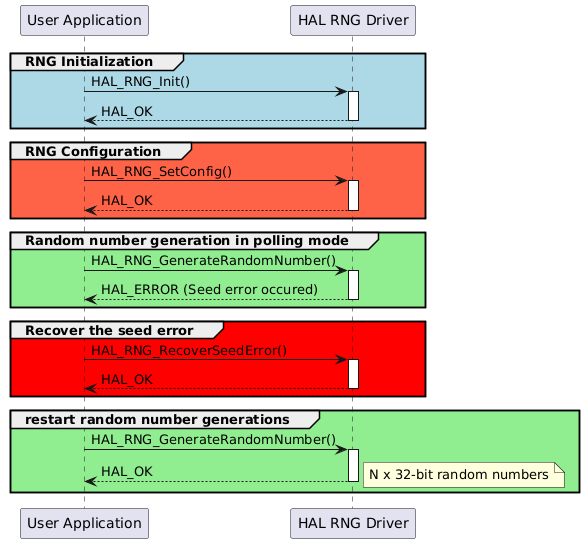

User application recover a seed error when occured in polling mode

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in polling mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_ERROR (Seed error occured) deactivate "HAL RNG Driver" end group #red Recover the seed error "User Application"->"HAL RNG Driver" : HAL_RNG_RecoverSeedError() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen restart random number generations "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK note right : N x 32-bit random numbers deactivate "HAL RNG Driver" end @enduml

Called functions:

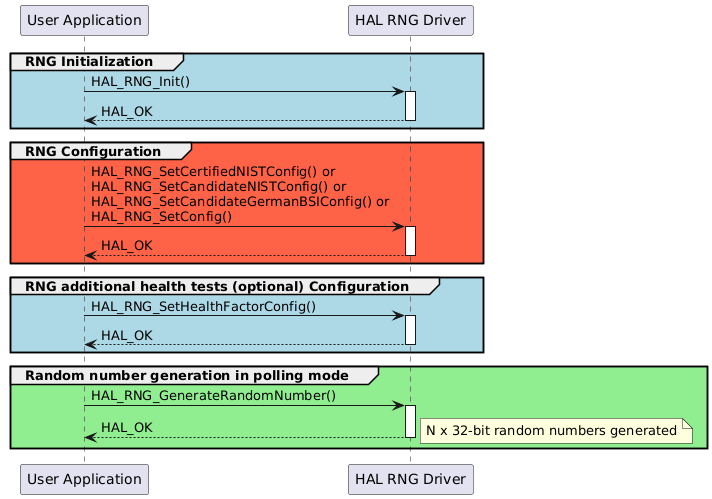

User application recover a seed error when occured in interrupt mode

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetCertifiedNISTConfig() or \nHAL_RNG_SetCandidateNISTConfig() or \nHAL_RNG_SetCandidateGermanBSIConfig() or \nHAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightblue RNG additional health tests (optional) Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetHealthFactorConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in polling mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK note right : N x 32-bit random numbers generated deactivate "HAL RNG Driver" end @enduml

Called functions:

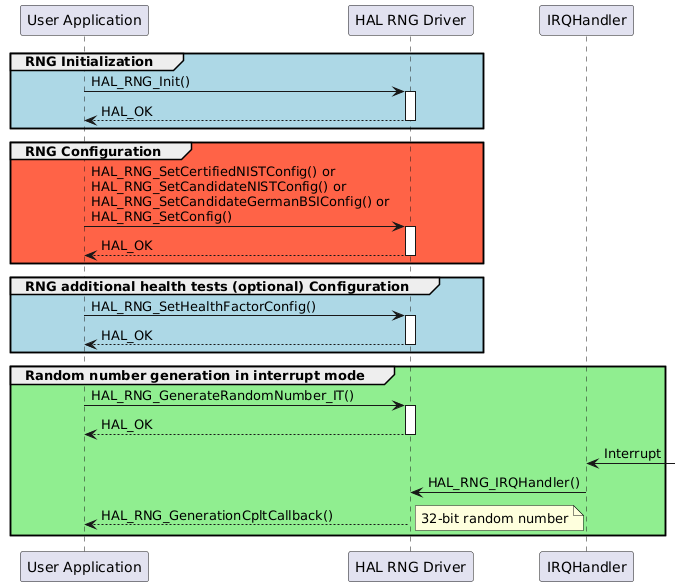

User application setting additional health tests in polling mode

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetCertifiedNISTConfig() or \nHAL_RNG_SetCandidateNISTConfig() or \nHAL_RNG_SetCandidateGermanBSIConfig() or \nHAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightblue RNG additional health tests (optional) Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetHealthFactorConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in interrupt mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber_IT() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "IRQHandler" <-: Interrupt "IRQHandler"->"HAL RNG Driver": HAL_RNG_IRQHandler() "HAL RNG Driver" --> "User Application" : HAL_RNG_GenerationCpltCallback() note right : 32-bit random number end @enduml

Called functions:

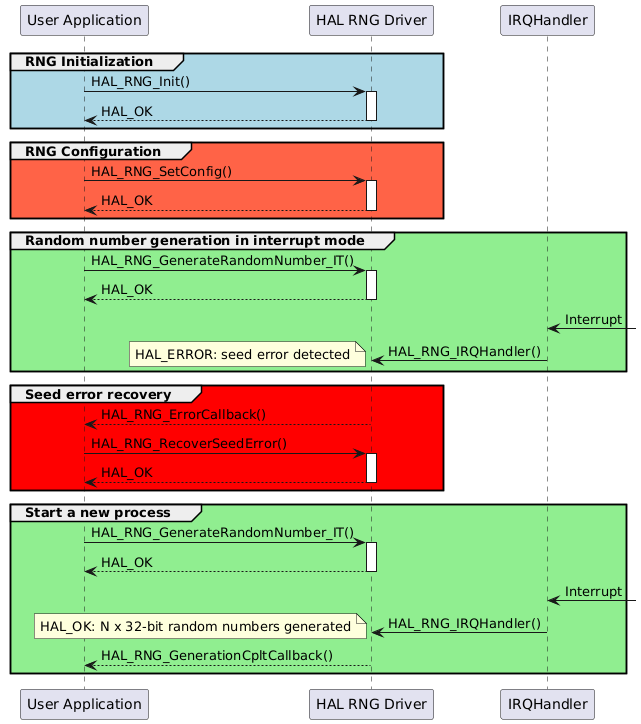

User application setting additional health tests in interrupt mode

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in interrupt mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber_IT() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "IRQHandler" <-: Interrupt "IRQHandler"->"HAL RNG Driver": HAL_RNG_IRQHandler() note left : HAL_ERROR: seed error detected end group #red Seed error recovery "HAL RNG Driver" --> "User Application" : HAL_RNG_ErrorCallback() "User Application"->"HAL RNG Driver" : HAL_RNG_RecoverSeedError() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Start a new process "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber_IT() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "IRQHandler" <-: Interrupt "IRQHandler"-> "HAL RNG Driver" : HAL_RNG_IRQHandler() note left : HAL_OK: N x 32-bit random numbers generated "HAL RNG Driver" --> "User Application" : HAL_RNG_GenerationCpltCallback() end @enduml

Called functions:
