HAL I2S Use Cases

Prerequisite

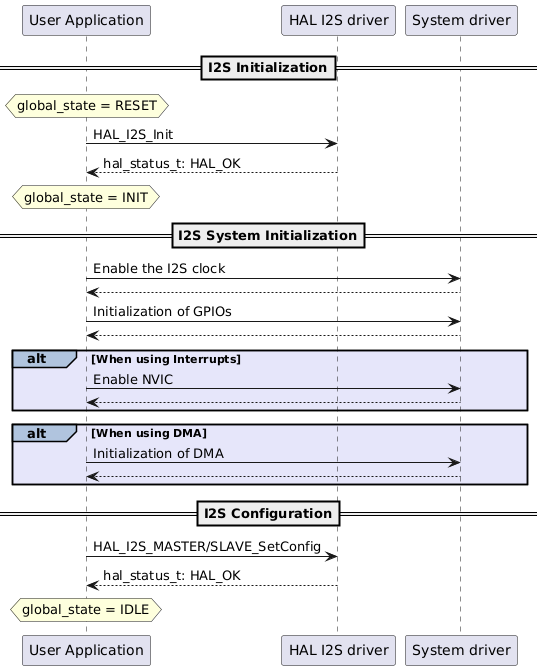

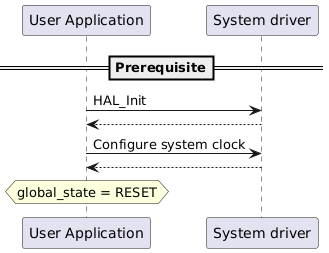

This diagram illustrates the prerequisite steps for initializing the system

Full Initialization sequence

Called functions:

• HAL_I2S_Init()

• HAL_I2S_MASTER_SetConfig()

• HAL_I2S_SLAVE_SetConfig()

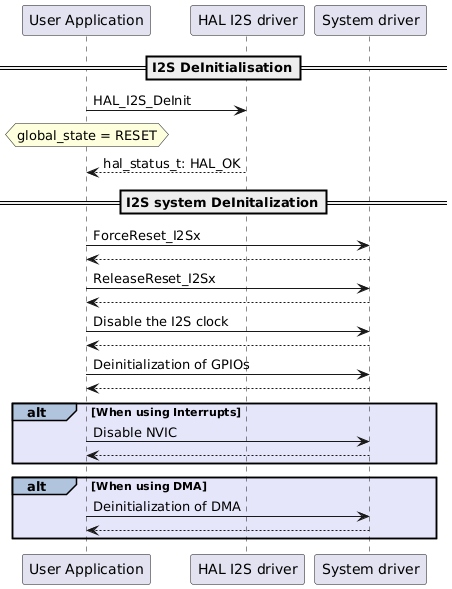

Full I2S deinitialization sequence

To finish the work with the I2S, the user must do the following sequence:

Called functions:

• HAL_I2S_DeInit()

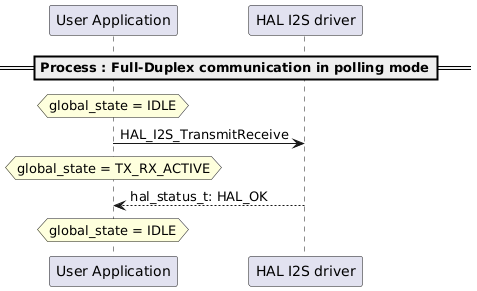

Full-duplex transmit/receive polling mode

Called functions:

• HAL_I2S_TransmitReceive()

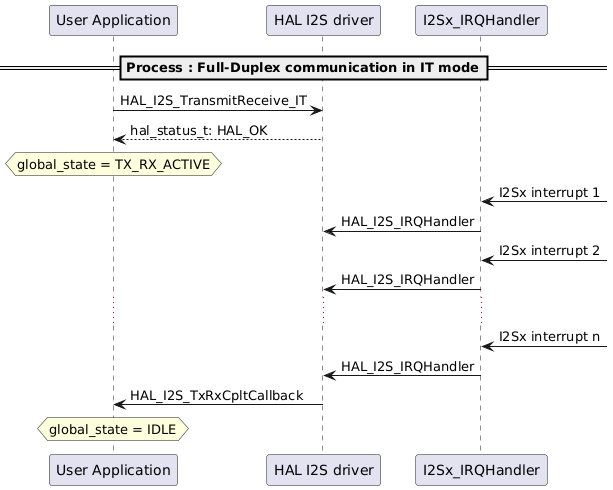

Full-duplex transmit/receive in IT mode

Called functions:

• HAL_I2S_TransmitReceive_IT()

• HAL_I2S_IRQHandler()

• HAL_I2S_TxRxCpltCallback()

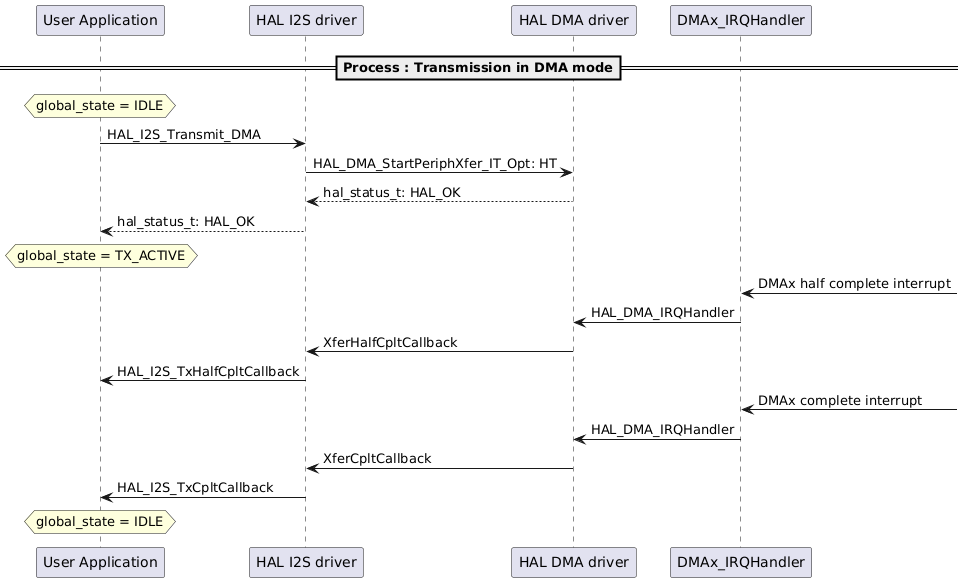

Simplex Transmit in DMA mode

Called functions:

• HAL_I2S_Transmit_DMA()

• HAL_I2S_TxHalfCpltCallback()

• HAL_I2S_TxCpltCallback()

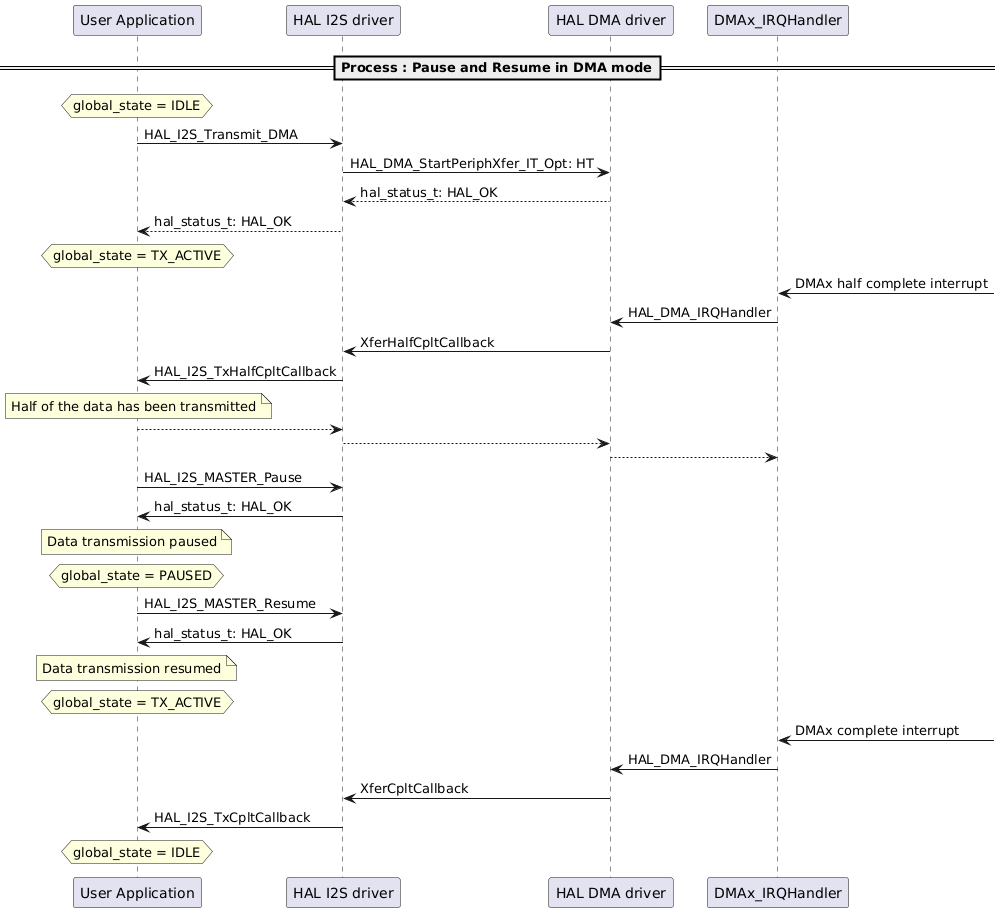

Pause/Resume in DMA mode

Called functions:

• HAL_I2S_Transmit_DMA()

• HAL_I2S_TxHalfCpltCallback()

• HAL_I2S_MASTER_Pause()

• HAL_I2S_MASTER_Resume()

• HAL_I2S_TxCpltCallback()

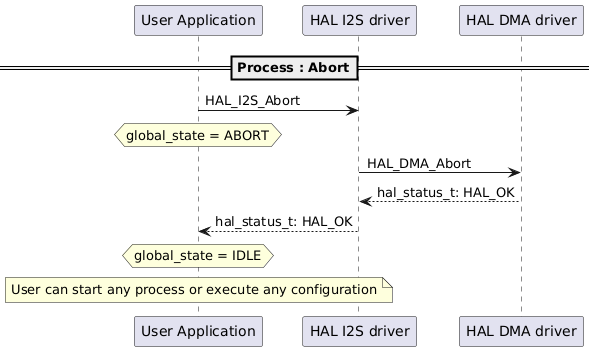

User application Abort

Called functions:

• HAL_I2S_Abort_IT()

• HAL_I2S_AbortCpltCallback()

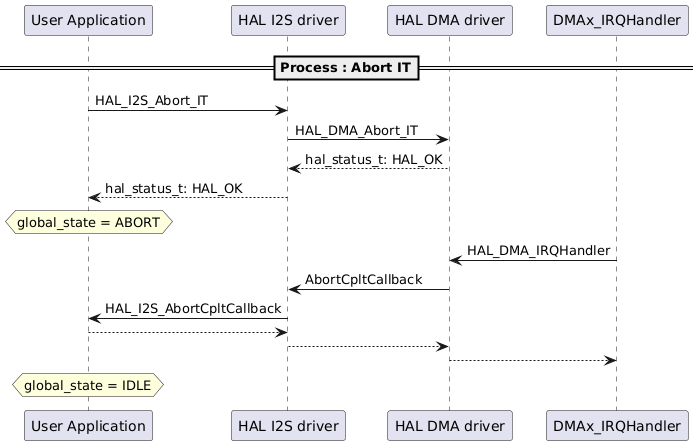

User application Abort IT

Called functions:

• HAL_I2S_Abort()
