HAL COMP Use Cases

HAL COMP Handle Initialization

@startuml 'skinparam handwritten true title: Initialization ' Fix order of each column participant "User Application" as appli participant "HAL GENERIC" as GENERIC participant "HAL RCC" as RCC participant "HAL GPIO" as GPIO participant "HAL CORTEX\n(NVIC)" as CORTEX participant "<font color=green><b>HAL COMP</b></font>" as COMP participant "HAL EXTI" as EXTI hnote over COMP: global_state=RESET appli->GENERIC : HAL_Init() note right Required to initialize HAL delay services, used for time out in HAL COMP driver end note GENERIC --> appli appli->RCC : Configure system clock RCC --> appli note across Potential use case: Two COMP handles initialized and corresponding to two COMP instances (noted upper/lower threshold below) belonging to the same COMP common instance. Each COMP instance must have its peripherals dependencies configured (kernel clock, NVIC interruption line, ...) end note group#LemonChiffon #LightYellow Peripherals dependencies initialization alt#lightgrey #LightYellow if USE_HAL_COMP_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO appli->RCC : Enable COMP kernel clock RCC --> appli end opt#lightgrey #LightYellow if GPIO(s) needed appli->GPIO : Initialization of GPIO(s) GPIO-->appli end opt#lightgrey #LightYellow if interrupt needed appli->CORTEX : Enable needed interrupt CORTEX-->appli end end group#LightBlue #AliceBlue COMP initialization appli->COMP : HAL_COMP_Init(<handle **COMP_a**>) alt#lightgrey #AliceBlue if USE_HAL_COMP_CLK_ENABLE_MODEL != HAL_CLK_ENABLE_NO COMP->RCC : Enable **COMP_a** kernel clock RCC --> COMP end opt#lightgrey #AliceBlue if USE_HAL_COMP_EXTI == 1 COMP->EXTI : Set EXTI line RCC --> COMP end COMP --> appli opt#lightgrey #AliceBlue if multiple COMP instances used appli->COMP : HAL_COMP_Init(<handle **COMP_b**>) alt#lightgrey #AliceBlue If USE_HAL_COMP_CLK_ENABLE_MODEL != HAL_CLK_ENABLE_NO COMP->RCC : Enable **COMP_b** kernel clock RCC --> COMP end opt#lightgrey #AliceBlue if USE_HAL_COMP_EXTI == 1 COMP->EXTI : Set EXTI line RCC --> COMP end COMP --> appli appli->COMP : HAL_COMP_WINDOW_SetHandle(<handle upper threshold>, <handle hcomp_lower_threshold>) COMP --> appli end end hnote over COMP: global_state=INIT @enduml

Functions called:

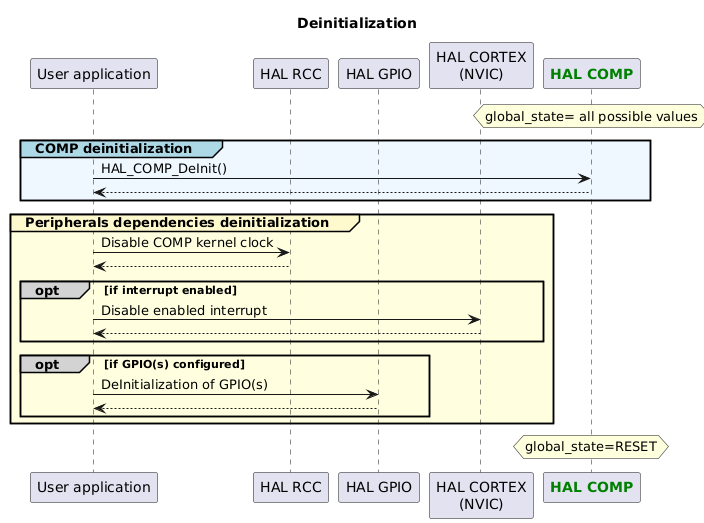

Deinitialization

@startuml title: Deinitialization participant "User application" as appli participant "HAL RCC" as RCC participant "HAL GPIO" as GPIO participant "HAL CORTEX\n(NVIC)" as CORTEX participant "<font color=green><b>HAL COMP</b></font>" as COMP hnote over COMP: global_state= all possible values group#LightBlue #AliceBlue COMP deinitialization appli->COMP : HAL_COMP_DeInit() appli<--COMP end group#LemonChiffon #LightYellow Peripherals dependencies deinitialization appli->RCC : Disable COMP kernel clock RCC --> appli opt#lightgrey if interrupt enabled appli->CORTEX : Disable enabled interrupt CORTEX-->appli end opt#lightgrey if GPIO(s) configured appli->GPIO : DeInitialization of GPIO(s) GPIO-->appli end end hnote over COMP: global_state=RESET @enduml

Functions called:

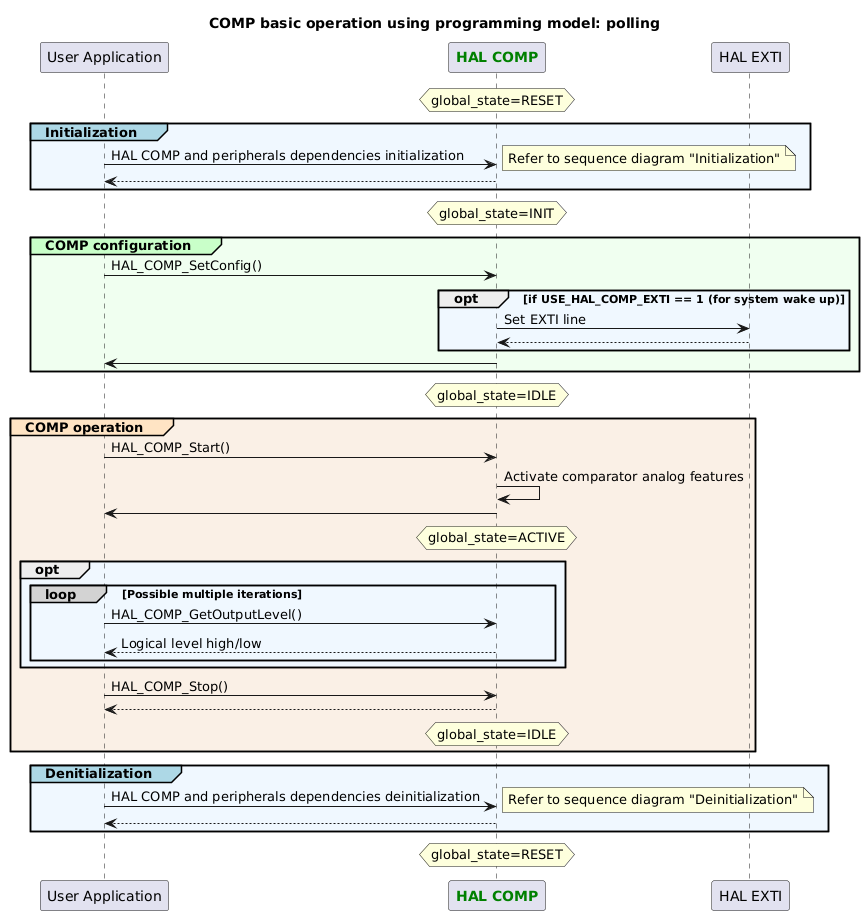

COMP Basic Operation Using Polling

@startuml title: COMP basic operation using programming model: polling participant "User Application" as appli participant "<font color=green><b>HAL COMP</b></font>" as COMP participant "HAL EXTI" as EXTI hnote over COMP: global_state=RESET group#LightBlue #AliceBlue Initialization appli->COMP : HAL COMP and peripherals dependencies initialization note right Refer to sequence diagram "Initialization" end note return end hnote over COMP: global_state=INIT group#TECHNOLOGY #HoneyDew COMP configuration appli->COMP : HAL_COMP_SetConfig() opt #AliceBlue if USE_HAL_COMP_EXTI == 1 (for system wake up) 'opt #AliceBlue if USE_HAL_COMP_EXTI == 1 (use poll for event or system wake up) COMP -> EXTI : Set EXTI line return end appli<-COMP end hnote over COMP: global_state=IDLE group#Bisque #Linen COMP operation appli->COMP : HAL_COMP_Start() COMP->COMP : Activate comparator analog features COMP->appli hnote over COMP: global_state=ACTIVE opt #AliceBlue loop#lightgrey Possible multiple iterations /' opt #AliceBlue if USE_HAL_COMP_EXTI == 1 (use poll for event or system wake up) appli->COMP : HAL_COMP_PollForEvent() COMP -> EXTI : Manage EXTI line flag return appli<-COMP end '/ appli->COMP : HAL_COMP_GetOutputLevel() COMP --> appli: Logical level high/low end end appli->COMP : HAL_COMP_Stop() return hnote over COMP: global_state=IDLE end group#LightBlue #AliceBlue Denitialization appli->COMP : HAL COMP and peripherals dependencies deinitialization note right Refer to sequence diagram "Deinitialization" end note return end hnote over COMP: global_state=RESET @enduml

Functions called:

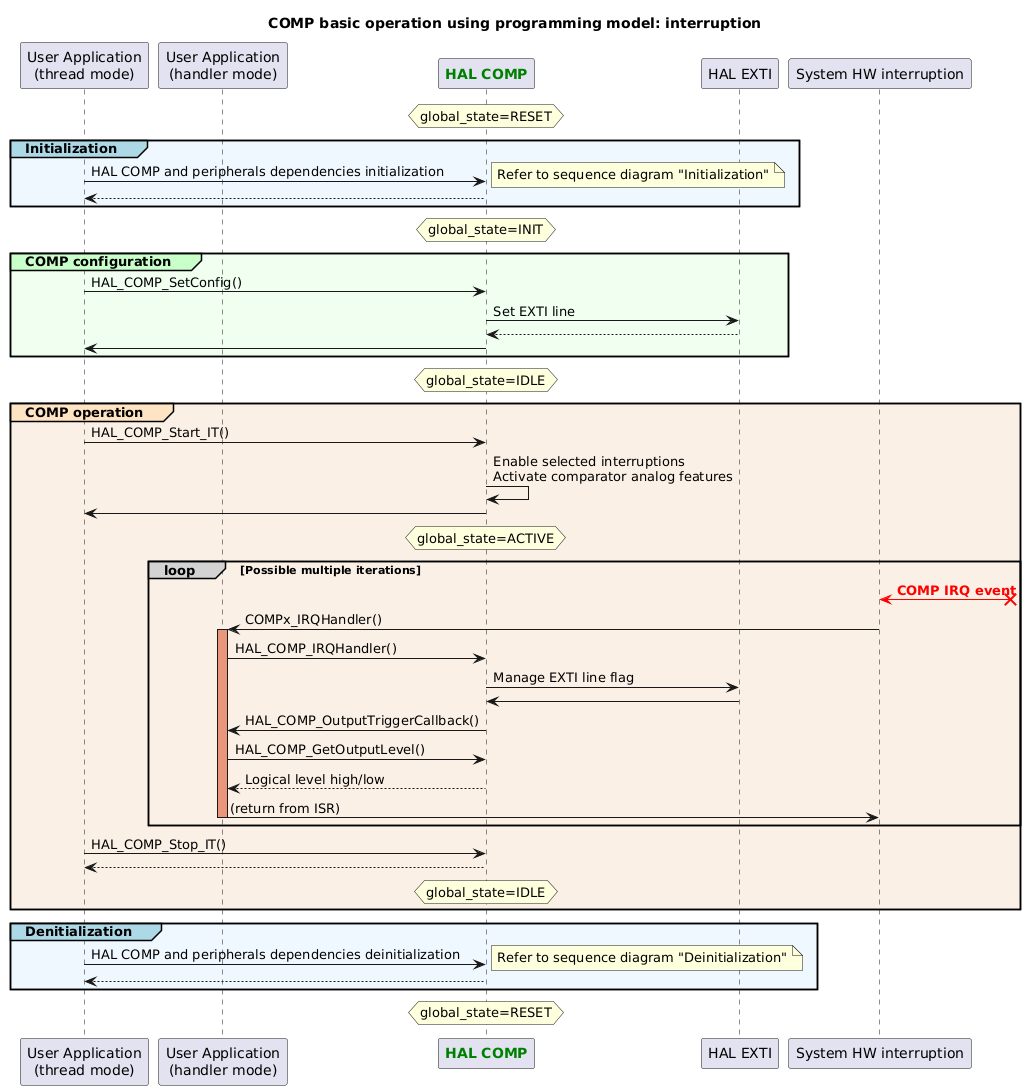

COMP Basic Operation Using Interruption

@startuml title: COMP basic operation using programming model: interruption participant "User Application\n(thread mode)" as appli participant "User Application\n(handler mode)" as appli_IRQ participant "<font color=green><b>HAL COMP</b></font>" as COMP participant "HAL EXTI" as EXTI participant "System HW interruption" as interruption hnote over COMP: global_state=RESET group#LightBlue #AliceBlue Initialization appli->COMP : HAL COMP and peripherals dependencies initialization note right Refer to sequence diagram "Initialization" end note return end hnote over COMP: global_state=INIT group#TECHNOLOGY #HoneyDew COMP configuration appli->COMP : HAL_COMP_SetConfig() COMP -> EXTI : Set EXTI line return appli<-COMP end hnote over COMP: global_state=IDLE group#Bisque #Linen COMP operation appli->COMP : HAL_COMP_Start_IT() COMP->COMP : Enable selected interruptions\nActivate comparator analog features COMP->appli hnote over COMP: global_state=ACTIVE loop#lightgrey Possible multiple iterations interruption <[#red]-x? : <font color=red><b>COMP IRQ event interruption -> appli_IRQ : COMPx_IRQHandler() activate appli_IRQ #DarkSalmon appli_IRQ -> COMP : HAL_COMP_IRQHandler() COMP -> EXTI : Manage EXTI line flag COMP <- EXTI COMP -> appli_IRQ: HAL_COMP_OutputTriggerCallback() appli_IRQ->COMP : HAL_COMP_GetOutputLevel() COMP --> appli_IRQ: Logical level high/low appli_IRQ -> interruption : (return from ISR) deactivate appli_IRQ end appli->COMP : HAL_COMP_Stop_IT() return hnote over COMP: global_state=IDLE end group#LightBlue #AliceBlue Denitialization appli->COMP : HAL COMP and peripherals dependencies deinitialization note right Refer to sequence diagram "Deinitialization" end note return end hnote over COMP: global_state=RESET @enduml

Functions called:

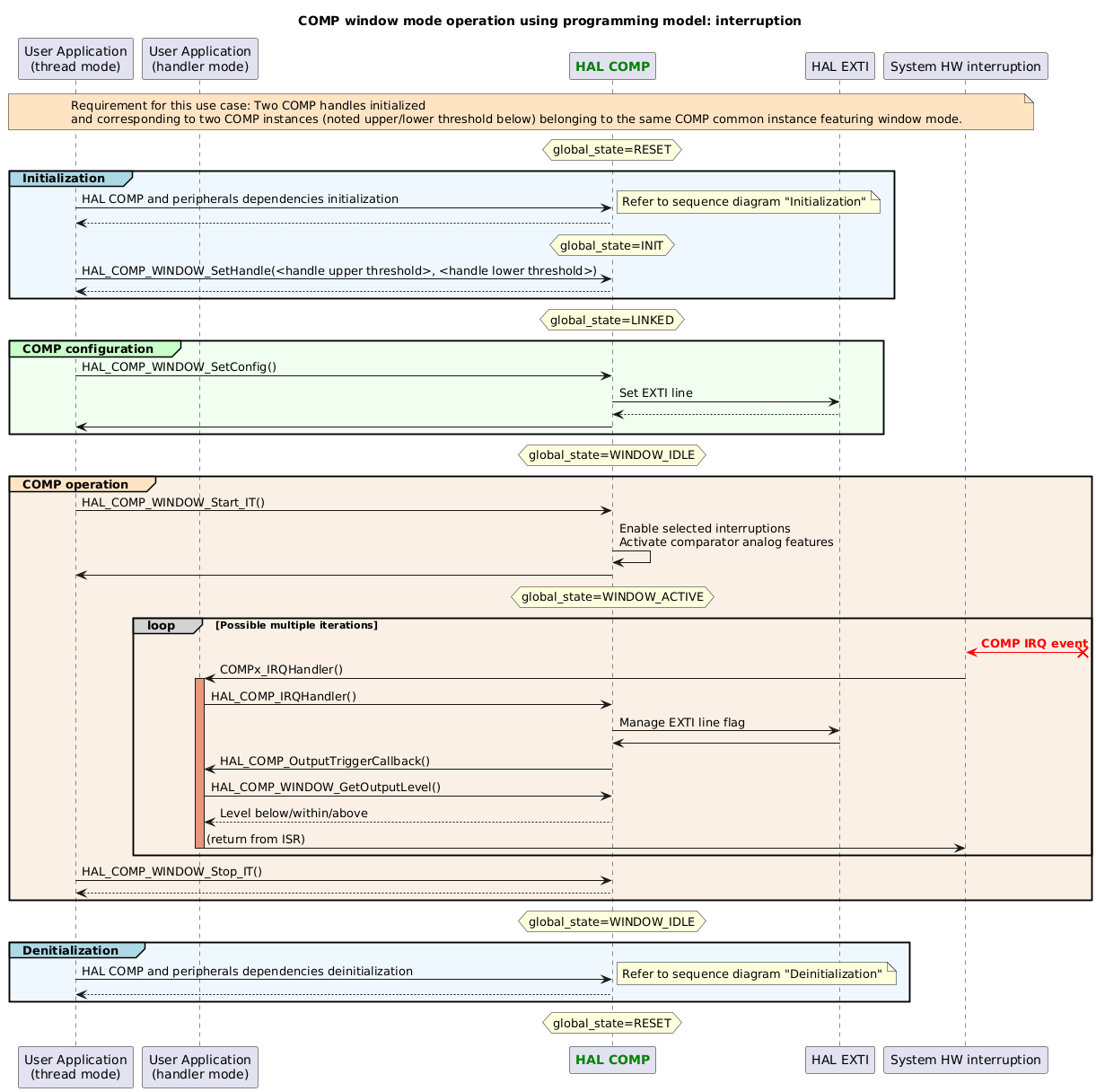

COMP Window Mode Operation Using Interruption

@startuml title: COMP window mode operation using programming model: interruption participant "User Application\n(thread mode)" as appli participant "User Application\n(handler mode)" as appli_IRQ participant "<font color=green><b>HAL COMP</b></font>" as COMP participant "HAL EXTI" as EXTI participant "System HW interruption" as interruption note across #Bisque Requirement for this use case: Two COMP handles initialized and corresponding to two COMP instances (noted upper/lower threshold below) belonging to the same COMP common instance featuring window mode. end note hnote over COMP: global_state=RESET group#LightBlue #AliceBlue Initialization appli->COMP : HAL COMP and peripherals dependencies initialization note right Refer to sequence diagram "Initialization" end note return hnote over COMP: global_state=INIT appli->COMP : HAL_COMP_WINDOW_SetHandle(<handle upper threshold>, <handle lower threshold>) COMP --> appli end hnote over COMP: global_state=LINKED group#TECHNOLOGY #HoneyDew COMP configuration appli->COMP : HAL_COMP_WINDOW_SetConfig() COMP -> EXTI : Set EXTI line return appli<-COMP end hnote over COMP: global_state=WINDOW_IDLE group#Bisque #Linen COMP operation appli->COMP : HAL_COMP_WINDOW_Start_IT() COMP->COMP : Enable selected interruptions\nActivate comparator analog features COMP->appli hnote over COMP: global_state=WINDOW_ACTIVE loop#lightgrey Possible multiple iterations interruption <[#red]-x? : <font color=red><b>COMP IRQ event interruption -> appli_IRQ : COMPx_IRQHandler() activate appli_IRQ #DarkSalmon appli_IRQ -> COMP : HAL_COMP_IRQHandler() COMP -> EXTI : Manage EXTI line flag COMP <- EXTI COMP -> appli_IRQ: HAL_COMP_OutputTriggerCallback() appli_IRQ->COMP : HAL_COMP_WINDOW_GetOutputLevel() COMP --> appli_IRQ: Level below/within/above appli_IRQ -> interruption : (return from ISR) deactivate appli_IRQ end appli->COMP : HAL_COMP_WINDOW_Stop_IT() return end hnote over COMP: global_state=WINDOW_IDLE group#LightBlue #AliceBlue Denitialization appli->COMP : HAL COMP and peripherals dependencies deinitialization note right Refer to sequence diagram "Deinitialization" end note return end hnote over COMP: global_state=RESET @enduml

Functions called:
