UTILS I3C Timing Use Cases ¶

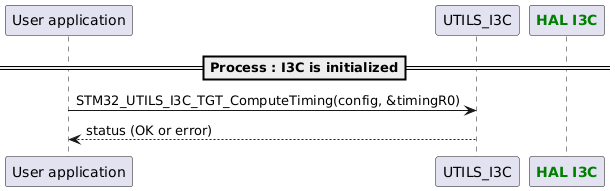

I3C Timing Calculation (Target) ¶

@startuml
participant App as "User application"
participant "UTILS_I3C" as Utils
participant "HAL I3C" as I3C

==Process : I3C is initialized==

App -> Utils : STM32_UTILS_I3C_TGT_ComputeTiming(config, &timingR0)
Utils --> App : status (OK or error)

@enduml

Called functions:

STM32_UTILS_I3C_TGT_ComputeTiming()

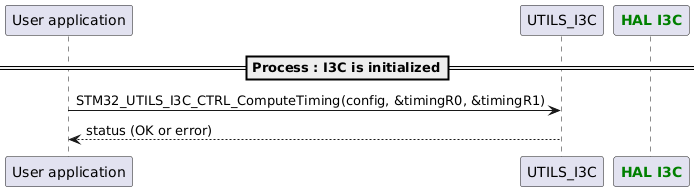

I3C Timing Calculation (Controller) ¶

@startuml
participant App as "User application"
participant "UTILS_I3C" as Utils
participant "HAL I3C" as I3C

==Process : I3C is initialized==

App -> Utils : STM32_UTILS_I3C_CTRL_ComputeTiming(config, &timingR0, &timingR1)
Utils --> App : status (OK or error)

@enduml

Called functions:

STM32_UTILS_I3C_CTRL_ComputeTiming()
