STM32C5xx HAL Drivers
HAL WWDG Use Cases ¶

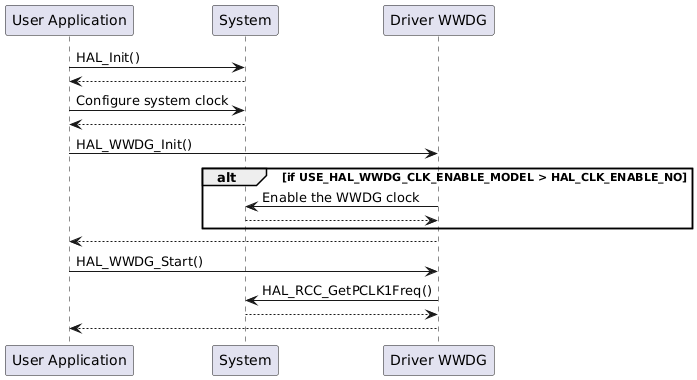

User Application Starting a Driver ¶
Functions called:

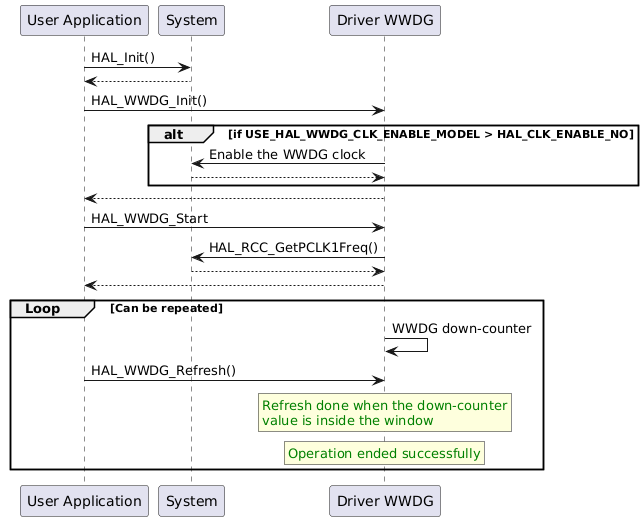

WWDG Refresh Correctly ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
"User Application"->"Driver WWDG" : HAL_WWDG_Init()
alt if USE_HAL_WWDG_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO
"Driver WWDG"->"System": Enable the WWDG clock
"System" --> "Driver WWDG"
end
"Driver WWDG" --> "User Application"
"User Application" -> "Driver WWDG" : HAL_WWDG_Start
"Driver WWDG"->"System": HAL_RCC_GetPCLK1Freq()
"System" --> "Driver WWDG"
"Driver WWDG" --> "User Application"
group Loop [Can be repeated]
"Driver WWDG" -> "Driver WWDG" : WWDG down-counter
"User Application" -> "Driver WWDG" : HAL_WWDG_Refresh()
rnote over "Driver WWDG"
<color #green>Refresh done when the down-counter
<color #green>value is inside the window
endrnote
rnote over "Driver WWDG"
<color #green>Operation ended successfully
endrnote
end
@enduml](../../../../_images/plantuml-9e168879b8f5a51c3566e5e49686d548de3495a0.png)
Functions called:

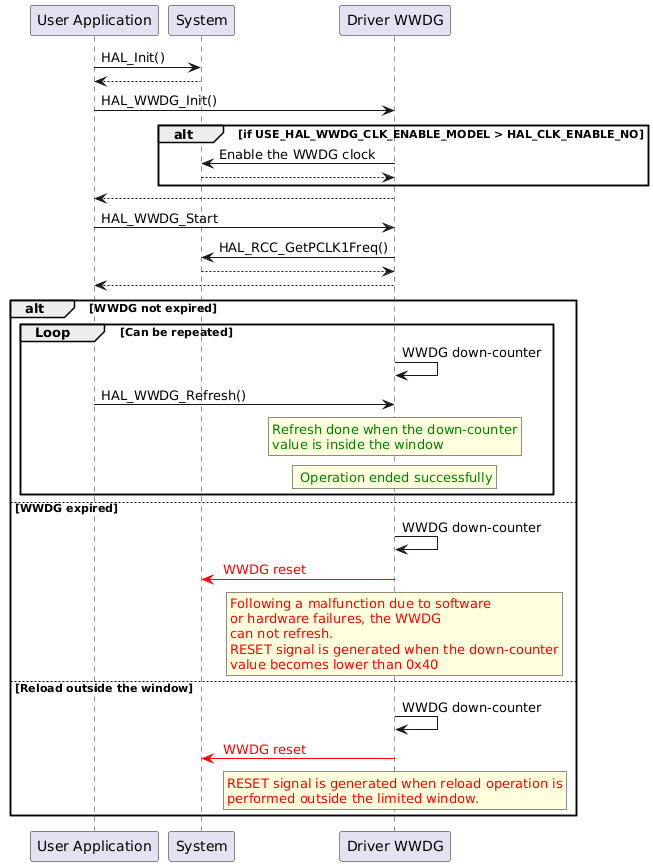

WWDG Cannot Refresh ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
"User Application"->"Driver WWDG" : HAL_WWDG_Init()
alt if USE_HAL_WWDG_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO
"Driver WWDG"->"System": Enable the WWDG clock
"System" --> "Driver WWDG"
end
"Driver WWDG" --> "User Application"
"User Application" -> "Driver WWDG" : HAL_WWDG_Start
"Driver WWDG"->"System": HAL_RCC_GetPCLK1Freq()
"System" --> "Driver WWDG"
"Driver WWDG" --> "User Application"
alt WWDG not expired
group Loop [Can be repeated]
"Driver WWDG" -> "Driver WWDG" : WWDG down-counter
"User Application" -> "Driver WWDG" : HAL_WWDG_Refresh()
rnote over "Driver WWDG"
<color #green>Refresh done when the down-counter
<color #green>value is inside the window
endrnote
rnote over "Driver WWDG"
<color #green> Operation ended successfully
endrnote
end
else WWDG expired
"Driver WWDG" -> "Driver WWDG" : WWDG down-counter
"Driver WWDG" -[#red]> "System" : <color #red> WWDG reset </color>
rnote over "Driver WWDG"
<color #red>Following a malfunction due to software
<color #red>or hardware failures, the WWDG
<color #red>can not refresh.
<color #red>RESET signal is generated when the down-counter
<color #red>value becomes lower than 0x40
endrnote
else Reload outside the window
"Driver WWDG" -> "Driver WWDG" : WWDG down-counter
"Driver WWDG" -[#red]> "System" : <color #red> WWDG reset </color>
rnote over "Driver WWDG"
<color #red>RESET signal is generated when reload operation is
<color #red>performed outside the limited window.
endrnote
end
@enduml](../../../../_images/plantuml-6f8486b8b85bf6ec47abbefced3534bafd31a63b.png)
Functions called:

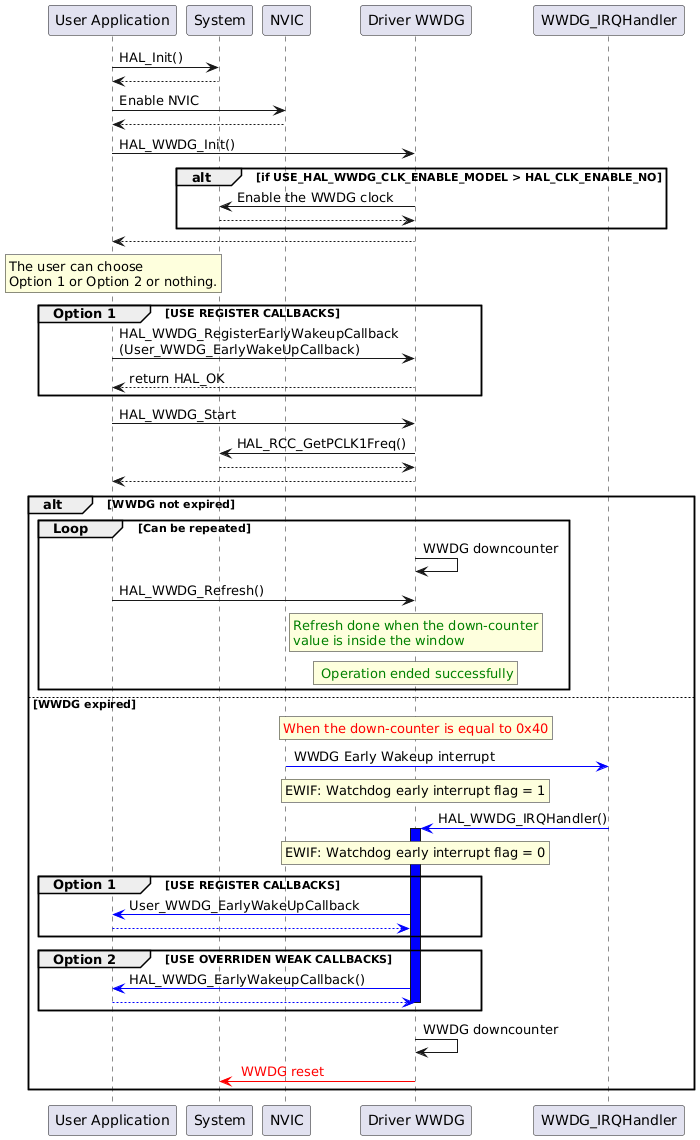

Early Wakeup Interrupt Option is Activated ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
"User Application" -> "NVIC" : Enable NVIC
"NVIC" --> "User Application"
"User Application"->"Driver WWDG" : HAL_WWDG_Init()
alt if USE_HAL_WWDG_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO
"Driver WWDG"->"System": Enable the WWDG clock
"System" --> "Driver WWDG"
end
"Driver WWDG" --> "User Application"
rnote over "User Application"
The user can choose
Option 1 or Option 2 or nothing.
endrnote
group Option 1 [USE REGISTER CALLBACKS]
"User Application" -> "Driver WWDG" : HAL_WWDG_RegisterEarlyWakeupCallback\n(User_WWDG_EarlyWakeUpCallback)
"Driver WWDG" --> "User Application" : return HAL_OK
end
"User Application" -> "Driver WWDG" : HAL_WWDG_Start
"Driver WWDG"->"System": HAL_RCC_GetPCLK1Freq()
"System" --> "Driver WWDG"
"Driver WWDG" --> "User Application"
alt WWDG not expired
group Loop [Can be repeated]
"Driver WWDG" -> "Driver WWDG" : WWDG downcounter
"User Application" -> "Driver WWDG" : HAL_WWDG_Refresh()
rnote over "Driver WWDG"
<color #green>Refresh done when the down-counter
<color #green>value is inside the window
endrnote
rnote over "Driver WWDG"
<color #green> Operation ended successfully
endrnote
end
else WWDG expired
rnote over "Driver WWDG"
<color #red>When the down-counter is equal to 0x40
endrnote
"WWDG_IRQHandler" <[#Blue]- "NVIC" : WWDG Early Wakeup interrupt
rnote over "Driver WWDG"
EWIF: Watchdog early interrupt flag = 1
endrnote
"WWDG_IRQHandler" -[#Blue]> "Driver WWDG" : HAL_WWDG_IRQHandler()
activate "Driver WWDG" #Blue
rnote over "Driver WWDG"
EWIF: Watchdog early interrupt flag = 0
endrnote
group Option 1 [USE REGISTER CALLBACKS]
"Driver WWDG" -[#Blue]> "User Application" :User_WWDG_EarlyWakeUpCallback
"User Application" -[#Blue]-> "Driver WWDG"
end
group Option 2 [USE OVERRIDEN WEAK CALLBACKS]
"Driver WWDG" -[#Blue]> "User Application" : HAL_WWDG_EarlyWakeupCallback()
"User Application" -[#Blue]-> "Driver WWDG"
deactivate "Driver WWDG"
end
"Driver WWDG" -> "Driver WWDG" : WWDG downcounter
"Driver WWDG" -[#red]> "System" : <color #red> WWDG reset </color>
end
@enduml](../../../../_images/plantuml-6d8a15679c38c1a457506f7a0f60b3a3654d100d.png)
Functions called:

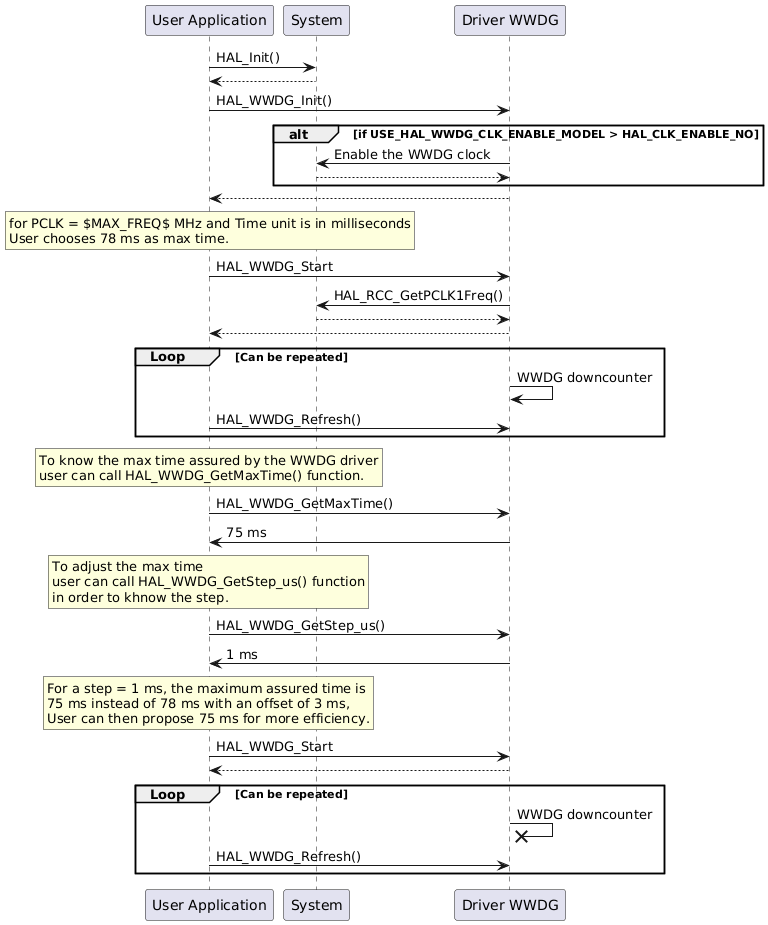

Use Case for Max Time Adjustment ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
"User Application"->"Driver WWDG" : HAL_WWDG_Init()
alt if USE_HAL_WWDG_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO
"Driver WWDG"->"System": Enable the WWDG clock
"System" --> "Driver WWDG"
end
"Driver WWDG" --> "User Application"
rnote over "User Application"
for PCLK = $MAX_FREQ$ MHz and Time unit is in milliseconds
User chooses 78 ms as max time.
endrnote
"User Application" -> "Driver WWDG" : HAL_WWDG_Start
"Driver WWDG"->"System": HAL_RCC_GetPCLK1Freq()
"System" --> "Driver WWDG"
"Driver WWDG" --> "User Application"
group Loop [Can be repeated]
"Driver WWDG" -> "Driver WWDG" : WWDG downcounter
"User Application" -> "Driver WWDG" : HAL_WWDG_Refresh()
end
rnote over "User Application"
To know the max time assured by the WWDG driver
user can call HAL_WWDG_GetMaxTime() function.
endrnote
"User Application"->"Driver WWDG" : HAL_WWDG_GetMaxTime()
"Driver WWDG" -> "User Application" : 75 ms
rnote over "User Application"
To adjust the max time
user can call HAL_WWDG_GetStep_us() function
in order to khnow the step.
endrnote
"User Application"->"Driver WWDG" : HAL_WWDG_GetStep_us()
"Driver WWDG" -> "User Application" : 1 ms
rnote over "User Application"
For a step = 1 ms, the maximum assured time is
75 ms instead of 78 ms with an offset of 3 ms,
User can then propose 75 ms for more efficiency.
endrnote
"User Application" -> "Driver WWDG" : HAL_WWDG_Start
"Driver WWDG" --> "User Application"
group Loop [Can be repeated]
"Driver WWDG" ->x "Driver WWDG" : WWDG downcounter
"User Application" -> "Driver WWDG" : HAL_WWDG_Refresh()
end
@enduml](../../../../_images/plantuml-5a72240cc5b1fcd64b571583f75b6575ab1ea28e.png)
Functions called:

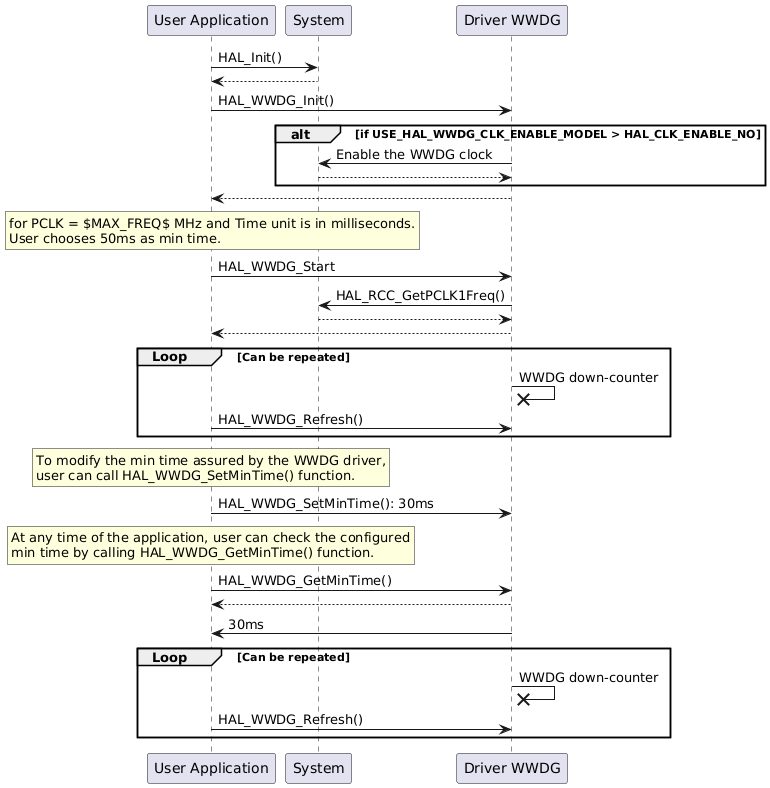

Use Case for Min Time Adjustment ¶
![@startuml
"User Application" -> "System" : HAL_Init()
"System" --> "User Application"
"User Application"->"Driver WWDG" : HAL_WWDG_Init()
alt if USE_HAL_WWDG_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO
"Driver WWDG"->"System": Enable the WWDG clock
"System" --> "Driver WWDG"
end
"Driver WWDG" --> "User Application"
rnote over "User Application"
for PCLK = $MAX_FREQ$ MHz and Time unit is in milliseconds.
User chooses 50ms as min time.
endrnote
"User Application" -> "Driver WWDG" : HAL_WWDG_Start
"Driver WWDG"->"System": HAL_RCC_GetPCLK1Freq()
"System" --> "Driver WWDG"
"Driver WWDG" --> "User Application"
group Loop [Can be repeated]
"Driver WWDG" ->x "Driver WWDG" : WWDG down-counter
"User Application" -> "Driver WWDG" : HAL_WWDG_Refresh()
end
rnote over "User Application"
To modify the min time assured by the WWDG driver,
user can call HAL_WWDG_SetMinTime() function.
endrnote
"User Application"->"Driver WWDG" : HAL_WWDG_SetMinTime(): 30ms
rnote over "User Application"
At any time of the application, user can check the configured
min time by calling HAL_WWDG_GetMinTime() function.
endrnote
"User Application" -> "Driver WWDG" : HAL_WWDG_GetMinTime()
"Driver WWDG" --> "User Application"
"Driver WWDG" -> "User Application" : 30ms
group Loop [Can be repeated]
"Driver WWDG" ->x "Driver WWDG" : WWDG down-counter
"User Application" -> "Driver WWDG" : HAL_WWDG_Refresh()
end
@enduml](../../../../_images/plantuml-34a9a4475154caa70d08571f6198a9262592cdd6.png)
Functions called:
