STM32C5xx HAL Drivers
HAL AES Overview ¶
Introducing AES ¶
- group AES_Introduction
-
The AES hardware abstraction layer provides a set of APIs to configure and control the AES (and SAES) peripheral on STM32 microcontrollers.
The AES coprocessor (AES/SAES) encrypts or decrypts data, using an algorithm and implementation fully compliant with the Advanced Encryption Standard (AES/SAES) defined in Federal Information Processing Standards (FIPS) publication 197. It incorporates protection against side-channel attacks (SCA), including differential power analysis (DPA), and is certified to SESIP and PSA security assurance level 3.
The peripheral supports CTR, GCM, GMAC, CCM, ECB, and CBC chaining modes for key sizes of 128 or 256 bits, as well as special modes such as hardware secret key encryption/decryption (Wrapped-key mode) and key sharing with the faster CRYP peripheral (Shared-key mode).
Module and files ¶
The following diagram illustrates the AES module and its associated files.

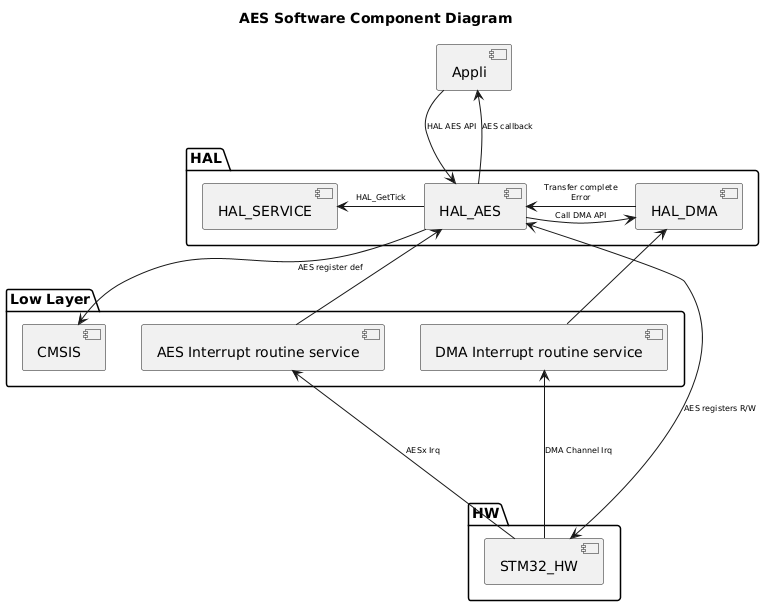

Component diagram ¶
The following diagram illustrates the software components involved in the AES module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title AES Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_AES]
[HAL_DMA]
}
package "Low Layer" {
[CMSIS]
[AES Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_AES] : HAL AES API
[Appli] <-- [HAL_AES] : AES callback
[HAL_AES] -r-> [HAL_DMA] : Call DMA API
[HAL_AES] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_AES] <-- [AES Interrupt routine service]
[HAL_AES] <-r- [HAL_DMA]:Transfer complete\nError
[HAL_AES] --> [CMSIS]:AES register def
[HAL_AES] <--> [STM32_HW]:AES registers R/W
[HAL_DMA] <-d- [DMA Interrupt routine service]
[STM32_HW] -u--> [AES Interrupt routine service]: AESx Irq
[STM32_HW] -u--> [DMA Interrupt routine service] : DMA Channel Irq
@enduml](../../../../_images/plantuml-79812c883c91b36fdc574ce5d761045c4a6fa7f7.png)
Configuration table ¶
The following table lists the configuration defines for the HAL AES module, specifying their locations, default values, and descriptions:
- group AES_Configuration_Table
-
¶
Configuration inside the AES driver ¶
Config defines
Description
Default value
Note
PRODUCT
from IDE
None
Ex:STM32C5xx
USE_HAL_AES_MODULE
from hal_conf.h
1
Enable the HAL AES module
USE_HAL_AES_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Enable the HAL_AES_CLK
USE_ASSERT_DBG_PARAM
from IDE
None
Enable the parameters asserts
USE_ASSERT_DBG_STATE
from IDE
None
Enable the state asserts
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Parameters runtime check
USE_HAL_SECURE_CHECK_PARAM
from hal_conf.h
0
Parameters runtime check for sensitive APIs
USE_HAL_CHECK_PROCESS_STATE
from hal_conf.h
0
Allows to use the load and store exclusive.
USE_HAL_AES_DMA
from hal_conf.h
1
Allows to use DMA mode
USE_HAL_AES_ECB_CBC_ALGO
from hal_conf.h
1
Allows to use ECB and CBC algorithms
USE_HAL_AES_CTR_ALGO
from hal_conf.h
1
Allows to use CTR algorithm
USE_HAL_AES_GCM_GMAC_ALGO
from hal_conf.h
1
Allows to use GCM and GMAC algorithms
USE_HAL_AES_CCM_ALGO
from hal_conf.h
1
Allows to use CCM algorithm
USE_HAL_AES_SUSPEND_RESUME
from hal_conf.h
1
Allows to use Suspend features
USE_HAL_AES_REGISTER_CALLBACKS
from hal_conf h
0
Allows to use register callbacks
USE_HAL_AES_GET_LAST_ERRORS
from hal_conf.h
0
Allows to use error code mechanism
USE_HAL_AES_USER_DATA
from hal_conf.h
0
Allows to use user data
