STM32C5xx HAL Drivers
HAL XSPI Overview ¶
Introducing XSPI ¶
- group XSPI_Introduction
-
The XSPI hardware abstraction layer provides a set of APIs to interface with the STM32 XSPI (Extended Serial Peripheral Interface) peripheral.
It simplifies the configuration, initialization, and management of XSPI communication. Memory configuration and data transfer can be performed in different modes:
Indirect access mode: polling, interrupt, DMA for configuration and data transfer.
Direct access mode: memory mapped for data transfer only.
This abstraction layer ensures portability and ease of use across different STM32 series.
Module and files ¶
The following diagram illustrates the XSPI module and its associated files.

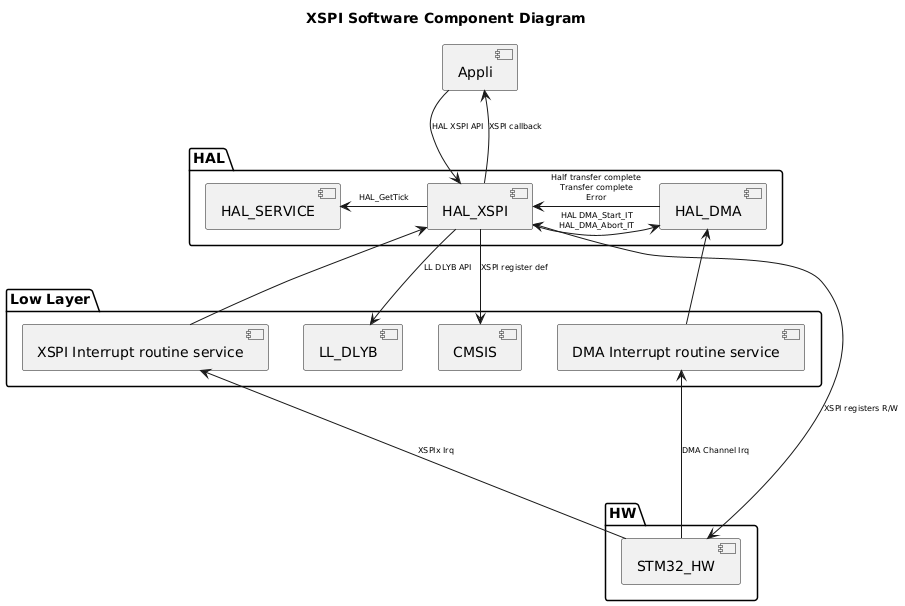

Component diagram ¶
The following diagram illustrates the software components involved in the XSPI module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title XSPI Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_XSPI]
[HAL_DMA]
}
package "Low Layer" {
[LL_DLYB]
[CMSIS]
[XSPI Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_XSPI] : HAL XSPI API
[Appli] <-- [HAL_XSPI] : XSPI callback
[HAL_XSPI] --> [LL_DLYB] : LL DLYB API
[HAL_XSPI] -r-> [HAL_DMA] : HAL DMA_Start_IT\nHAL_DMA_Abort_IT
[HAL_XSPI] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_XSPI] <-- [XSPI Interrupt routine service]
[HAL_XSPI] <-r- [HAL_DMA]:Half transfer complete\nTransfer complete\nError
[HAL_XSPI] --> [CMSIS]:XSPI register def
[HAL_DMA] <-d- [DMA Interrupt routine service]
[STM32_HW] -u--> [XSPI Interrupt routine service]: XSPIx Irq
[STM32_HW] -u--> [DMA Interrupt routine service] : DMA Channel Irq
[STM32_HW] <-u--> [HAL_XSPI] : XSPI registers R/W
@enduml](../../../../_images/plantuml-a2822dfd4b28b650971b6a57881c887eae5a543d.png)
Configuration table ¶
The following table lists the configuration defines for the HAL XSPI module, specifying their locations, default values, and descriptions:
- group XSPI_Configuration_Table
-
¶
Configuration inside the XSPI driver ¶
Config defines
Description
Default value
Note
PRODUCT
from IDE
NA
The selected device (Ex: STM32C5XX)
USE_HAL_XSPI_MODULE
from hal_conf.h
1U
Allows use of the HAL XSPI module
USE_ASSERT_DBG_PARAM
from IDE
NA
Allows use of the assert check parameters
USE_ASSERT_DBG_STATE
from IDE
NA
Allows use of the assert check states
USE_HAL_CHECK_PARAM
from hal_conf.h
0U
Allows use of the run-time check parameters
USE_HAL_CHECK_PROCESS_STATE
from hal_conf.h
0U
Allows load and store exclusive operations
USE_HAL_XSPI_DMA
from hal_conf.h
1U
Allows use of DMA mode
USE_HAL_XSPI_HYPERBUS
from hal_conf.h
1U
Allows use of the HYPERBUS protocol
USE_HAL_XSPI_REGISTER_CALLBACKS
from hal_conf.h
0U
Allows use of register callbacks
USE_HAL_XSPI_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Allows use of the clock enable model
