HAL RTC Use Cases

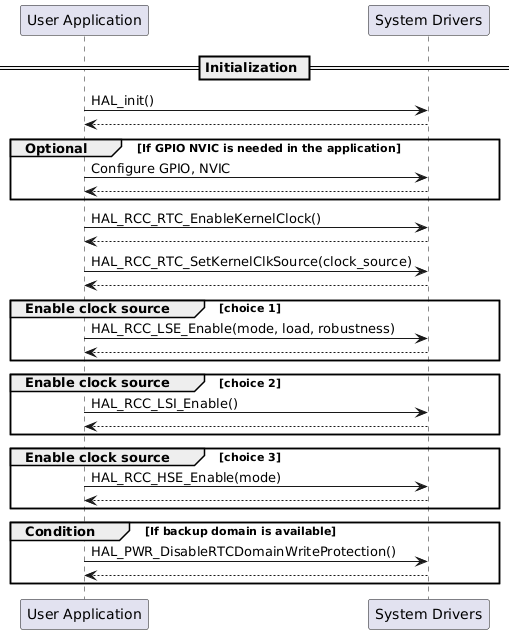

RTC initialization

@startuml participant "User Application" as app participant "System Drivers" as driv == Initialization == app -> driv: HAL_init() driv --> app group Optional [If GPIO NVIC is needed in the application] app -> driv: Configure GPIO, NVIC driv --> app end app -> driv: HAL_RCC_RTC_EnableKernelClock() driv --> app app -> driv: HAL_RCC_RTC_SetKernelClkSource(clock_source) driv --> app group Enable clock source [choice 1] app -> driv: HAL_RCC_LSE_Enable(mode, load, robustness) driv --> app end group Enable clock source [choice 2] app -> driv: HAL_RCC_LSI_Enable() driv --> app end group Enable clock source [choice 3] app -> driv: HAL_RCC_HSE_Enable(mode) driv --> app end group Condition [If backup domain is available] app -> driv: HAL_PWR_DisableRTCDomainWriteProtection() driv --> app end @enduml

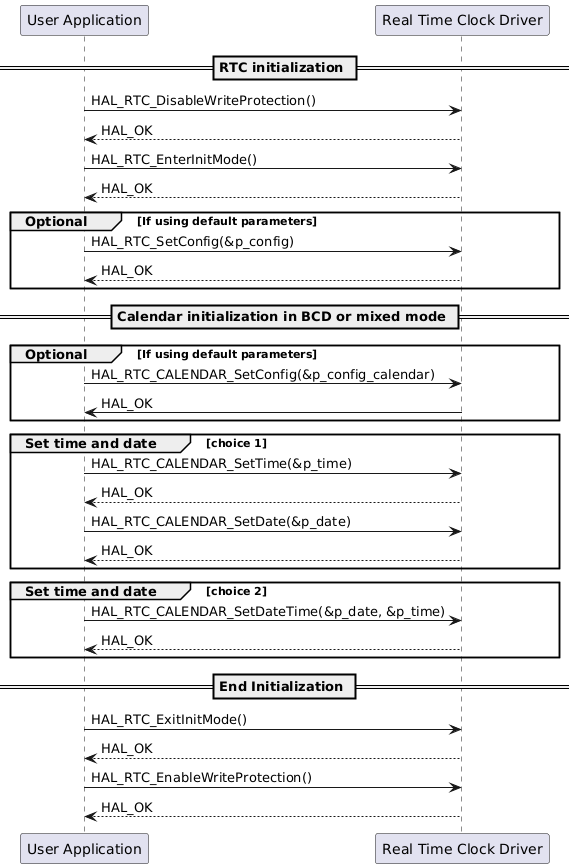

RTC calendar

@startuml participant "User Application" as app participant "Real Time Clock Driver" as rtc == RTC initialization == app -> rtc : HAL_RTC_DisableWriteProtection() rtc --> app : HAL_OK app -> rtc : HAL_RTC_EnterInitMode() rtc --> app : HAL_OK group Optional [If using default parameters] app -> rtc: HAL_RTC_SetConfig(&p_config) rtc --> app: HAL_OK end == Calendar initialization in BCD or mixed mode == group Optional [If using default parameters] app -> rtc : HAL_RTC_CALENDAR_SetConfig(&p_config_calendar) rtc -> app : HAL_OK end group Set time and date [choice 1] app -> rtc : HAL_RTC_CALENDAR_SetTime(&p_time) rtc --> app : HAL_OK app -> rtc : HAL_RTC_CALENDAR_SetDate(&p_date) rtc --> app : HAL_OK end group Set time and date [choice 2] app -> rtc : HAL_RTC_CALENDAR_SetDateTime(&p_date, &p_time) rtc --> app : HAL_OK end == End Initialization == app -> rtc : HAL_RTC_ExitInitMode() rtc --> app : HAL_OK app -> rtc : HAL_RTC_EnableWriteProtection() rtc --> app : HAL_OK @enduml

Called functions:

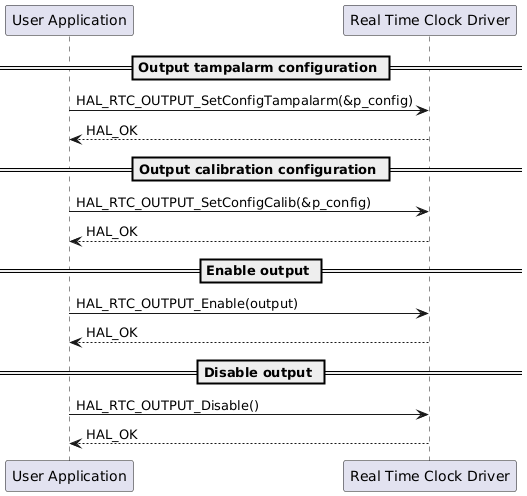

RTC output

@startuml participant "User Application" as app participant "Real Time Clock Driver" as rtc == Output tampalarm configuration == app -> rtc : HAL_RTC_OUTPUT_SetConfigTampalarm(&p_config) rtc --> app : HAL_OK == Output calibration configuration == app -> rtc : HAL_RTC_OUTPUT_SetConfigCalib(&p_config) rtc --> app : HAL_OK == Enable output == app -> rtc: HAL_RTC_OUTPUT_Enable(output) rtc --> app : HAL_OK == Disable output == app -> rtc : HAL_RTC_OUTPUT_Disable() rtc --> app : HAL_OK @enduml

Called functions:

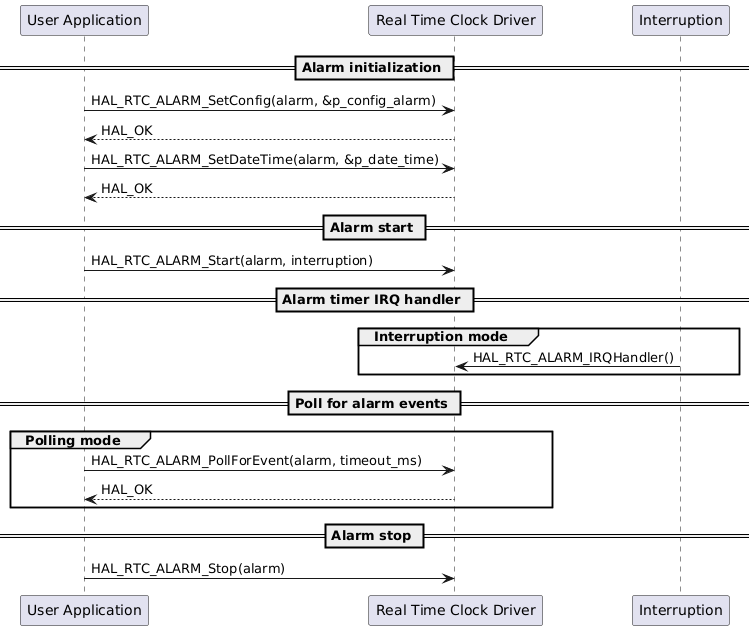

RTC alarm

@startuml participant "User Application" as app participant "Real Time Clock Driver" as rtc participant "Interruption" as int == Alarm initialization == app -> rtc : HAL_RTC_ALARM_SetConfig(alarm, &p_config_alarm) rtc --> app : HAL_OK app -> rtc : HAL_RTC_ALARM_SetDateTime(alarm, &p_date_time) rtc --> app : HAL_OK == Alarm start == app -> rtc: HAL_RTC_ALARM_Start(alarm, interruption) == Alarm timer IRQ handler == group Interruption mode int -> rtc : HAL_RTC_ALARM_IRQHandler() end == Poll for alarm events == group Polling mode app -> rtc: HAL_RTC_ALARM_PollForEvent(alarm, timeout_ms) rtc --> app: HAL_OK end == Alarm stop == app -> rtc: HAL_RTC_ALARM_Stop(alarm) @enduml

Called functions:

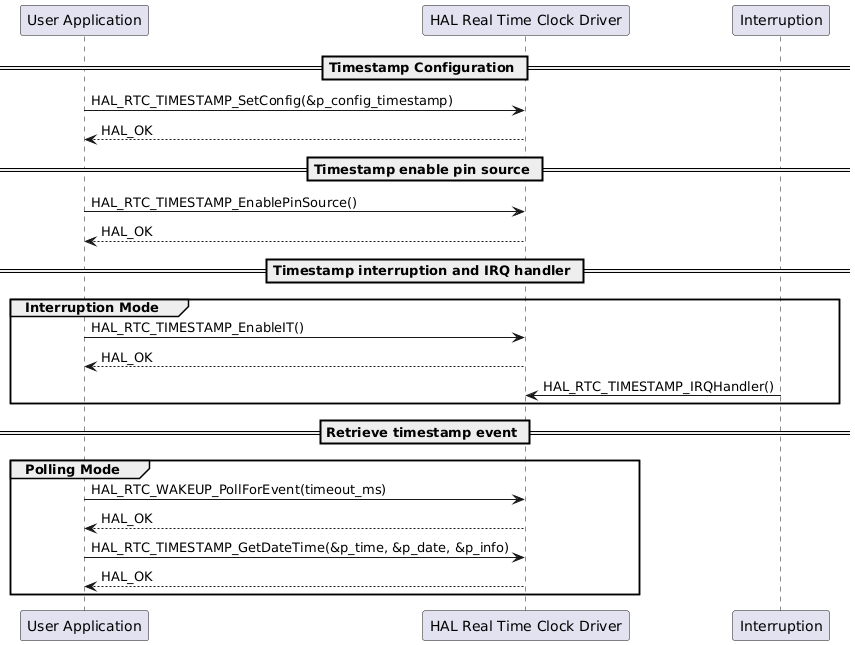

RTC timestamp

@startuml participant "User Application" as app participant "HAL Real Time Clock Driver" as rtc participant "Interruption" as int == Timestamp Configuration == app -> rtc : HAL_RTC_TIMESTAMP_SetConfig(&p_config_timestamp) rtc --> app : HAL_OK == Timestamp enable pin source == app -> rtc: HAL_RTC_TIMESTAMP_EnablePinSource() rtc --> app : HAL_OK == Timestamp interruption and IRQ handler == group Interruption Mode app -> rtc: HAL_RTC_TIMESTAMP_EnableIT() rtc --> app: HAL_OK int -> rtc : HAL_RTC_TIMESTAMP_IRQHandler() end == Retrieve timestamp event == group Polling Mode app -> rtc: HAL_RTC_WAKEUP_PollForEvent(timeout_ms) rtc --> app: HAL_OK app -> rtc: HAL_RTC_TIMESTAMP_GetDateTime(&p_time, &p_date, &p_info) rtc --> app: HAL_OK end @enduml

Called functions:

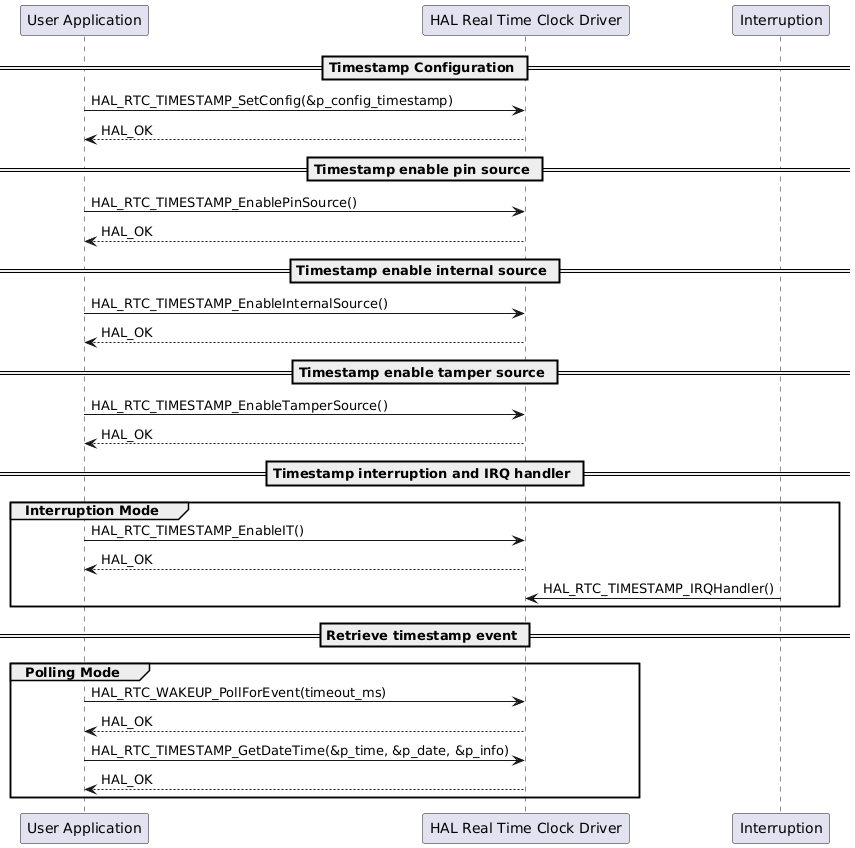

Timestamp enable tamper source

@startuml participant "User Application" as app participant "HAL Real Time Clock Driver" as rtc participant "Interruption" as int == Timestamp Configuration == app -> rtc : HAL_RTC_TIMESTAMP_SetConfig(&p_config_timestamp) rtc --> app : HAL_OK == Timestamp enable pin source == app -> rtc: HAL_RTC_TIMESTAMP_EnablePinSource() rtc --> app : HAL_OK == Timestamp enable internal source == app -> rtc: HAL_RTC_TIMESTAMP_EnableInternalSource() rtc --> app : HAL_OK == Timestamp enable tamper source == app -> rtc: HAL_RTC_TIMESTAMP_EnableTamperSource() rtc --> app : HAL_OK == Timestamp interruption and IRQ handler == group Interruption Mode app -> rtc: HAL_RTC_TIMESTAMP_EnableIT() rtc --> app: HAL_OK int -> rtc : HAL_RTC_TIMESTAMP_IRQHandler() end == Retrieve timestamp event == group Polling Mode app -> rtc: HAL_RTC_WAKEUP_PollForEvent(timeout_ms) rtc --> app: HAL_OK app -> rtc: HAL_RTC_TIMESTAMP_GetDateTime(&p_time, &p_date, &p_info) rtc --> app: HAL_OK end @enduml

Called functions:

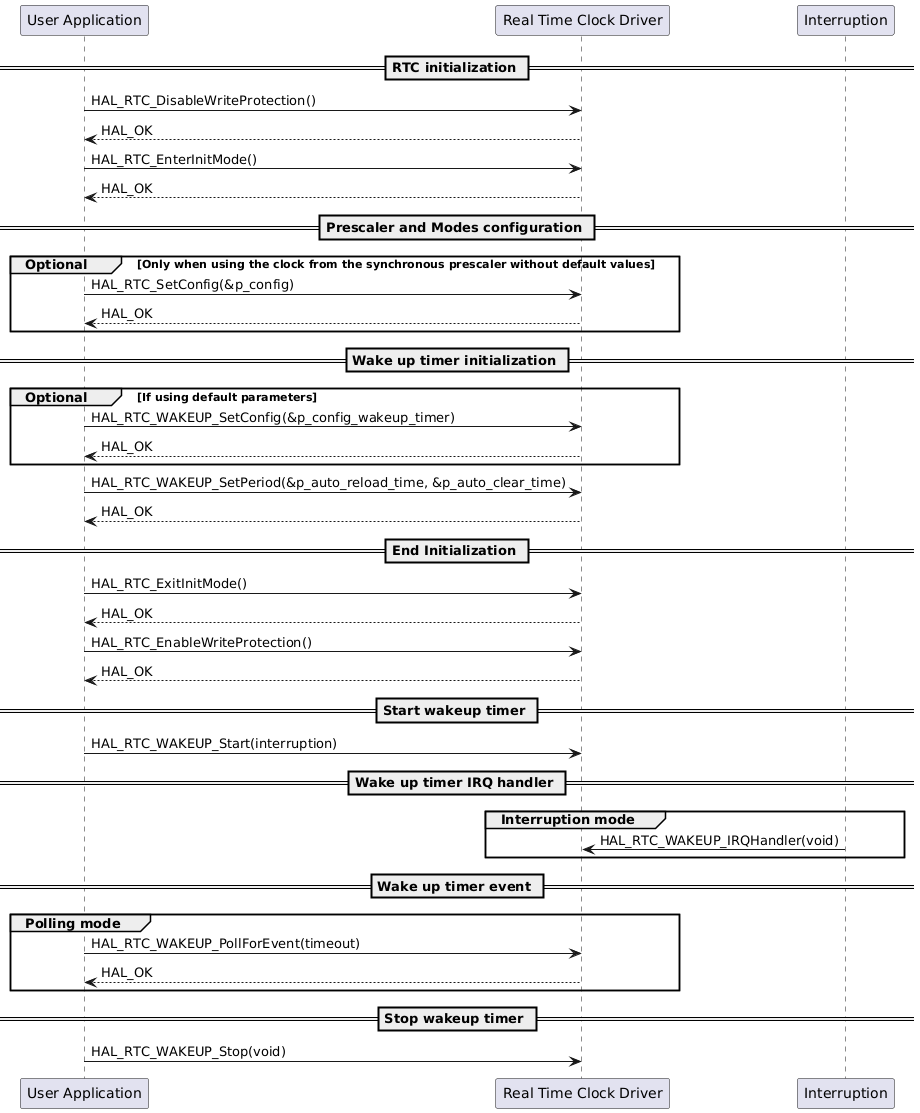

RTC wake-up timer

@startuml participant "User Application" as app participant "Real Time Clock Driver" as rtc participant "Interruption" as int == RTC initialization == app -> rtc : HAL_RTC_DisableWriteProtection() rtc --> app : HAL_OK app -> rtc : HAL_RTC_EnterInitMode() rtc --> app : HAL_OK == Prescaler and Modes configuration == group Optional [Only when using the clock from the synchronous prescaler without default values] app -> rtc : HAL_RTC_SetConfig(&p_config) rtc --> app : HAL_OK end == Wake up timer initialization == group Optional [If using default parameters] app -> rtc : HAL_RTC_WAKEUP_SetConfig(&p_config_wakeup_timer) rtc --> app : HAL_OK end app -> rtc: HAL_RTC_WAKEUP_SetPeriod(&p_auto_reload_time, &p_auto_clear_time) rtc --> app : HAL_OK == End Initialization == app -> rtc : HAL_RTC_ExitInitMode() rtc --> app : HAL_OK app -> rtc : HAL_RTC_EnableWriteProtection() rtc --> app : HAL_OK == Start wakeup timer == app -> rtc : HAL_RTC_WAKEUP_Start(interruption) == Wake up timer IRQ handler == group Interruption mode int -> rtc : HAL_RTC_WAKEUP_IRQHandler(void) end == Wake up timer event == group Polling mode app -> rtc : HAL_RTC_WAKEUP_PollForEvent(timeout) rtc --> app: HAL_OK end == Stop wakeup timer == app -> rtc : HAL_RTC_WAKEUP_Stop(void) @enduml

Called functions:
