HAL TIM Use Cases ¶

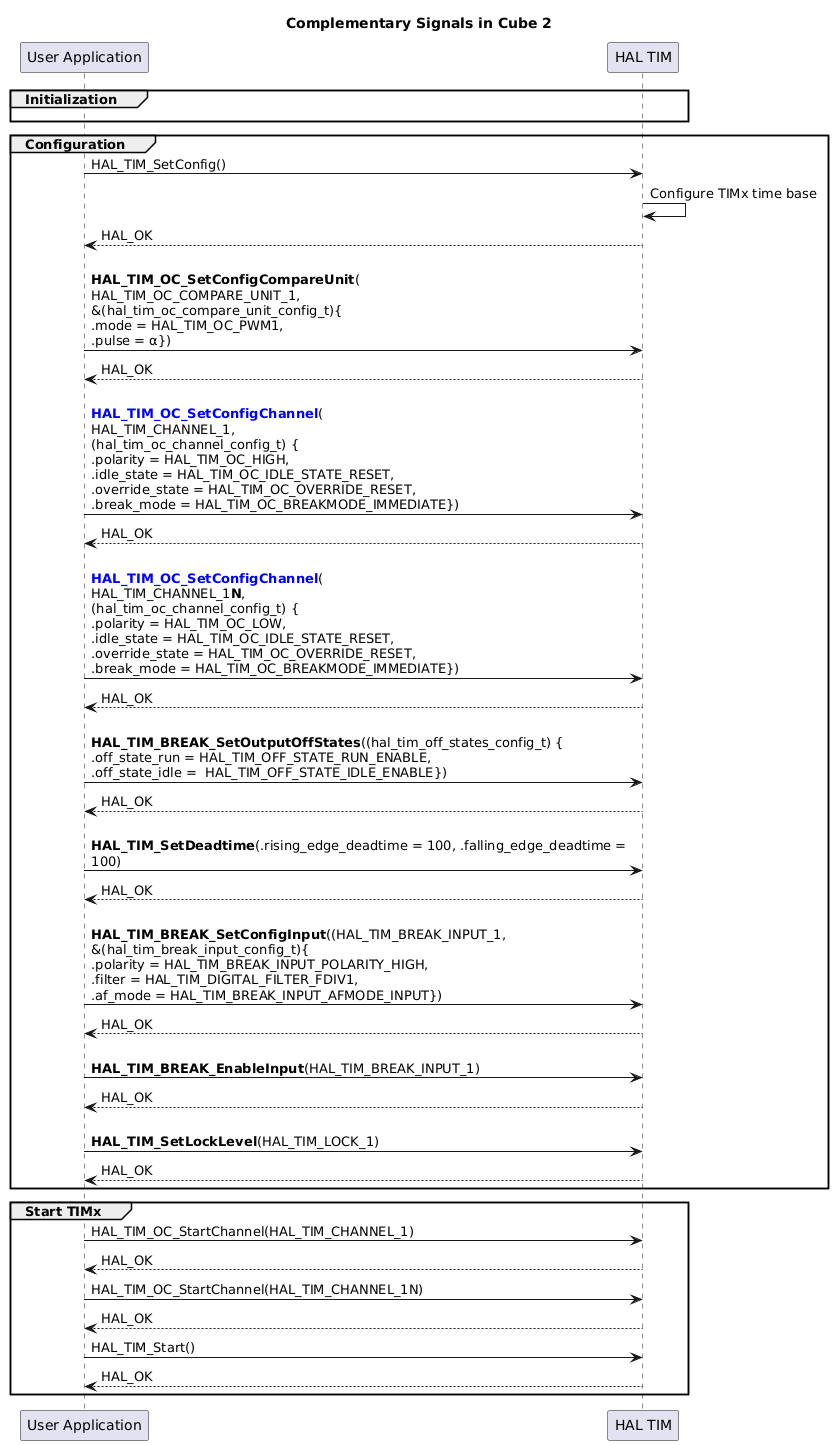

Complementary Signals ¶

$@startuml skinparam maxMessageSize 550 ' To add a number by line 'autonumber title "Complementary Signals in Cube 2" ' Fix order of each column participant "User Application" as App participant "HAL TIM" as Driver group Initialization App -[hidden]>Driver end group Configuration App->Driver : HAL_TIM_SetConfig() Driver -> Driver : Configure TIMx time base Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(\nHAL_TIM_OC_COMPARE_UNIT_1,\n&(hal_tim_oc_compare_unit_config_t){\n.mode = HAL_TIM_OC_PWM1,\n.pulse = α}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(\nHAL_TIM_CHANNEL_1,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_RESET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(\nHAL_TIM_CHANNEL_1N,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_LOW,\n.idle_state = HAL_TIM_OC_IDLE_STATE_RESET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_BREAK_SetOutputOffStates((hal_tim_off_states_config_t) {\n.off_state_run = HAL_TIM_OFF_STATE_RUN_ENABLE,\n.off_state_idle = HAL_TIM_OFF_STATE_IDLE_ENABLE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_SetDeadtime(.rising_edge_deadtime = 100, .falling_edge_deadtime = 100) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_BREAK_SetConfigInput((HAL_TIM_BREAK_INPUT_1,\n&(hal_tim_break_input_config_t){\n.polarity = HAL_TIM_BREAK_INPUT_POLARITY_HIGH,\n.filter = HAL_TIM_DIGITAL_FILTER_FDIV1,\n.af_mode = HAL_TIM_BREAK_INPUT_AFMODE_INPUT}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_BREAK_EnableInput(HAL_TIM_BREAK_INPUT_1) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_SetLockLevel(HAL_TIM_LOCK_1) Driver --> App : HAL_OK end group Start TIMx App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_1) Driver --> App : HAL_OK App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_1N) Driver --> App : HAL_OK App -> Driver : HAL_TIM_Start() Driver --> App : HAL_OK end @enduml <hr>$

Called functions:

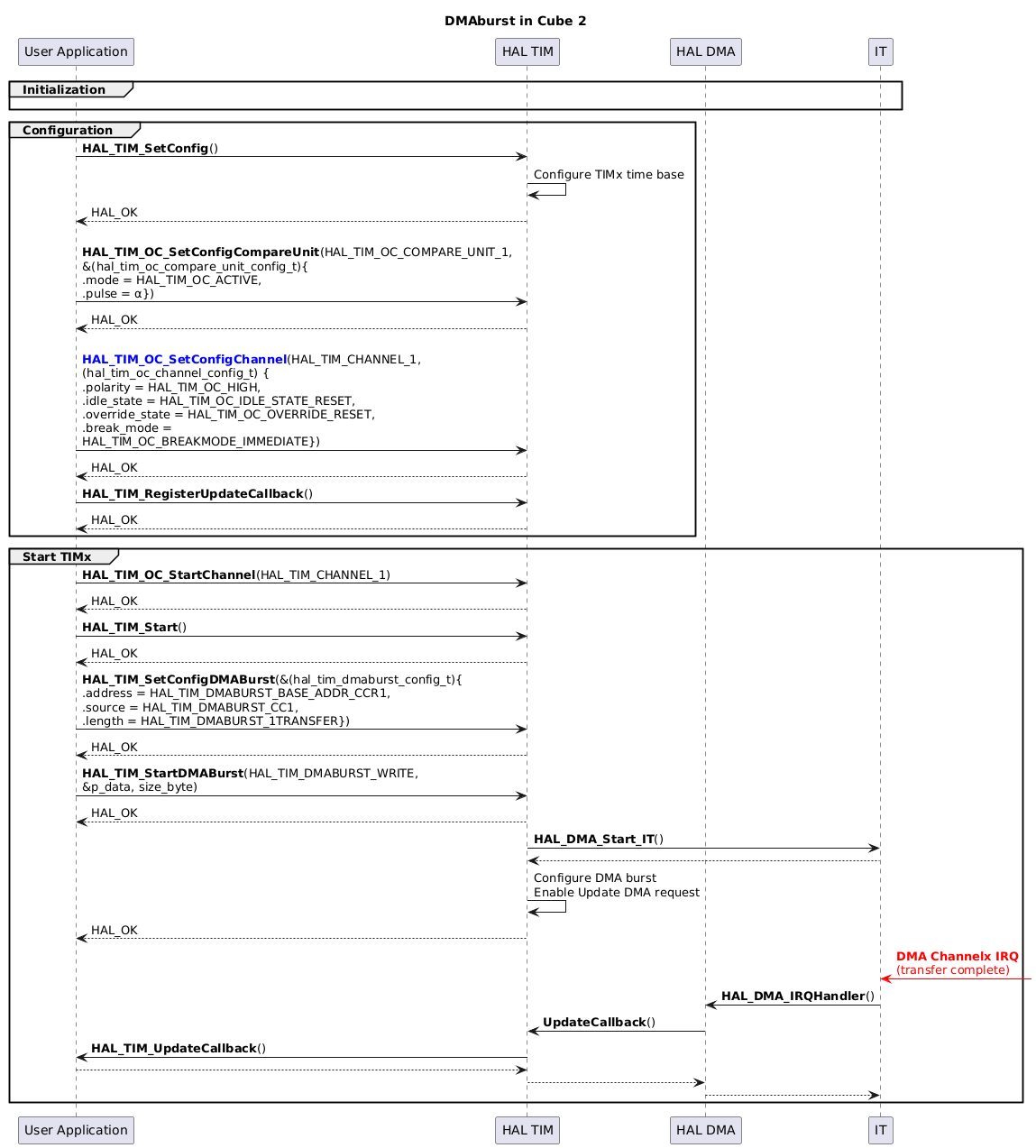

DMAburst ¶

$@startuml skinparam maxMessageSize 350 ' To add a number by line 'autonumber title "DMAburst in Cube 2" ' Fix order of each column participant "User Application" as App participant "HAL TIM" as Driver participant "HAL DMA" as DMA participant "IT" as IT group Initialization App -[hidden]>IT end group Configuration App->Driver : HAL_TIM_SetConfig() Driver -> Driver : Configure TIMx time base Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(HAL_TIM_OC_COMPARE_UNIT_1,\n&(hal_tim_oc_compare_unit_config_t){\n.mode = HAL_TIM_OC_ACTIVE,\n.pulse = α}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(HAL_TIM_CHANNEL_1,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_RESET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : HAL_TIM_RegisterUpdateCallback() Driver --> App : HAL_OK end group Start TIMx App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_1) Driver --> App : HAL_OK App -> Driver : HAL_TIM_Start() Driver --> App : HAL_OK App -> Driver : HAL_TIM_SetConfigDMABurst(&(hal_tim_dmaburst_config_t){\n.address = HAL_TIM_DMABURST_BASE_ADDR_CCR1,\n.source = HAL_TIM_DMABURST_CC1,\n.length = HAL_TIM_DMABURST_1TRANSFER}) Driver --> App : HAL_OK App -> Driver : HAL_TIM_StartDMABurst(HAL_TIM_DMABURST_WRITE, &p_data, size_byte) Driver --> App : HAL_OK Driver -> IT : HAL_DMA_Start_IT() IT --> Driver Driver -> Driver : Configure DMA burst\nEnable Update DMA request Driver --> App: HAL_OK IT <[#red]-] : DMA Channelx IRQ\n(transfer complete) IT -> DMA : HAL_DMA_IRQHandler() DMA -> Driver : UpdateCallback() Driver -> App : HAL_TIM_UpdateCallback() App --> Driver Driver --> DMA DMA --> IT end @enduml <hr/>$

Called functions:

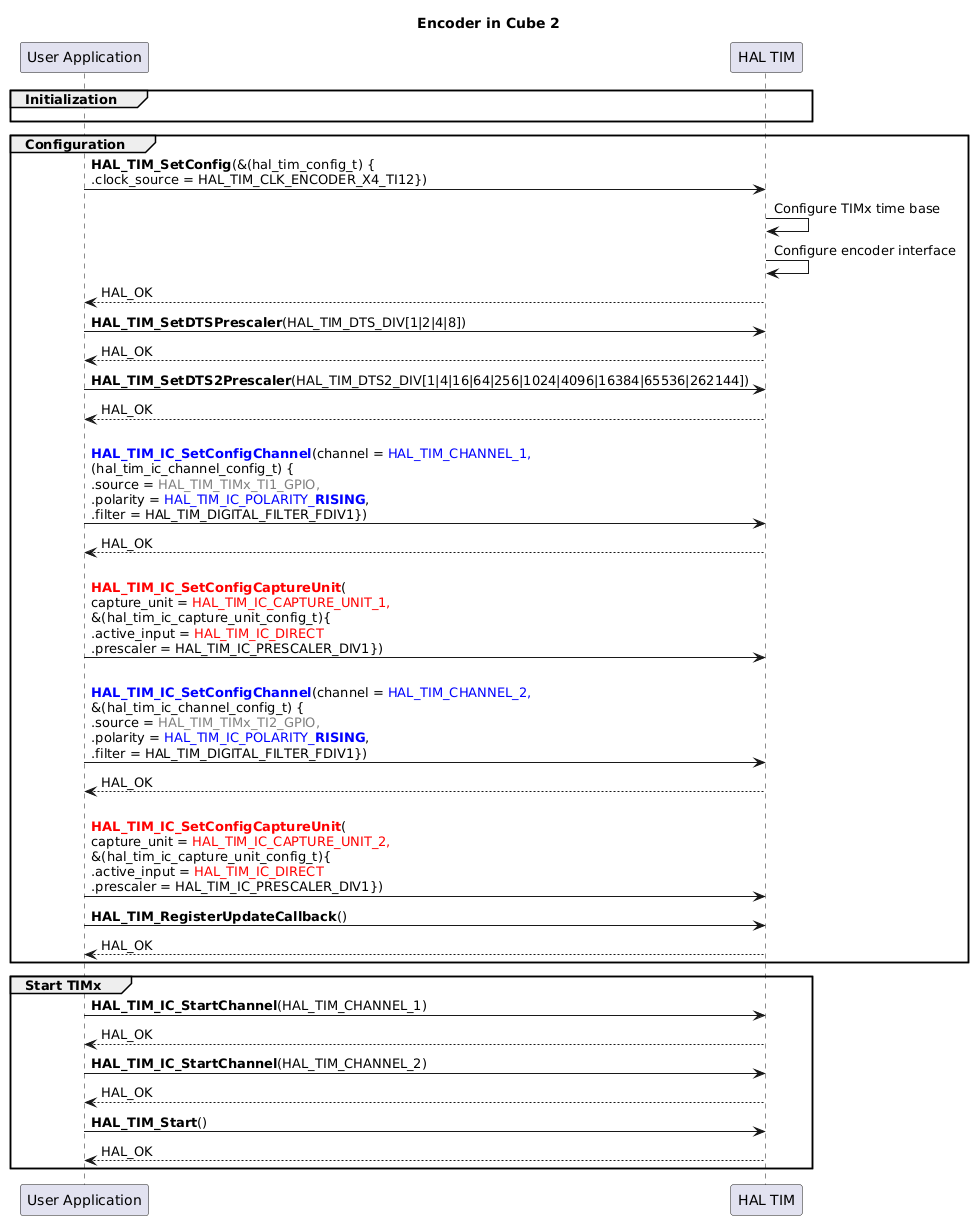

Encoder ¶

$@startuml skinparam maxMessageSize 450 ' To add a number by line 'autonumber title "Encoder in Cube 2" ' Fix order of each column participant "User Application" as App participant "HAL TIM" as Driver group Initialization App -[hidden]>Driver end group Configuration App->Driver : HAL_TIM_SetConfig(&(hal_tim_config_t) {\n.clock_source = HAL_TIM_CLK_ENCODER_X4_TI12}) Driver -> Driver : Configure TIMx time base Driver -> Driver : Configure encoder interface Driver --> App : HAL_OK App->Driver : HAL_TIM_SetDTSPrescaler(HAL_TIM_DTS_DIV[1|2|4|8]) Driver --> App : HAL_OK App->Driver : HAL_TIM_SetDTS2Prescaler(HAL_TIM_DTS2_DIV[1|4|16|64|256|1024|4096|16384|65536|262144]) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_IC_SetConfigChannel(channel = HAL_TIM_CHANNEL_1,\n(hal_tim_ic_channel_config_t) {\n.source = HAL_TIM_TIMx_TI1_GPIO,\n.polarity = HAL_TIM_IC_POLARITY_RISING,\n.filter = HAL_TIM_DIGITAL_FILTER_FDIV1}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_IC_SetConfigCaptureUnit(\ncapture_unit = HAL_TIM_IC_CAPTURE_UNIT_1,\n&(hal_tim_ic_capture_unit_config_t){\n.active_input = HAL_TIM_IC_DIRECT\n.prescaler = HAL_TIM_IC_PRESCALER_DIV1}) App -> Driver : \nHAL_TIM_IC_SetConfigChannel(channel = HAL_TIM_CHANNEL_2,\n&(hal_tim_ic_channel_config_t) {\n.source = HAL_TIM_TIMx_TI2_GPIO,\n.polarity = HAL_TIM_IC_POLARITY_RISING,\n.filter = HAL_TIM_DIGITAL_FILTER_FDIV1}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_IC_SetConfigCaptureUnit(\ncapture_unit = HAL_TIM_IC_CAPTURE_UNIT_2,\n&(hal_tim_ic_capture_unit_config_t){\n.active_input = HAL_TIM_IC_DIRECT\n.prescaler = HAL_TIM_IC_PRESCALER_DIV1}) App -> Driver : HAL_TIM_RegisterUpdateCallback() Driver --> App : HAL_OK end group Start TIMx App -> Driver : HAL_TIM_IC_StartChannel(HAL_TIM_CHANNEL_1) Driver --> App : HAL_OK App -> Driver : HAL_TIM_IC_StartChannel(HAL_TIM_CHANNEL_2) Driver --> App : HAL_OK App -> Driver : HAL_TIM_Start() Driver --> App : HAL_OK end @enduml <hr/>$

Called functions:

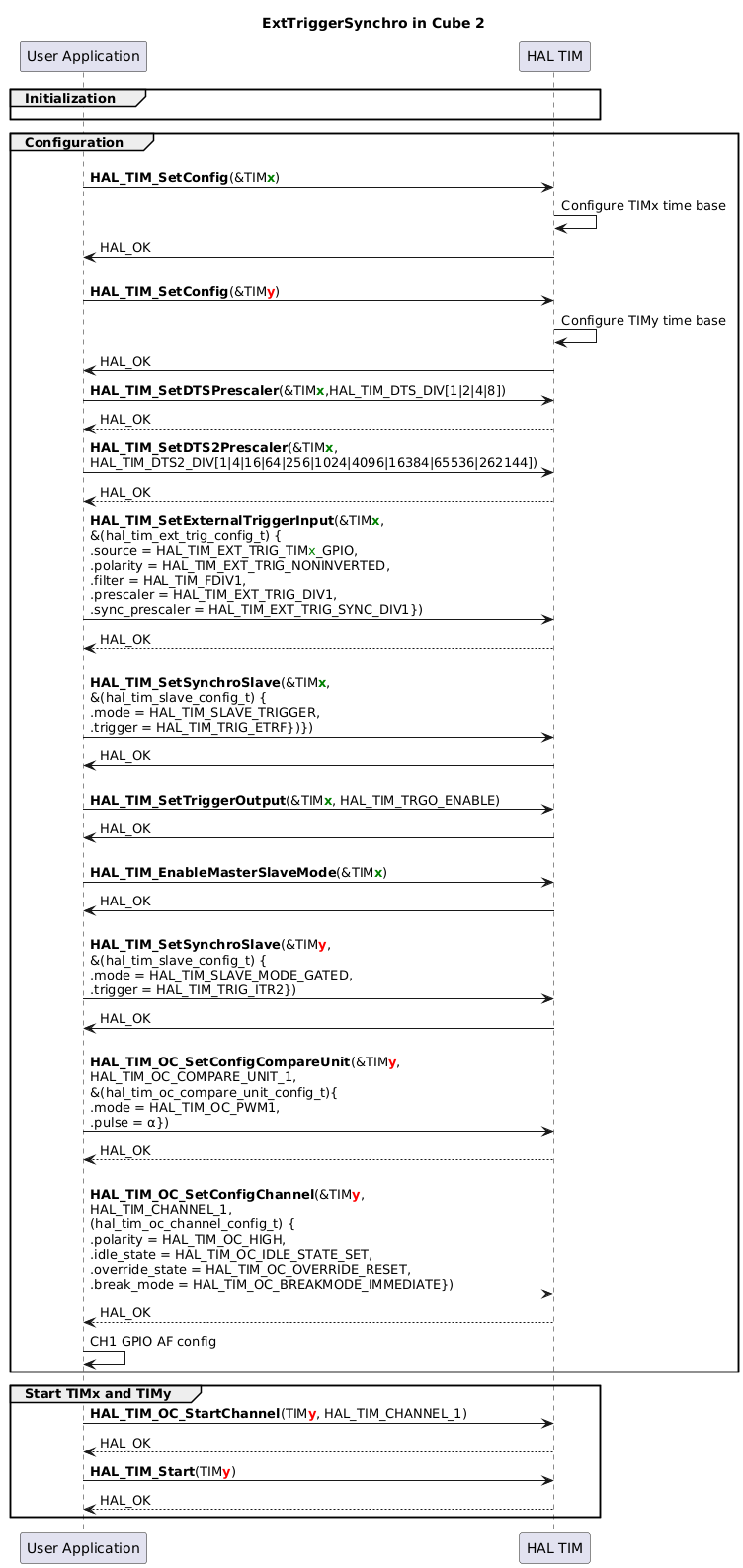

ExtTriggerSynchro ¶

$@startuml skinparam maxMessageSize 450 ' To add a number by line 'autonumber title "ExtTriggerSynchro in Cube 2" ' Fix order of each column participant "User Application" as App participant "HAL TIM" as Driver group Initialization App -[hidden]>Driver end group Configuration App -> Driver : \nHAL_TIM_SetConfig(&TIMx) Driver -> Driver : Configure TIMx time base Driver -> App : HAL_OK App -> Driver : \nHAL_TIM_SetConfig(&TIMy) Driver -> Driver : Configure TIMy time base Driver -> App : HAL_OK App->Driver : HAL_TIM_SetDTSPrescaler(&TIMx,HAL_TIM_DTS_DIV[1|2|4|8]) Driver --> App : HAL_OK App->Driver : HAL_TIM_SetDTS2Prescaler(&TIMx,\nHAL_TIM_DTS2_DIV[1|4|16|64|256|1024|4096|16384|65536|262144]) Driver --> App : HAL_OK App->Driver : HAL_TIM_SetExternalTriggerInput(&TIMx,\n&(hal_tim_ext_trig_config_t) {\n.source = HAL_TIM_EXT_TRIG_TIMx_GPIO,\n.polarity = HAL_TIM_EXT_TRIG_NONINVERTED,\n.filter = HAL_TIM_FDIV1,\n.prescaler = HAL_TIM_EXT_TRIG_DIV1,\n.sync_prescaler = HAL_TIM_EXT_TRIG_SYNC_DIV1}) Driver --> App : HAL_OK App->Driver : \nHAL_TIM_SetSynchroSlave(&TIMx,\n&(hal_tim_slave_config_t) {\n.mode = HAL_TIM_SLAVE_TRIGGER,\n.trigger = HAL_TIM_TRIG_ETRF})}) Driver -> App : HAL_OK App->Driver : \nHAL_TIM_SetTriggerOutput(&TIMx, HAL_TIM_TRGO_ENABLE) Driver -> App : HAL_OK App->Driver : \nHAL_TIM_EnableMasterSlaveMode(&TIMx) Driver -> App : HAL_OK App->Driver : \nHAL_TIM_SetSynchroSlave(&TIMy,\n&(hal_tim_slave_config_t) {\n.mode = HAL_TIM_SLAVE_MODE_GATED,\n.trigger = HAL_TIM_TRIG_ITR2}) Driver -> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(&TIMy,\nHAL_TIM_OC_COMPARE_UNIT_1,\n&(hal_tim_oc_compare_unit_config_t){\n.mode = HAL_TIM_OC_PWM1,\n.pulse = α}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(&TIMy,\nHAL_TIM_CHANNEL_1,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_SET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> App : CH1 GPIO AF config end group Start TIMx and TIMy App -> Driver : HAL_TIM_OC_StartChannel(TIMy, HAL_TIM_CHANNEL_1) Driver --> App : HAL_OK App -> Driver : HAL_TIM_Start(TIMy) Driver --> App : HAL_OK end @enduml <hr/>$

Called functions:

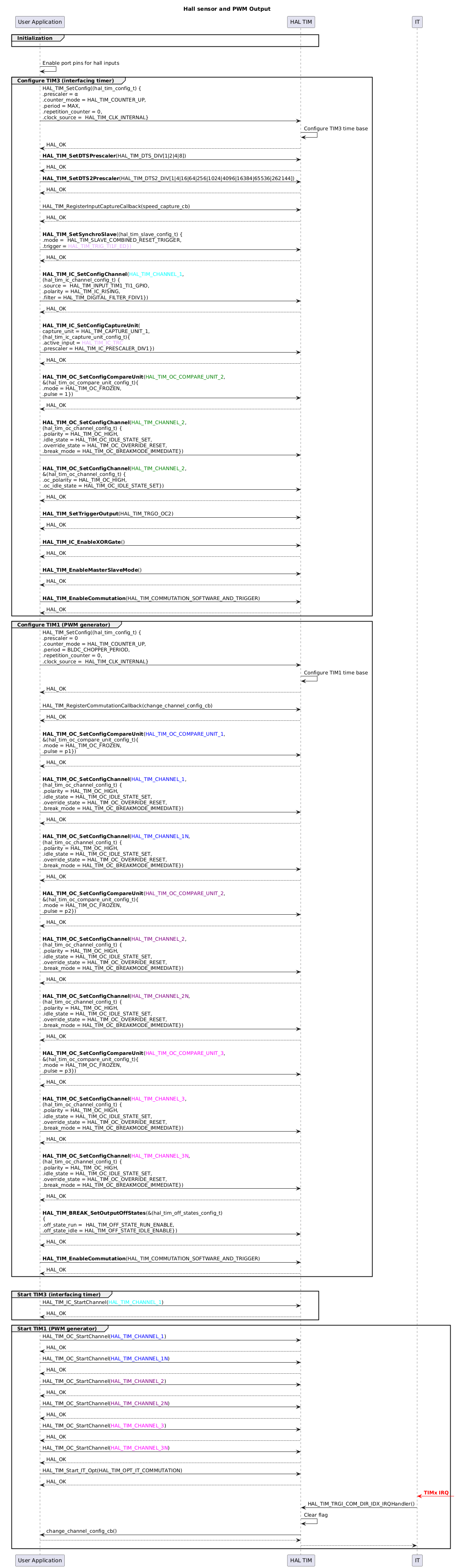

Hall Sensor and PWM Output ¶

$@startuml skinparam maxMessageSize 450 ' To add a number by line 'autonumber title "Hall sensor and PWM Output" ' Fix order of each column participant "User Application" as App participant "HAL TIM" as Driver participant "IT" as IT group Initialization App -[hidden]>Driver end group Configuration App->App : Enable port pins for hall inputs group Configure TIM3 (interfacing timer) App->Driver : HAL_TIM_SetConfig((hal_tim_config_t) {\n.prescaler = α\n.counter_mode = HAL_TIM_COUNTER_UP,\n.period = MAX,\n.repetition_counter = 0,\n.clock_source = HAL_TIM_CLK_INTERNAL} Driver -> Driver : Configure TIM3 time base Driver --> App : HAL_OK App->Driver : HAL_TIM_SetDTSPrescaler(HAL_TIM_DTS_DIV[1|2|4|8]) Driver --> App : HAL_OK App->Driver : HAL_TIM_SetDTS2Prescaler(HAL_TIM_DTS2_DIV[1|4|16|64|256|1024|4096|16384|65536|262144]) Driver --> App : HAL_OK App->Driver : \nHAL_TIM_RegisterInputCaptureCallback(speed_capture_cb) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_SetSynchroSlave((hal_tim_slave_config_t) {\n.mode = HAL_TIM_SLAVE_COMBINED_RESET_TRIGGER,\n.trigger = HAL_TIM_TRIG_TI1F_ED}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_IC_SetConfigChannel(HAL_TIM_CHANNEL_1,\n(hal_tim_ic_channel_config_t) {\n.source = HAL_TIM_INPUT_TIM1_TI1_GPIO,\n.polarity = HAL_TIM_IC_RISING,\n.filter = HAL_TIM_DIGITAL_FILTER_FDIV1}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_IC_SetConfigCaptureUnit(\ncapture_unit = HAL_TIM_CAPTURE_UNIT_1,\n(hal_tim_ic_capture_unit_config_t){\n.active_input = HAL_TIM_IC_TRC\n.prescaler = HAL_TIM_IC_PRESCALER_DIV1}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(HAL_TIM_OC_COMPARE_UNIT_2,\n&(hal_tim_oc_compare_unit_config_t){\n.mode = HAL_TIM_OC_FROZEN,\n.pulse = 1}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(HAL_TIM_CHANNEL_2,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_SET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) App -> Driver : \nHAL_TIM_OC_SetConfigChannel(HAL_TIM_CHANNEL_2,\n&(hal_tim_oc_channel_config_t) {\n.oc_polarity = HAL_TIM_OC_HIGH,\n.oc_idle_state = HAL_TIM_OC_IDLE_STATE_SET}) Driver --> App : HAL_OK App->Driver : \nHAL_TIM_SetTriggerOutput(HAL_TIM_TRGO_OC2) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_IC_EnableXORGate() Driver --> App : HAL_OK App->Driver : \nHAL_TIM_EnableMasterSlaveMode() Driver --> App : HAL_OK App->Driver : \nHAL_TIM_EnableCommutation(HAL_TIM_COMMUTATION_SOFTWARE_AND_TRIGGER) Driver --> App : HAL_OK end group Configure TIM1 (PWM generator) App->Driver : HAL_TIM_SetConfig((hal_tim_config_t) {\n.prescaler = 0\n.counter_mode = HAL_TIM_COUNTER_UP,\n.period = BLDC_CHOPPER_PERIOD,\n.repetition_counter = 0,\n.clock_source = HAL_TIM_CLK_INTERNAL} Driver -> Driver : Configure TIM1 time base Driver --> App : HAL_OK App->Driver : \nHAL_TIM_RegisterCommutationCallback(change_channel_config_cb) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(HAL_TIM_OC_COMPARE_UNIT_1,\n&(hal_tim_oc_compare_unit_config_t){\n.mode = HAL_TIM_OC_FROZEN,\n.pulse = p1}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(HAL_TIM_CHANNEL_1,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_SET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(HAL_TIM_CHANNEL_1N,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_SET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(HAL_TIM_OC_COMPARE_UNIT_2,\n&(hal_tim_oc_compare_unit_config_t){\n.mode = HAL_TIM_OC_FROZEN,\n.pulse = p2}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(HAL_TIM_CHANNEL_2,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_SET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(HAL_TIM_CHANNEL_2N,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_SET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(HAL_TIM_OC_COMPARE_UNIT_3,\n&(hal_tim_oc_compare_unit_config_t){\n.mode = HAL_TIM_OC_FROZEN,\n.pulse = p3}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(HAL_TIM_CHANNEL_3,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_SET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(HAL_TIM_CHANNEL_3N,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_SET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_BREAK_SetOutputOffStates(&(hal_tim_off_states_config_t) {\n.off_state_run = HAL_TIM_OFF_STATE_RUN_ENABLE,\n.off_state_idle = HAL_TIM_OFF_STATE_IDLE_ENABLE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_EnableCommutation(HAL_TIM_COMMUTATION_SOFTWARE_AND_TRIGGER) Driver --> App : HAL_OK end group Start TIMx in IT mode group Start TIM3 (interfacing timer) App -> Driver : HAL_TIM_IC_StartChannel(HAL_TIM_CHANNEL_1) Driver --> App : HAL_OK end group Start TIM1 (PWM generator) App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_1) Driver --> App : HAL_OK App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_1N) Driver --> App : HAL_OK App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_2) Driver --> App : HAL_OK App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_2N) Driver --> App : HAL_OK App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_3) Driver --> App : HAL_OK App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_3N) Driver --> App : HAL_OK App -> Driver : HAL_TIM_Start_IT_Opt(HAL_TIM_OPT_IT_COMMUTATION) Driver --> App : HAL_OK IT <[#red]-] : TIMx IRQ IT -> Driver : HAL_TIM_TRGI_COM_DIR_IDX_IRQHandler() Driver -> Driver : Clear flag Driver -> App: change_channel_config_cb() App --> Driver Driver --> IT end @enduml <hr/>$

Called functions:

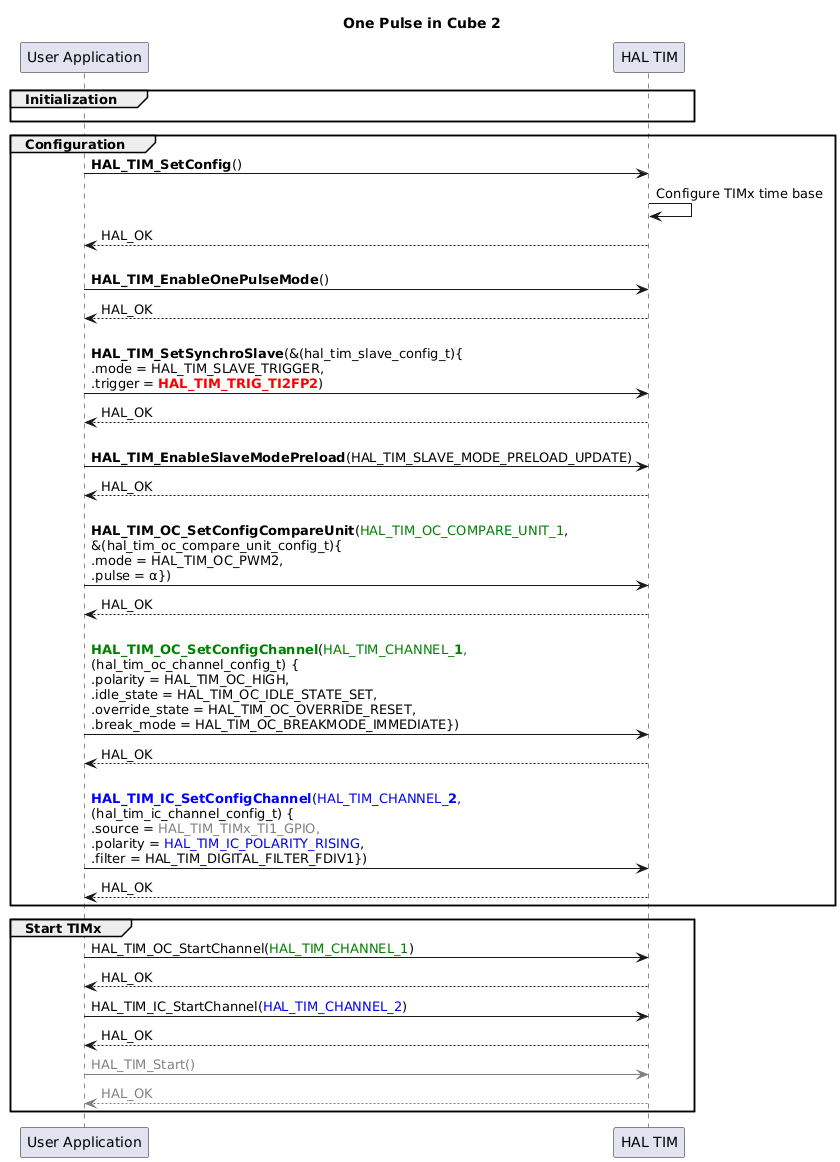

OnePulse ¶

$@startuml skinparam maxMessageSize 450 ' To add a number by line 'autonumber title "One Pulse in Cube 2" ' Fix order of each column participant "User Application" as App participant "HAL TIM" as Driver group Initialization App -[hidden]>Driver end group Configuration App->Driver : HAL_TIM_SetConfig() Driver -> Driver : Configure TIMx time base Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_EnableOnePulseMode() Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_SetSynchroSlave(&(hal_tim_slave_config_t){\n.mode = HAL_TIM_SLAVE_TRIGGER,\n.trigger = HAL_TIM_TRIG_TI2FP2) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_EnableSlaveModePreload(HAL_TIM_SLAVE_MODE_PRELOAD_UPDATE) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(HAL_TIM_OC_COMPARE_UNIT_1,\n&(hal_tim_oc_compare_unit_config_t){\n.mode = HAL_TIM_OC_PWM2,\n.pulse = α}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(HAL_TIM_CHANNEL_1,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_SET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_IC_SetConfigChannel(HAL_TIM_CHANNEL_2,\n(hal_tim_ic_channel_config_t) {\n.source = HAL_TIM_TIMx_TI1_GPIO,\n.polarity = HAL_TIM_IC_POLARITY_RISING,\n.filter = HAL_TIM_DIGITAL_FILTER_FDIV1}) Driver --> App : HAL_OK end group Start TIMx App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_1) Driver --> App : HAL_OK App -> Driver : HAL_TIM_IC_StartChannel(HAL_TIM_CHANNEL_2) Driver --> App : HAL_OK App [#grey]-> Driver : HAL_TIM_Start() Driver [#grey]--> App : HAL_OK end @enduml <hr/>$

Called functions:

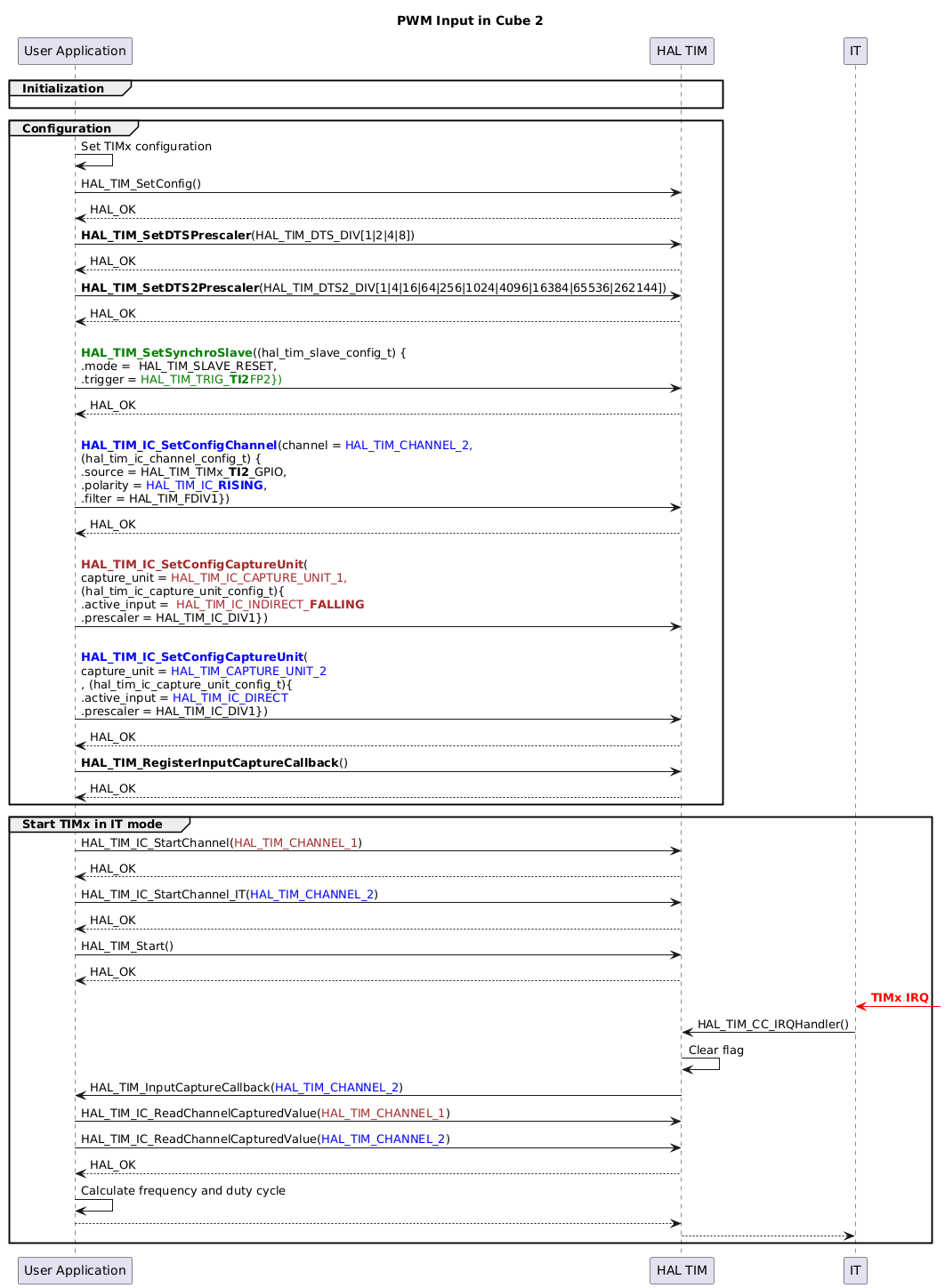

PWM Input ¶

$@startuml skinparam maxMessageSize 450 ' To add a number by line 'autonumber title "PWM Input in Cube 2" ' Fix order of each column participant "User Application" as App participant "HAL TIM" as Driver participant "IT" as IT group Initialization App -[hidden]>Driver end group Configuration App->App : Set TIMx configuration App->Driver : HAL_TIM_SetConfig() Driver --> App : HAL_OK App->Driver : HAL_TIM_SetDTSPrescaler(HAL_TIM_DTS_DIV[1|2|4|8]) Driver --> App : HAL_OK App->Driver : HAL_TIM_SetDTS2Prescaler(HAL_TIM_DTS2_DIV[1|4|16|64|256|1024|4096|16384|65536|262144]) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_SetSynchroSlave((hal_tim_slave_config_t) {\n.mode = HAL_TIM_SLAVE_RESET,\n.trigger = HAL_TIM_TRIG_TI2FP2}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_IC_SetConfigChannel(channel = HAL_TIM_CHANNEL_2,\n(hal_tim_ic_channel_config_t) {\n.source = HAL_TIM_TIMx_TI2_GPIO,\n.polarity = HAL_TIM_IC_RISING,\n.filter = HAL_TIM_FDIV1}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_IC_SetConfigCaptureUnit(\ncapture_unit = HAL_TIM_IC_CAPTURE_UNIT_1,\n(hal_tim_ic_capture_unit_config_t){\n.active_input = HAL_TIM_IC_INDIRECT_FALLING\n.prescaler = HAL_TIM_IC_DIV1}) App -> Driver : \nHAL_TIM_IC_SetConfigCaptureUnit(\ncapture_unit = HAL_TIM_CAPTURE_UNIT_2\n, (hal_tim_ic_capture_unit_config_t){\n.active_input = HAL_TIM_IC_DIRECT\n.prescaler = HAL_TIM_IC_DIV1}) Driver --> App : HAL_OK App -> Driver : HAL_TIM_RegisterInputCaptureCallback() Driver --> App : HAL_OK end group Start TIMx in IT mode App -> Driver : HAL_TIM_IC_StartChannel(HAL_TIM_CHANNEL_1) Driver --> App : HAL_OK App -> Driver : HAL_TIM_IC_StartChannel_IT(HAL_TIM_CHANNEL_2) Driver --> App : HAL_OK App -> Driver : HAL_TIM_Start() Driver --> App : HAL_OK IT <[#red]-] : TIMx IRQ IT -> Driver : HAL_TIM_CC_IRQHandler() Driver -> Driver : Clear flag Driver -> App : HAL_TIM_InputCaptureCallback(HAL_TIM_CHANNEL_2) App -> Driver : HAL_TIM_IC_ReadChannelCapturedValue(HAL_TIM_CHANNEL_1) App -> Driver : HAL_TIM_IC_ReadChannelCapturedValue(HAL_TIM_CHANNEL_2) Driver --> App : HAL_OK App -> App : Calculate frequency and duty cycle App --> Driver Driver --> IT end @enduml <hr/>$

Called functions:

PWM Output ¶

$@startuml skinparam maxMessageSize 440 ' To add a number by line 'autonumber title "PWM Output in Cube 2" ' Fix order of each column participant "User Application" as App participant "HAL TIM" as Driver participant "IT" as IT group Initialization App -[hidden]>Driver end group Configuration App->Driver : HAL_TIM_SetConfig((hal_tim_config_t) {\n.prescaler = α\n.counter_mode = HAL_TIM_COUNTER_UP,\n.period = β,\n.repetition_counter = δ,\n.clock_source = HAL_TIM_CLK_INTERNAL} Driver -> Driver : Configure TIMx time base Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(\ncompare_unit = HAL_TIM_OC_COMPARE_UNIT_1,\n(hal_tim_oc_compare_unit_config_t ) {\n.mode = HAL_TIM_OC_PWM1,\n.pulse = PULSE1_VALUE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(channel = HAL_TIM_CHANNEL_1,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_RESET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(\ncompare_unit = HAL_TIM_OC_COMPARE_UNIT_2,\n(hal_tim_oc_compare_unit_config_t ) {\n.mode = HAL_TIM_OC_PWM1,\n.pulse = PULSE2_VALUE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(channel = HAL_TIM_CHANNEL_2,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_RESET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(\ncompare_unit = HAL_TIM_OC_COMPARE_UNIT_3,\n(hal_tim_oc_compare_unit_config_t ) {\n.mode = HAL_TIM_OC_PWM1,\n.pulse = PULSE3_VALUE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(channel = HAL_TIM_CHANNEL_3,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_RESET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigCompareUnit(\ncompare_unit = HAL_TIM_OC_COMPARE_UNIT_4,\n(hal_tim_oc_compare_unit_config_t ) {\n.mode = HAL_TIM_OC_PWM1,\n.pulse = PULSE4_VALUE}) Driver --> App : HAL_OK App -> Driver : \nHAL_TIM_OC_SetConfigChannel(channel = HAL_TIM_CHANNEL_4,\n(hal_tim_oc_channel_config_t) {\n.polarity = HAL_TIM_OC_HIGH,\n.idle_state = HAL_TIM_OC_IDLE_STATE_RESET,\n.override_state = HAL_TIM_OC_OVERRIDE_RESET,\n.break_mode = HAL_TIM_OC_BREAKMODE_IMMEDIATE}) Driver --> App : HAL_OK end group Start TIMx in IT mode App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_1) Driver --> App : HAL_OK App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_2) Driver --> App : HAL_OK App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_3) Driver --> App : HAL_OK App -> Driver : HAL_TIM_OC_StartChannel(HAL_TIM_CHANNEL_4) Driver --> App : HAL_OK App -> Driver : HAL_TIM_Start() Driver --> App : HAL_OK end @enduml <hr/>$

Called functions:

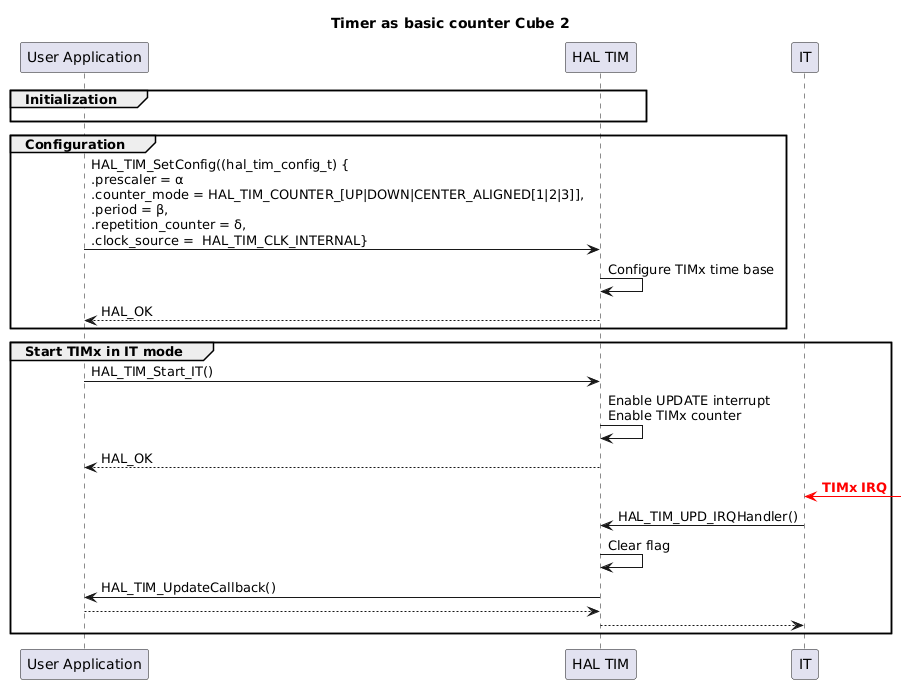

Timebase ¶

$@startuml ' To add a number by line 'autonumber title "Timer as basic counter Cube 2" ' Fix order of each column participant "User Application" as App participant "HAL TIM" as Driver participant "IT" as IT group Initialization App -[hidden]>Driver end group Configuration App->Driver : HAL_TIM_SetConfig((hal_tim_config_t) {\n.prescaler = α\n.counter_mode = HAL_TIM_COUNTER_[UP|DOWN|CENTER_ALIGNED[1|2|3]],\n.period = β,\n.repetition_counter = δ,\n.clock_source = HAL_TIM_CLK_INTERNAL} Driver -> Driver : Configure TIMx time base Driver --> App : HAL_OK end group Start TIMx in IT mode App->Driver : HAL_TIM_Start_IT() Driver->Driver : Enable UPDATE interrupt\nEnable TIMx counter Driver --> App : HAL_OK IT <[#red]-] : TIMx IRQ IT -> Driver : HAL_TIM_UPD_IRQHandler() Driver -> Driver : Clear flag Driver -> App: HAL_TIM_UpdateCallback() App --> Driver Driver --> IT end @enduml <hr/>$

Called functions:
